Automatic Rigid Box Making Machine S420YS Double Capacity
- Category: Packaging Forming Machines >>>
- Supplier: ZHEJIANG XINWEI MACHINERY CO. LTD.
Share on (50044973502):
Product Overview
Description
Product Description
Paper Wrap Size (AXB) | A: 95~610mm B: 180~850mm | Cardboard Size (CXD) | 600x800mm |
Paper Wrap Thickness | 100-300g/m2 | Cardboard Thickness (T) | 0.8-3mm |
Finished Box Size (LxWxH) | L: 100~600mm W: 50~400mm H: 15~150mm | Turn in Deepth (R) | R: 7~100mm |
Turn in Side | 10~125mm | Position Precision | ± 0.3mm |
Production Speed | 0~35 boxes/min | Paper Pile Height | 300mm |
Cardboard Pile Height | 1000mm | Electrical Power | 18KW/380V/3Phase |
Glue Tank Capacity | 60L | Air Consumption | 12L/min 0.6Mpa |
Machine Weight | 6800kg | Machine Dimension (LxWxH) | 6600x5800x3250mm |
Introduction:

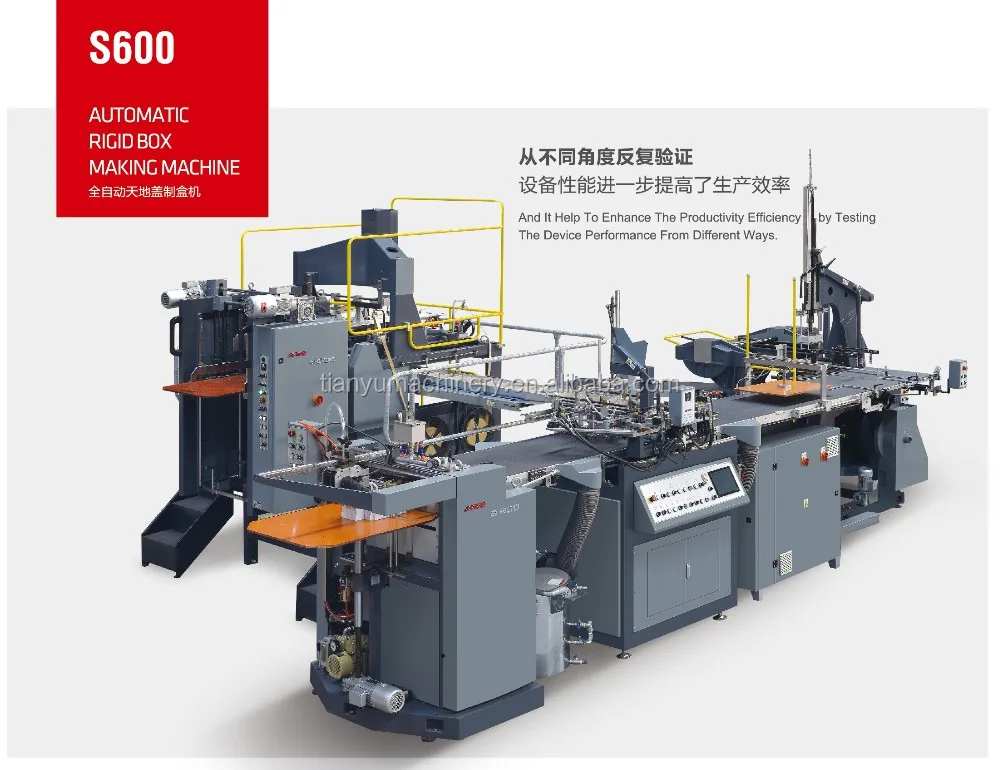

Xinwei S600C automatic rigid box making machine is the best equipment to make top grade rigid box, such as shoes box, shirt box, jewelry box, gift box and other luxurious paper boxes. And its two box wrapping double the production capacity.
1. Hot melt glue cycle, mix and control the viscosity automatically.
2. The glue is coated evenly. The thickness is adjusted by mechanical tuning mechnism.
3. Using photoelectric hydraulic pneumatic mechanism improve precision.
4. Automatic collecting box forming part adopt guide rod, improving precision.
5. Forming and folding mechanism adopts mechanical and electrical pneumatic to solve the whole folding ear problem and middle folding ear problem.
6. Forming and folding mechanism adopts mechanical and pneumatic together to achieve full fold into the high-end 100mm.
7. After the box forming, we changed the mechanical mechnism to achieve twice bubble pressing.
Other Products
Our Company

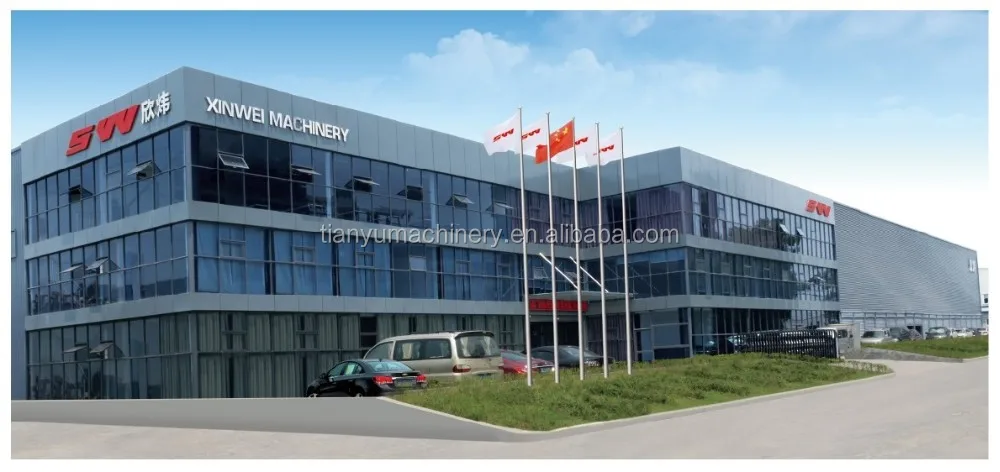

ZHEJIANG XINWEI MACHINERY CO., LTD is an integrated high-tech enterprise setting research and development, manufacturing, sales and service as one. From the beginning, we always adhere to the management concept of "technological innovation and development, quality of survival" and set establishing an international high standard of packaging machine manufacturing system as the mission. Always listening to the clients' voice, meeting customer expectations-oriented, and in-depth researching and development, we have won numbers of national invention patents and the latest national standards as "the national high-tech enterprise", and passed the ISO9001:2008 and CE certificate.
