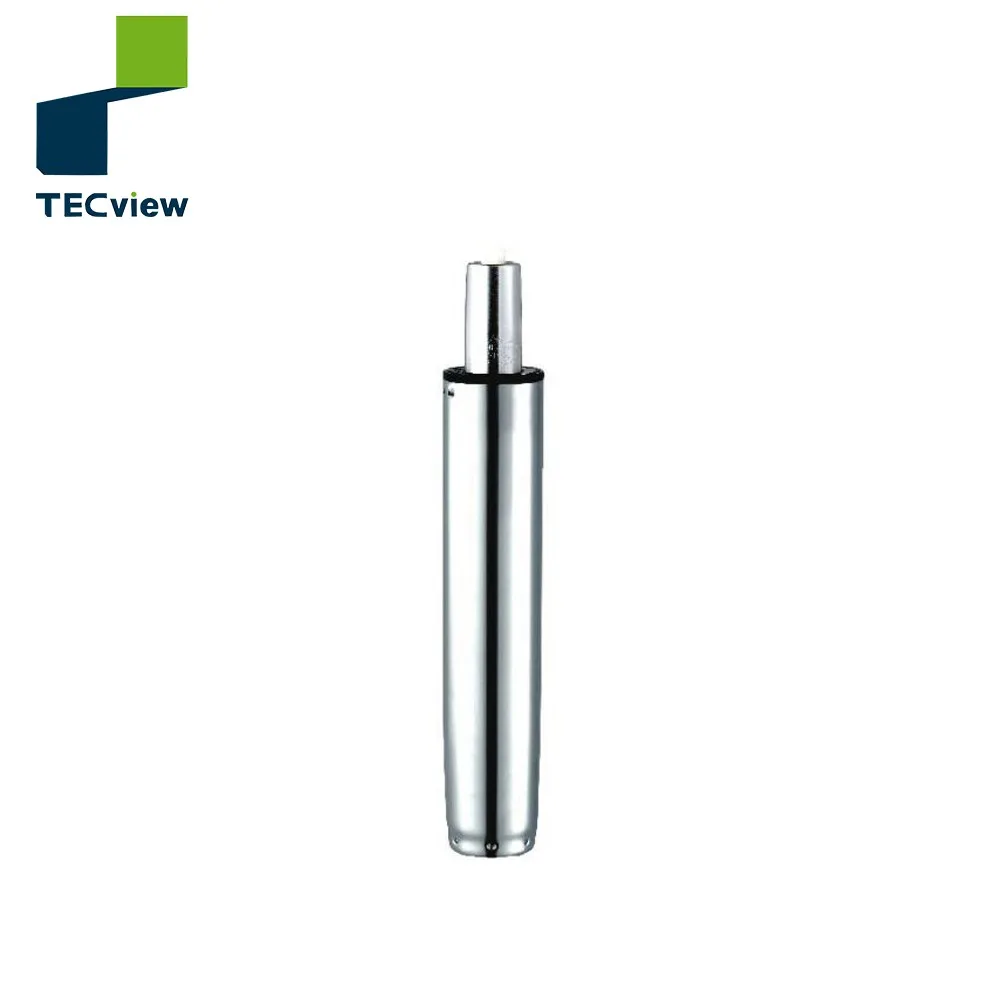

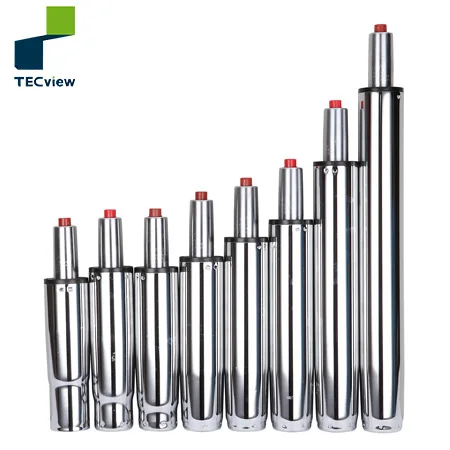

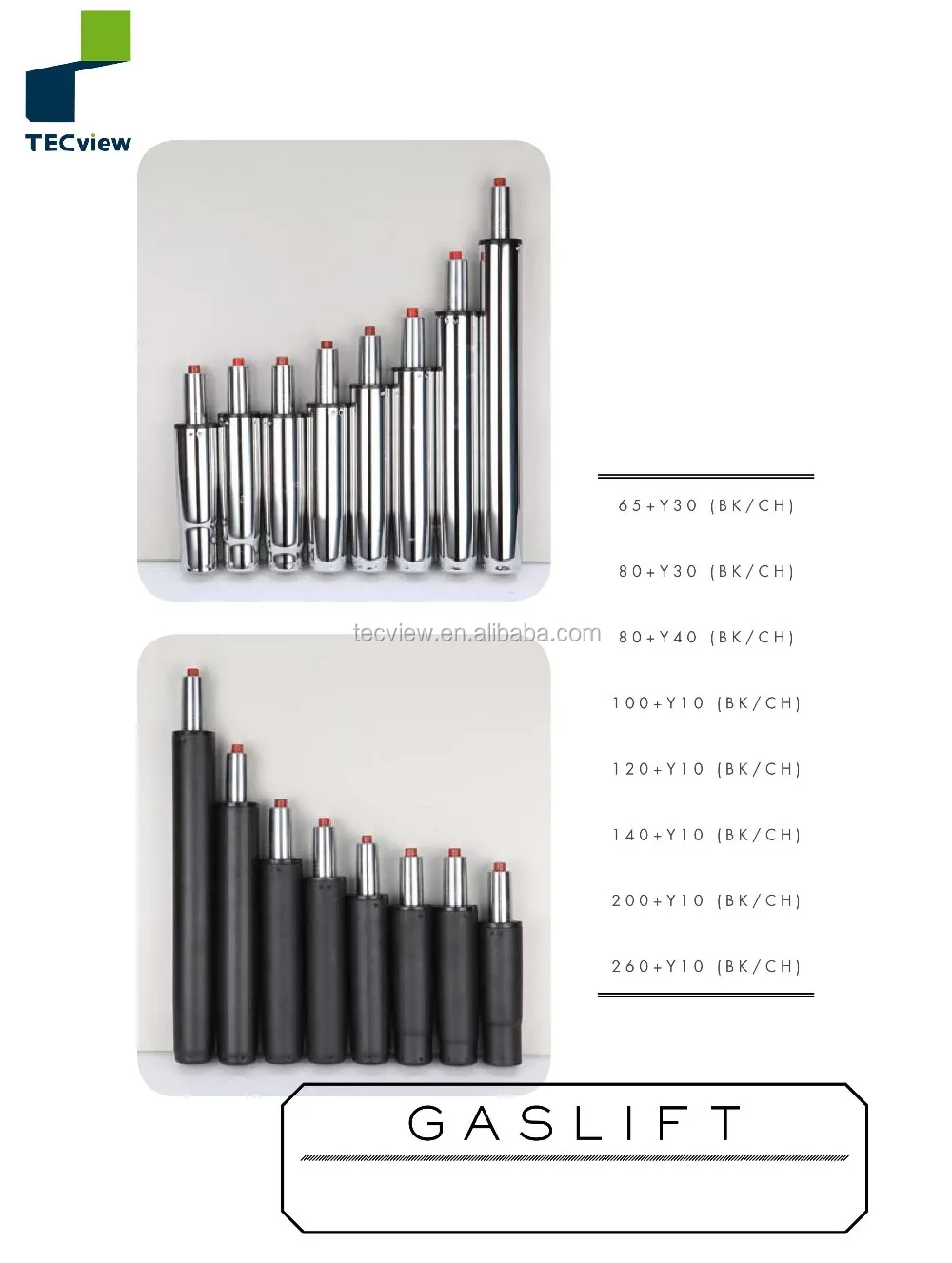

Office Chair Gas Lift Cylinders

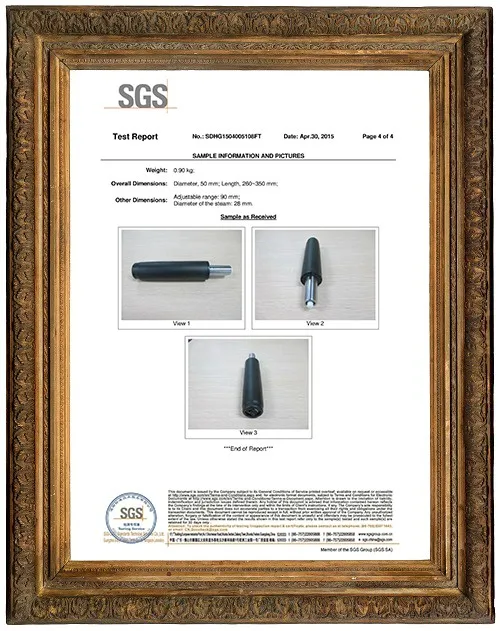

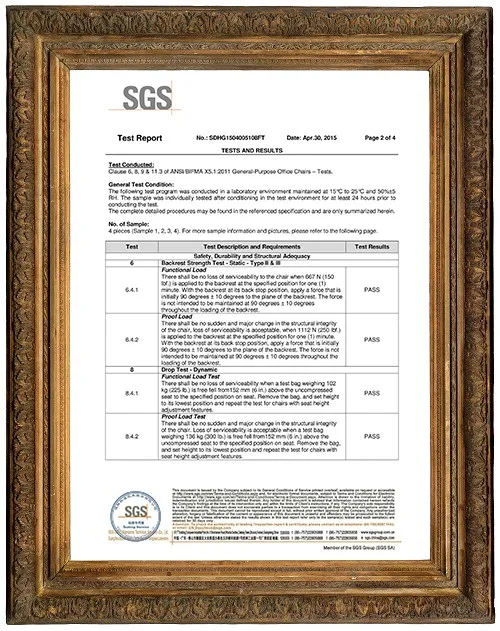

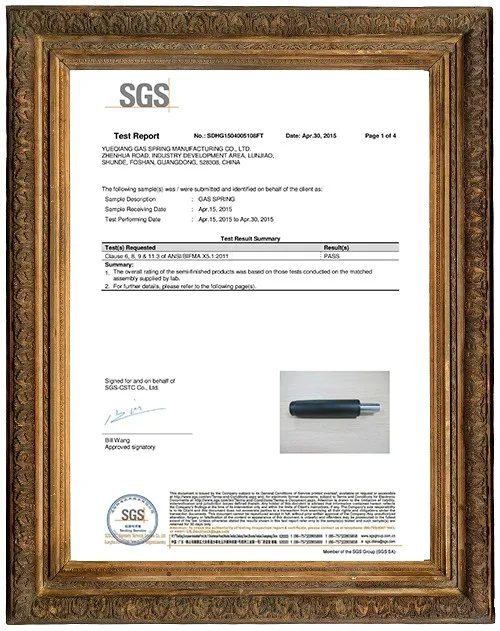

With more than 25 years' experience of gas lift cylinders, we offer products with the best quality for different purposes: office chair, medical equipments, etc. All of these gas lift have been passed with different certificates.

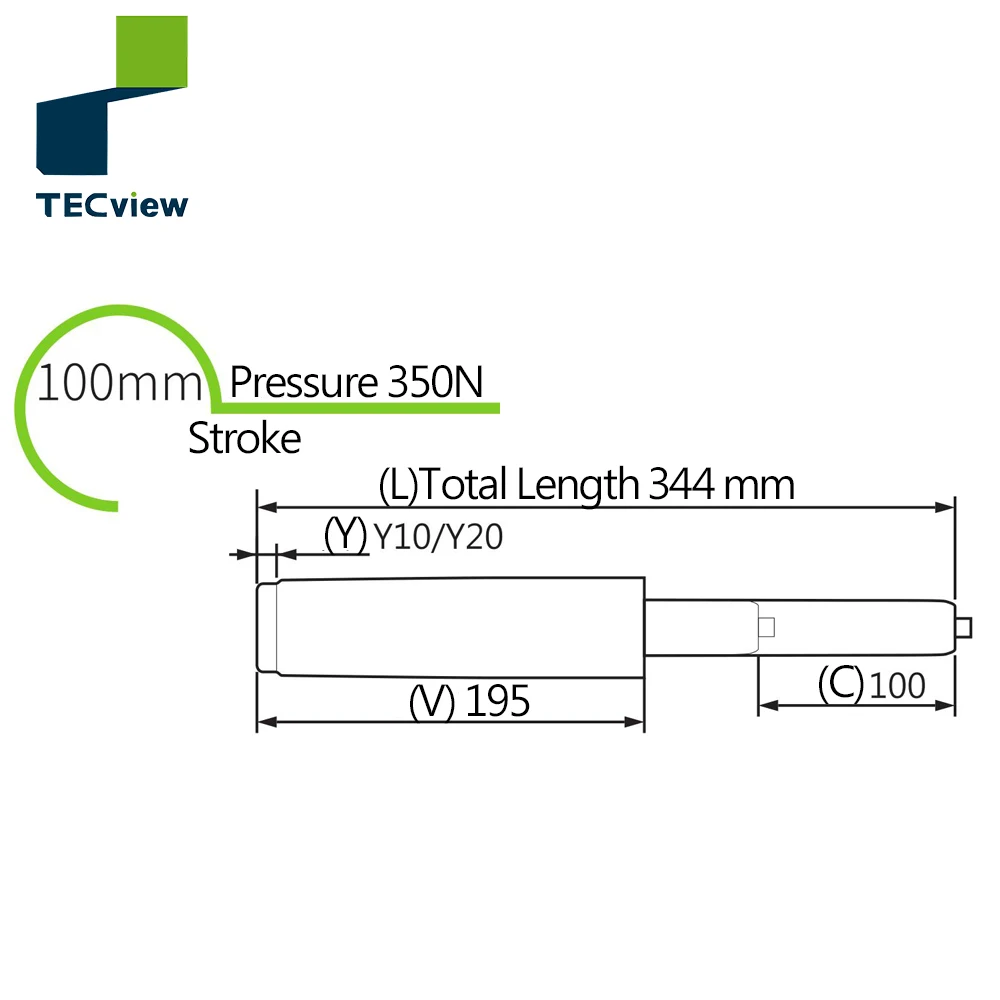

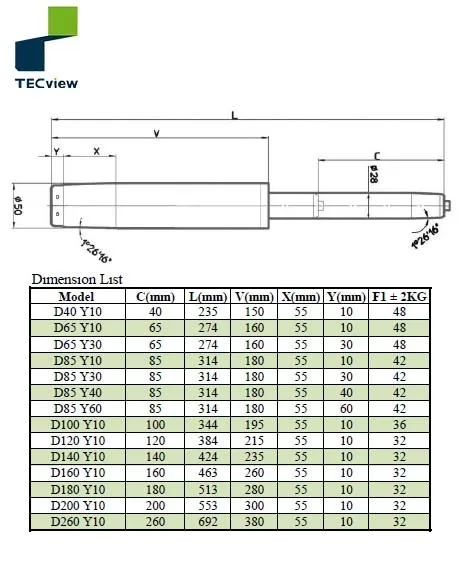

\t Outer Diameter	\t 50 mm
\t Total Length(L)	\t 344 mm
\t Stroke(C)	\t 100 mm
\t (Y)	\t 10/20 mm
\t (V)	\t 195 mm
\t Pressure	\t 350N

1. Gas spring is filled with non-toxic nitrogen at high pressure, please Do Not open or heat up.
2. The force (F1) of gas spring is different under different temperature environment.

The normal temperature of storage is 25 ℃.
3. Both working and storage environment should be maintained within -20℃~+60℃.
4. The force (F1) will decrease even the gas spring is unused or in storage every year.
5. The tolerance of force (F1) is +40N/-20N, and length is ±2mm.
6. To protect the packing of gas spring, please make sure the piston rod is downwards when

the gas spring is used.
7. Please make sure the gas spring working on a straight line, and no slop or lateral force on

the gas spring when using.
8. Please Do Not hit, paint, or scrape the gas spring. Please also Do Not expose to the

rain,wet, high temperature and heavy duty environent.

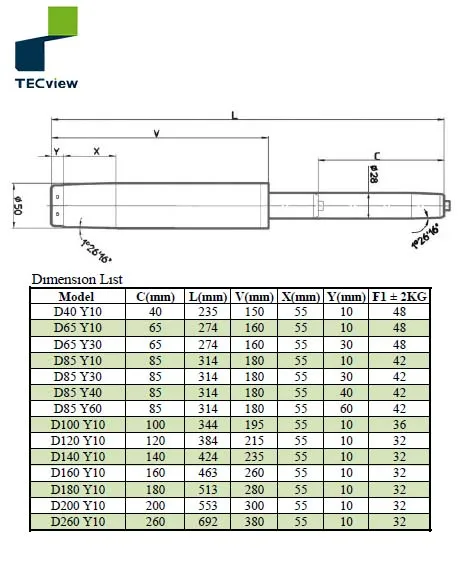

9. Gas spring could be produced by your specification but please avoid such condition:
a. large tube, long stroke (piston rod), and low force(F1)
b. small tube, short stroke (piston rod), and high force(F1)
10. Our gas spring have 50000 cycles within one year under normal condition.
