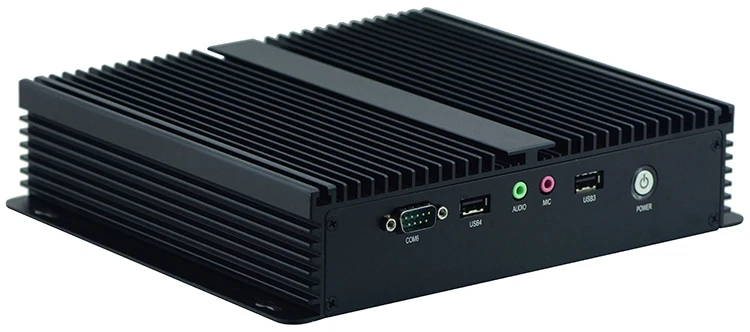

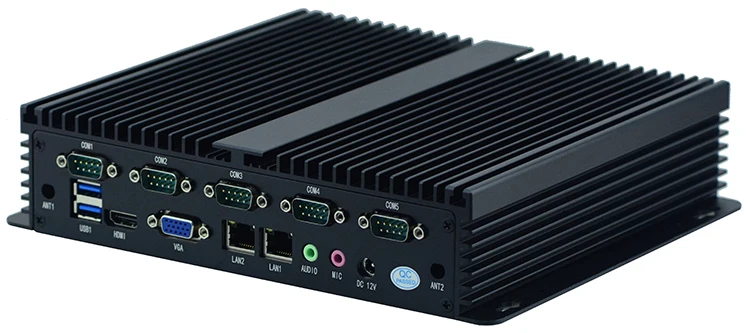

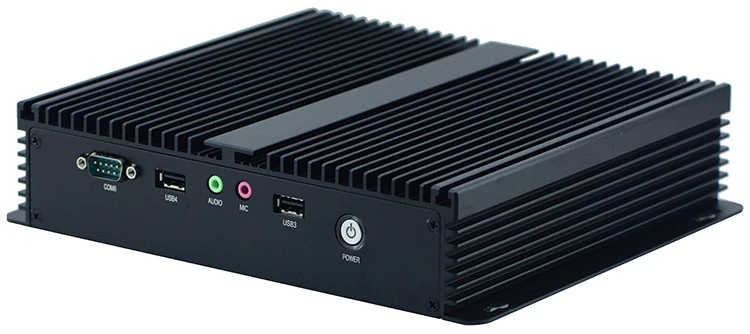

SD823 Ver. I7 3537U with 6 COM/ 6 USB Fanless Embedded Industrial Mini PC
- Category: >>>
- Supplier: SD-Omega (HongKong) Company Limited
Share on (50045087995):
Product Overview
Description
Product Description
Model: SD823 Ver. I7-3537U Mini PC with 6COm, 2 Lans,
| Model | SD823 Ver.I7-3537U | |
| Chassis | Color | Black |
| Dimension | 214mm*200mm*52mm(L*W*H) | |
| Structure | Full aluminum fanless radiating structure | |
| Material | Full aluminum alloy | |
| Intallation | Desktop or mounted installation | |
| Motherboard | Model | SD823 Ver. I7-3537U |
| Processor | Intel Core i7-3537U 2.0GHz dual core processor | |
| Chipset | Adopt Intel® HM70 Express chipset | |
| Graphics | HD Graphics | Integrated Intel®HD Graphics, support single display, double display, extended display mode. |
| Storage | Memory | 1* DDR3 1600/1333 memory, max up to 8GB |
| HDD | Support 1*2.5 inch HDD expansion | |
| CF | N/A | |
| SSD | Support 1*MSATA SSD expansion | |
| Network | Ethernet | 1* Realtek RTL8111E Gigabit LAN port, support Wake On LAN / PXE |
| WiFi | 1*MPCIE slot, support WiFi, USB WiFi, 3G module | |
| I/O Port | USB | 6* USB2.0 |
| Serial Port | 6* RS232 COM port, COM2 support RS485/422 | |
| Display | 1* VGA, 1*HDMI display output | |
| Audio | 2*MIC, 2*Line-out | |
| LAN | 1* RJ45 Gigabit Ethernet LAN port | |
| System Control | Power Switch | |
| Antenna | 2*WIFI/3G SMA antenna (Optional) | |
| Power Adaptor | Input | AC 110V ~ 220V |
| Output | DC 12V 5A | |
| Type | External PSU | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operating System | Support Windows 7, Windows 8, Windows XP, Linux OS | |
