Super load capacity: Low-disc advantage: The high-strength riveted deformation frame is adopted, and the main and auxiliary integrated gradient steel plate springs are selected. The channel steel longitudinal beams are strong and reliable, and the goods are not deformed to meet the needs of different purposes. The chassis is low, the height of the whole vehicle does not exceed 2.1 meters, and the loading is more convenient, suitable for underground garages.
Powertrain: Standard Euro 5 engine power is more powerful and less noisy, MG70-WP 5 gear gearbox, lighter to operate; 1.5T rear axle noise and small cargo capacity.

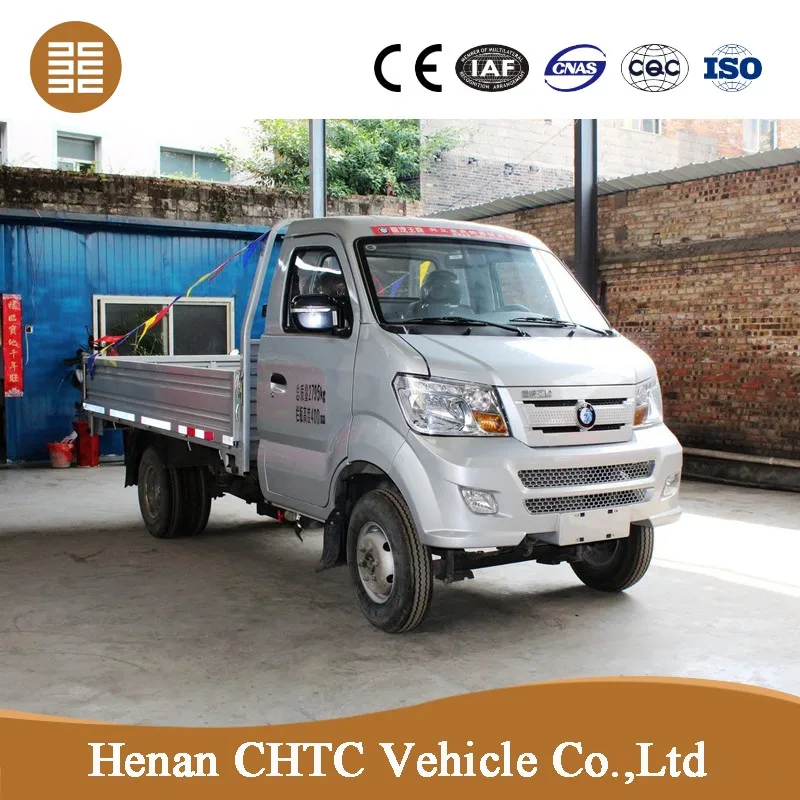

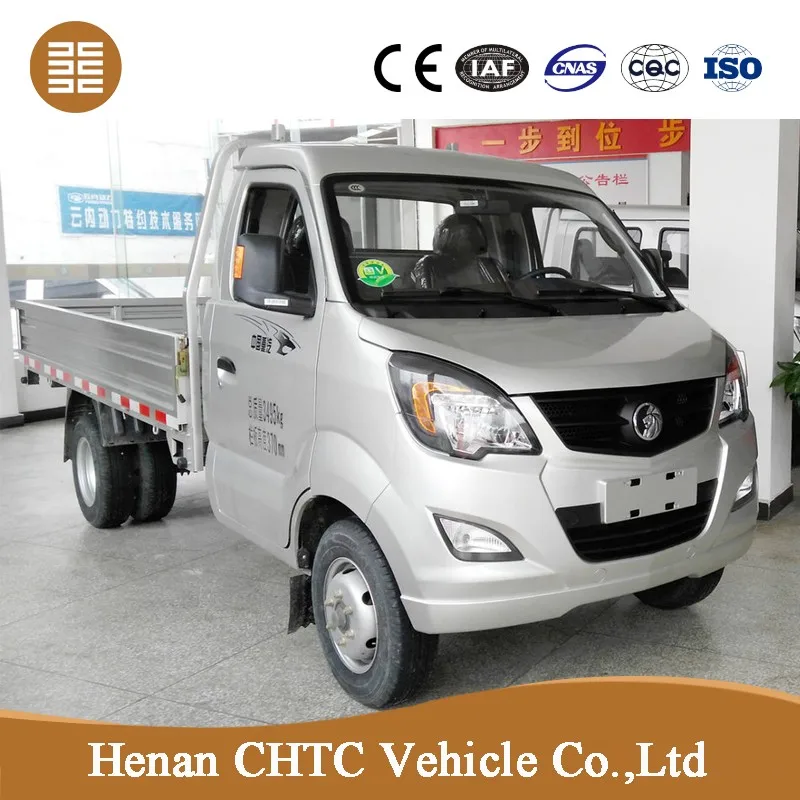

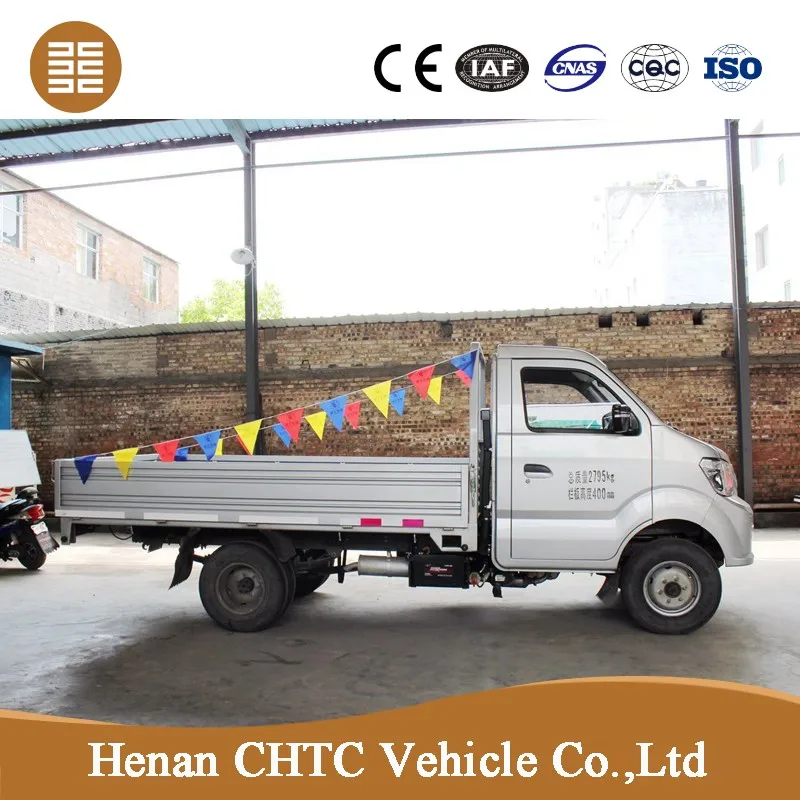

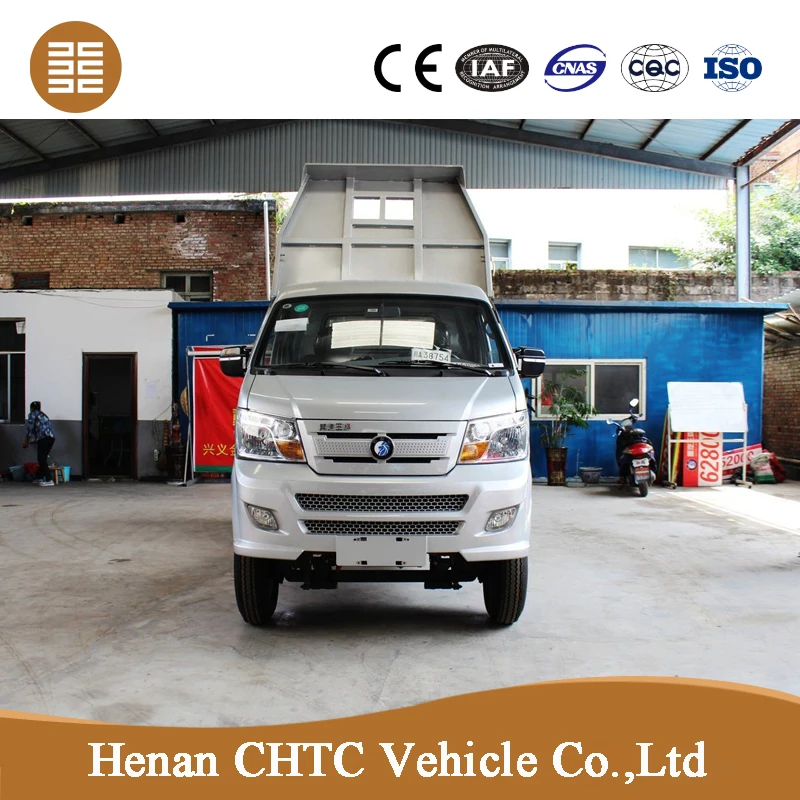

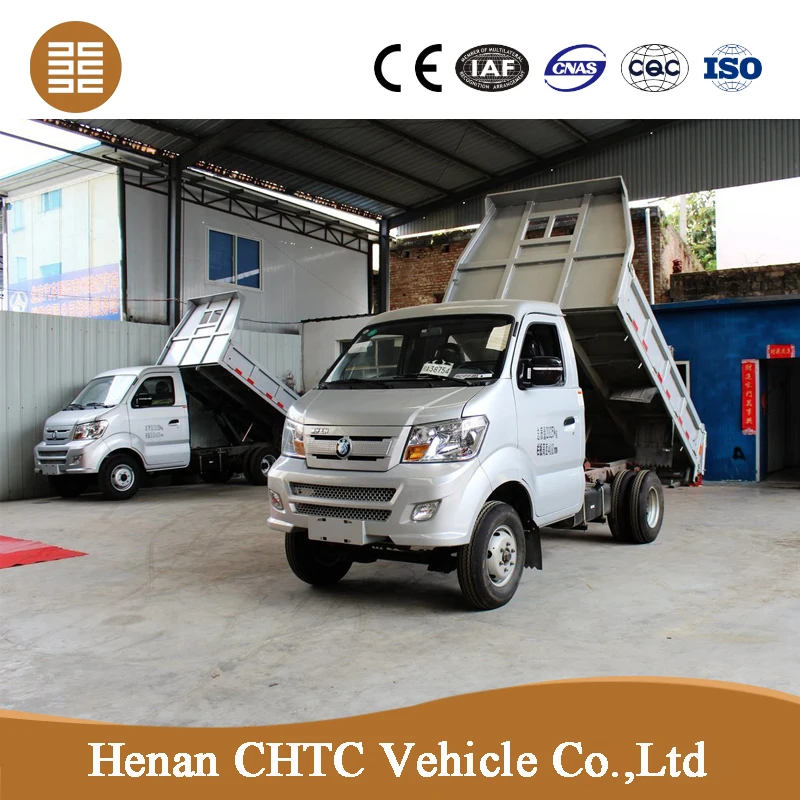

Sinotruk CDW 4x2 2 tons mini cargo truck
Chassis
Brand
/
Sinotruk CDW
Drive form
/
/
4x2
Vehicles Dimensions
Length
mm
5200
Width
mm
1750
Hight
mm
2070
Cargo Dimension
Length
mm
3200
Width
mm
1650
Height
mm
400
Mass Parameter
Curb weight
Kg
1370
Rated payload
Kg
1955
Gross vehicles weight
Kg
3495
Engine
Model
/
4A15
Number of cylinders
/
4
Fuel type
/
Gasoline
Cylinder arrangement
/
Inline
Displacement
ml
1495
Emission Standards
/
Euro 5
Max power
Kw
75
Max horsepower
hp
102
Torque
N.m
120
Cab
Type
/
Fiat top, width: 1650mm
Number of passengers
/
2
Number of seats
/
single row
Transmission
Model
/
MG70-WP
Forward gear
/
5
Reverse gear
/
1
Tire
Tire specifications
/
185R14LT 6PR
Number of tires
/
6
Oil Tank
/
L
60
Chassis
Wheelbase
mm
3050
Front track
mm
1400
Rear track
mm
1310
Maximum speed
km/h
100
Approach / departure angle
°
38/15°
Front overhang / rear overhang
m
0.66/1.49
Frame height
mm
130×4-700-800-700
Front axle allowable load
Kg
1350
Rear axle description
T
1.5
Rear axle allowable load
Kg
2145
Rear axle ratio
/
5.375
Leaf spring
/
5/7
Vehicle brake type
/
/
Liquid brake
Main Features
Security upgrade: The body is sheet metal, and the key parts are reinforced with high-strength steel plates, which greatly improves the active safety and maximizes the safety of drivers and passengers.
Certifications
Detailed Images

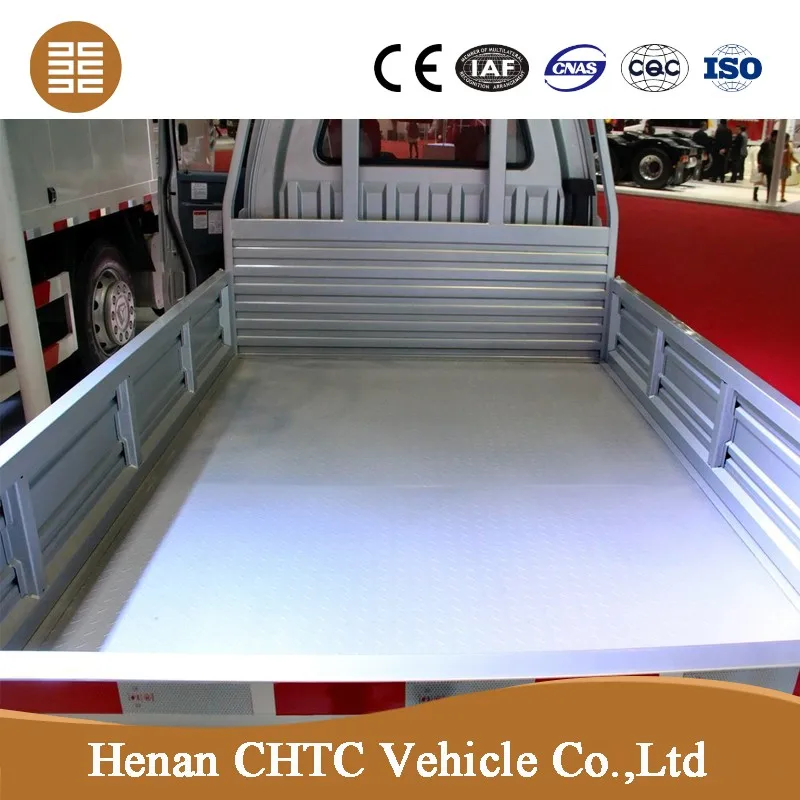

Bottom plate
3mm steel plate

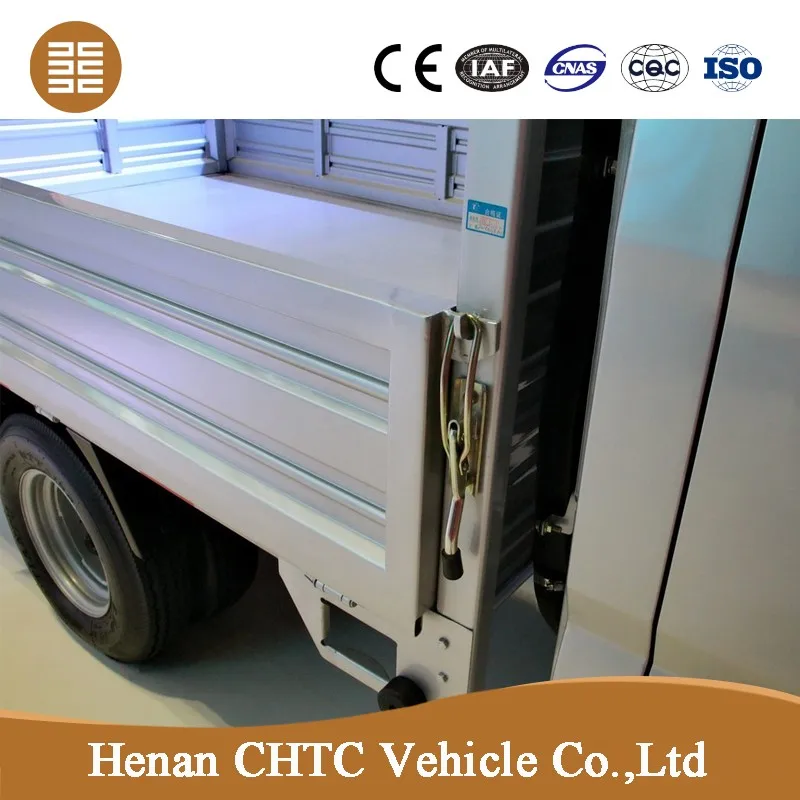

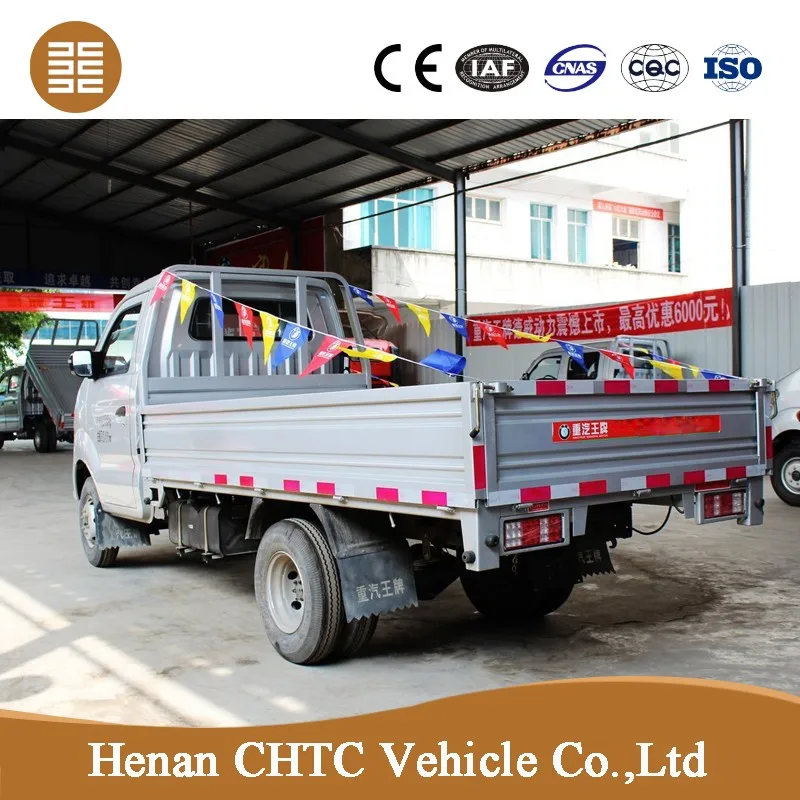

Side plate
2mm steel plate

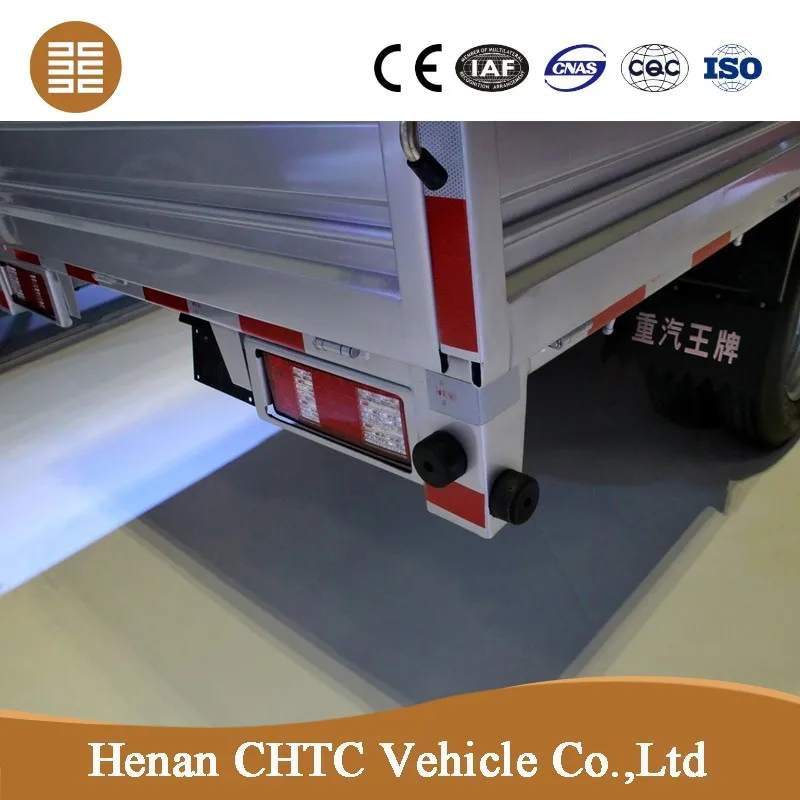

Taillights
Beautiful, good quality

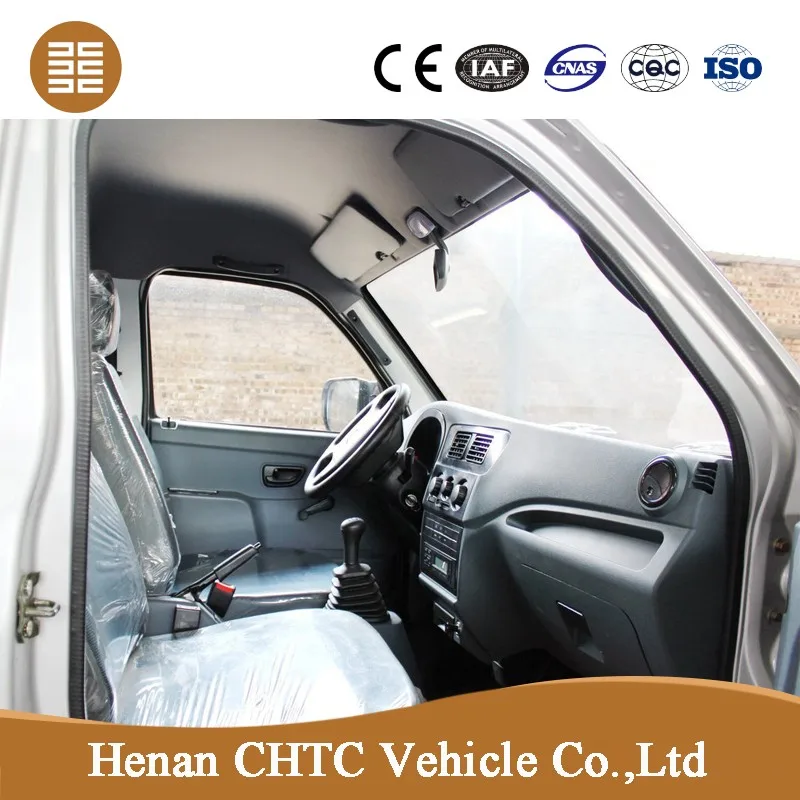

Cabin
Comfortable and safe
Our Service
Pre-Sales Service
* Any inquiry will be replied within 24 hours.
* Factory visit is welcomed and airport pick up service. * We can do the designs according to the customers' requirement. * We can offer you the high quality & reasonable price,and we have trade assurance.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 12 months super long time guarantee period.
Packing & Delivery
Packaging
Size
5200mm * 1750mm * 2070mm (L*W*H)
Weight
1.37 T/unit
Packaging Details
Normal packaging is bare, 2 units/40HQ or 1 units/20HQ.
Packaging
Size
5200mm * 1750mm * 2070mm (L*W*H)
Weight
1.37 T/unit
Packaging Details
Normal packaging is bare, 2 units/40HQ or 1 units/20HQ.
