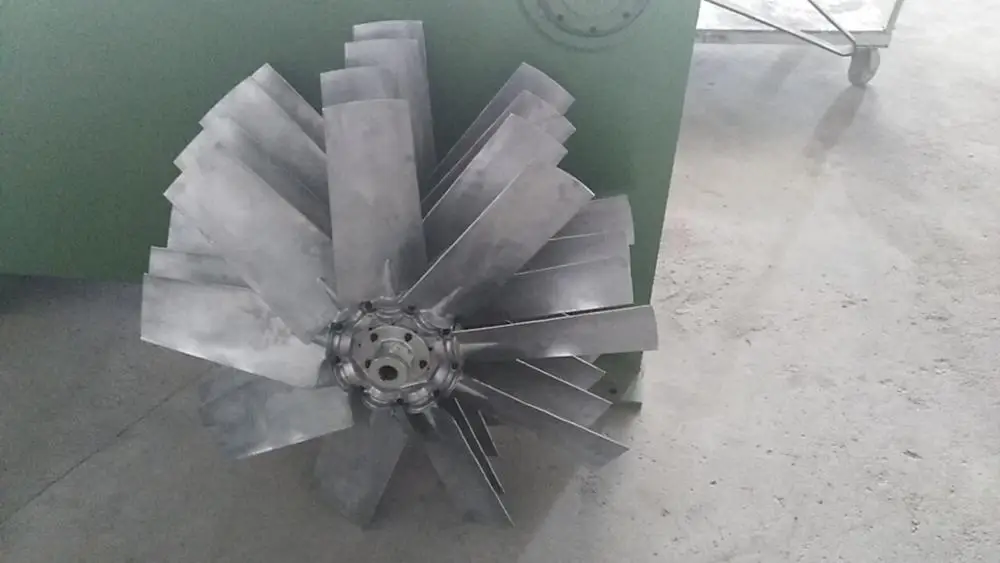

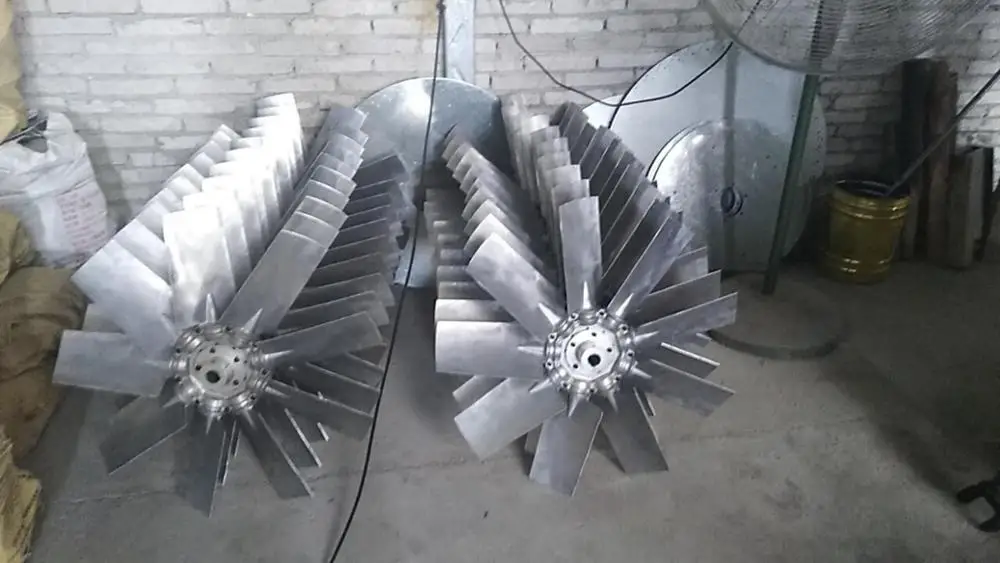

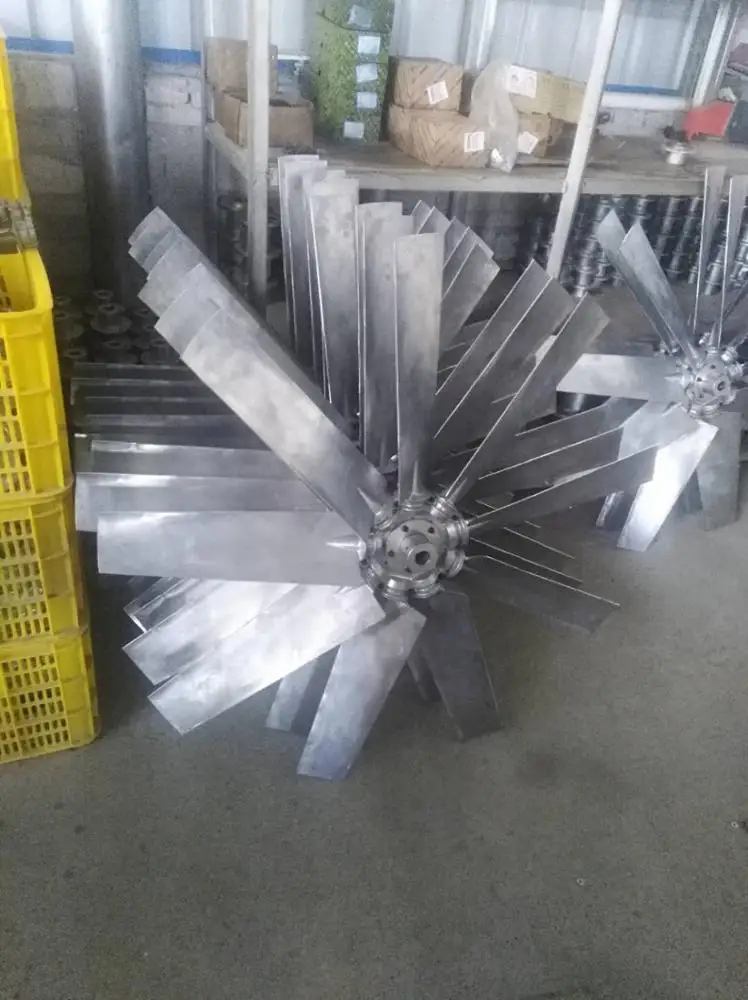

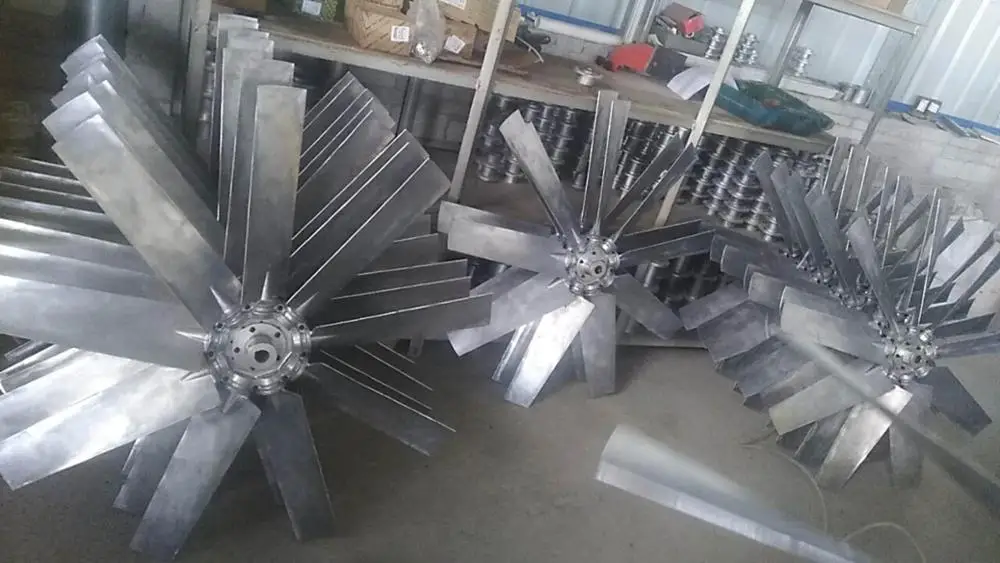

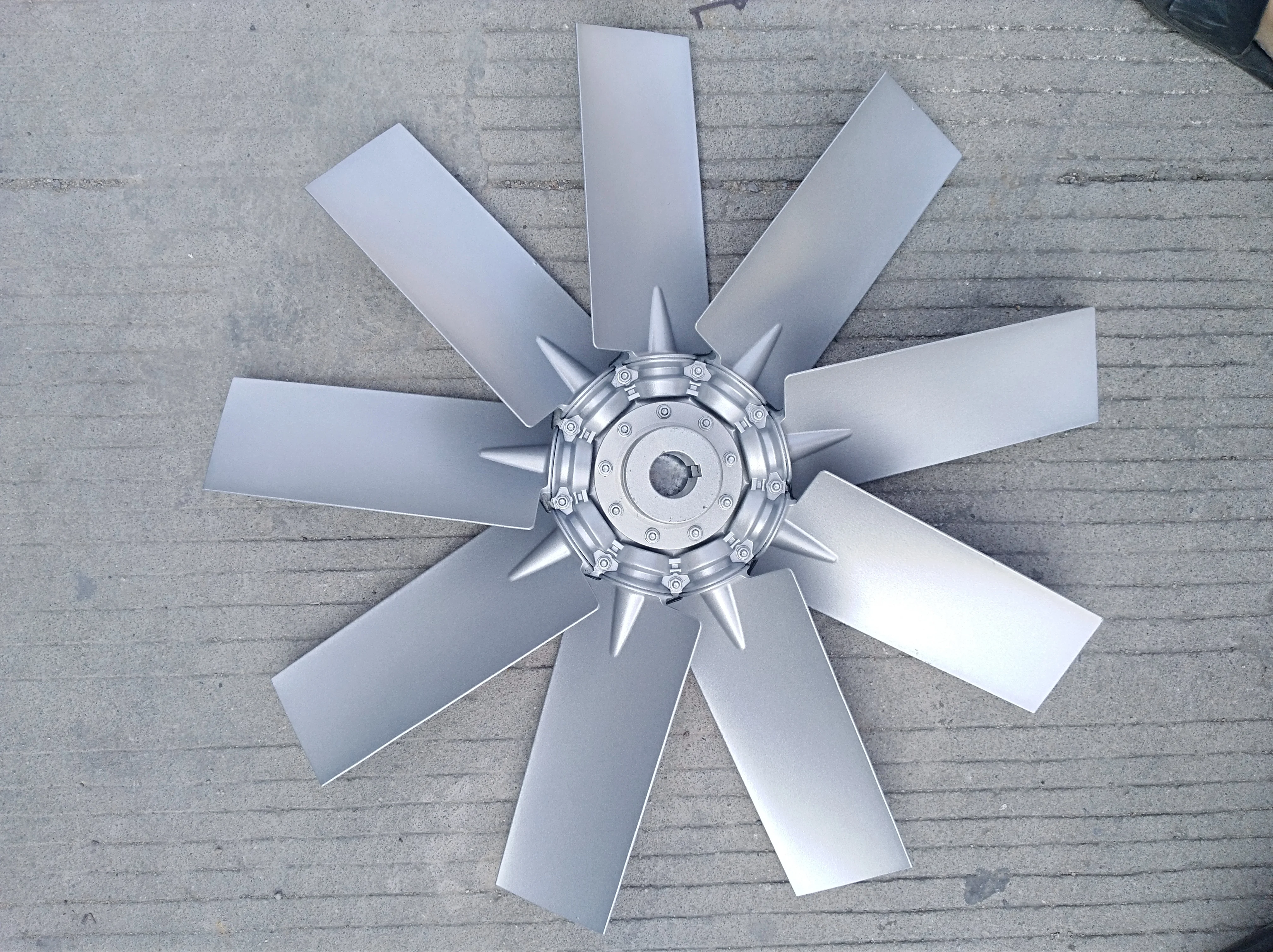

Guangdong Large Aluminum alloy axial fan impeller

Product Overview

Description

Guangdong Large Aluminum alloy fan impeller



Impeller Model	Applicable Axial Fan Model	Air Volume (m³/h)	Air Pressure (Pa)
3H/6-6	2.8#-4.0#	1060-4000	37-127
5Z/6-6	4.5#-6.3#	2790-19200	81-288
5Z/9-9	7.1#-10#	8000-70050	102-681
5Z/12-12	11.2#	11400-70400	162-375
5Z/16-16	12.5#	37800-91800	193-393



Impeller diameter	Φ280-Φ1250(mm)
Air volume range	1060-91800m³/h
Air pressure range	37-681Pa
Power range	0.06-15kw
Noise range	51-94dB(A)
Material	Aluminum alloy
Function	Ventilation and fire equipment
Features	Adjustable installation angle and qty of blades



Feature:
1. Accurate size, high assembly accuracy
2. This combined impeller can adjust the angle of blade

installation, as well adjust the quantity of blades.
3. The product is suitable for normal ventilation fan and fire smoke exhaust fan.
