Product Overview
Description
Product Description

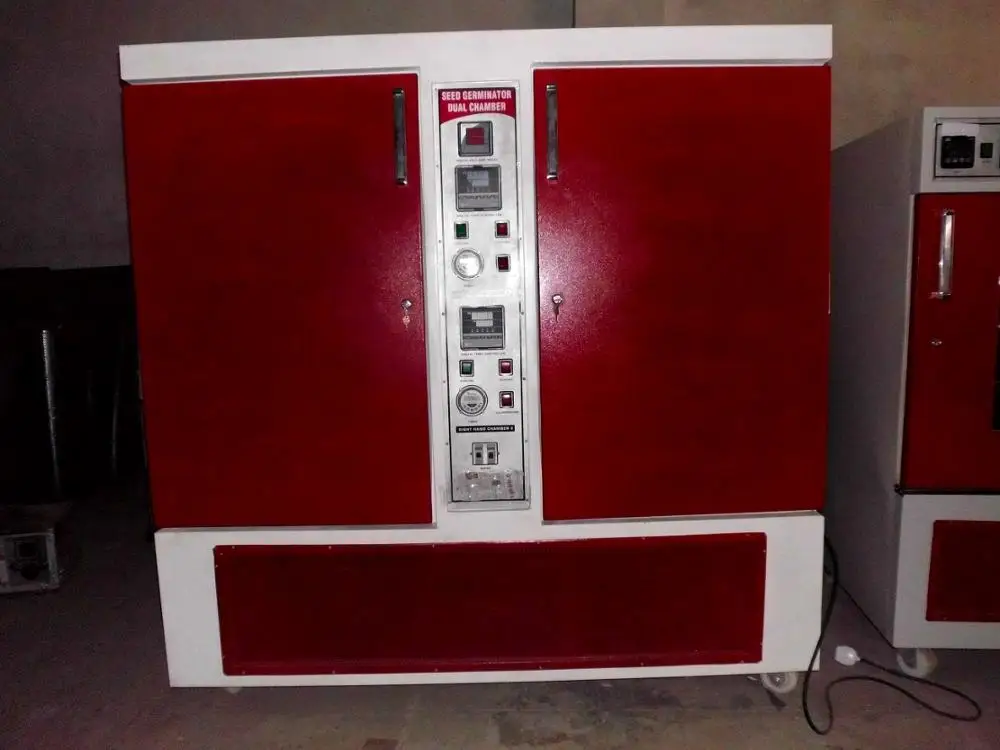

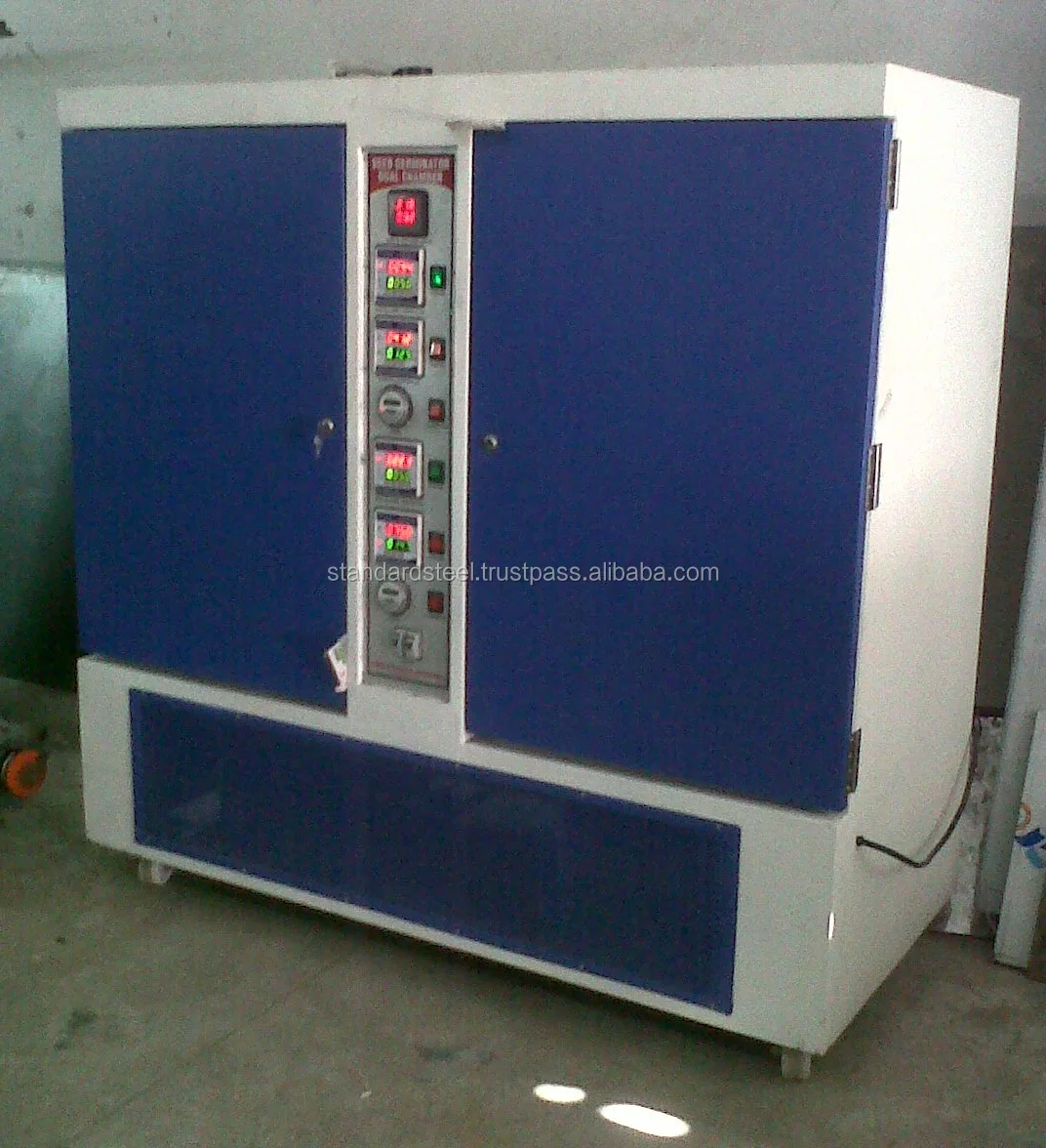

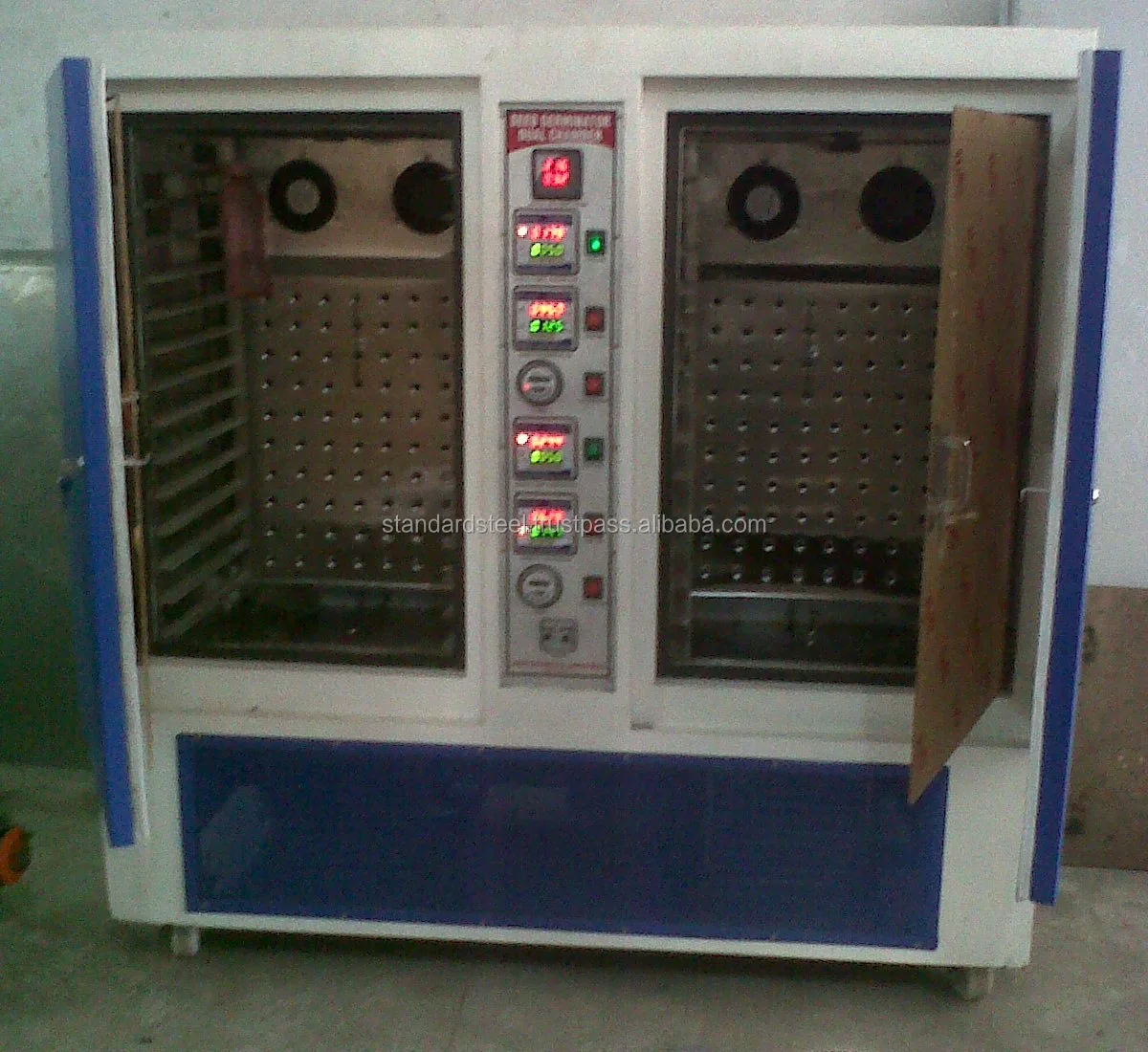

Seed Germinator machine Double Chamber
General Requirements
Seed Germinator is designed to work successfully in every climatic condition. Higher humidity levels can be maintained & humidity will be displayed. It has provision to Program different temperatures, light levels for different time intervals to simulate Customer's requirements for normal seedling germination. Have facility to record data and storage. Have Program lock. Have Audio Visual Alarm.
Technical Data:
· No. of Chamber: One (heating & cooling). · Capacity: 92 liters · chamber size : 18''x18''x18'' · Display :Digital LCD display · Number of shelves: 7 shelves of S.S. · Temperature range: 5- 45°C · Temperature resolution: 0.1°C · Temperature selection resolution: 0.1° C · Temperature accuracy:0.2°C. · Temperature stability: ± 0.5°C | · Air circulation : 1 Fan (minimum). · Temperature uniformity : ±0.7°C · Relative Humidity range :100% · Relative Humidity resolution : 1% · Relative Humidity selection resolution :1% · Relative Humidity accuracy :± 3% · Relative Humidity stability :± 3% · Light intensity :Intensity is adjustable . · Working environment : 10 - 40 0C · Power supply : 220-240 VAC/1Ph/50 Hz |
Cabinet Construction:- Inner chamber made of highly grade rust free stainless steel design and outer made of Mildsteel powder coated or stoving paint. Door opening provides full access to the chamber interior. A magnetic gasket provides a tight seal to door frame. A second internal glass door provides observation window without disturbing the internal atmosphere. Shelving tiers of white epoxy coated aluminium.
Refrigeration :- Cooling for seed germinators is provided by a self-contained air-cooled condensing unit with hot gas bypass for continuous compressor operation. Humidification :- Humidification system is a centrifugal humidifier. Centrifugal atomizing humidifiers must be supplied with clean water.
Control system:- CMP control system is a PLC base programmable system, with Graphic LCD display, capable of programming temperature, humidity and light intensity. PID controlled base system, Relative humidity sensor is also provided.
Contact US
For more detail please contact us
Standard Steel,
530 Ram Bagh Road, Ambala Cantt-133001
Haryana(India)
Mob: - +919466463642
Web sites: -www.standardsteel.co.in, www.laboratoryequipment.co.in,
//in106693480.trustpass.alibaba.com
Skype: - saleen_sachin
Certifications
a ISO 9001:2008 Certified Product
a CE Certified Product
