Product Overview

Description

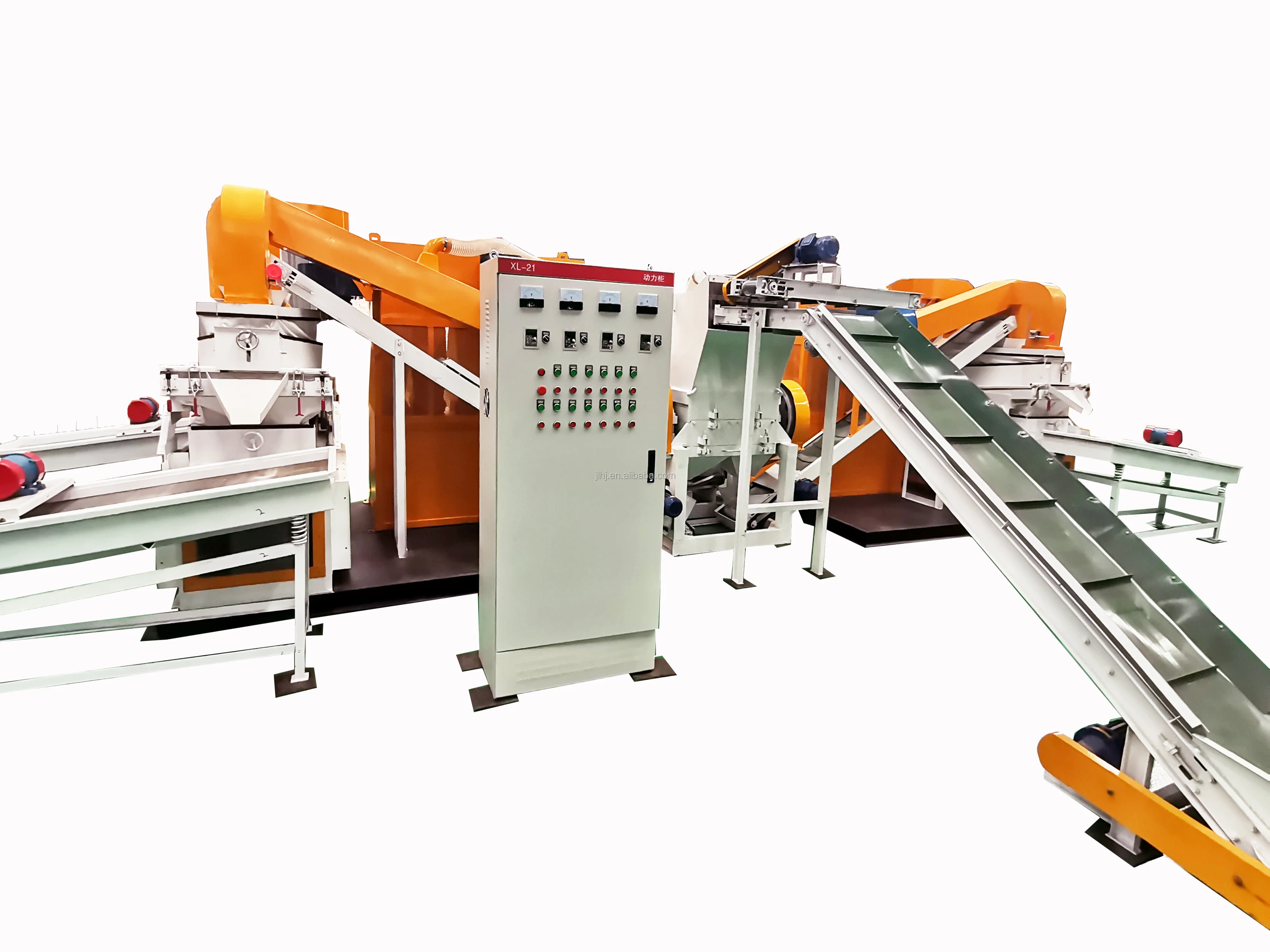

Factory Supply Wire Recycling Machine High Productivity Copper Cable Granulator Recycle Machine with Easy Operation

INTRUCTION

Dry copper recycling machine is a professional production line for dry separation of waste wire and cable. For example: bicycle circuit lines, communication cables, and wire strippers are not suitable for processing (various civilian wires) waste materials. Thin filaments, etc. The feature of this machine is that the size limit can be broken and separated at the same time without classification. The structure is new and unique, the production volume is large, and the power consumption is small. The sorting rate is high, one feeding, and multi-machine cooperation is completed. The whole line is controlled by PLC and is at the leading level in China. The successful development of the machine has solved the problems in the method of incineration and copper extraction, and can improve the quality of the recycling barrel, and can recycle the plastic and solve the environmental pollution.



WORKING PRINCIPLE

Dry copper rice machine (waste wire and cable processing equipment): The shredder is used to crush the material into a length of about 3cm, and then sheared and crushed by a secondary crusher, and then sorted by high-precision airflow sorting to obtain plastic. And copper, undivided plastics are sorted by electrostatic separators to ensure copper reuse.



FEATURES

After the waste wire and cable is crushed and processed, the fully automatic mechanical separation can completely separate the copper and the plastic, and achieve the comprehensive utilization purpose, which has high economic benefits. And no dust and no secondary pollution. In addition, the device is an integrated modular structure, which is easy to install and debug, and transported (can be produced after the customer purchases the power supply), and the performance is stable.





DETAILS:

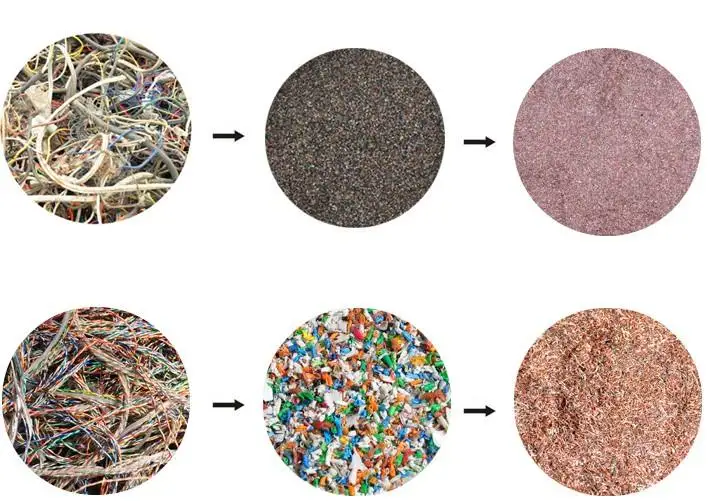

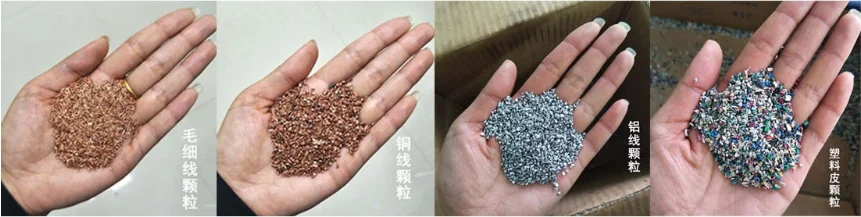

The discharge effect:



Technical parameter:

Model	Input size(mm)	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
HJTMJ-400	φ0.5-20	300-400	15	1800*1300*1700	2850
HJTMJ-600	φ0.5-20	500-600	37	2800*1800*2100	4200
HJTMJ-800	φ0.5-20	700-800	45	2800*2000*2100	6500
HJTMJ-1000	φ0.5-20	800-1000	55	2800*2500*2100	7800

Time is gold

Packaging Detail:	1.Outside package: Standard export wooden cases; 2.Inner package: Stretch film.
Delivery Detail:	15-20working days after placing the order.
