SHACMAN 8cbm compression garbage compactor truck manufacturer

Product Overview

Description



SHACMAN 8cbm compression garbage compactor truck manufacturer

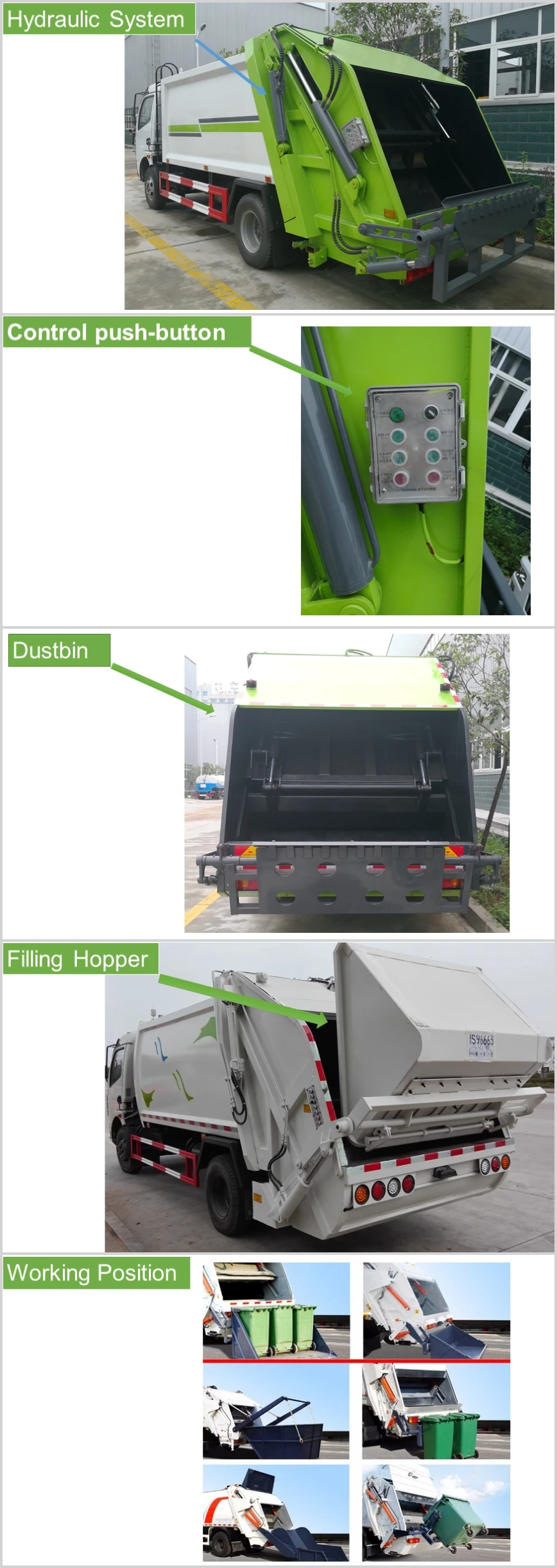

Compression garbage truck is used for the collection, transportation and unloading of bagged, barreled and bulk household garbage in cities and town. After the filling hopper is filled with garbage, the garbage is compacted and put into the dustbin through the hydraulic systems. Sewage water flows into the drain tank. When unloading, the unloading device automatically pushes the garbage out of the dustbin.



The compression garbage compactor truck we made is an intelligent compactor for large clean-up work. It is easy to operate and garbage compression rate is very effective. It is very suitable for municipal sanitation for industrial waste and household waste collection and transferation.









SHACMAN 8CBM compression garbage truck
#	Descriptions	Specifications and types
General	Truck Brand	Chengliwei (our brand)
	Chassis Brand	SHACMAN
	Approx. Dimension	7055*2240*2800 mm
	GVW./Kerb Wt.	8280 /6500 (Kg)
Cab	Cab Capacity	3 persons' seat
	Air Conditioner	Air Conditioner is optional
Chassis	Drive Type	4x2,lefthand drive/ Righthand drive is optional
	Fuel Type	Diesel
	Engine Make & Model	WeicHAI Engine
	Power	130 HP
	Displacement	3660  ml
	Emission Standard	Euro II or EURO III or Euro V
	Wheelbase/No.of axle	3800 mm / 2
	Tyre Specfication	7.50R16 LT
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Automative metallic paint
Tops Parts	Capacity	8CBM
	Material	Q235carbon steel
	Thickness	5mm
	Uploading cycling time	<60s
	Loading cycling time	≤30s
	Lifting capacity	≥800KG
	Operation control system	Electrically hydraulic control
	Equipment	Equipped with dustbin, hydraulic system and operating system
		Equipped with two advanced double acting hydrocylinders

The above information is for reference only. We can produce according to your needs. Please add my WhatsApp at 0086-15826756066(phone number as same).
