3030 2 Watt 2w Par Rgbw Chip 4 in 1 High Power Led
- Category: >>>
- Supplier: SUPER BRITE LTD.SUPER LTD.
Share on (50045497448):
Product Overview
Description
Specification
2W 3030 RGBW 4 color in 1 LED
AT3030FT-2LERGBXX
Product Description

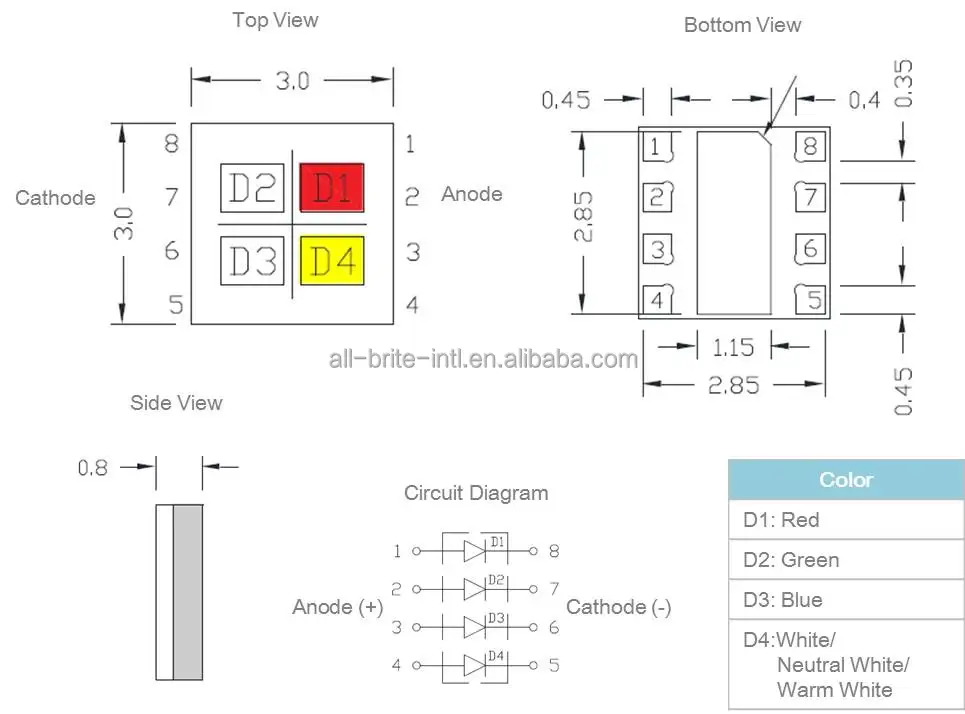

Emitter Mechanical Dimensions
Features
• Compact light source
• R, G, B, WT/NW/WW four color in one Package• Maximum drive current: 250mA per LED die
• Lead free reflow soldering
• Superior ESD protection
• RoHS compliant
Absolute Maximum Ratings
Parameter | Red / Green / Blue / White / Neutral White / Warm White |
DC Forward Current (mA) | 250 |
Peak Pulsed Forward Current (mA) | 330 (less than 1/10 duty cycle@1KHz) |
ESD Sensitivity (HBM per MIL-STD-883E Method 3015.7) | > ±500 V |
LED Junction Temperature | 120 °C |
Operating Board Temperature at Maximum DC Forward Current | -40°C to +85 °C |
Storage Temperature | -40 °C to +120 °C |
Soldering Temperature | JEDEC 020c 260°C |
Allowable Reflow Cycles | 3 |
Reverse Voltage | Not designed to be driven in reverse bias |

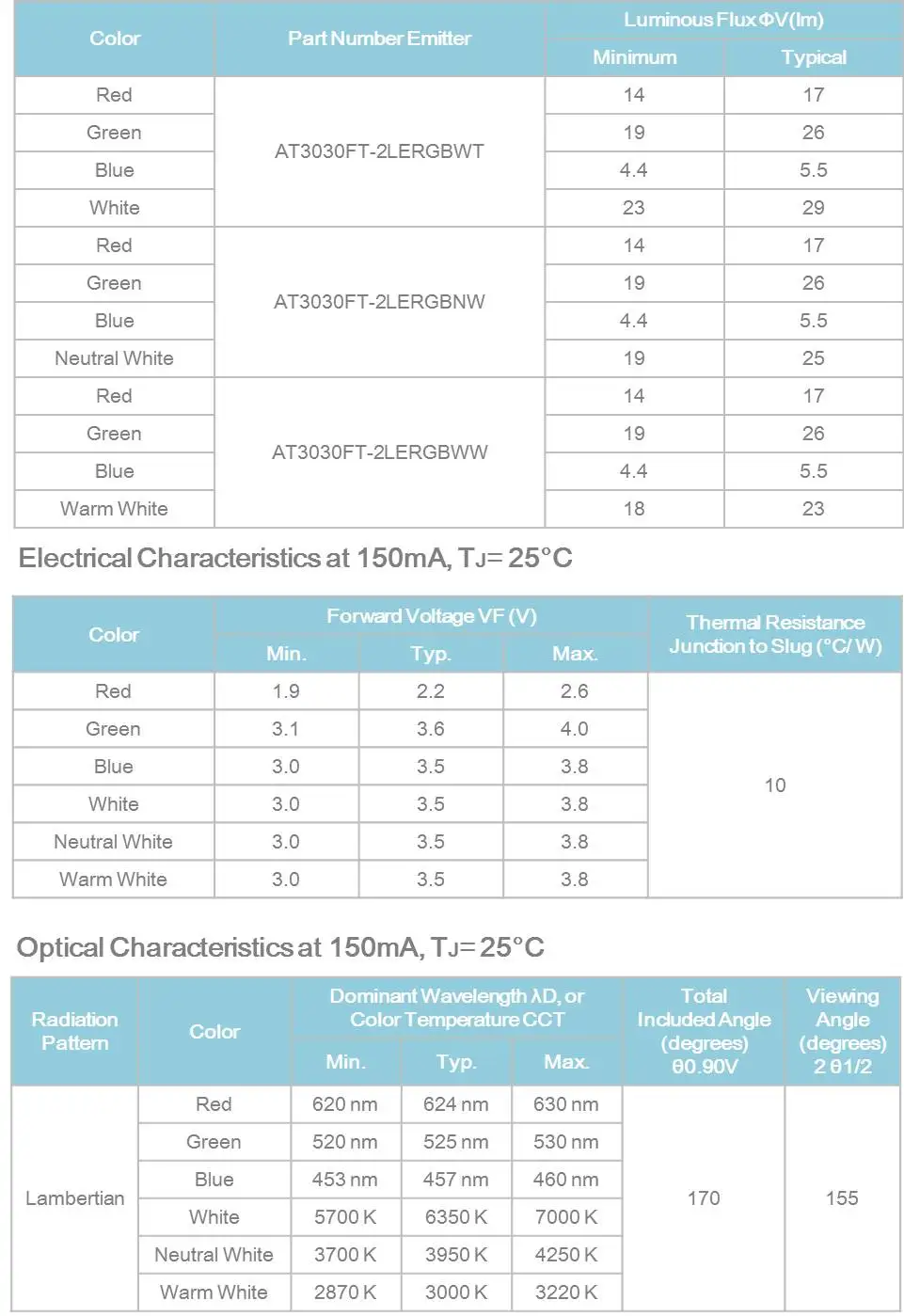

Flux Characteristics at 150mA, TJ= 25°C

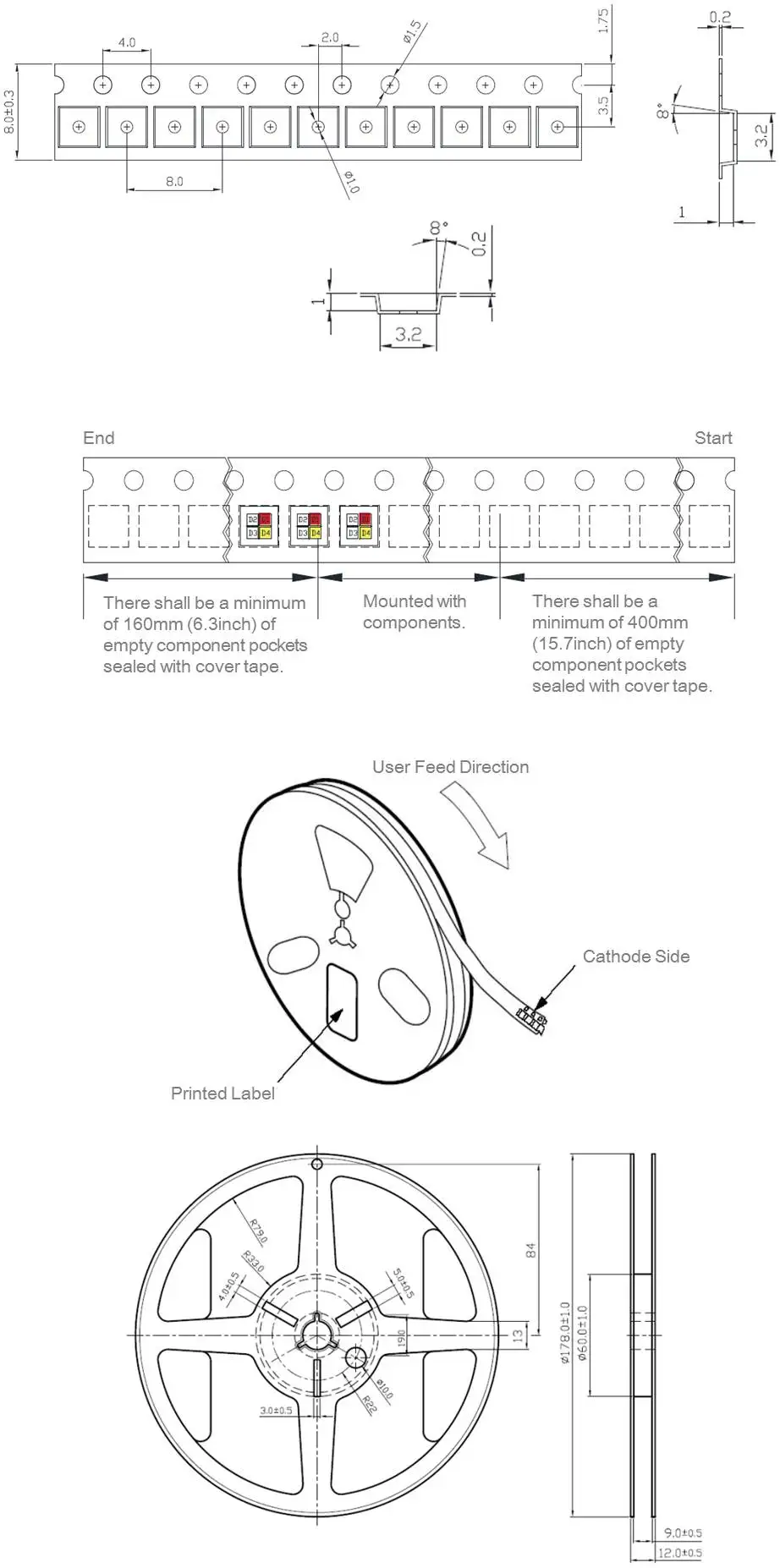

Emitter Reel Packaging
Product Comparison
Recommended Products
Company Information
Certifications
Payment Terms
We accept official Bank Wire transfer and for sample amount payment customer can use
Paypal, Western Union, Alipay and Ecrow ...etc.
Shipping Delivery
We can ship by Courier Service such as Fedex, DHL, TNT, UPS EMS ...etc.
Also, Air Freight and Sea Freight depends on clients needs.
FAQ
Q1. Sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Lead time?
A:1-2 weeks depends on different items
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q5. How to process an order?
A: please kindly contact us for more detail
