4G LTE VOLTE WIFI CPE ROUTER with RJ 11 phone port and 2 Ethernet Port

Model

WR-108

Communicatio n

System (WAN)

Chipset

Qualcomm MDM9x07

Frequency Bands

LTE

Band 1, 3, 7, 8, 20

UMTS

Band 1,8

GSM

900MHz, 1800MHz, 850MHz, 1900MHz

Bandwidth

LTE Band

1.4/3/5/10/15/20 MHz, comply with 3GPP

Modulatio

n

Downlink

QPSK/16-QAM/64-QAM, comply with 3GPP

Uplink

QPSK/16-QAM, comply with 3GPP

Antenna

Internal

Primary and Diversity

RF Power Level

LTE FDD

Power Class 3 (23 +/-2dBm)

UMTS

Power Class 3 (24 +1.7/-3.7dBm)

EDGE

Power Class E2 (GSM850/900: 27dBm; DCS/PCS:

GPRS

GSM850/900 Power Class 4: 33dBm; DCS/PCS

Power Class 1: 30dBm)

Data Rate

4G

3GPP Cat. 4, Downlink/Uplink up to

3G

3GPP Downlink/Uplink up to 42Mbps/5.76Mbps

2G

EGPRS Class33 Downlink/Uplink up to

WLAN

Wi-Fi

Chipset

RT8192S

Frequency

2.4GHz

Protocol

802.11b/g/n

Channel

1~13

Antenna

Internal, 2 x 2

Data Rate

802.11b

Up to 11 Mbps

802.11g

Up to 54 Mbps

802.11n

Up to 300 Mbps

Interface

LAN/WAN

2xRJ45 for 2xLANs or 1xWAN+1xLAN, Giga Ports

RJ11

Optional: CSFB or VoLTE

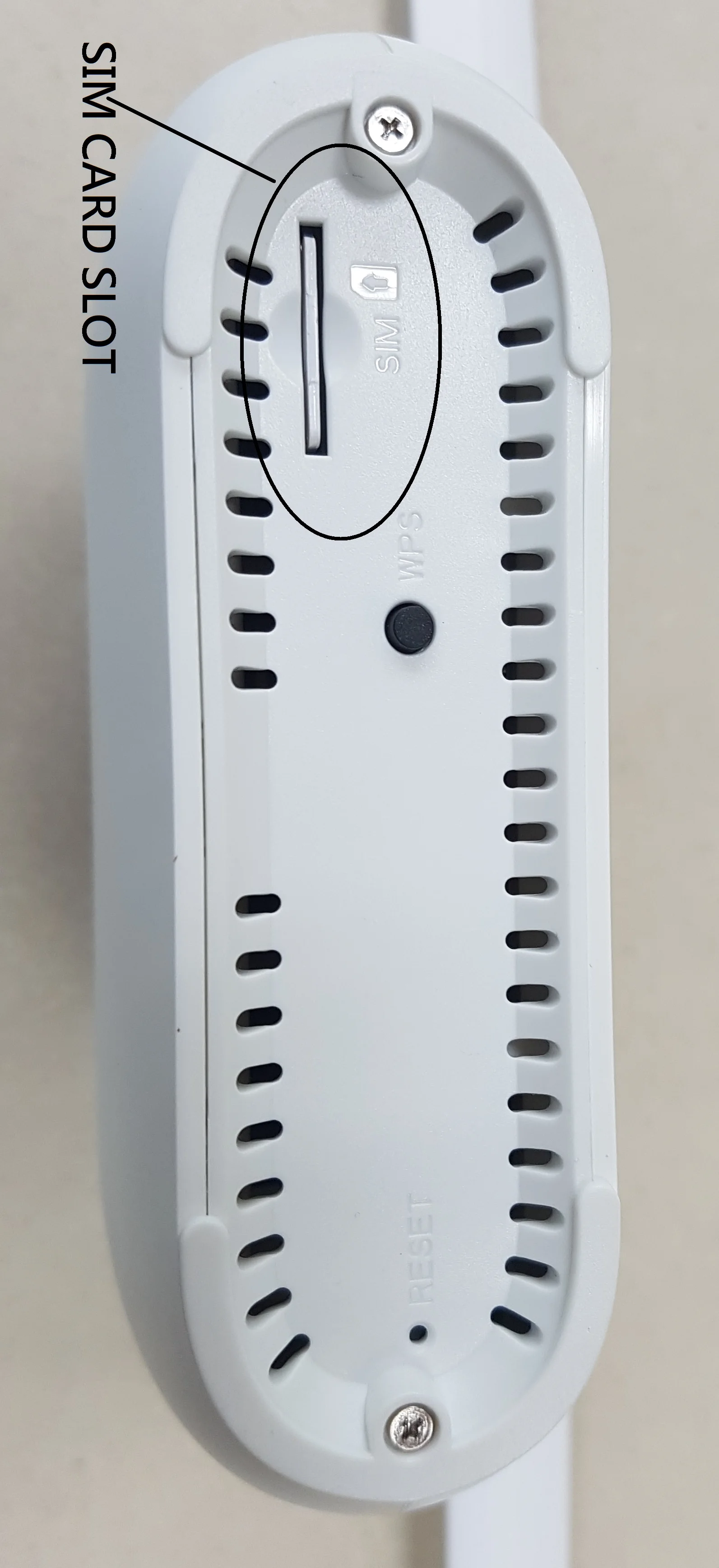

USIM

Single, 2FF

Antenna

internal

Power Jack

12v1A interface

LED

Power

Power Status Indicator

Network

4G/3G/2G Network Status Indicator

Internet

Internet Connection Status Indicator

Wi-Fi

Wi-Fi Status Indicator

LAN/WAN

2 LEDs for LAN/WAN Indicator

Phone

RJ11 Status Indicator

WPS

WPS Enable Status Indicator

Button

Power Key

Power Switch

WPS Key

Enable WPS

Reset Key

Restore Factory Settings

Memory

2Gbits + 2Gbits

Connection Status

Statistics
