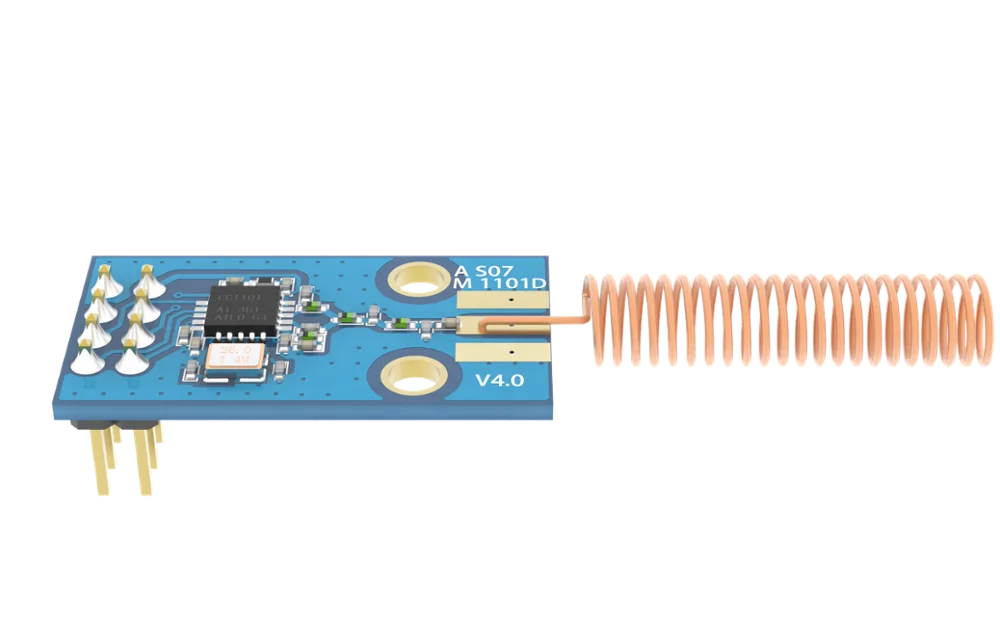

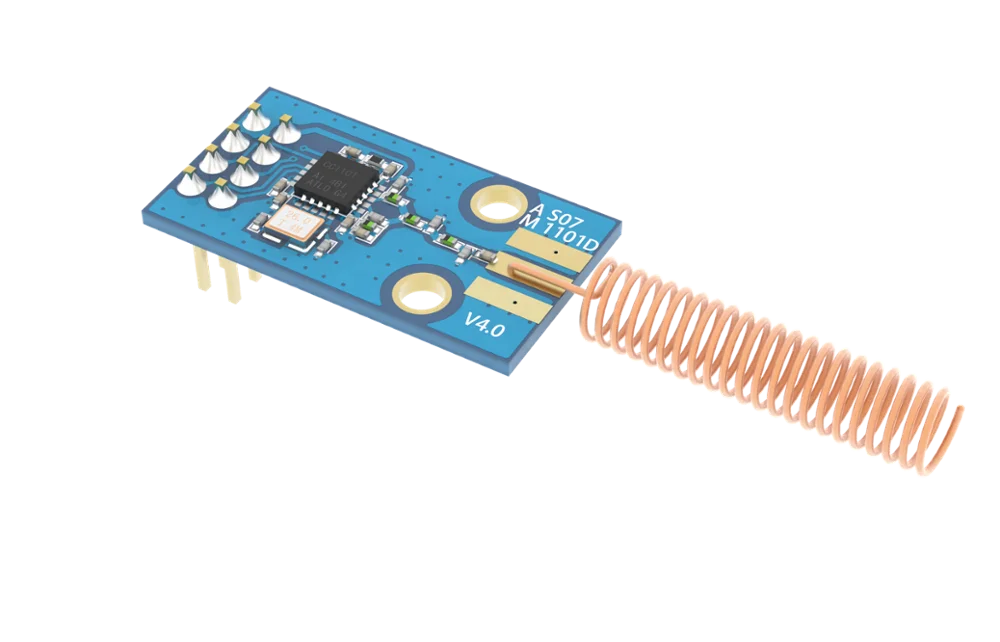

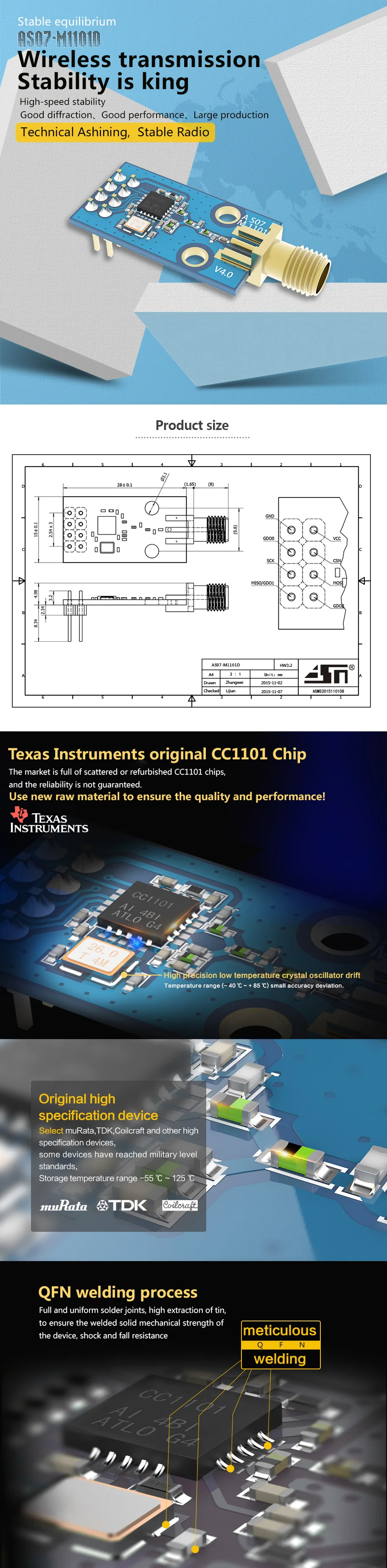

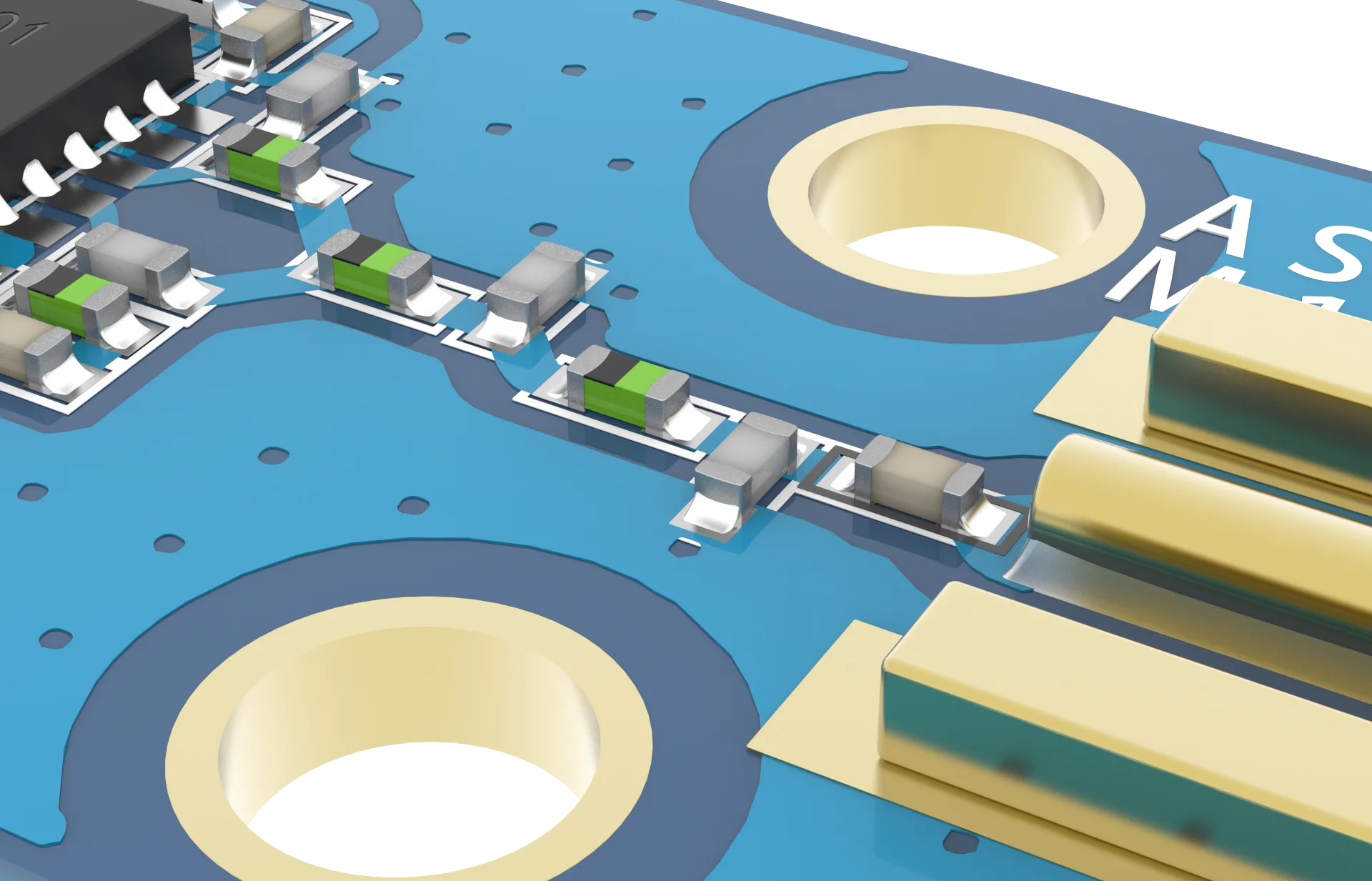

Cost Effective Ism Band 10mw 433m Wireless Cc1101 433mhz Rf Module

    Brand

    Ashining

    IC

    CC1101

    Model

  AS07-M1101D-SMA

    Interface

    SPI

    Power

    10mW

    Distance

    700m

    RF connector

  plug-in

    Frequency

    433MHz (400M~470MHz)

NO.

Parameter name

Parameter value

Abstract

1

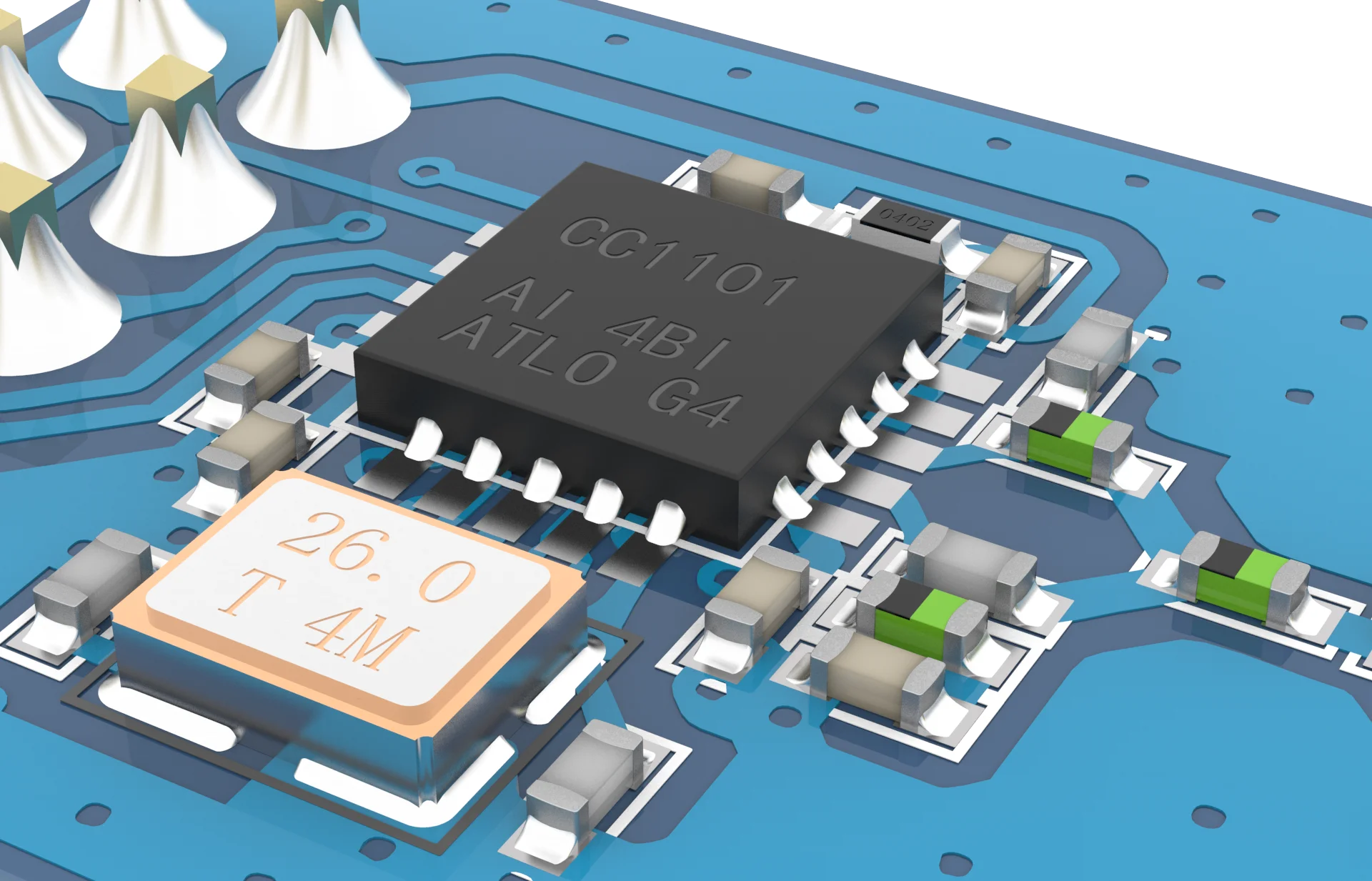

RF chip

CC1101

TI

2

Module size

28*15mm

Not including SMA

3

Module weight

3.15g

Including SMA-KE antenna head

4

Operating frequency

400M~470MHz

Can be adjusted by software,  433M ± 10MHz is recommended

5

Production craft

Lead-free environmental protection process

6

Interface mode

2*4*2.54mm

Plugin

7

Supply voltage

1.8 ~ 3.6V DC

Note: if it is higher than 3.6V, the module will be permanently damaged.

8

Communication level

0.7VCC ~ 3.6V

VCC refers to the module supply voltage

9

Measured distance

700m

Clear and open, maximum power, height 1.5m, 1k airspeed

10

Transmission power

Maximum 10dBm

About 10mW

11

Air rate

0.6k ~ 500Kbps

It is adjustable by Software, it is recommended to use low-speed as far as possible

12

Turn off current

0.5uA

In power-down mode

13

Transmitting current

29mA@10dBm

The power supply must be bigger than 100mA

14

Receiving current

16mA

In the receiving state

15

Communication Interface

SPI

The maximum rate is up to 10Mbps

16

Transmitting length

Single packet 1 to 64 bytes

17

Receiving length

Single packet 1 to 64 bytes

18

RSSI support

support

See chip manual for detail

19

Antenna interface

SMA antenna

External thread inner hole,50Ω impedance

20

Operation temperature

-40 ~ +85℃

Industrial grade

21

Operation humidity

10%-90%

relative humidity, no condensation

22

Storage temperature

-40 ~ +125℃

Industrial grade

23

Receiving sensitivity

-116dBm at 0.6kbps

See chip manual for detail
