Product Overview
Description
Product Description

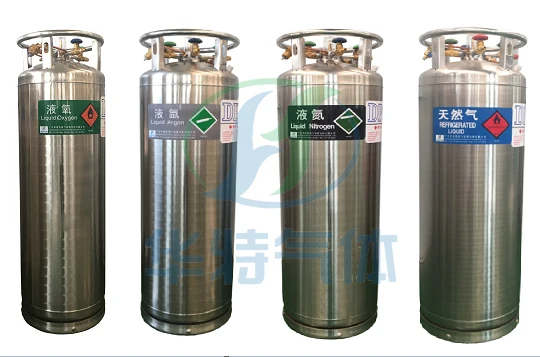

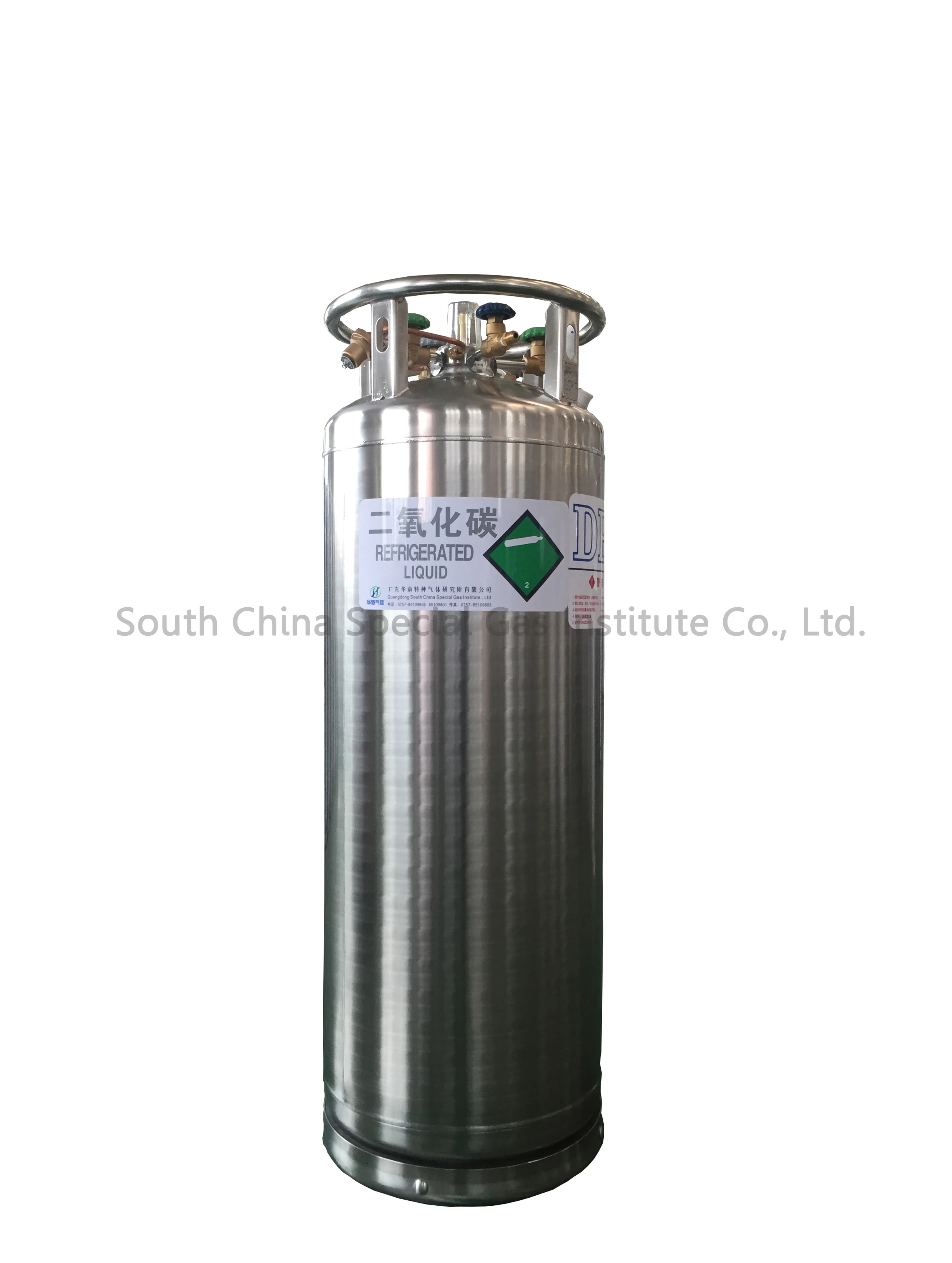

The DPL series containers are vacuum insulated, Stainless steel containers designed to store and transport cryogenic liquid oxygen, nitrogen or argon. Containers may be used for over the road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications.
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa).
DPL-175L/195L/210L-1.4Mpa Technical Specification | ||||||
Product Model | DPL-175L | DPL-195L | DPL-210L | |||
Diameter*Height(mm) | 508*1500 | 508*1620 | 508*1707 | |||
Working Pressure(MPa) | 1.40 | 1.40 | 1.40 | |||
Pressure Relief Valve(MPa) | 1.59 | 1.59 | 1.59 | |||
Inner Container Bursting Disc(MPa) | 2.60 | 2.60 | 2.60 | |||
Maximum Liquid Capacity(L) | 175 | 195 | 210 | |||
Usable Liquid Capacity(L) | 166 | 185 | 197 | |||
Normal Evaporation Rate ((LN2)) | ≤2.1% | ≤2.1% | ≤2.1% | |||
Tare Weight(Kg) | 110 | 117 | 123 | |||
Max. Filling Quality Oxygen(kg) | 172 | 191 | 205 | |||
Max. Filling Quality Nitrogen(kg) | 121 | 135 | 145 | |||
Max. Filling Quality Argon(Kg) | 208 | 233 | 250 | |||
Max. Filling Quality Natural Gas (Kg) | 70.1 | 76 | 86.3 | |||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Detailed Images
S30408 Refined Polish.
Each of our cylinder must strictly go through degreasing and refined polish.
Each of our cylinder must strictly go through degreasing and refined polish.
Digital level gauge
we provide digital level gauge for option, which is show by precision percentage
we provide digital level gauge for option, which is show by precision percentage
Anti-Shock Rubber Cushion
The thicken rubber cushion can greatly prevent the inner container from any Sudden shock and buffer
the impact.
The thicken rubber cushion can greatly prevent the inner container from any Sudden shock and buffer
the impact.
25 layers of Vacuum insulated quilt
We use 25 layers of mutiple thermal insulated quilt to ensure the vacuum effectiveness
We use 25 layers of mutiple thermal insulated quilt to ensure the vacuum effectiveness
High Vacuum Performance
Each unit of tank will under vacuumized processing, we provide three-year warranty to each user.
Firm Foundation Structure
Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation
Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation
