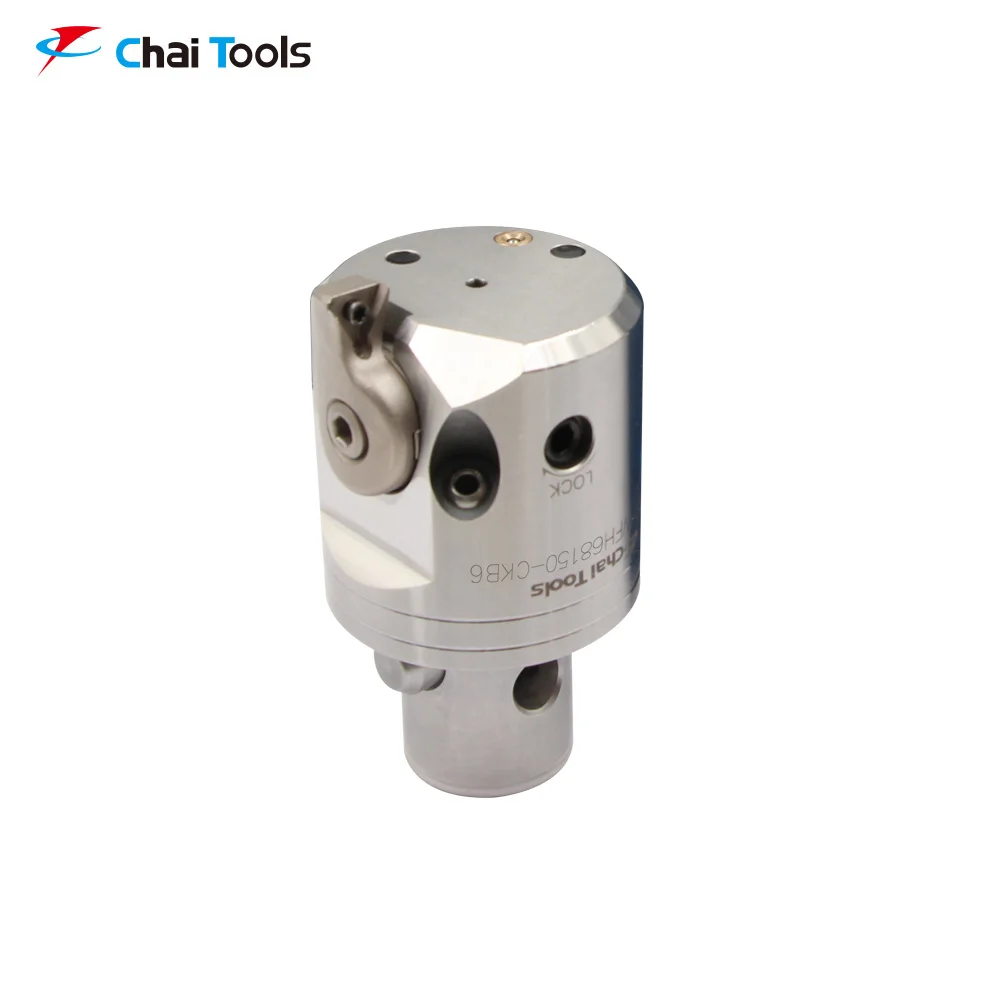

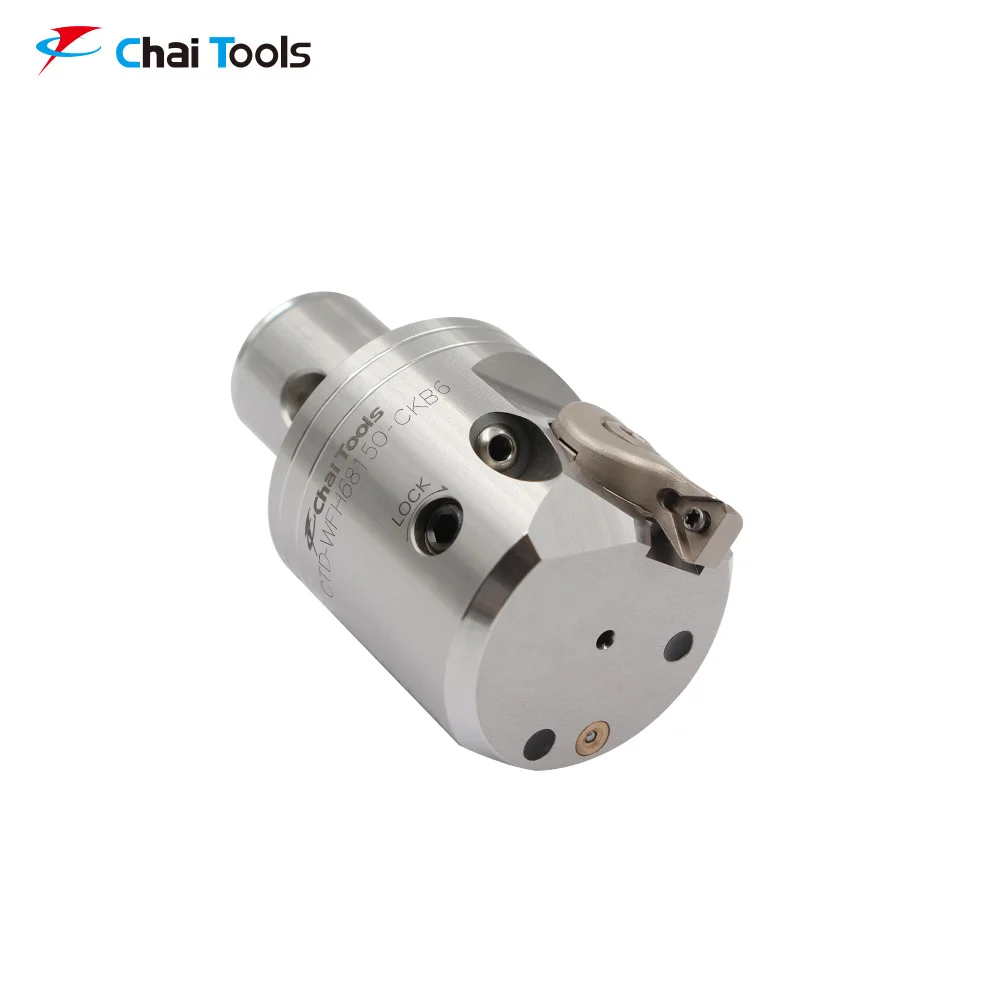

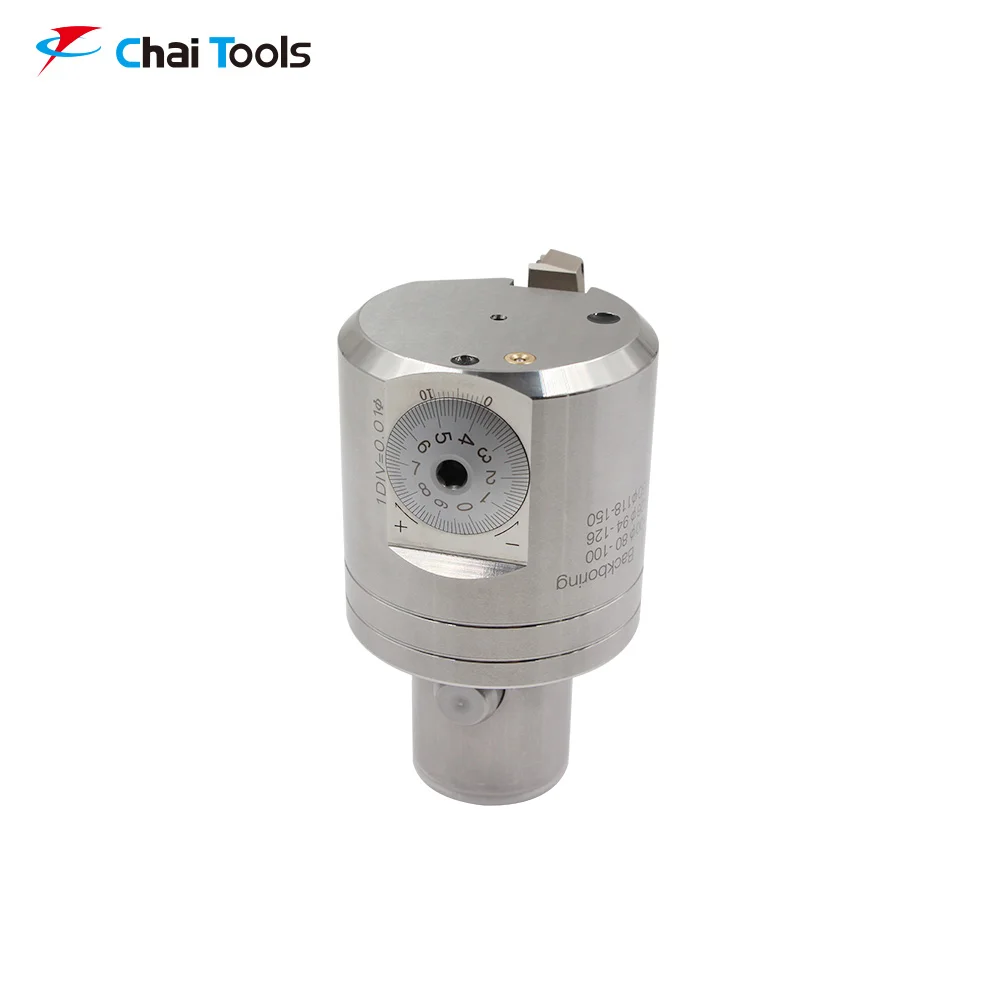

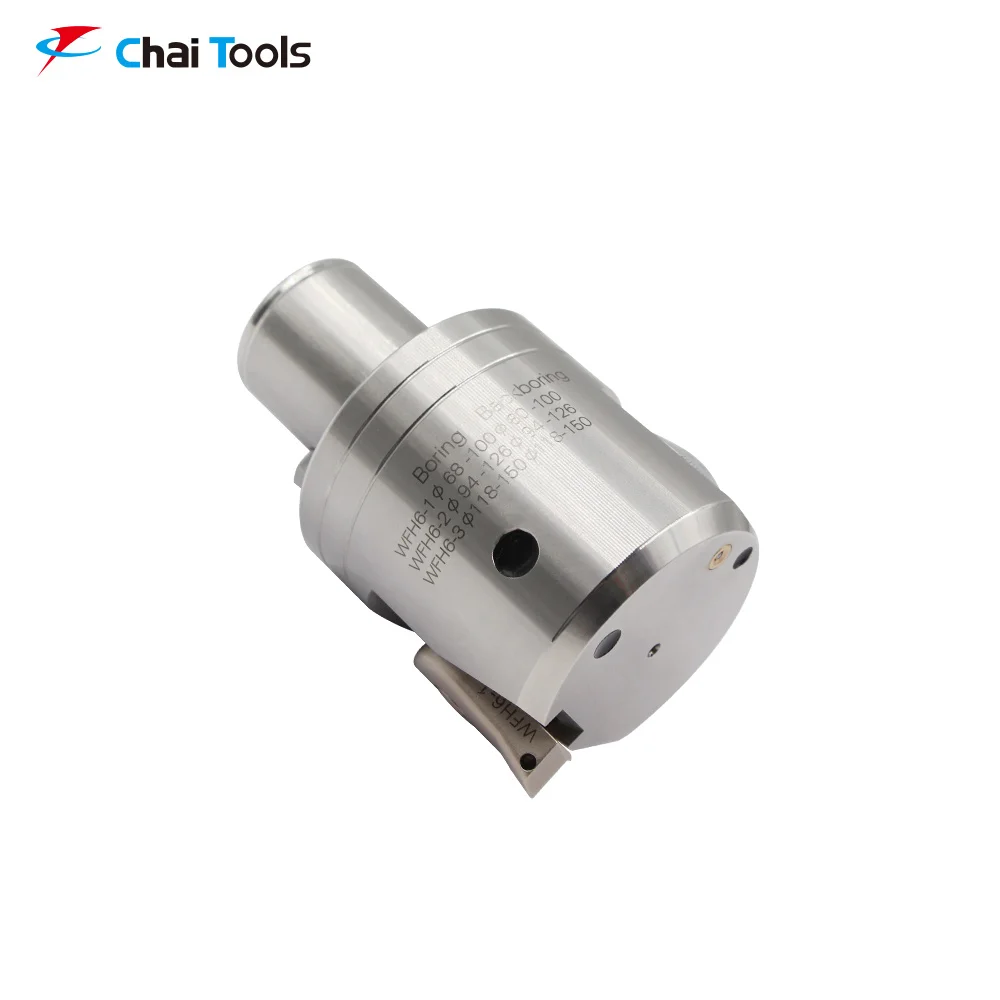

CTD-WFH68150-CKB6 fine boring module for hole boring
Product Description
1.Equipped with CK connector and fine boring toolholder. This tool is same with BIG brand from Japan.
2.The boring range is φ68mm~φ150mm, with three different models of toolholder:
WFH6-1, WFH6-2 and WFH6-3.
3.Regulation precision: 0.01mm for each scale in diameter.
4.Provide complete specifications and competitive price.
Pictures
Packing

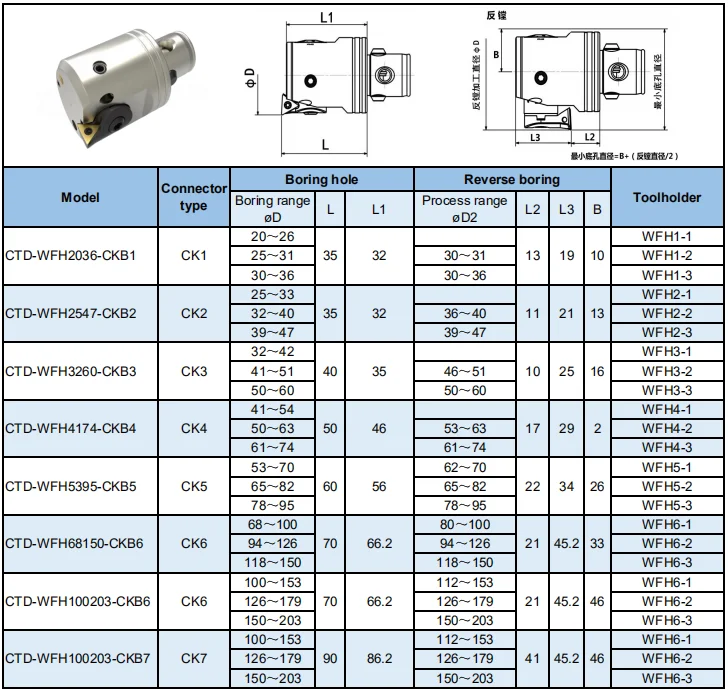

Detailed Technical Data
*Normal insert has inner-cooling holes
*Insert needs to be purchased separately
*This structure includes the corresponding toolholder WFH6-1;
WFH6-2 and WFH6-3 need to be purchased separately

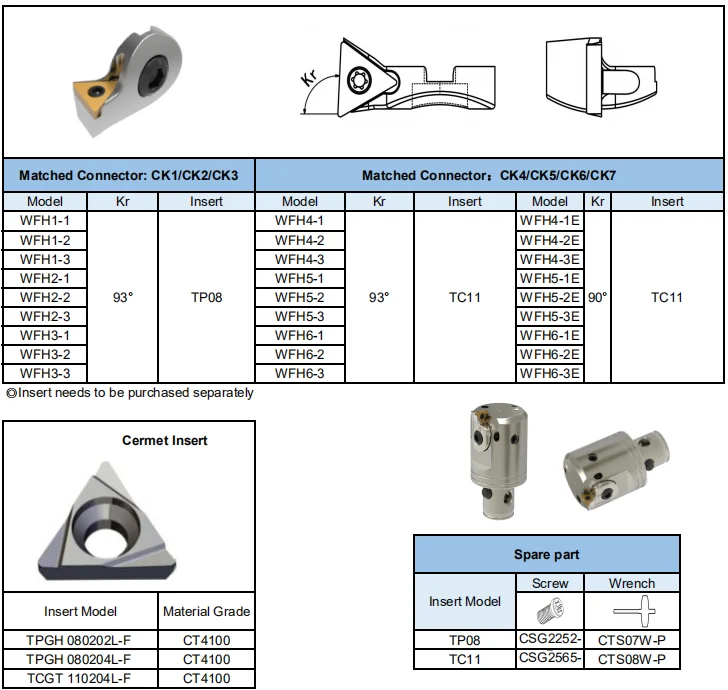

Spare part
More Products
About US
Production Flow
FAQ
F A Q
Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer and have many years experience in this field.
Q:Can you offer inserts?
A:Yes. We have the professional production equipment and can offer the inserts by our own.
Q:How about the delivery time?
A:It depends on the order quantity. Normally, 1-3 days for stock, 10-20 days for standard and 30-50 days for customized.
Q:Can you offer free express delivery
A:Sorry, considering the cost we don’t offer free delivery service. But we have a discount from our cooperated express company, such as TNT, DHL, UPS, FedEx etc.
Q:Can you provide special tools?
A:Yes. We can design and produce the special tools according to your drawings or samples.
