Telecrane industry radio wireless remote control crane hiab F24 12D 12 double speed key button VHF 18 65V and 65 440V

Product Overview

Description

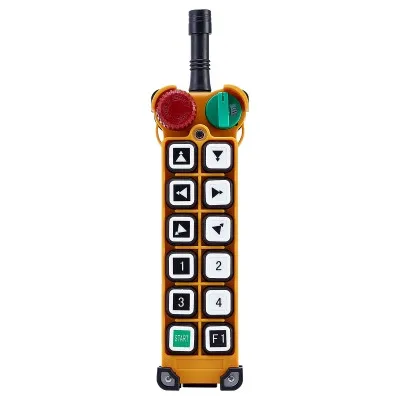

Telecrane industry radio wireless  remote control crane hiab F24-12D  12 double speed key button VHF





Telecrane industry radio wireless  remote control crane hiab F24-12D  12 double speed key button VHF  mainly used to Industrial weight lift machine,such as crane and electric hoist

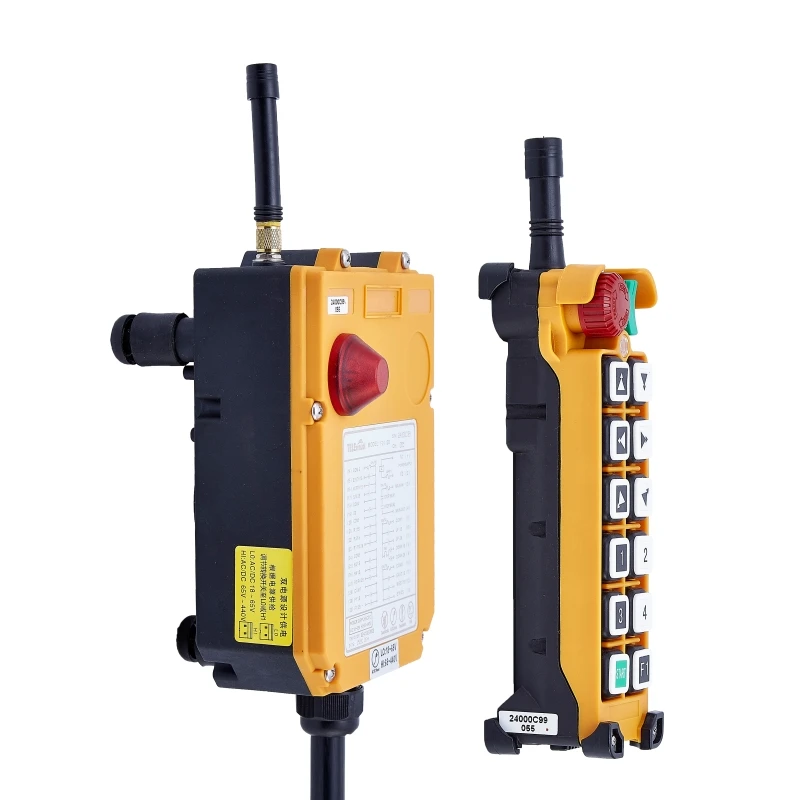

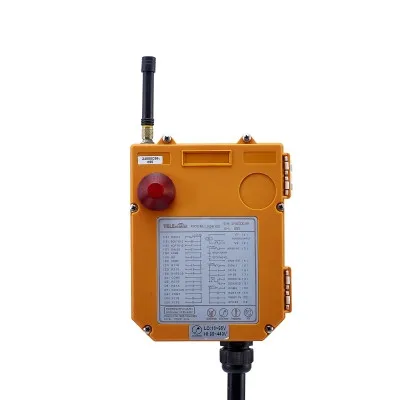

Telecrane industry radio wireless  remote control crane hiab F24-12D  12 double speed key button VHF  combine by 2 parts,one transmitter and one receiver. Control way is wireless radio control

Telecrane industry radio wireless  remote control crane hiab F24-12D  12 double speed key button VHF transmitter and receiver parameter



Transmitter			Receiver
Shell material	Fiber glass PA		Shell material	Fiber glass PA
Waterproof grade	IP65		Waterproof grade	IP65
Frequency range	VHF310-331Mhz		Frequency range	VHF:310-331Mhz
Transmitter power	<10dBm		Receiver sensivity	-110dBM

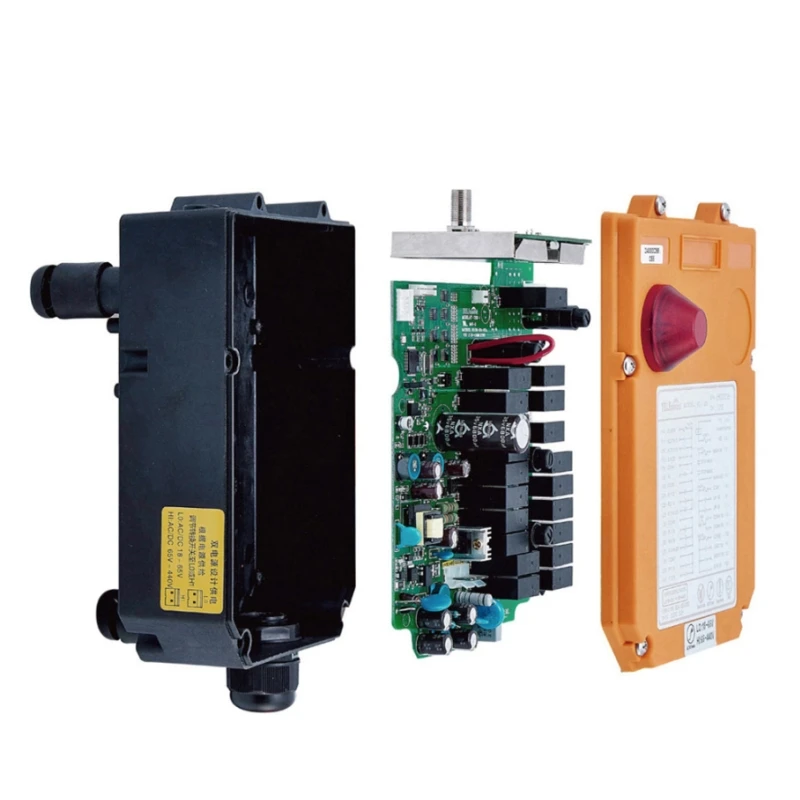

transmitter power	4*AA battery		Receiver voltage	18-65V and 65-440V
Safety code	32 digtial(4.3 Billion)		out put way	8A relay output
Control distance	100meter		work temperature	-40 to +85degree

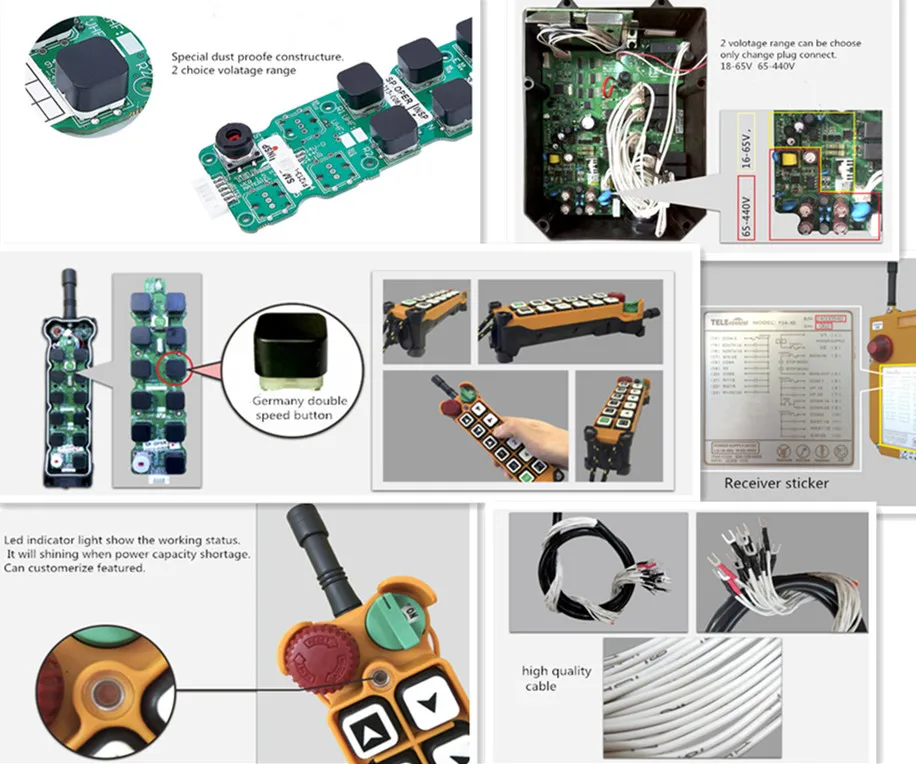

wireless  remote control crane hiab F24-12D  12 double speed key button VHF  wire digram and install,Please note 65-440V voltage and 18-65V voltage install is diffrence.



Telecrane industry radio wireless  remote control crane hiab F24-12D  12 double speed key button VHF  can be updated by connect with computer,which enable cusotmer cusotmerized the remote control or update to newest version

Telecrane industry radio wireless  remote control crane hiab F24-12D  12 double speed key button VHF has many advantage

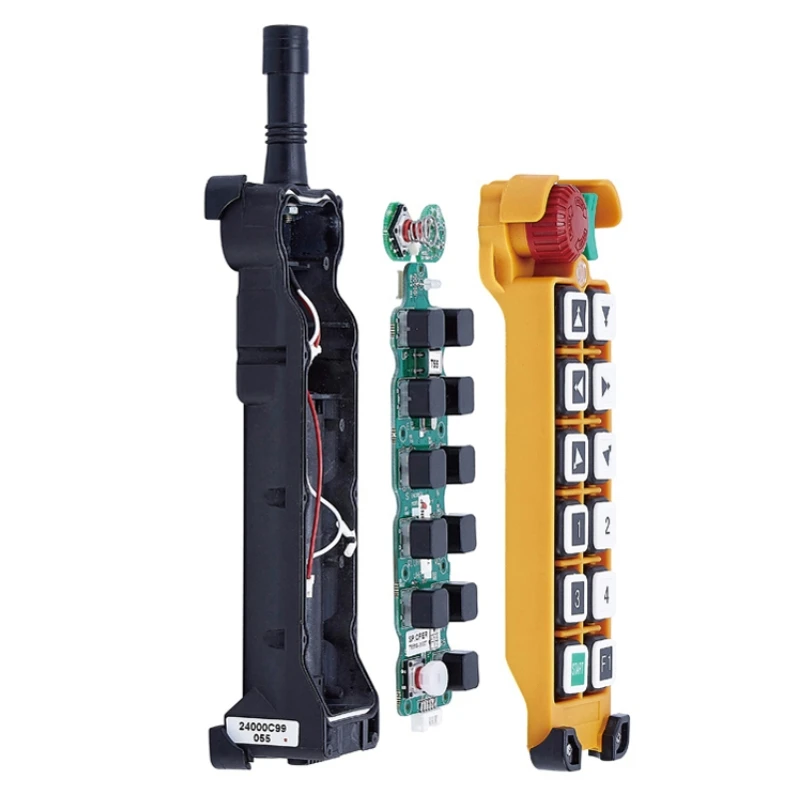

*high quality industrial remote control can resistance to fall from 2meter high and keep working

*Stuff design contruber the car rolling and keep perfact

*IP65 Grade water proof design can ensure remote control work in a wet surrounding.









We take flexible delivery way to customer, by sea by air by expresr or by China post all can be done by us.



Payment  we can T/T paypal western union Alibaba payment, Which to convient cusotmer



If you still any question or need more detail,please contact with me
