Product Overview
Description
Product Description

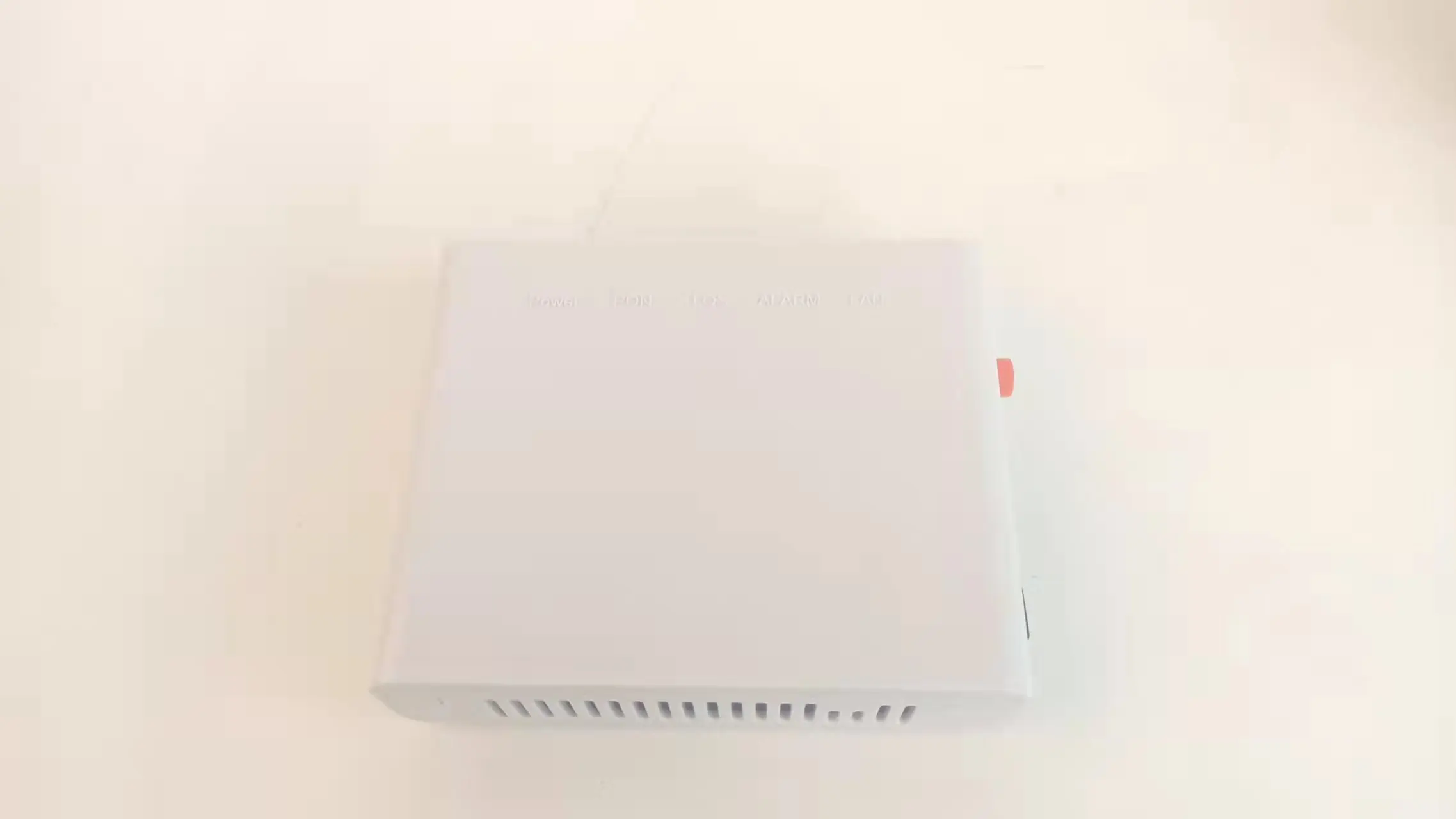

EPON ONU HA401GS
(1)Support port-based rate limitation and bandwidth control
(2)Up to 20KM transmission Distance (3)Support VLAN division and user separation to avoid broadcast storm; (4)Support other brands EPON OLTS
(5)DC12V external power
(6)Specialized design for system breakdown prevention to maintain stable system
Item | Parameter | ||
Interface | PON Interface | 1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric1.25Gbpsupstream/downstream SC single-mode fiber split ratio:1:64 Transmission distance 20KM | |
User Ethernet Interface | 1*10/100/1000M auto negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance | ||
Power Interface | 12V DC Power supply | ||
Performance Parameters | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1～4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125ɥm single-mode fiber | ||
Data Transmission Parameter | PON Throughput: Downstream 950Mbps; Upstream 930Mbps， 1000Mbps Packet Loss Ratio:<1*10E-12 latency: <1.5ms | ||
Router mode supports PPPoE/DHCP/ static IP WAN support Route rand Bridge mode WAN support Internet、VoIP、IPTV、TR069 LAN supports DHCP and static IP Support NAT and NAPT Support UPnP | |||
Business Capability | Layer 2 wire speed switching Support VLAN TAG/UNTAG，VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast | ||
Network Management | Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet, support Local management | ||
Status monitor, Configuration management, Alarm management, Log management | |||
Indicator | LED Indicator | PWR: Power up or down SYS: System instructions LOS: Optical Link Status PON：ONU Registered LINK/ACT: Link Status of Ethernet Interface | |
Physical Features | Shell | Plastic casing | |
Power | External 12V 0.5A AC/DC power supply adapter Power consumption: <2W（FD101HC）,<2.3W(FD111HC) | ||
Item Dimension：120mm(L) x 80mm(W) x 26mm (H) Item weight：0.1kg | |||
Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) | |||

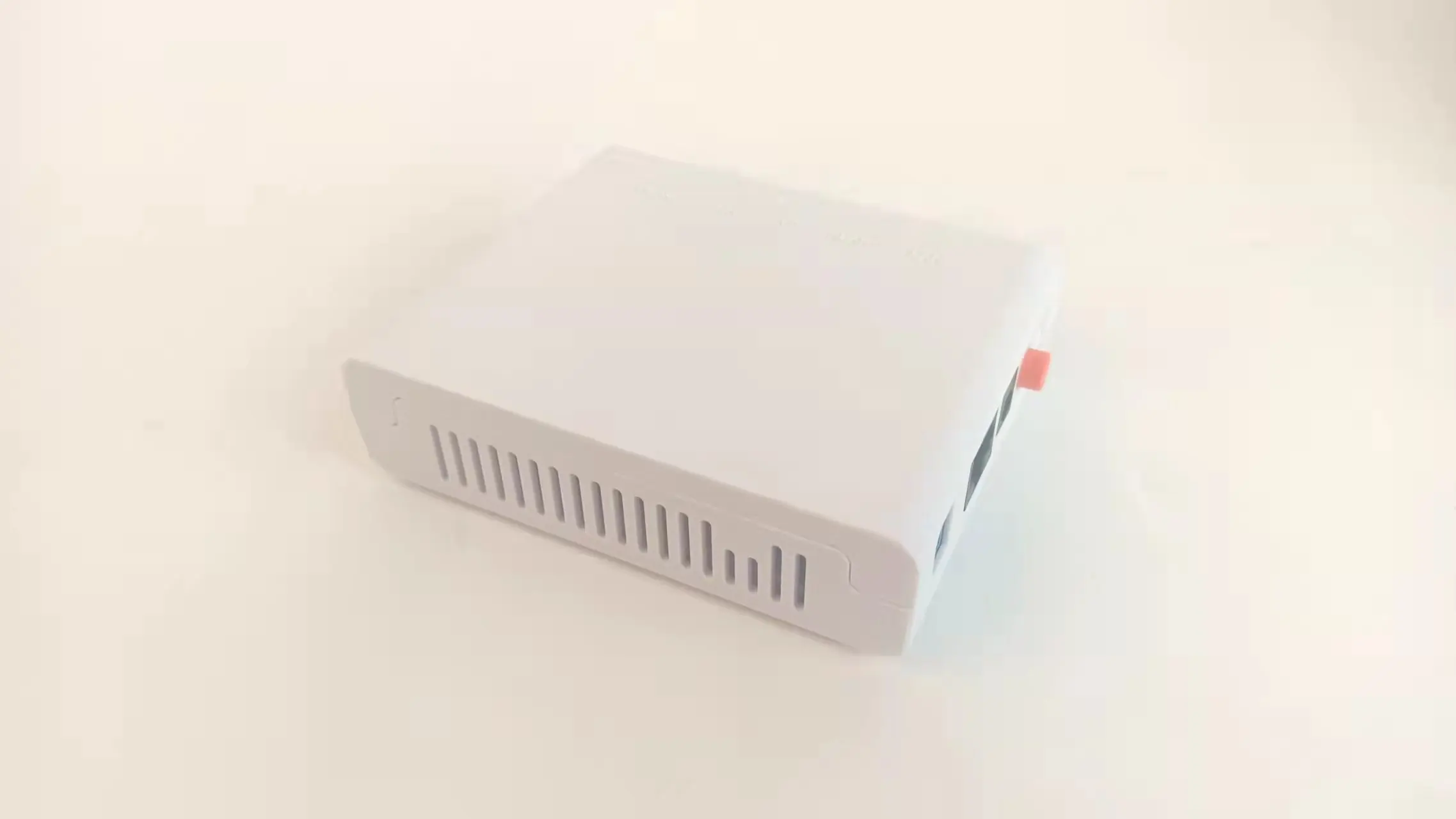

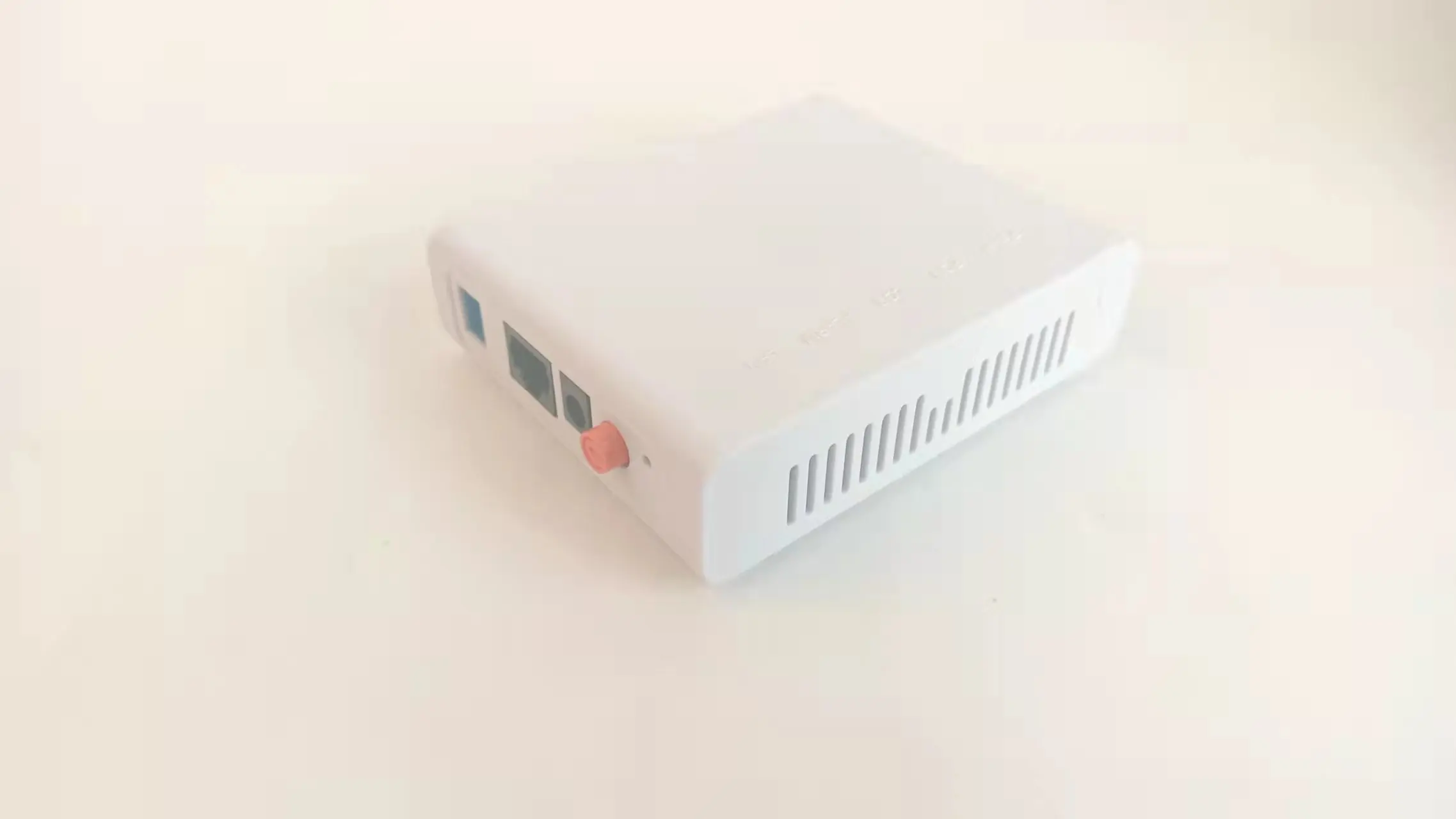

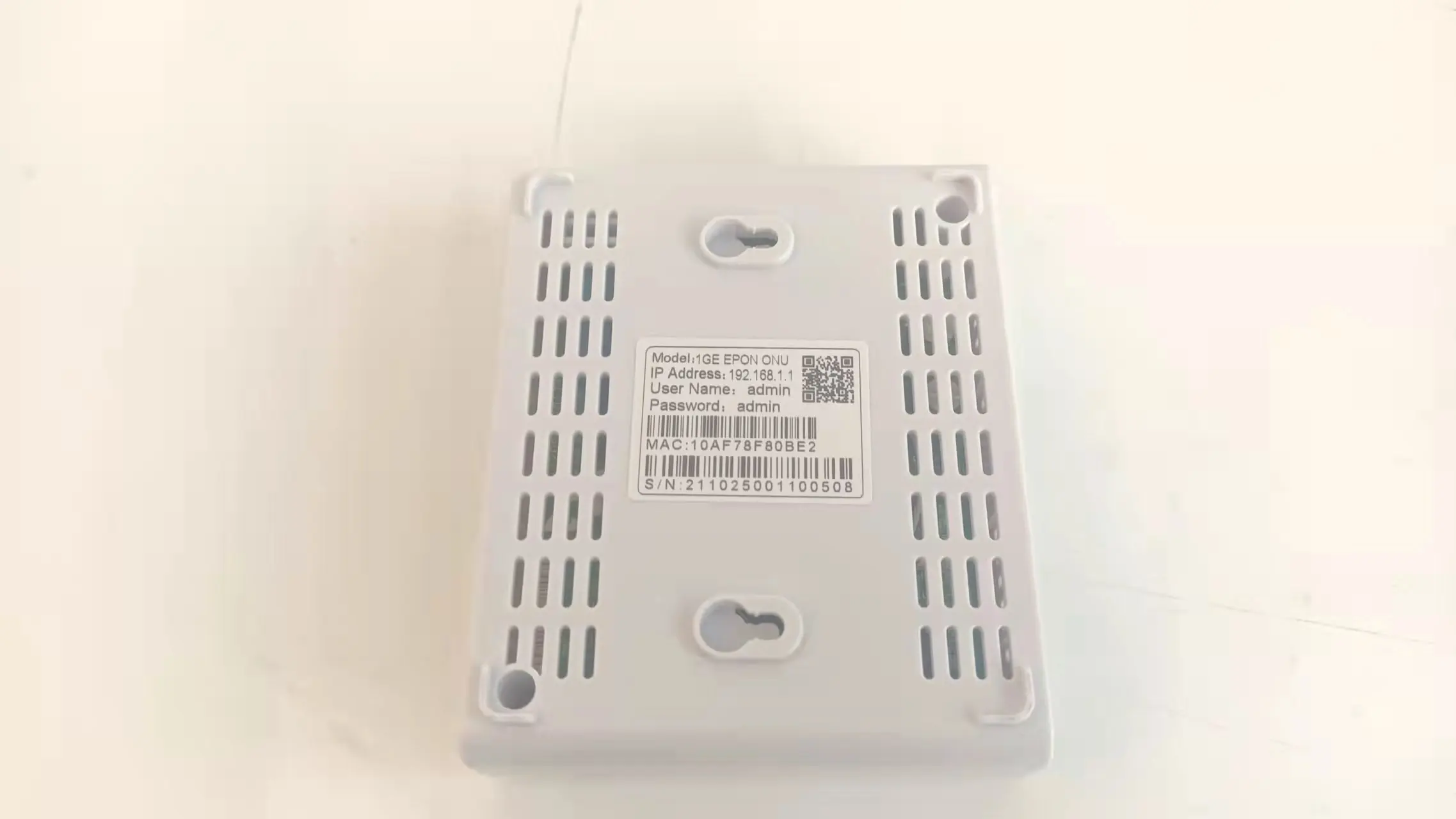

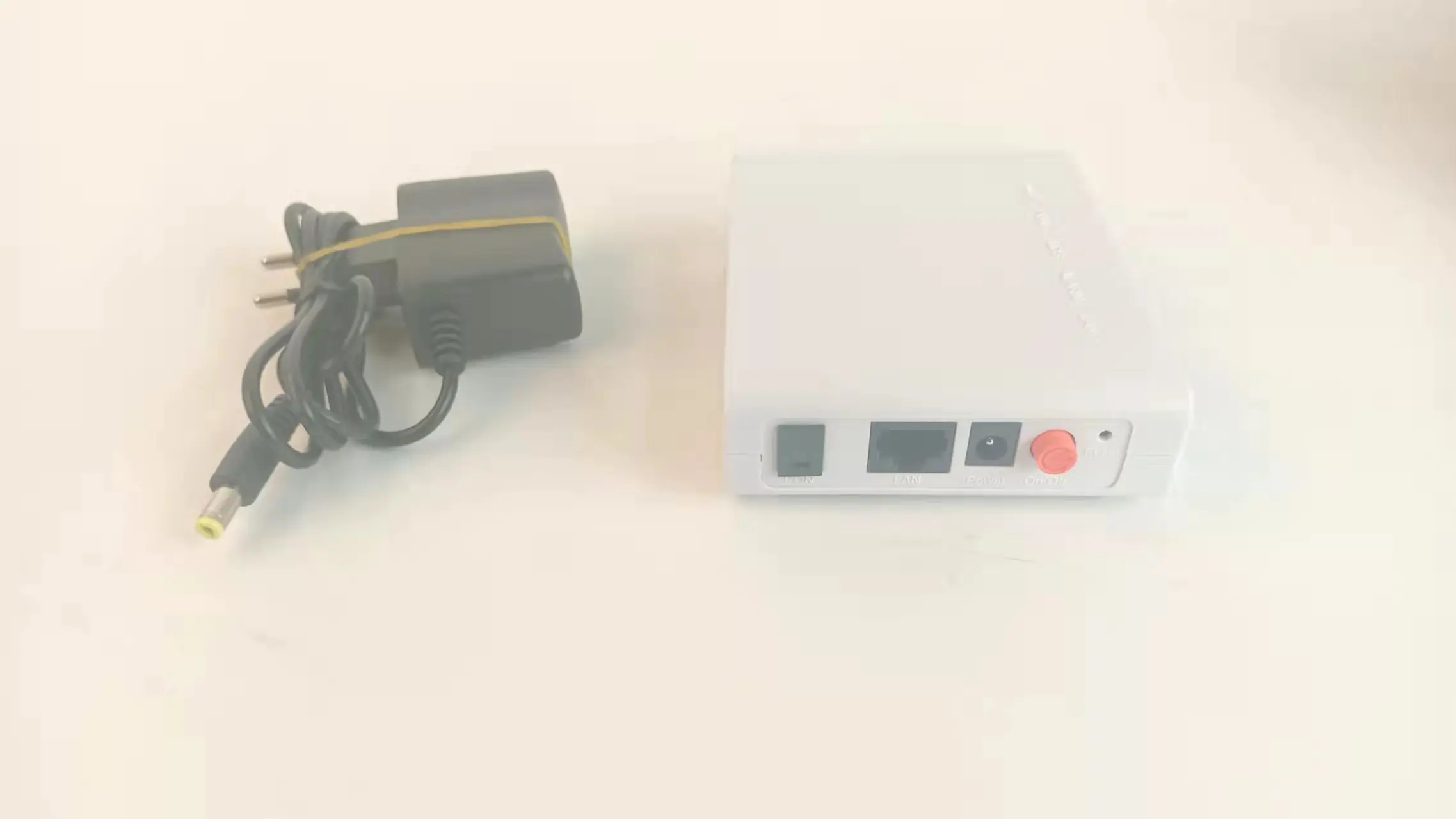

Details Images

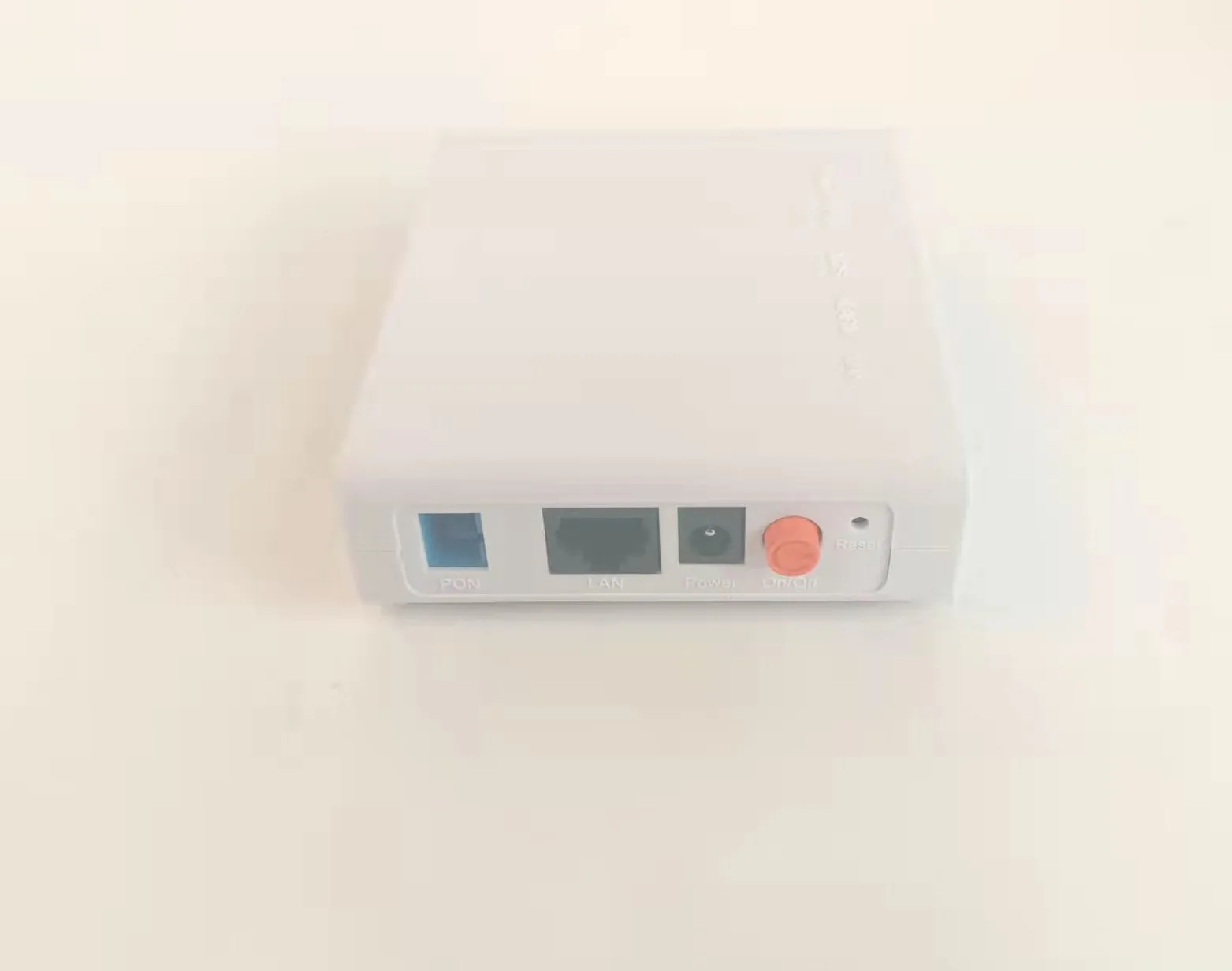

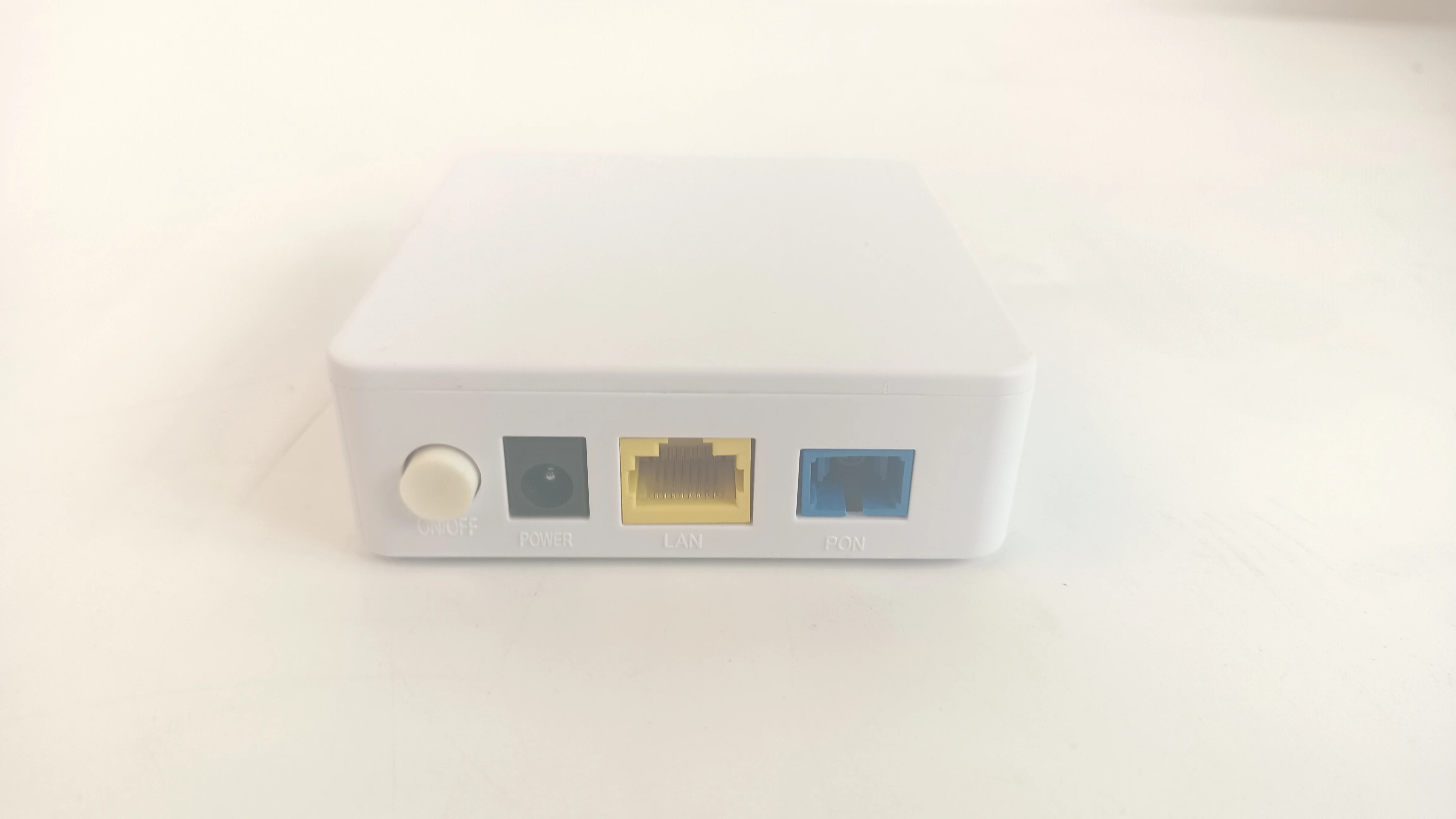

PWR:DC12V/1A (outside power)
LAN: also called RJ45 port
connection network
connection network
PON port: connected to the splitter
Product Usage
Related Products

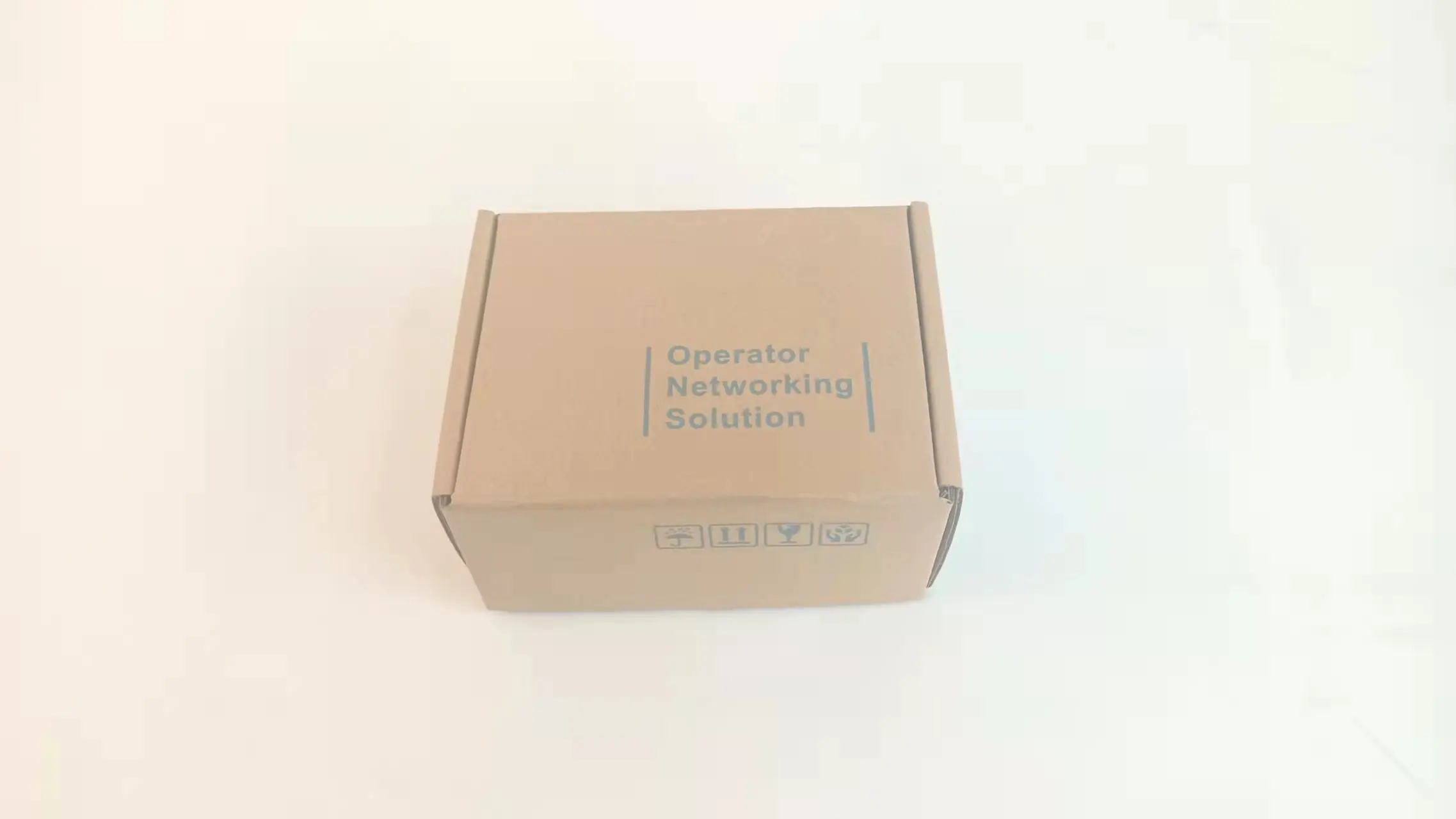

Packing&Shipping
