Plastic 1ge ftth gpon ont modem 1GE ONT made in China

Product Overview

Description



  Plastic 1ge ftth gpon ont modem 1GE ONT made in China



Profile

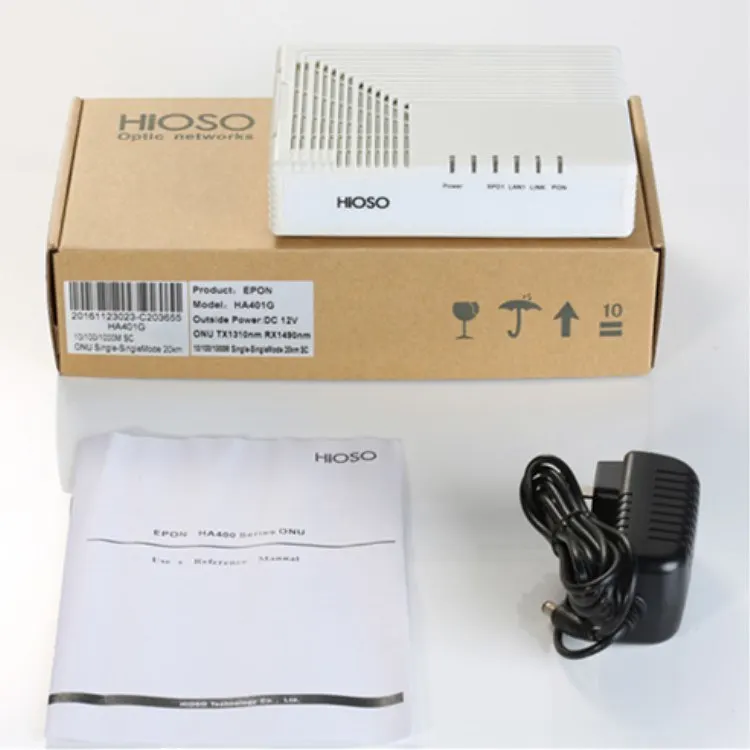

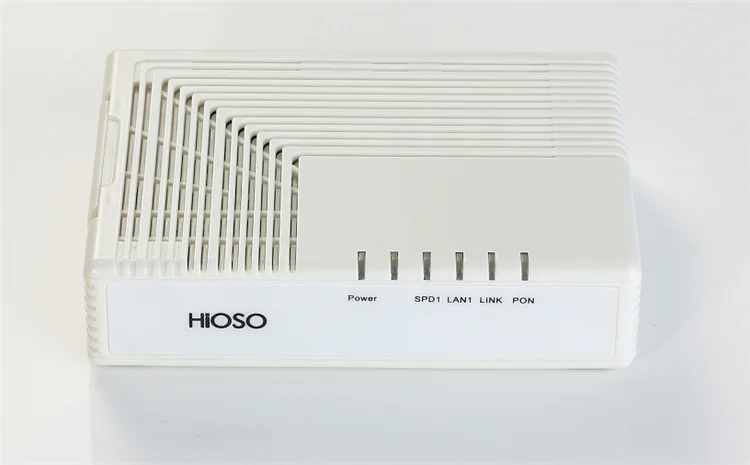

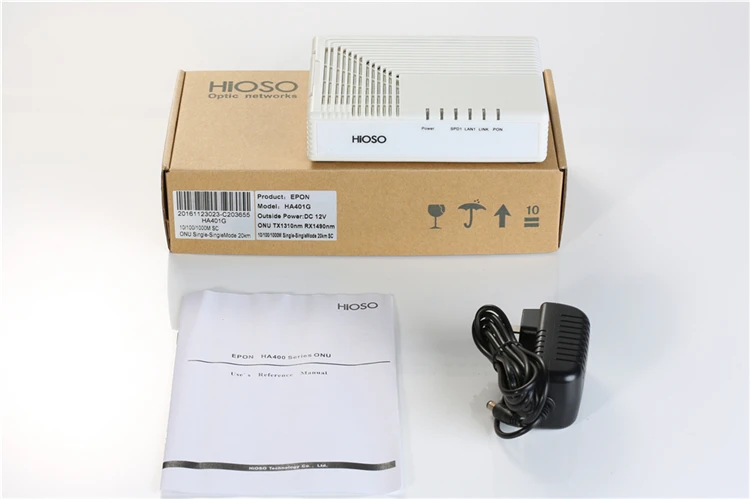

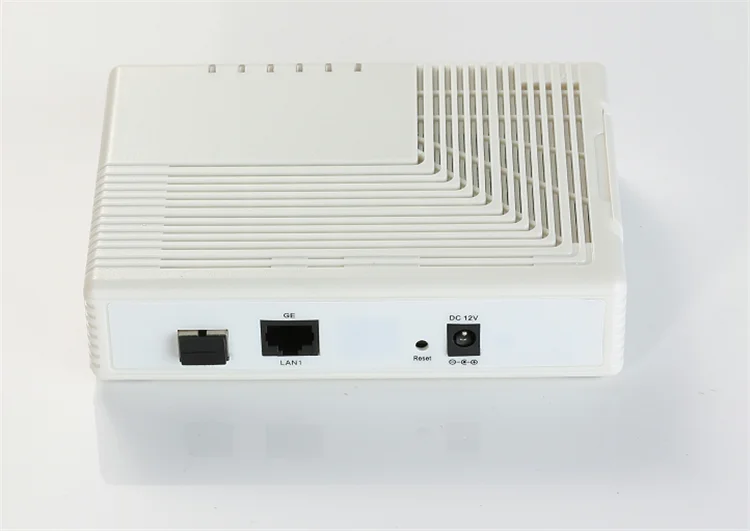

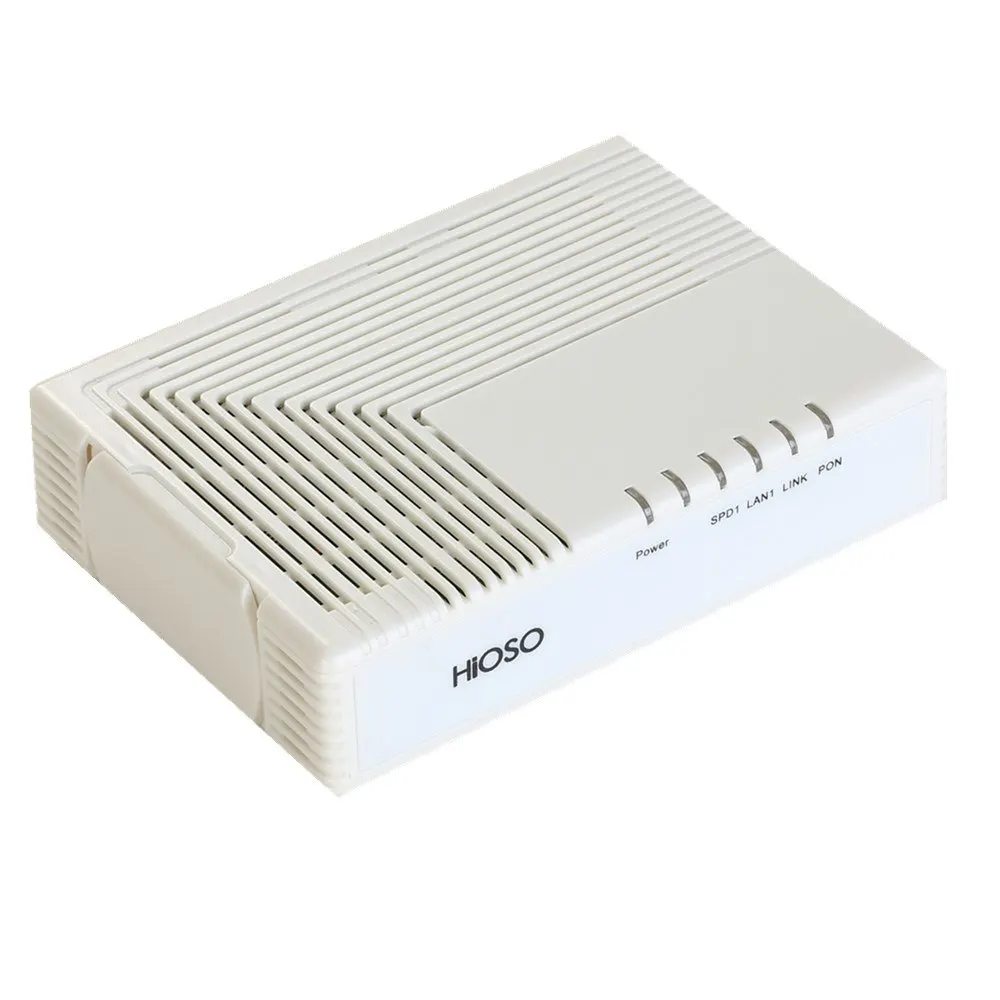

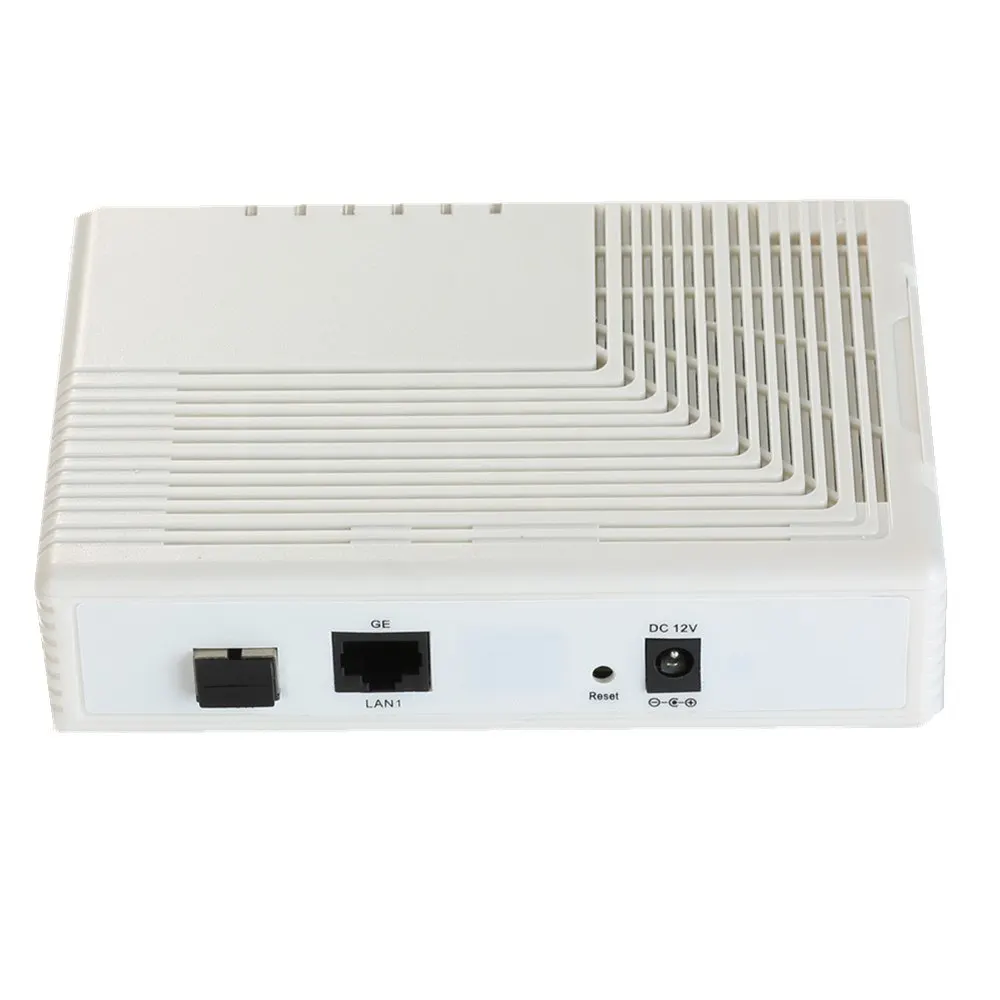

HA401 ONU is a plastic Ethernet product, with a fixed 10/100BASE-TX port. HA401 works with central device OLT to implement integrated management, long-distance fault location and decrease maintenance workload.



Feature



l   Apply to IEEE802.3/802.3ah



l   Support auto discovery and auto register (real-time operation)



l   Support DBA and multi types SLA



l   Support IEEE802.1D RSTP



l   Support IGMP Snooping V2 multi-broadcast function



l   Support EMI and ESD identification



l   64bit MAC



l   Support VLAN



l   Support multi LLID



l   Support user end auto time synchronization based at SNTP



l   Support OAM and remote management





Technical Parameter



Parameter	Specification
Wavelength	1310 (TX)/1490 (RX)
Optical power	-1~+4dBm
Receiving sensitivity	-24dBm
Max transmission distance	20 km
MAC Table	64
Space of buffer storage	1.25MB
Number of LLID	1--8
MTBF	100,000 hours
EPON trait	Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation)
Standard and Protocol	Support IEEE802.3, IEEE802.3u Support IEEE802.1q WLAN Support IEEE802.1p QOS
Network management	Cooperating with center OLT, implement management configuration and software upgrade to ONU





Working Environment

Parameter	Specification
Power	DC12V/1A (outside power)
Power consumption	3.5W
Operating temperature	-10—55 C
Storage temperature	-40—70 C
Humidity	5%~90% non-condensing
Dimension	146mm(length) * 105mm(width) * 35mm(height)

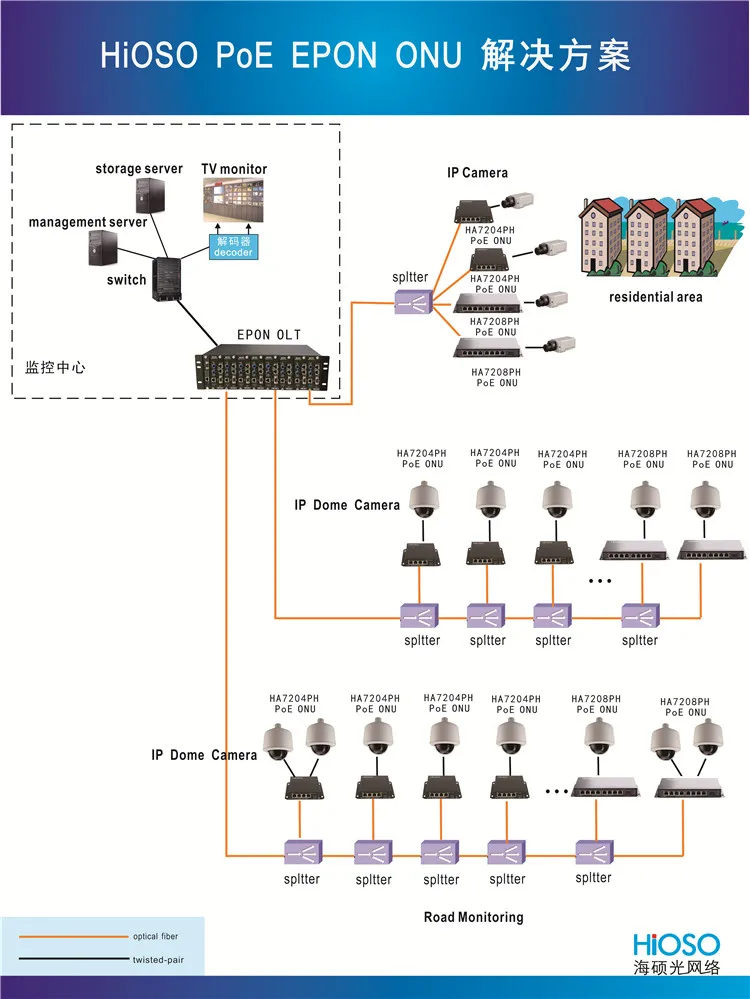

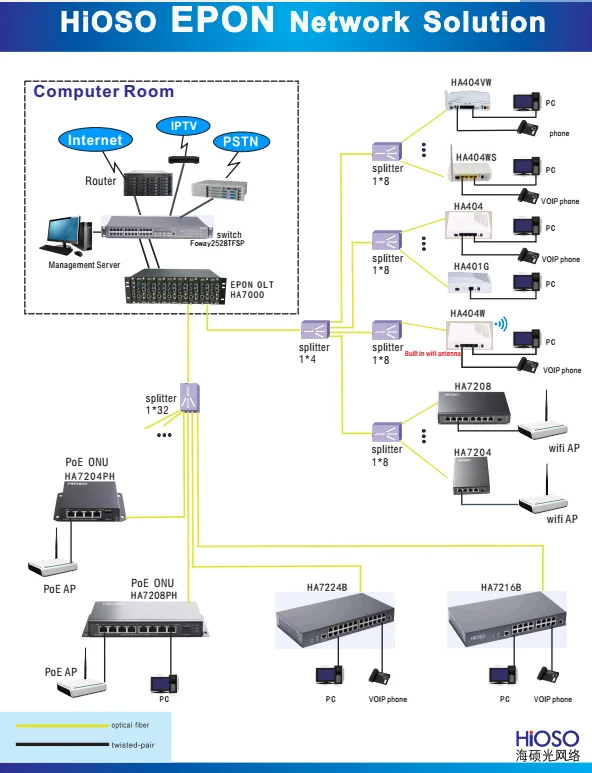

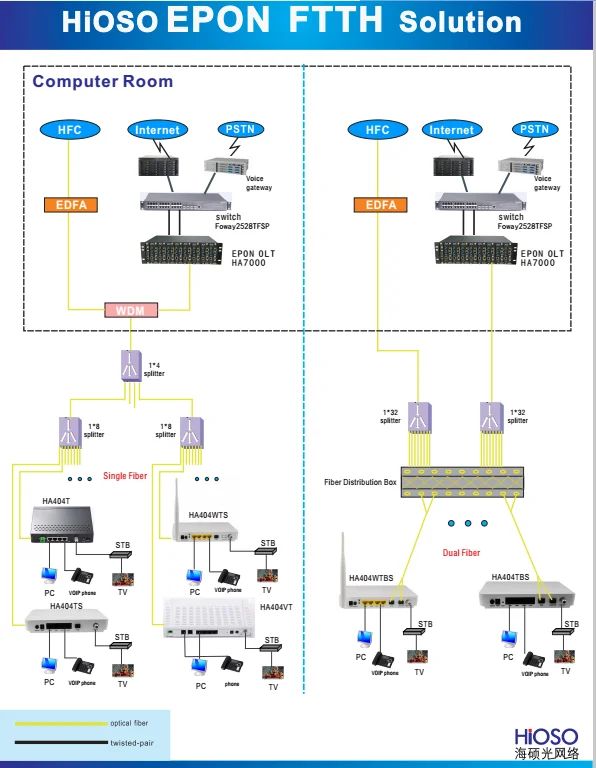

Solutions



















Certificates
