battery lithium ion solar panel separation LED Solar Powered Street Light 30W/40W/50W/60W IP65 Outdoor Street Lighting

Share on (50045772343):


Price:

Quantity:


Product Overview

Description


Product Description



* The light source is integrated with imported ultra-high brightness LED chip, which has the characteristics of low power consumption, long service life, high luminous efficiency, fast response time, small volume, impact resistance, good safety, environmental protection and maintenance-free.



* The aluminum alloy casing has anti-static and anti-corrosion treatment on the surface of the lamp. It can withstand mechanical pressure and corrosion of salt spray, corrosive gas and cleaning agent. The fasteners are all practical stainless steel.



* The lens is made of high transmittance tempered glass, which is resistant to high temperature, impact and light transmission. Sealed silicone gasket and silicone rubber ring made of high temperature resistant and aging resistant material on the upper and lower parts of the lens to prevent dust and water from entering.



* Advanced heat dissipation design, improved light efficiency and extended lamp life.

1

Specifications



Power

30W

40W

50W

60W

Lithium Iron Phosphate Battery

36AH

50AH

70AH

80AH

Solar Controller

PWM3.2V/15A

PWM12V/10A

MPPT3.2V/15A

MPPT3.2V/15A

LED Chips

Bridgelux 3030/40

Bridgelux 3030/40

Bridgelux 3030/60

Bridgelux 3030/60

Luminous Flux

3300LM

4400LM

5500LM

6600LM

Working Temperature

-25-+60℃

-25-+60℃

-25-+60℃

-25-+60℃

Lighting Time

8 hours

8 hours

8 hours

8 hours

Charging Time

4H

4H

4H

4H

Control Method

Time control&light control

Time control&light control

Time control&light control

Time control&light control

Rainy days

5-7 Rainy days

5-7 Rainy days

5-7 Rainy days

5-7 Rainy days

Installation Height

6m

7m

8m

8m

Wire

2.5m four-core waterproof plug

2.5m four-core waterproof plug

2.5m four-core waterproof plug

2.5m four-core waterproof plug

Operating Mode

Intelligent working mode, automatic monitoring of  battery power, intelligent adjustment of power control lighting time

Packing

1pcs/carton

1pcs/carton

1pcs/carton

1pcs/carton










Applications



Applicable to the lighting of secondary trunk roads, urban and rural streets, residential roads, courtyard roads, park roads, industrial roads, gas stations, parking lot.




Company Information



Since Mar. 2009, NIBBE has been focused on supplying lighting for hazardous locations globally and proudly serving to clients for more than 70 countries in 6 continents , the clients include BP, Shell,Chevron, Conoco Philips, SINOPEC, CNPC, CNOOC, China Coal Group etc.



NIBBE meet many local standards.

1. It is the first Chinese factory passed the UL&CSA standard approval for explosion roof light ( in Sept, 2012).

2. It is the first Chinese factory passed ATEX for LED explosion proof light ( in Jan 2013).

3. NIBBE has the Coal Mining Safety Certificates from CQST in China ( in Nov. 2012).

4. NIBBE product got GOST from Russia (in Feb. 2013) .

5. NIBBE is the first Chinese factory applying for the Japanese approval TIIS ( passed all test in 2015,pending).

NIBBE factory has been certified with ATEX Quality Management system, ISO 9001: 2008 system, ISO 14001:2004 system and OHSAS18001 system.



928361887_525

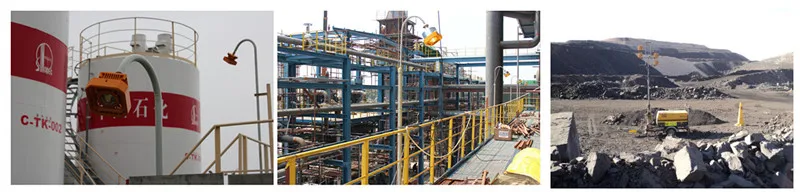

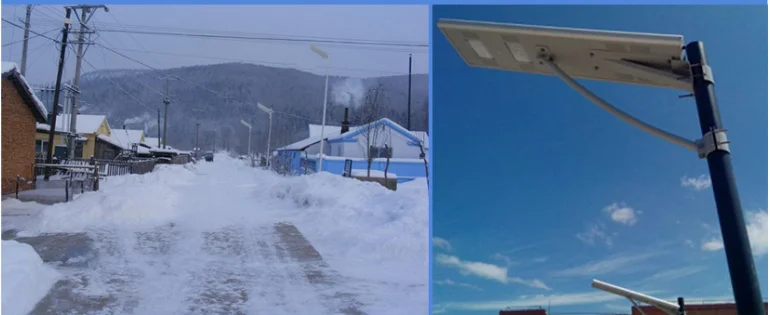

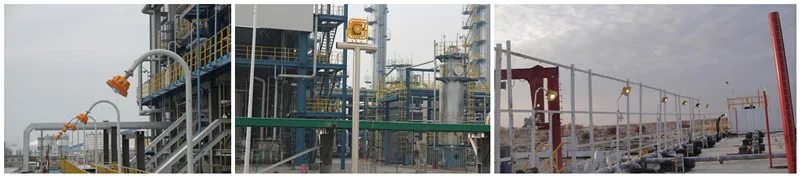

paste-pic-dp_uuid_c70bupaste-pic-dp_uuid_tdyv9installation case 2 (2)installation case 2 (1)





SHENZHEN NIBBE TECHNOLOGY CO.,LTD.

Tel:  +86(0)755 2999 5692   Fax: +86(0)755 2780 9526

Mobil: 86 18664577332     Skype: Susie Liu     Email: sales6  @ nb-led  . com

Add: No.5th, Jiaoyu North Road,Pingdi Town, Longgang District,

Shenzhen, China

Website: www.nb-led.com
