Bottle Capping Machine is suitable for round or other shape of glass, plastic, PET, LDPE, HDPE bottles. Machine construction in stainless steel finish including M.S. frame structure with stainless steel cladding/enclosures. The capping machine is ideal for application in pharmaceutical, food, pesticides, cosmetic & other Industries.
Machine is equipped with vibratory type bowl feeder depending on cap shape and size for continues feeding of cap for online operation on any liquid of powder filling line. Machine suitable for various sizes of bottles and ROPP cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical and other industries requiring higher production speed on automatic online operation.
We can offer Capping Machine for Screw Caps, ROPP Screw Caps, Lug Cap, Press On Caps, Pilfer Prood Child Lock Cap and other caps.

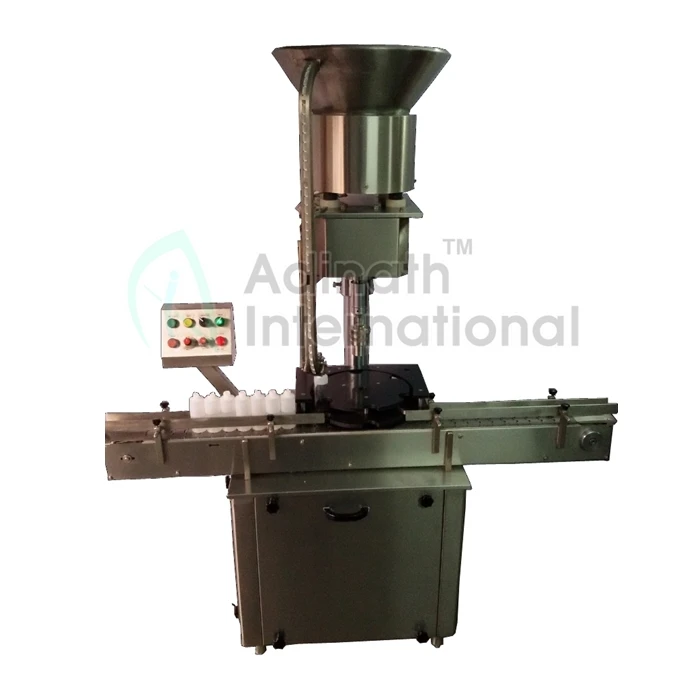

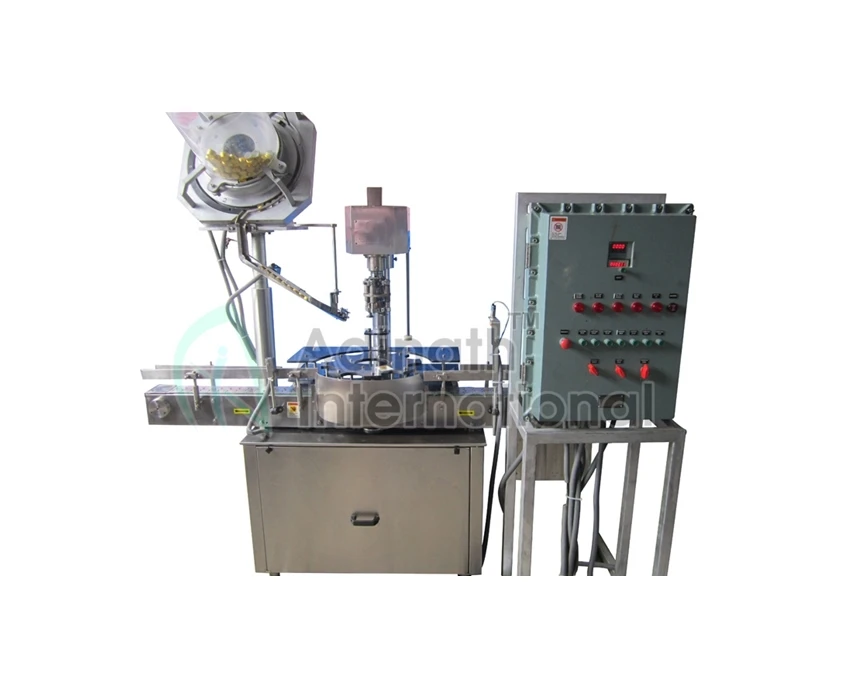

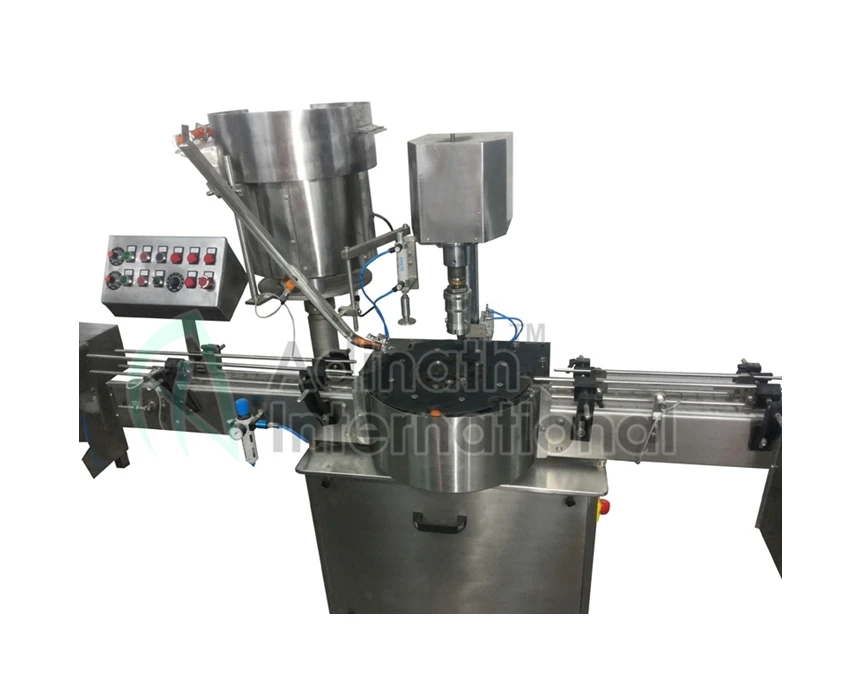

Single Head Bottle Capping Machine (60 BPM)

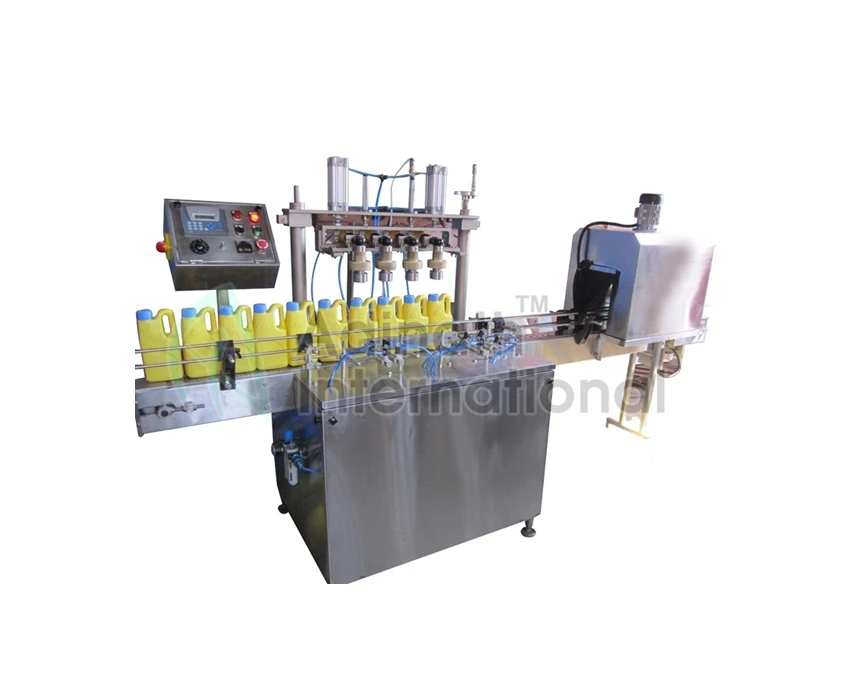

Four Head Bottle Capping Machine (100 BPM)

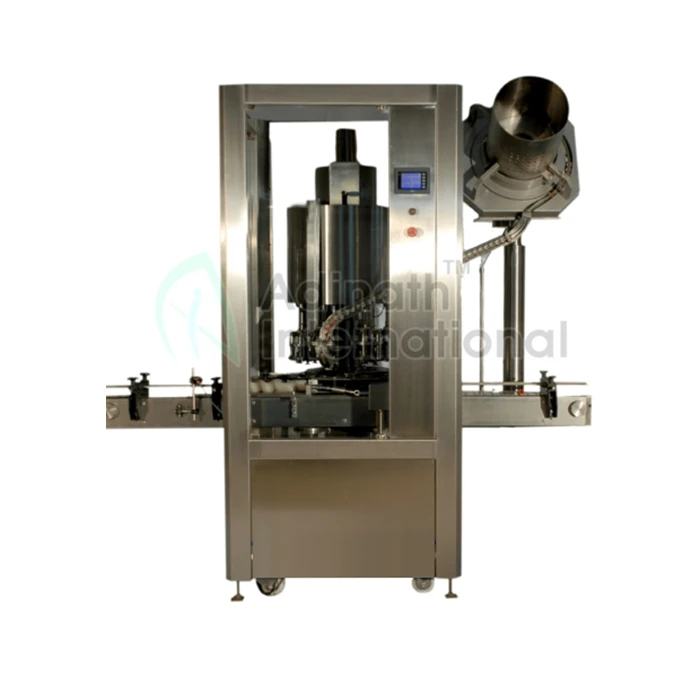

Eight Head Cap Sealing Machine (200 BPM)
State-of-art Control Panel
Parts made from High Quality Steel
Special Features:-
Salient Features
Compact GMP model.
“No Bottle - No Cap” system.
“No Cap in Chute - Machine Stop” system.
Machine suitable for Screw caps as well as ROPP Screw Caps.
“Container Overturn - Machine Stop” mechanism.
Inbuilt pulse counter.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel or long life.
Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.
Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Digital counter for counting production output.
Process Operation
Process Operation:
The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm.
While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure.
The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps.
The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.
Specification
Technical Specification
Model
ACSR-60
ACSR-120
ACSR - 200
No. of Capping Heads
Single
Four
Eight
Production Rate
Up to 60 Containers/Minute
Up to 120 Containers/Minute
Up to 200
Containers/Minute
Input Specification
Container Diameter:
Container Height:
Cap Diameter:
24mm to 90mm
50mm to 250mm
20mm, 25mm & 28mm with the help of change parts
Power Specification:
1 H.P.
Electrical characteristics
440 Volts, 3 Phase, 50 Hertz, 4 Wire System
Conveyor Height
800mm to 900mm adjustable
Optional Accessories
Aluminum profile cabinet covering full machine
PLC with GUI
Overall Dimension
1300mm (L) X 850mm (W) X 1800mm (H)
1500 (L) x 1000mm (W) x 1800mm (H)
1800 (L) x 1000mm (W) x 1800mm (H)
Note: Power Voltage can be adjusted as per customer’s requirements.
* Rights of technical improvement & modification reserved.
* Illustration & dimensions are shown for information purpose only.
