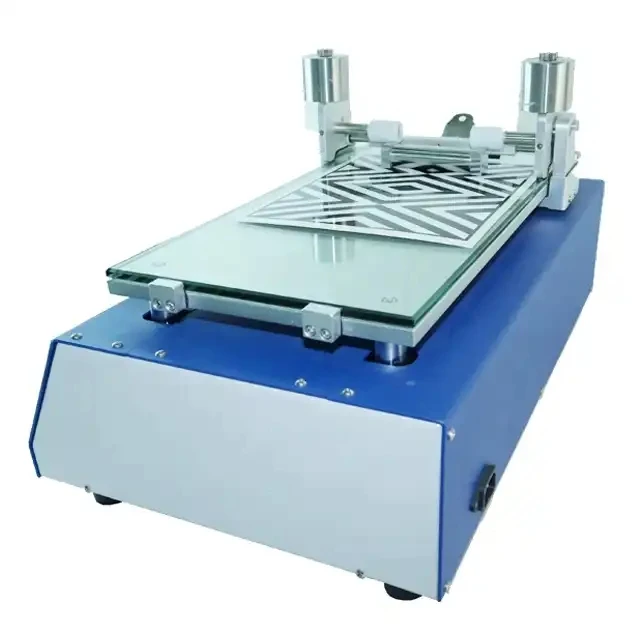

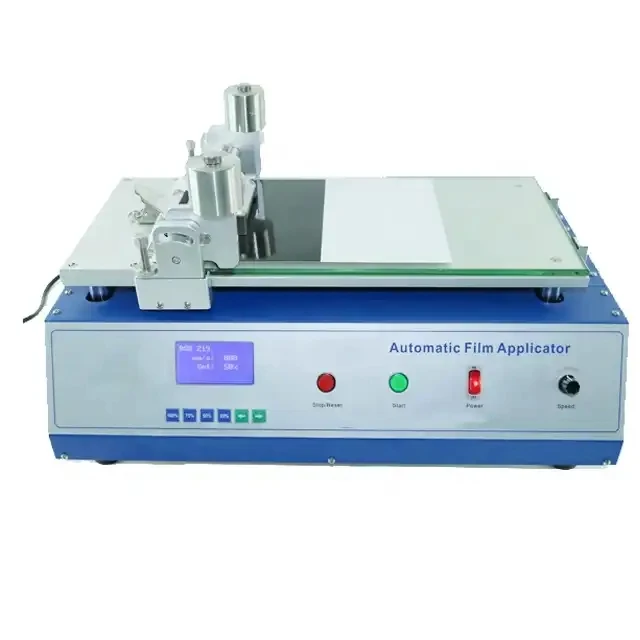

Automatic Film Applicator/Laboratory Coater/Automatic coating machine with vacuum bump

Product Overview

Description

Automatic Film Applicator/Laboratory Coater/Automatic coating machine with vacuum bump

Use

Automatic Film Applicator enables experimental chemists to conveniently draw down precise coating film on the different substrates so as to reduce and eliminate errors caused by manual factors. Factors affecting the draw down are the shear rate and downward force applied to the applicator tool. The equipment sucks test paper smoothly on the vacuum bed. It greatly improves the reproducibility of paint film.

It is the newest product, comparing the traditional products, it has:
     Adjustable variable speed:2~100mm/s
     High precision linear guide bar and direct current motor without carbon brush. Making the draw down speed more stable.
     Reasonable design bracket, easily and simply operated, and can add any load to applicate on easily bent substrates.
     Special precise machining vacuum suction-gas plate with high smooth precision(Whole plate ‘s flatness is less than 5 micron) and high hardness-for better repeatability
     Optimal design for vacuum plate to ensure suction power is distributed uniformly.
     Can set the starting point freely, is suitable for different size substrates
    Four types application distance can be selected freely.
     Applicable to all Biugeds different type and size applicators and wire bars

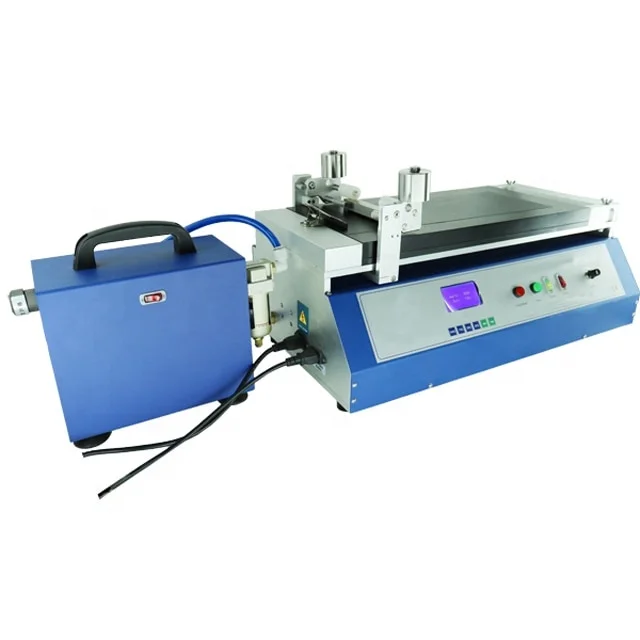

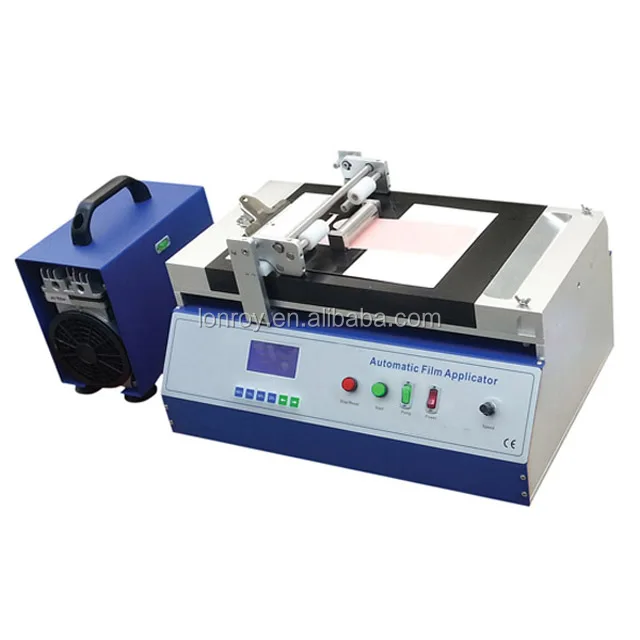

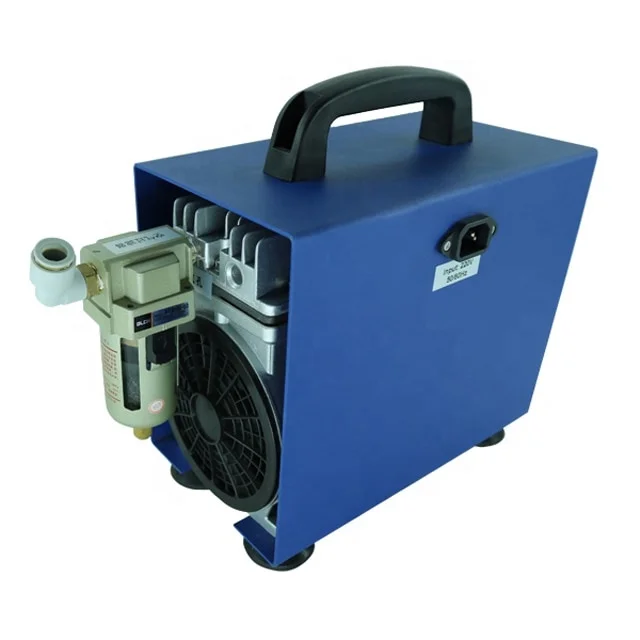

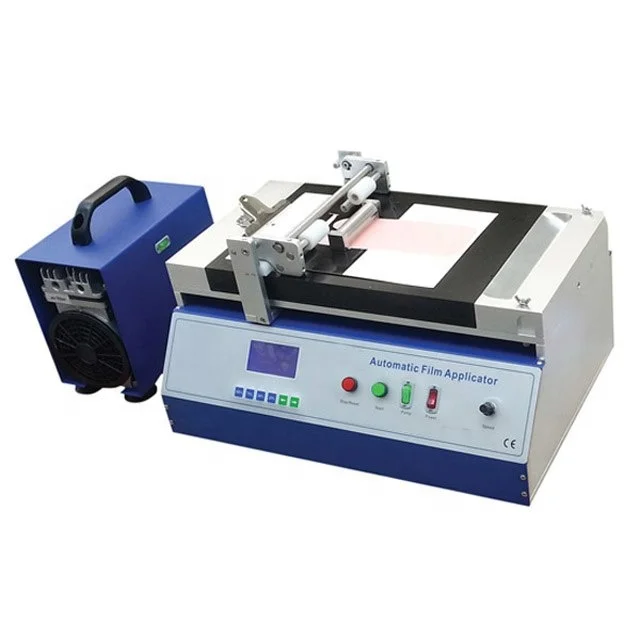

    External vacuum pump eliminate all shake coming from traditional structure(put pump into machine)



Automatic Film Applicator/Laboratory Coater/Automatic coating machine with vacuum bump

Specification



Ordering Information → Technical Parameters ↓	A	B
Draw down vacuum bed size	360 mm × 250 mm	490×250mm
Draw down vacuum bed size with hole	290 mm × 190mm	410×190mm
Max. application length	250mm	375mm
Draw down speed	2~100mm/s (adjustable variable speed )
Carriage holder weight	1.5KG(2KG or 2.5KG is optional)
Total Power	370W
Power Source	220V;50Hz
Weight	40KG	46KG
Overall Size(No vacuum pump) (L×W×H)	500×345×340mm	635×345×340mm
