Small Diesel Engine RV105 (10.5HP) Good Quality
- Category: >>>
- Supplier: VIETSUN POWER CO. LTD
Share on (50045842992):
Product Overview
Description
Product Description

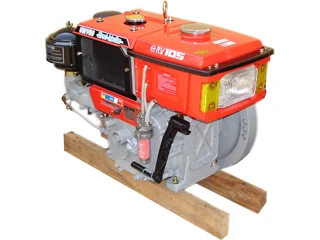

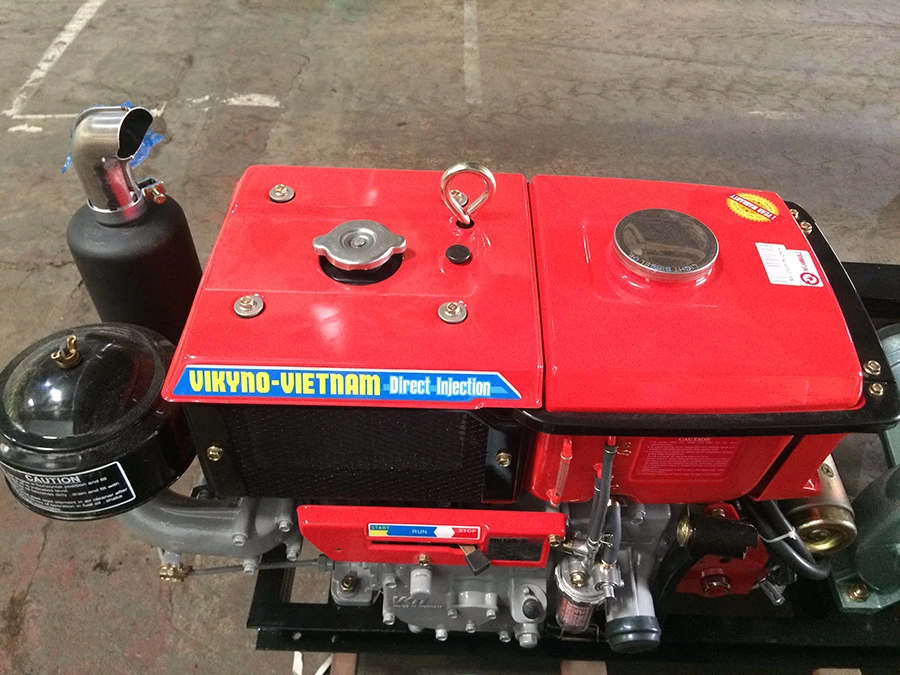

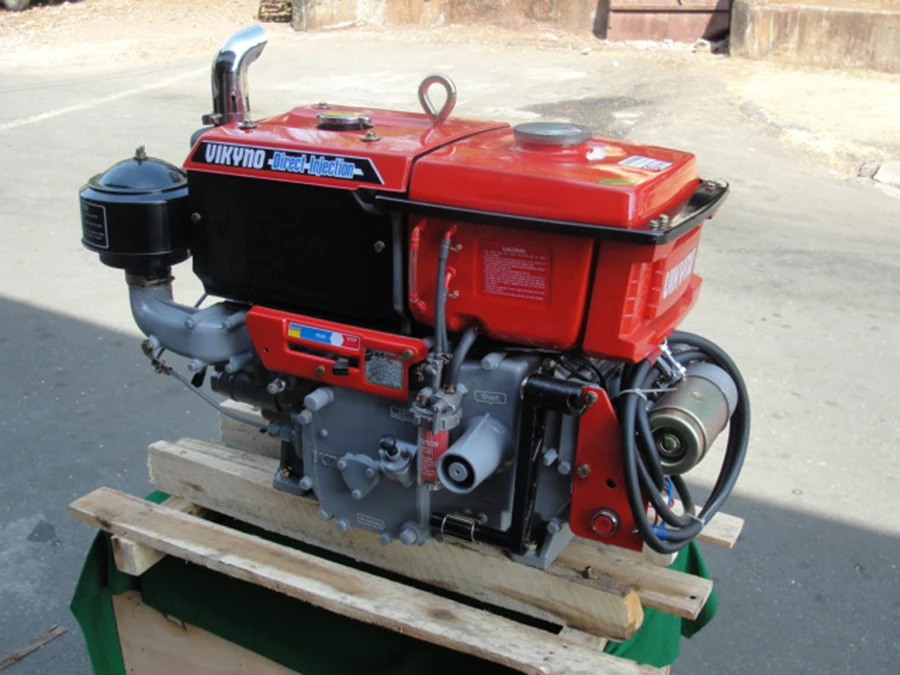

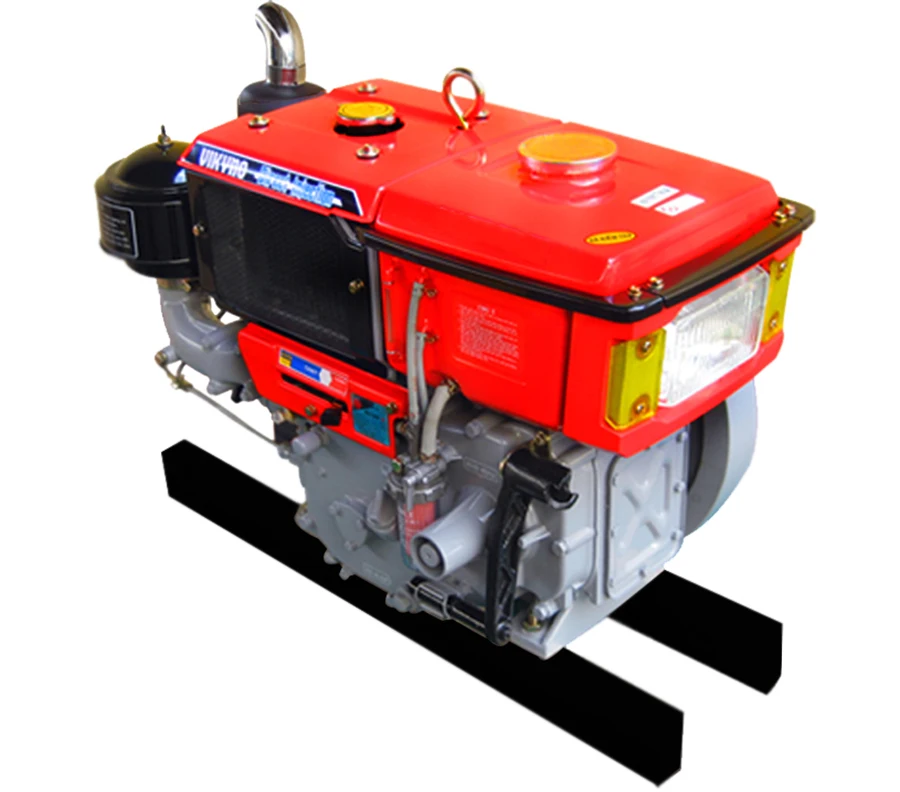

VIKYNO BRAND DIESEL ENGINE is a kind of Horizontal, 4-stroke Engine with single-Cylinder and water-cooling. Adopting a new direct injection combustion system and some advantages, such as enough power, low fuel consumption; easy managing and simple installation.
It is suitable for tractor, small four-wheel tractor, water pump, engineering machinery, propulsion of small boat, small generator, air compressor as well as for irrigation and drainage equipment and processing machinery for agricultural and sideline products, such as thresher, rice mill, grinder, forage pulverizer etc...
Features:
1. Higher power, lower fuel consumption
2. Compact & light weight, easy to operate
3. Smooth running & durable
4. Optional electric start available
Use for:
Welder, water pump, generator, compressor, river/ sea boat, farming machinery, tractor/ power tiller, rice huller and polisher, industrial machinery...
Detailed VIKYNO Diesel Engine:
Model | RV105 |
Type | 4 cycle, 1 cylinder, horizontal |
Bore x Stroke (mm) | 88 x 90 |
Displacement (cm3) | 547 |
Continuous output (HP/r.p.m) | 9/2200 |
Maximum output (HP/r.p.m) | 10.5/2400 |
Maximum torque (kgm/rpm) | 3.40/1800 |
Compression ratio | 18 |
Fuel | Light diesel oil |
Fuel tank capacity (l) | 10.5 |
Specific fuel consumption (g/HP/hr) | 185 |
Nozzle opening pressure (kg/cm2) | 220 |
Lubricating oil | SAE 30, 20, 10w-30 |
Lubricating oil capacity (l) | 2.5 |
Combustion system | Direct injection |
Starting system | Handle starting - Electric starter |
Lamp | 12V-25W |
Cooling system | Radiator/Hoper |
Cooling water capacity (l) | 2.1 |
Weight (kg) | 92 |
Dimensions: L x W x H (mm) | 747 x 360 x 472 |
>>>PLEASE REFER MORE DETAIL HERE
DIFFERENT ENGINES
>>>PLEASE REFER MORE DETAIL HERE
FACTORY:
EXIHIBITION AND SELLING:
Packaging & Shipping
FAQ
Q1. Are you a supplier or manufacturer?
A: We are a manufacturer for agricultural machinery with longest and biggest history in Vietnam from 1967. We can provide the machinery, engine and spare parts with favorite price, because we are the source.
Q2. Where is your factory?
A: Our factory located in Dong Nai Province, Vietnam.
Q3. What is your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the territory, the items and the quantity of your order.
Q4. What is the shipping port?
A: Our Port is Ho Chi Minh Port.
Q5. What is the MOQ?
A: One set is available if you are final users or want to test the machine as a sample. For distributor, normally the MOQ is suggested at least a half of 20ft container, but one set is also available for you to test the machine quality.
Q6. How about the quality or sample policy?
A: We have 100% test before delivery. For customers: If It’s convenience for the customers, it is our pleasure that you can arrange a trip to visit our company to see more details about us, our products as well as testing the quality of the products. You are always welcome to visit our factory. The sample: we can send out the sample, however, the customers have to pay the sample cost and the courier cost.
Q7. How many years of warranty your company provide for your products?
A: We provide our customers one year warranty, during warranty period, if there is any parts of the machine went wrong, we will send free ones to you immediately and will guide you how to fix it.
Q8. How to install and use the machines?
A: We will provide videos and operating manual to you and train you how to install, use and maintain the machine.
Q9. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customer benefit.
2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Company Information
We, VIETNAM AGROTECH CO., LTD belong to SOUTHERN VIETNAM ENGINE AND AGRICULTURAL MACHINERY CO., LTD (SVEAM) that was established in 1967. With more than 50 years of experience and 2 famous brands: VIKYNO and VINAPPRO, we have been the top-class manufactured of Engines and Agricultural Machinery and other equipment in Agriculture, Forestry and Fisheries fields in Vietnam. Apart from that, we also process spare parts and transfer technology in the fields of science and technique. We have 3 factories in Vietnam with total area is 140,000 square meter along with over 1000 employees.
Please feel free to contact us if you have any queries, we make sure to provide the best quality product with favorite price from Vietnam because we are specialized in providing Agricultural Machinery and we export products directly, not through any intermediary.
