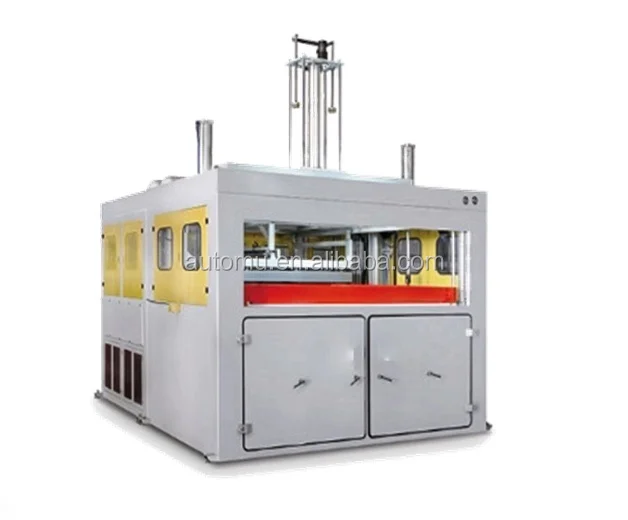

This Machine is Used to Vacuum Forming Big Size Packings, Such as Car Appearances, Bathtubs, Turnovers.
10 Pieces of Heating bricks are Included
It is Usually Paired with Edge Trimmer (Sold Separately)
Best Pairs with Machines from the Same Brand
Machine Features
Semi-Automatic Vacuum Forming
Machine Dimensions
Width
Length
Height
3400mm
4300mm
3800mm
Configuration
Control Systems Includes
Feeding System
Heating System
Temperature Control System
Vacuum Forming System
Technical Specification
Material Max Size
1500*2500mm
Material Thickness
1-10mm
Forming Depth
350mm
Heating Power
Upper Oven:94kw;
Lower Oven: 58kw
Consumptions
Air Consumption
7Bar, 7L/cycle
Vacuum Capacity
5kw
Hydraulic Power
18kw
Pollutant Discharge
No
Power Supplies
Voltage
AC380V
Power
180kw
Output Products
Product Dimension
1500*2500*350 (Height)
Product Capacity
5-30cycles/hr
Packaging & Shipping
Article
Package
Width
Height
Length
Diameter
Weight
PPSH-1500x2500
1
3400mm
3800mm
4300mm
-
9600kg
Our Services
Company Information
Automu specialized in the developing, design and manufacturing of rubber belt machine, plastic thermoforming and air spring machine for more than 15 years. located near Shanghai and Suzhou. We have big customers such as Contitech, Gates, Dayco etc.. Also we have more than 70 patents in these fields. We pay enough attention to the machine automation and operation conveniences.
For further information, please visit our website: www.automu.cn
contact information
Technical Support Engineer
Mr Ryan Fu
English Expert
Senior Mechanical Engineer
Cell Phone: +86 13906210217
Skype: relifetec
Wechat: 13906210217
QQ: 2484513750
//automu.cn
FAQ
Q: How long will I receive my machine?
A: Depending on the machine making period. For this thermoforming machine, it would be about 90 days plus the shipping period, which could be up to 150 days.
Q: How much is the deposit?
A: Further detailed information could be discussed personally.
