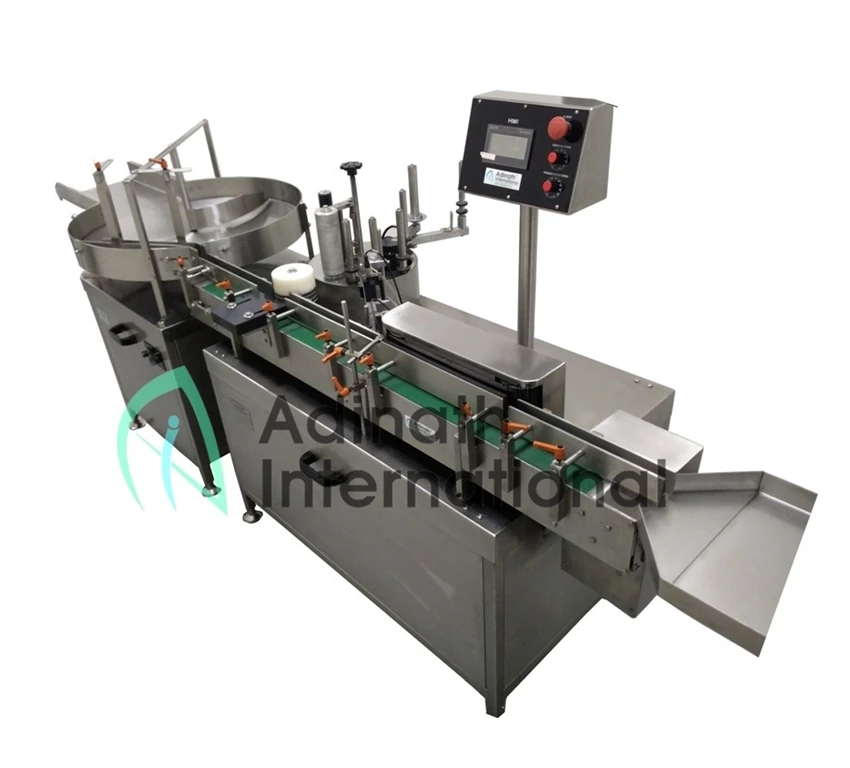

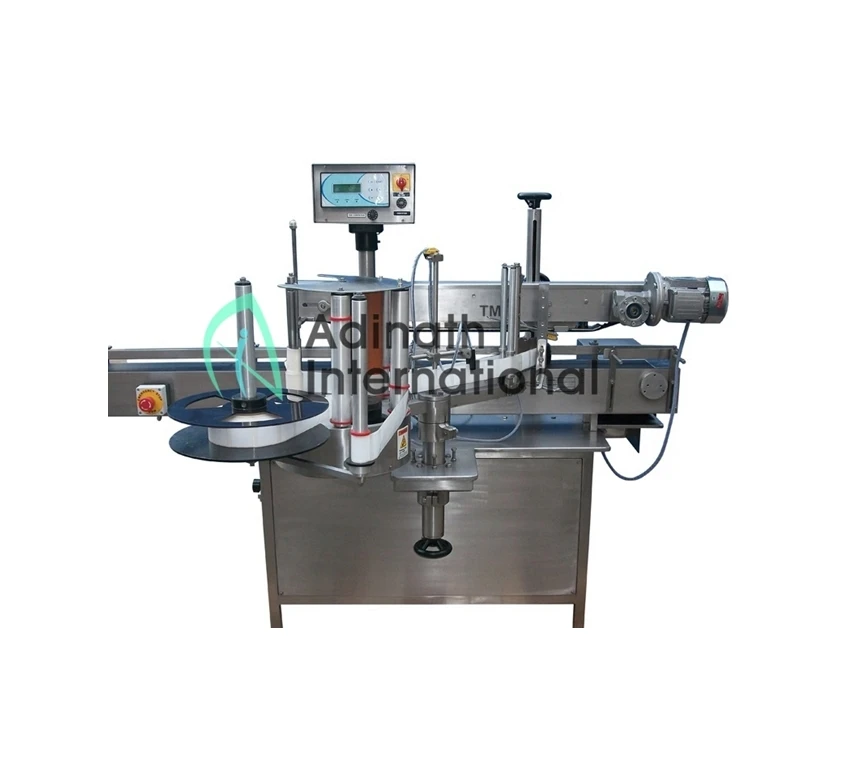

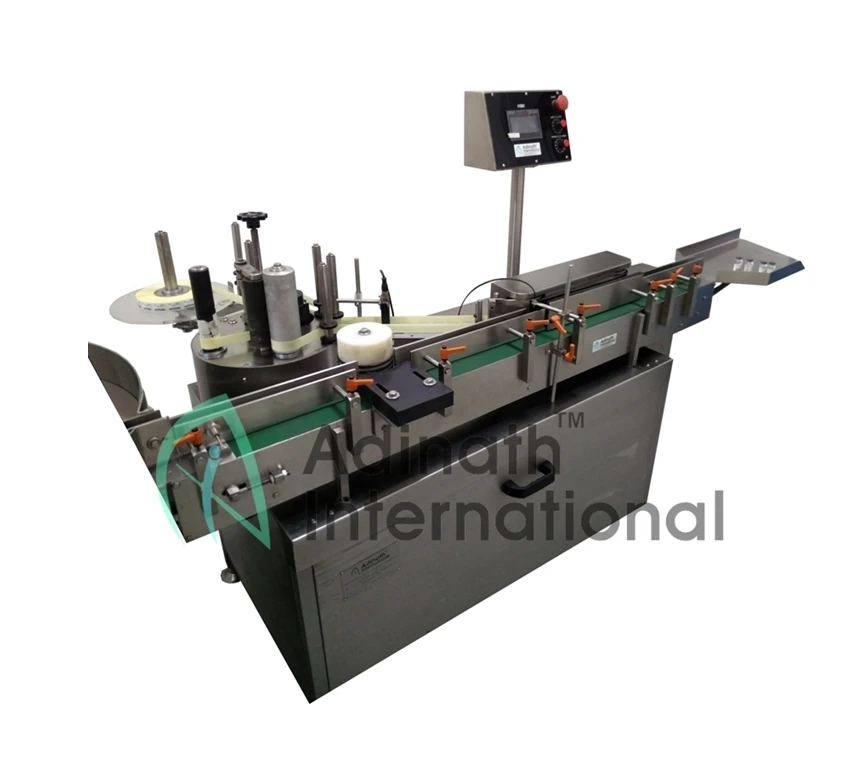

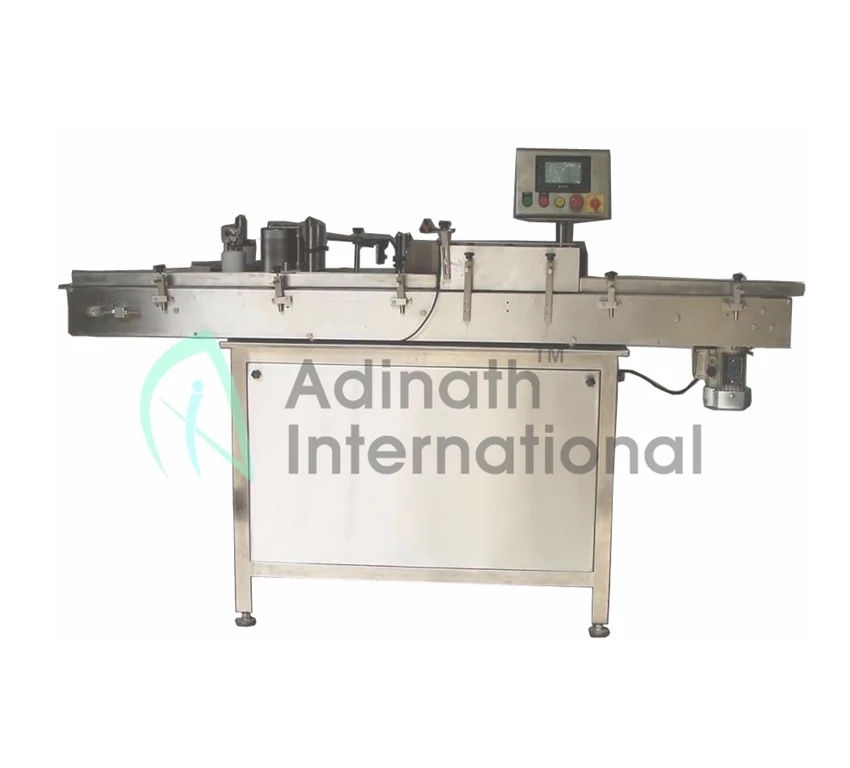

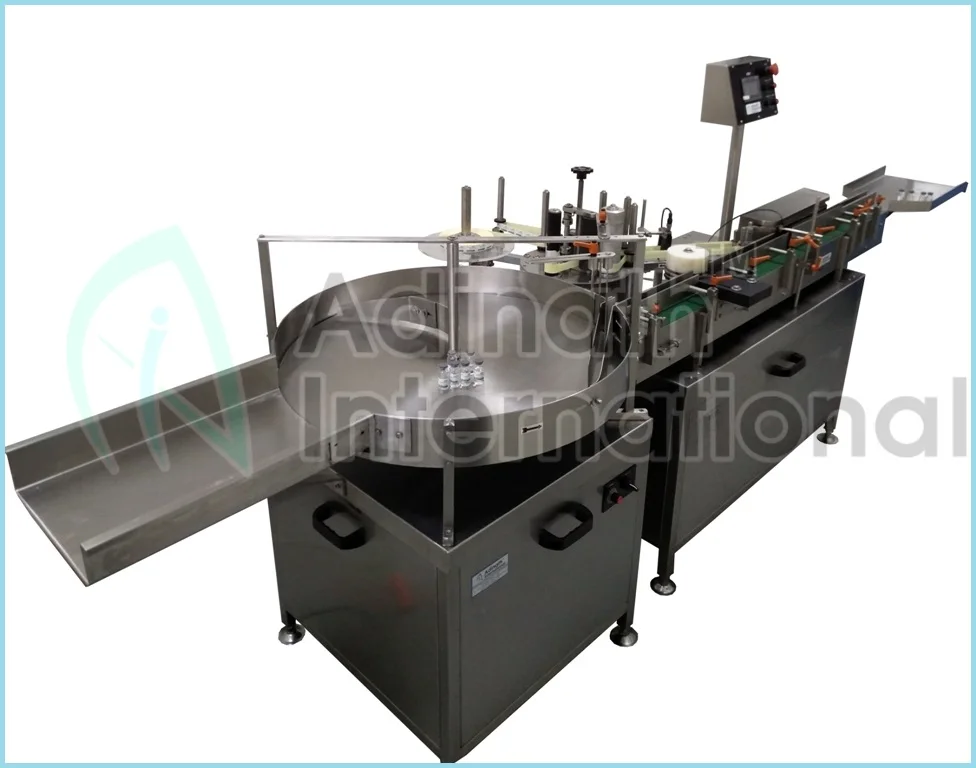

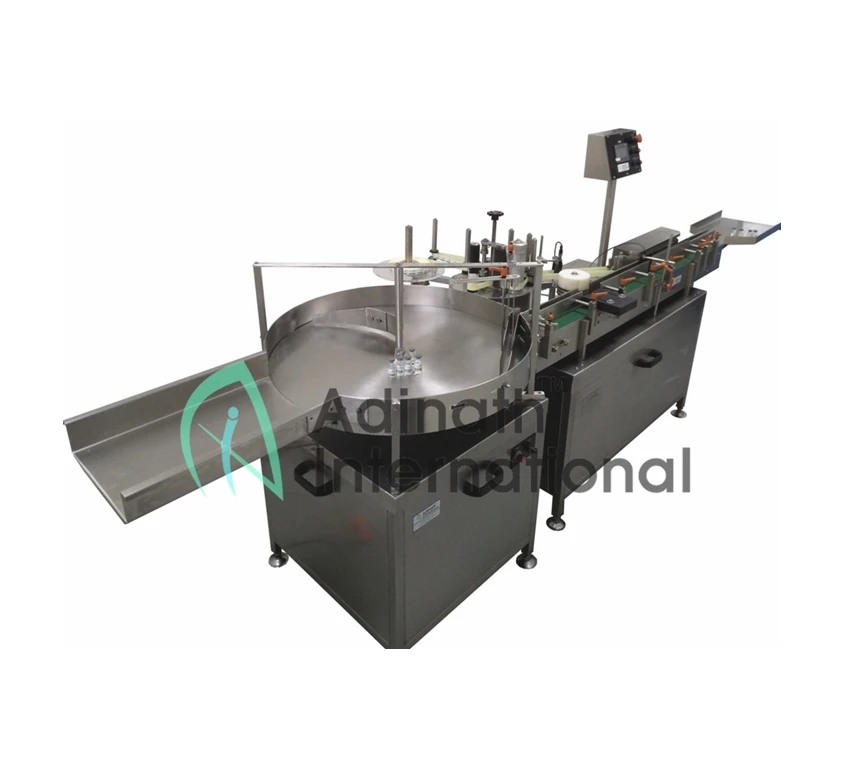

Vial Labeling Machine is suitable for the labels on filled & sealed glass Vial. This compact cGMP model is most preferred choice of medium & large scale injectable units in pharmaceutical industry. The machine is uses for full/partial wrap around labeling on different size of round container. It is capable of labelling up to 200 containers per minutes depending on products and label size.
Suitable for 2ml to 250ml Vials, Eye Drop & Oral Liquid Bottles

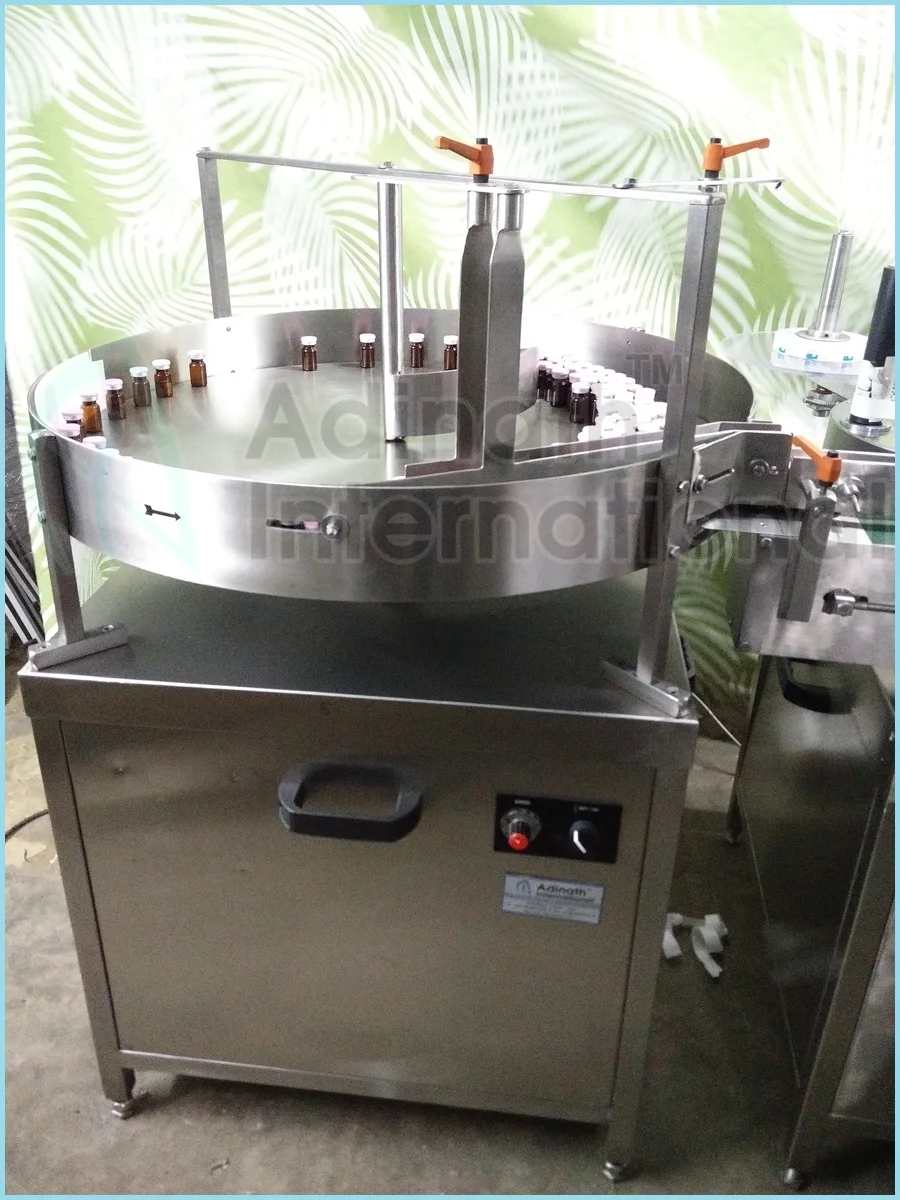

Automatic Loading on Turn Table
Tool Less Adjustement of Conveyor

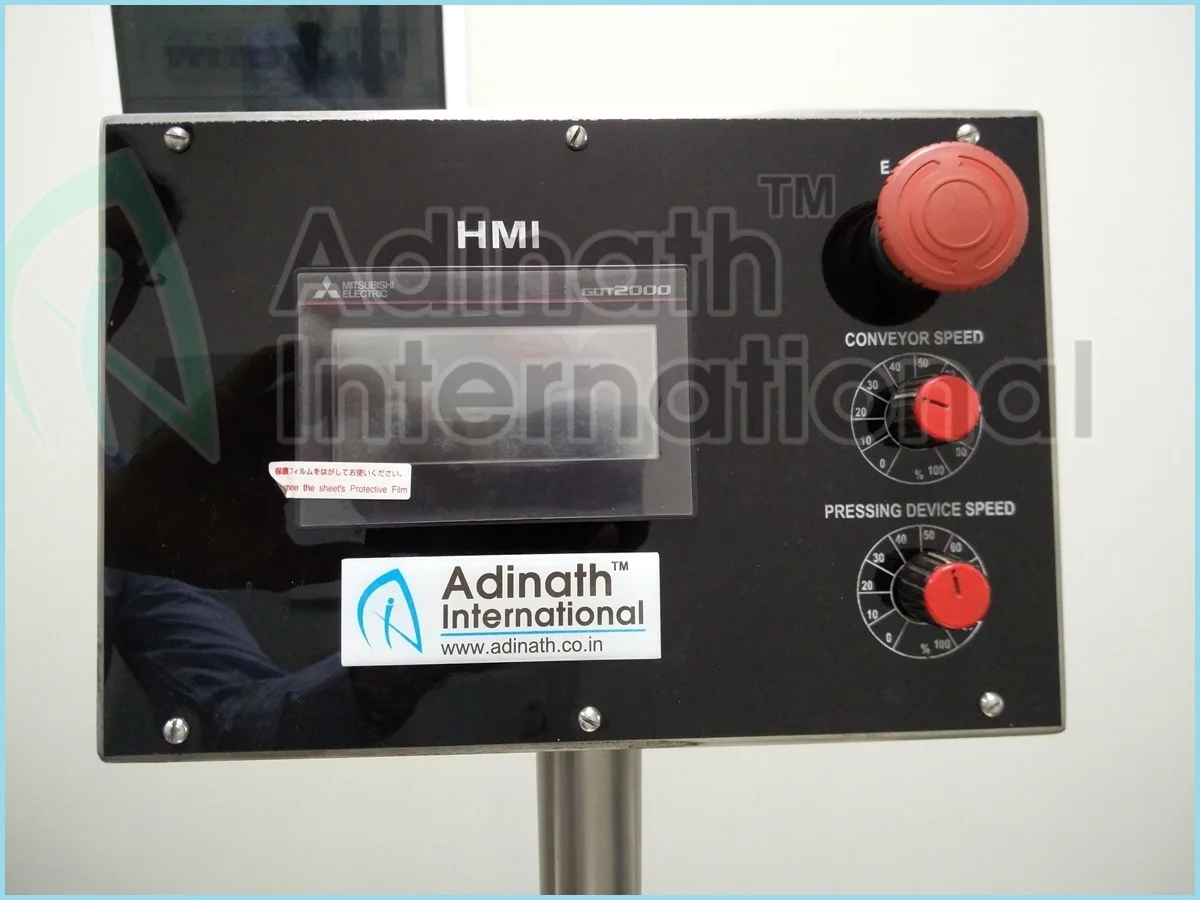

Touch Screen Control Panel
Salient Features
Salient Features
Complete cGMP model
Production output up to 200 containers per minute.
Stainless Steel 304 construction

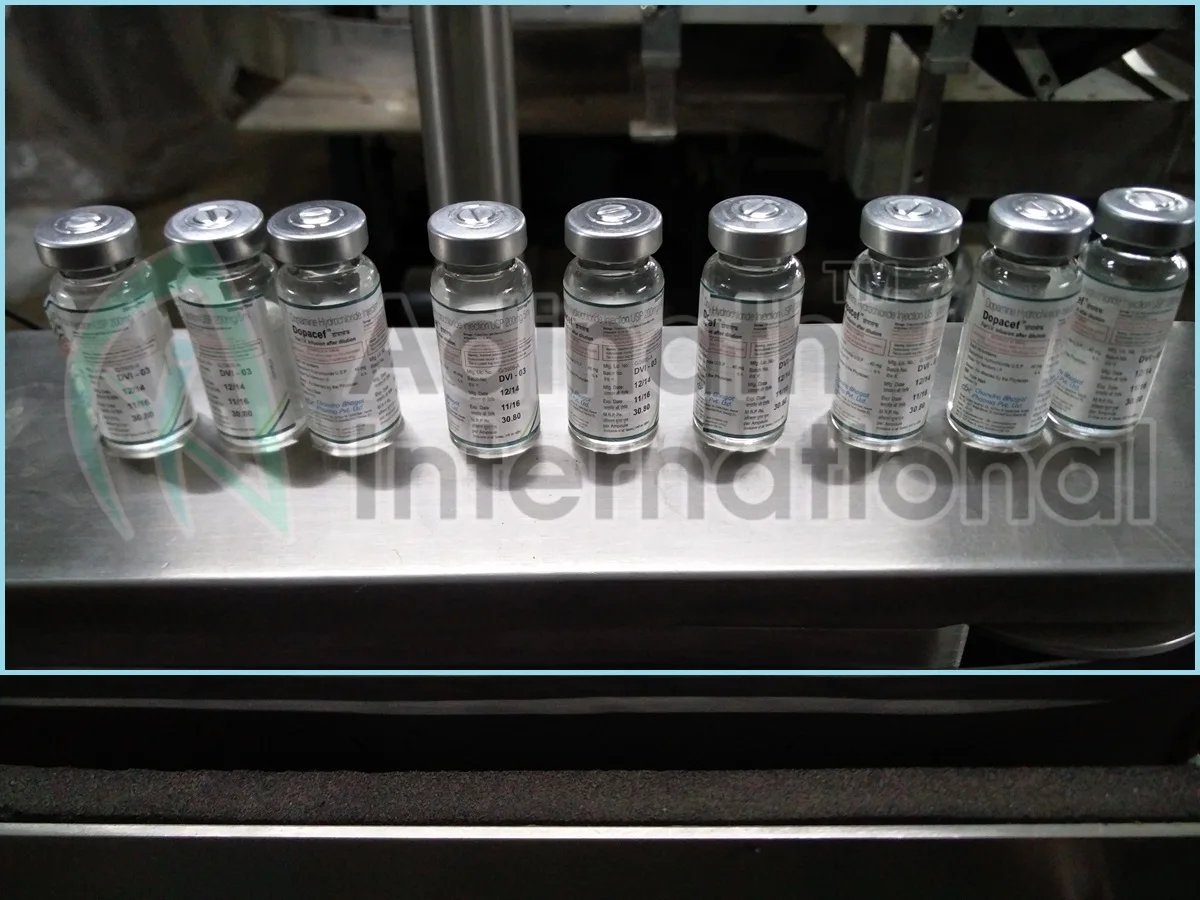

Accurate label placement
No Ampoule – No Label System
Servo / Stepper based system.
Easy change over.
Easy for cleaning & maintenance.
Imported gear box with motor for machine
A.C. Frequency drive for machine
Imported sensor for container & label.
Inbuilt speed indicator & counter.
Process Operation

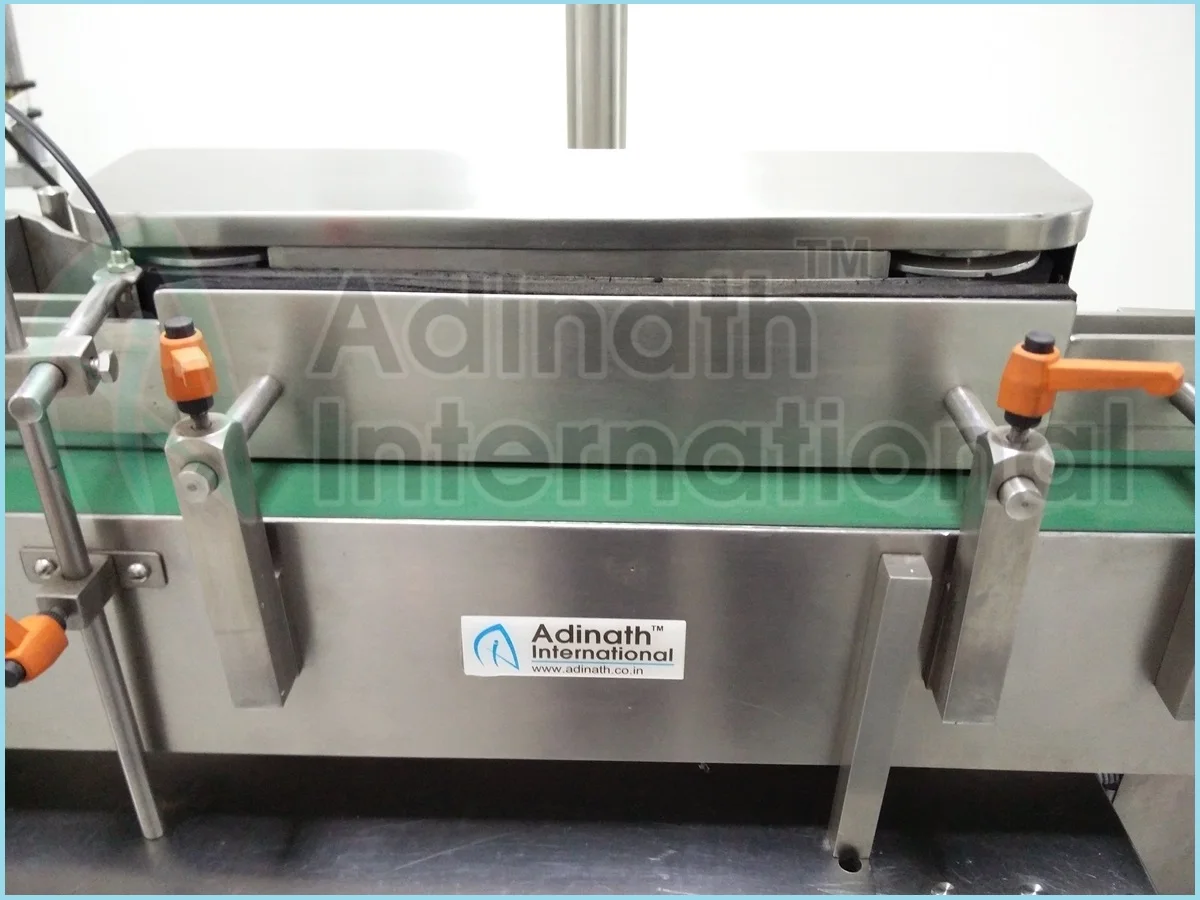

The round containers positioned & accurate spacing between special type of rotary mechanizing roller spacing device for wrap-around operation at the operation at the labeling point, an electronics product sensor sense container & relies a label from self adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on label during label is stationary means time between sensing of two label. The sensed round container moves on conveyor sticker label at labeling point wrapped around to container. Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.
Specification
Technical Specification
Model
ASLM – 60
ASLM – 100
ASLM – 200
Direction
Left to Right
Left to Right
Left to Right
Production Rate
Up to 3000 Vials/Hour
Up to 6000 Vials/Hour
Up to 12000 Vials/Hour
Vial Sizes
2ml to 250ml
2ml to 250ml
2ml to 250ml
Power Consumption
Conveyor Motor
0.50 H.P.
0.50 H.P.
0.50 H.P.
Pressing Device Motor
0.25 H.P.
0.25 H.P.
0.50 H.P.
Stepping Motor
1 H.P.
1 H.P.
1 H.P.
Power Voltage
220 Volts, Single Phase, 50 Hertz
220 Volts, Single Phase, 50 Hertz
220 Volts, Single Phase, 50 Hertz
Height of Conveyor
Adjustable from 860mm to 910mm
Adjustable from 860mm to 910mm
Adjustable from 860mm to 910mm
Label Height
16 mm to 90 mm
16 mm to 90 mm
16 mm to 90 mm
Label Length
25 mm to Unlimited
25 mm to Unlimited
25 mm to Unlimited
Label Roll Diameter
300 mm Max.
300 mm Max.
300 mm Max.
Gap between two labels
Min. 5 mm
Min. 5 mm
Min. 5 mm
Label Core Diameter
75 mm to 76 mm
75 mm to 76 mm
75 mm to 76 mm
Overall Dimension
1300mm (L) x 800mm (W) x 1400mm (H) approx.
1600mm (L) x 800mm (W) x 1400mm (H) approx.
2000mm (L) x 800mm (W) x 1400mm (H) approx.
(In case of opting Turn Table length will be 1500mm + 760mm)
(In case of opting Turn Table length will be 1600mm + 760mm)
(In case of opting Turn Table length will be 2000mm + 760 / 915mm)
Net Weight
300 kgs.
400 kgs.
500 kgs.
Gross Weight
400 kgs.
550 kgs.
650 kgs.
Note
Power Voltage can be adjusted as per customer’s domestic power requirements
Rights of technical improvement & modification reserved.
Illustrations & dimensions are shown for information purpose only.
