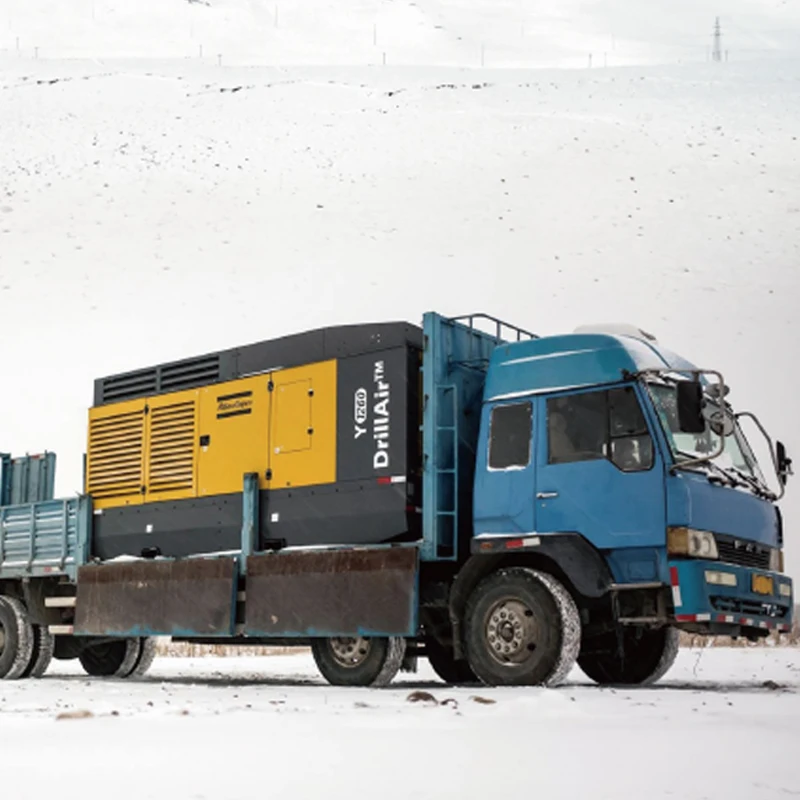

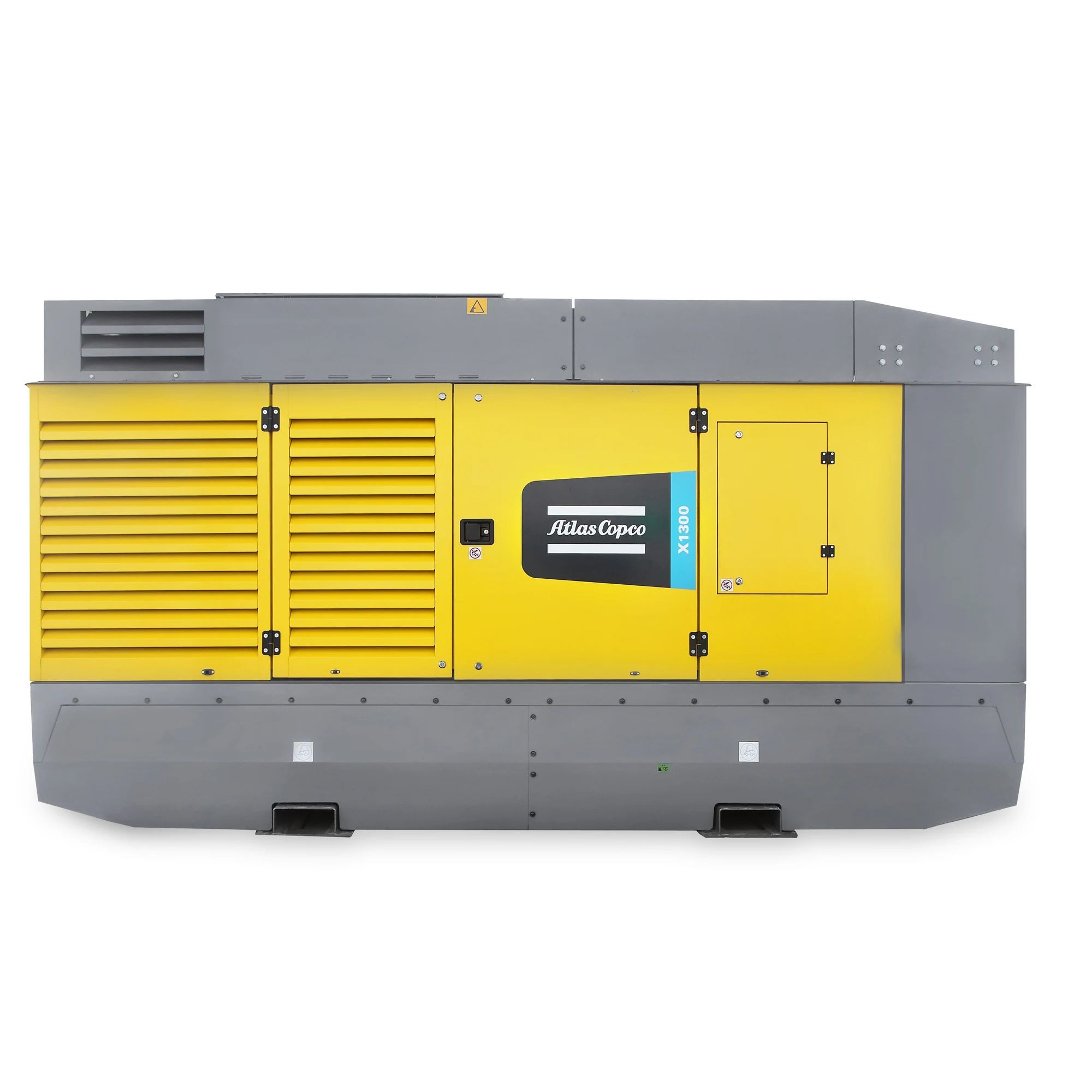

Atlas Copco 1300cfm 15bar 35Bar portable diesel air compressor for water well drill rig
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (50046007589):
Product Overview
Description
Atlas Copco is a leading manufacturer of portable compressed air machines in the world. Over the years, we have consistently listened to our customers and developed machines that exceed their expectations.
ATLAS COPCO portable air compressor technical data
| Compressor Data | Y1300 |
| Free Air Delivery @ Normal Working Pressure | 1300fm/min-----1154cfm/min |
| Normal Working Pressure | 15Bar------------35Bar |
| Air Receiver Capacity | 87.8L |
| Fuel Tank Capacity | 876L |
| Outlet Valve Configuration | 1 x 2" G |
| Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
| Sound Pressure Level (ISO2125) | 80 dB(A) |
| Maximum Ambient Temperature at sea level | 50 °C |
| Diesel Engine Data | Cummins QSZ13-C550-30 |
| Horsepower Developed @ Rated Speed | 410kW |
| Cylinders | 6 |
| Engine Coolant Capacity | 69.7L |
| Engine Oil Capacity | 45.5L |
| Maximum Loaded Speed | 1900RPM |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 5000 mm ( within towbar ) |
| Width | 2300 mm |
| Height | 2600 mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 7150kg |
| Cylinders | 6 |
| Cooling System | Coolant liquid |
| Engine Coolant Capacity | 52 L |
| Engine Oil Capacity | 58 L |
| Load Factor | 100% |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 5400 mm |
| Width | 2200 mm |
| Height | 2510 mm |
| Weight | 7375kg |
Working show:
