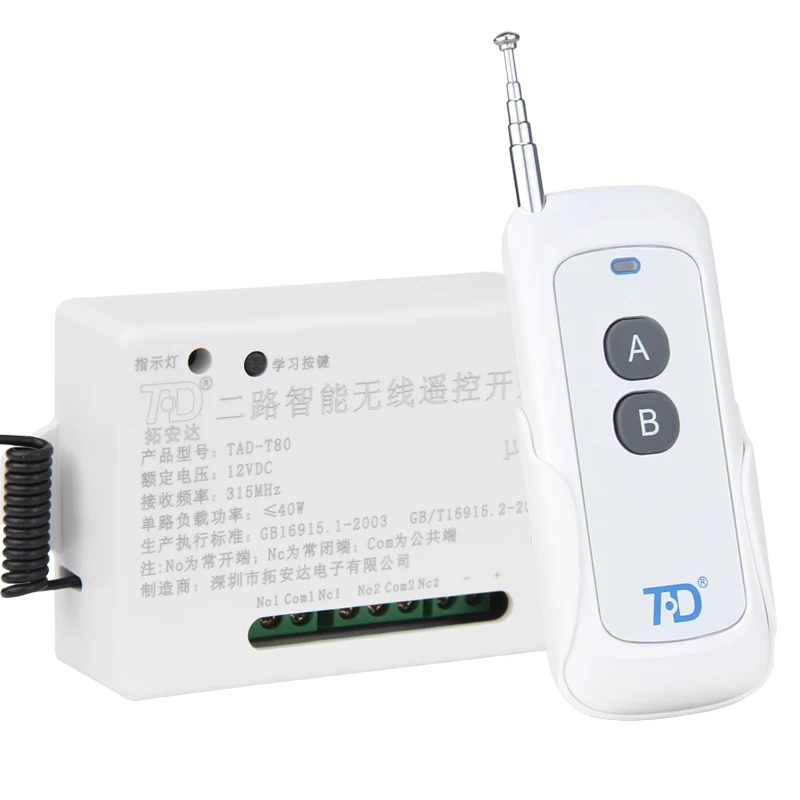

DC12V 2-channel RF Remote Controller kit to control motors' both directions for electrical curtains
Product
Product Description
Product number
TAD-T80-1
Receiver voltage
12VDC
Remote control voltage
12VDC (12V23A battery)
Receiving sensitivity
-105dB
Working frequency
315/433MHz
Single load power
<40W
Output method
Switch sentencing output
Remote control distance
The open space has no interference and no load test 300 meters (the actual application varies according to the environment. The remote control distance is very large. If you have special requirements, please contact customer service first.
Scope of application
12VDC water pump, motor, electrical appliances, lamps, industrial control, electronic lock, curtains, access control, computer switch, and other long-distance wireless control.
Features:
1.Each independently controllable channel can be set to operate in either latch/toggle/momentary mode.
2.Controlling distance range up to 800 meters (open area).
3.2channel complete remote control system supplied with one keyfob transmitter.
4.Easy learn keyfob transmitter.
5.Adjustable working mode, toggle, latch and momentary.
6. Independent receiver or transmitter is available.
Two channel DC12V wireless remote control kit utilizes the RF protocol to ensure the realizable operations. The systems offer a wireless range of 50 meters operating within the 315MHz, which can be used for controlling many different applications. Idea for remote controlling the garage rolling door, a car or home alarms, lights, curtains, electronic gate, fans, electrical appliances, televisions, car sunroofs, electrical windows, etc.

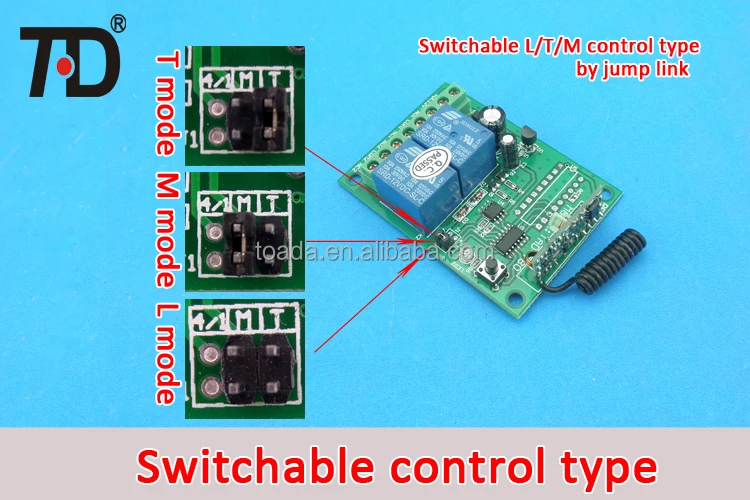

Operating mode:
Adjustable operating mode, Toggle mode: short link jumper cap with T;
Momentary mode: short link jumper cap with M.
Latch mode: no short link between T and M.
Note: Please power off before changing the operating mode.
Operating channel: 2
Notes:
Toggle mode: Self-locking contact. A contact holds until press the same transmitter button again. A, B channels work independently. Just like the power key of TV remote controller, when you press it, TV on, press again, TV off.
Momentary mode: Press the transmitter button, the relay is on until you release it.
Only one channel can be on at any time. Just like the button of Klaxon, if you press it, Klaxon on, and will turn off once you release it.
Latch mode: Press the transmitter button, the relay is on till you press another one. Two channels latch each other and only one channel can be on at any time. Just like the wind-speed buttons of electronic-fan, press a wind-speed button, the fan runs at a certain speed until you press another button.
Learning a new transmitter:
1) Press the learn button until the indicator light turn on then release the button.
2) Press any transmitter button within 15 seconds, the indicator will flicker fast, that means the learning is successful. If there is no any input within 15 seconds, transmitter will automatically escape from learning after the indicator light fast flicker.
Note: Each system can only support for 30 pairing, when learningthe 31st one, system will automatically delete paring of first transmitter.
Deleting pairing code:
1)Constantly press the Learn button until the indicator light turn on.
2)After 8 seconds, the indicator light will turn off, release the learn button. Then encode have been deleted.
Encode type:
Fixed code, soldered.
Product Details:

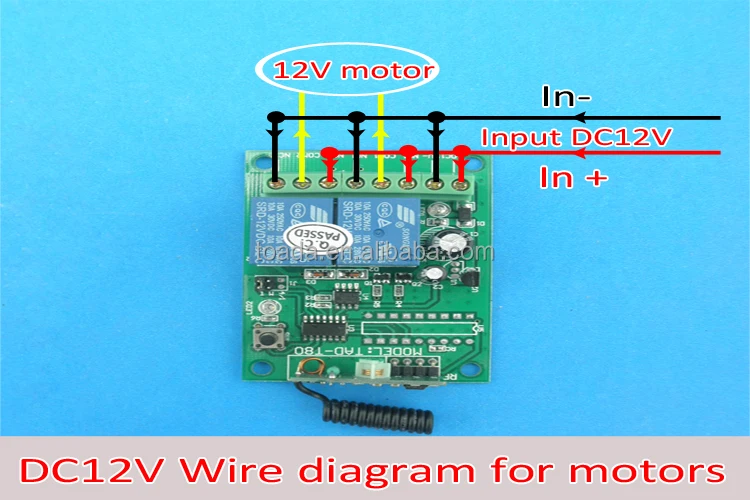

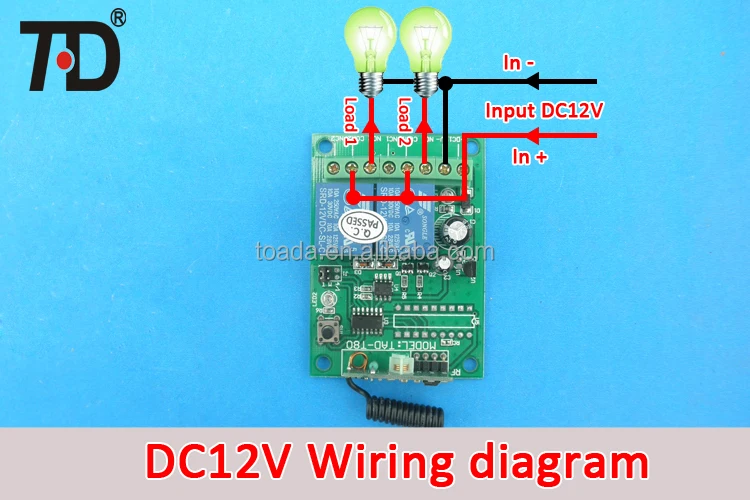

Wiring diagrams:
Ideal for use with:
Vehicle central locking systems Garage doors Electronic gates Electrical appliances Electric windows Car sunroofs Televisions Lights Fans Heating systems
