Scope of application: cutting concrete, reinforced concrete, pipes, masonry, stone and other stone.
parameter
Guide size
380 (mm)
Place of origin
USA
Cutting depth
380 mm
Brand
ICS
flow
30 lpm
product name

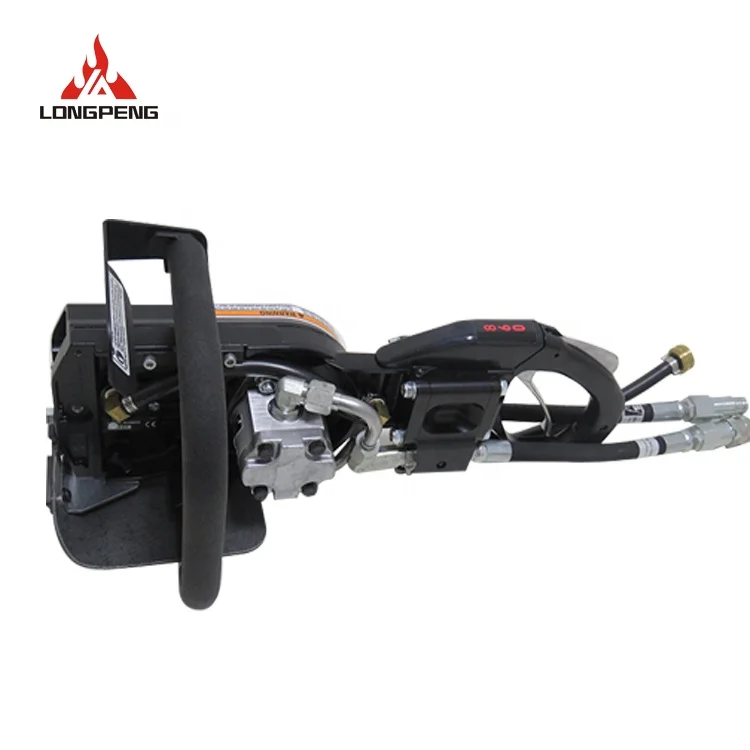

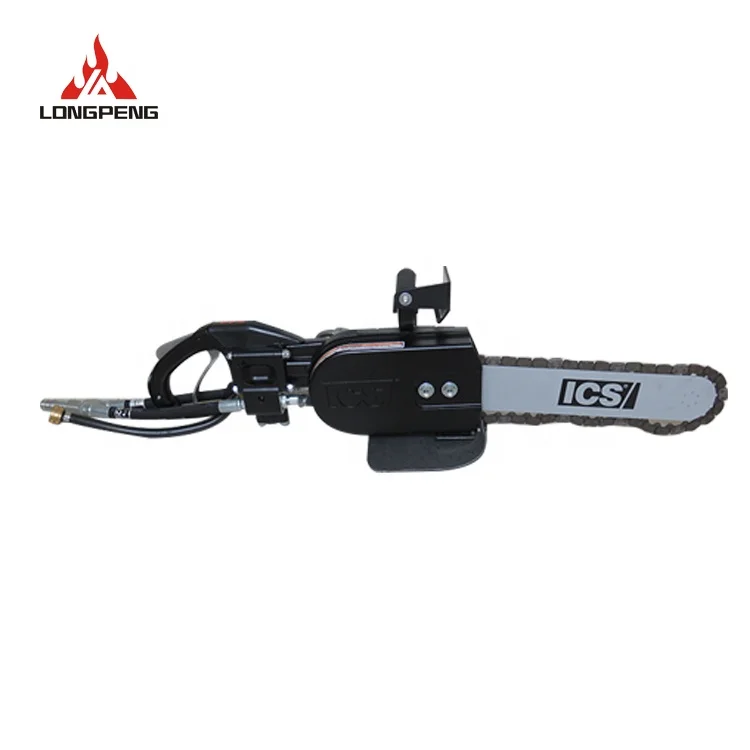

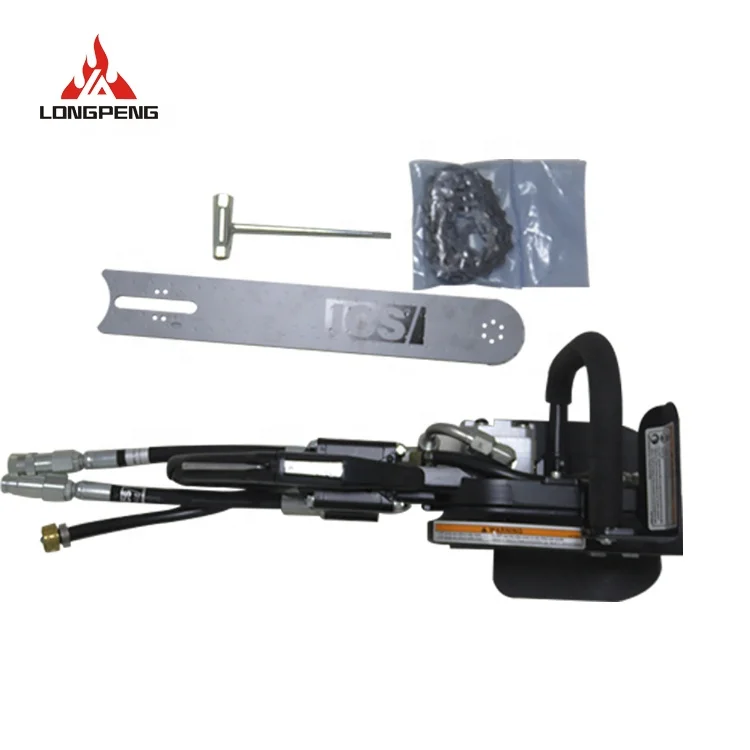

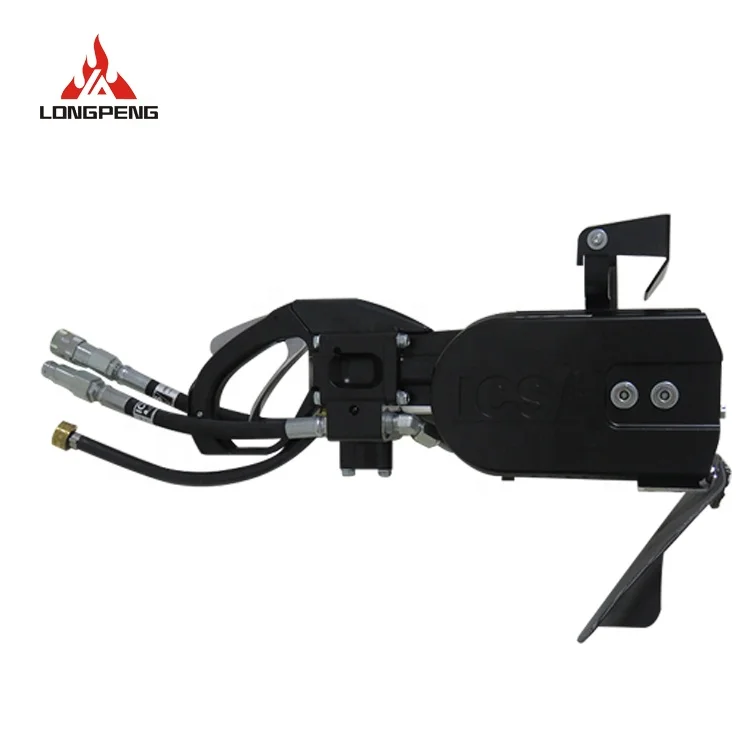

Diamond chain saw
Working pressure
140 bar
use
Roadside stone cutting
Length
590 mm
advantage
Powerful function
width
235 mm
weight
12.4 kg
height
260 mm
Model
ICS-860FR
Main Features
Hydraulicstrong power, need to be cut with water, mainly for concrete blocks and red bricks, can be cut into irregular shapes of concrete and masonry, even if it contains steel bars. Such as: wall opening, cement pipe cutting, building demolition, house renovation, ground finishing and other on-site maneuvering operations.
Detailed Images
Hydraulic motor
Using imported hydraulic motors
Built-in flow control valve prevents overspeed
Alloy steel chain
With imported alloy steel chains and baffles, the efficiency
of cutting stone is increased by a hundred times.
Control handle
The large handle is equipped with a safety switch and a control switch to prevent the machine from accidentally starting, even with gloves for easy handling
Connector
Imported rubber hydraulic pipe fittings with alloy steel quick joints for efficiency
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
The polyethylene foam is made of polyethylene foam board for inner packaging, the outer box is packed with wooden box, and the outside is packed in wooden box.
