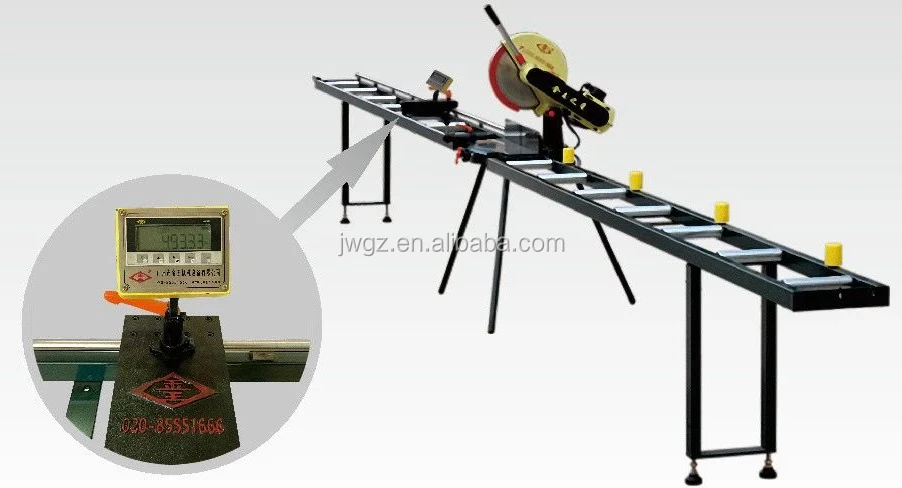

J300 Digital Display Manual Single Head Aluminium Profile Cutting Machine

Product Overview

Description

The current pricing is for our Model C miter saw with digital display function, if you don't need the set of digital display feeding racks as the Model A, simply subtract $360 from the current price. Or you simply don't need the digitial display function, you may choose the traditional version of Model C.



Product Structure and Characteristics:

• An distinguishing ball bearing wheel composition, ensuring swinging angle to be handily accurate and structure to be firm
• A minimal gap between the operation platform and seating panel, in favor of remnants slightly sliding apart rather than striking them away
• The original swinging head is supported by an exquisite bearing combination, ensuring a satisfying cutting efficacy
• Equipped with a detachable stand whereby the operation platform can be adjusted in height, in favor of both sedentary and mobile use
• The current set contains digital display function showing the length of the finished profile to the degree of 0.01mm!

 The Four Grand Breakthroughs for this Third Generation Amelioration:

• Merging the saw blade’s arresting device and operation handle, simplifying the exterior yet amplifying the beautification
• Due to the blade’s stopping device migrated to center, the distance of the bearing shafts of the blade’s axis has been amplified; this amelioration is very critical since it increases the stability of the saw, ensures a better cutting result, and guarantee a longer longevity
• The swinging-stabilizing device of the head has been changed from screwing lock to thumb lock, making control more convenient and avoiding it from losing
• Supplemented with an automatic diesel spray device during cutting, ensuring the cooling spray function to be more reasonable and humanized

MAIN TECHNICAL PARAMETER
WORKING VOLTAGE	380V/220V.
MOTOR POWER	1.1Kw.
MOTOR ROTARY SPEED	3600r/min.
SAW SPECIFICATION	Ø305×Ø25.4mmx3mm.
45° CUTTING RANGE	80 x 80mm.
90° CUTTING RANGE	100 x 100mm.
WORK TABLE HEIGHT	100/700 mm.
WEIGHT	80KG.
OVERALL DIMENSION	650 x 560 x 680mm.
SPECIALIZED FEEDING RACK DIMENSION	3000 x 260 x 700mm (x2).

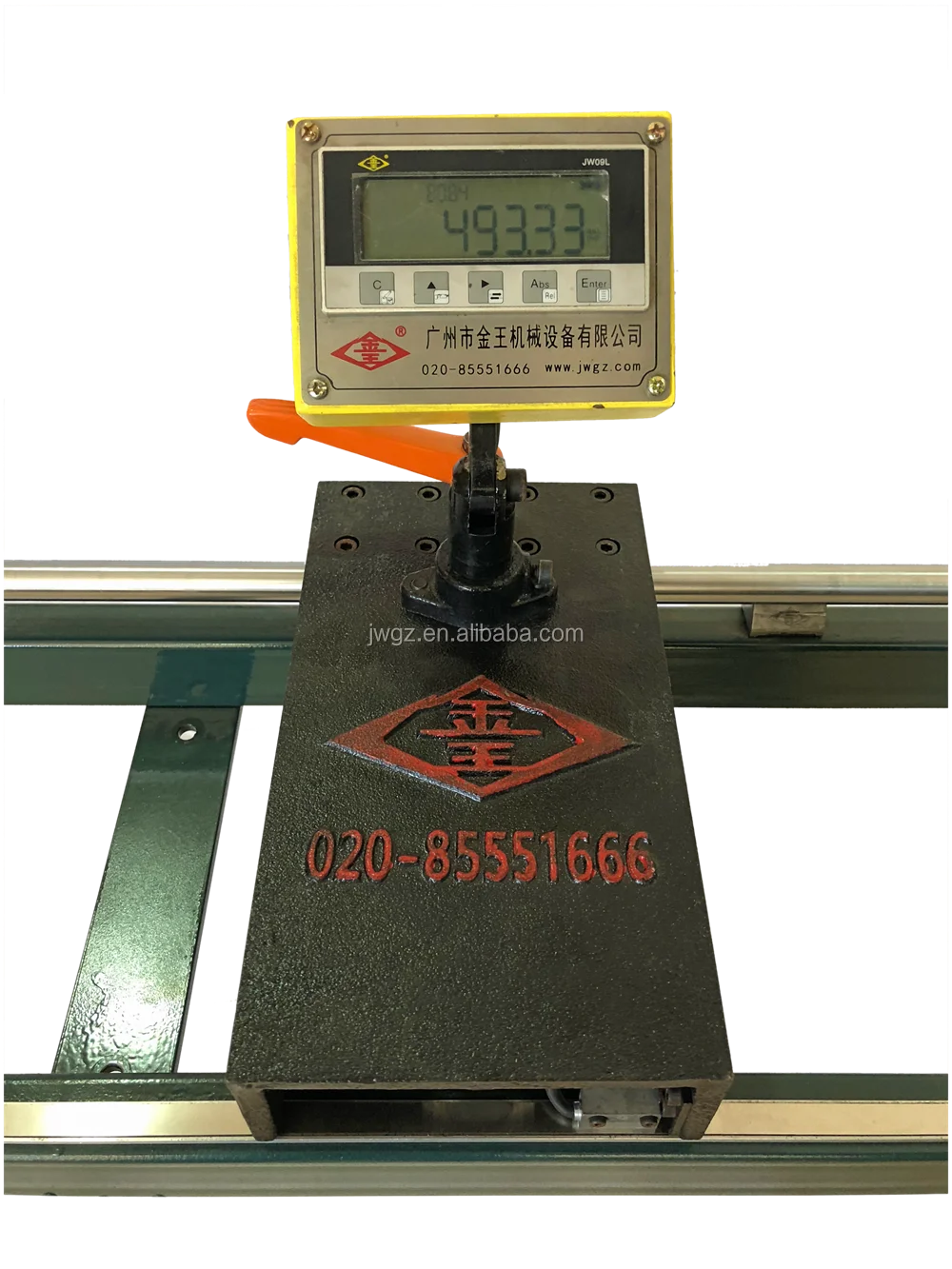

The positioning Panel:



- The entire shape was cast, ensured to be permanently free from deformation, painted with the "Jin Wang" logo.

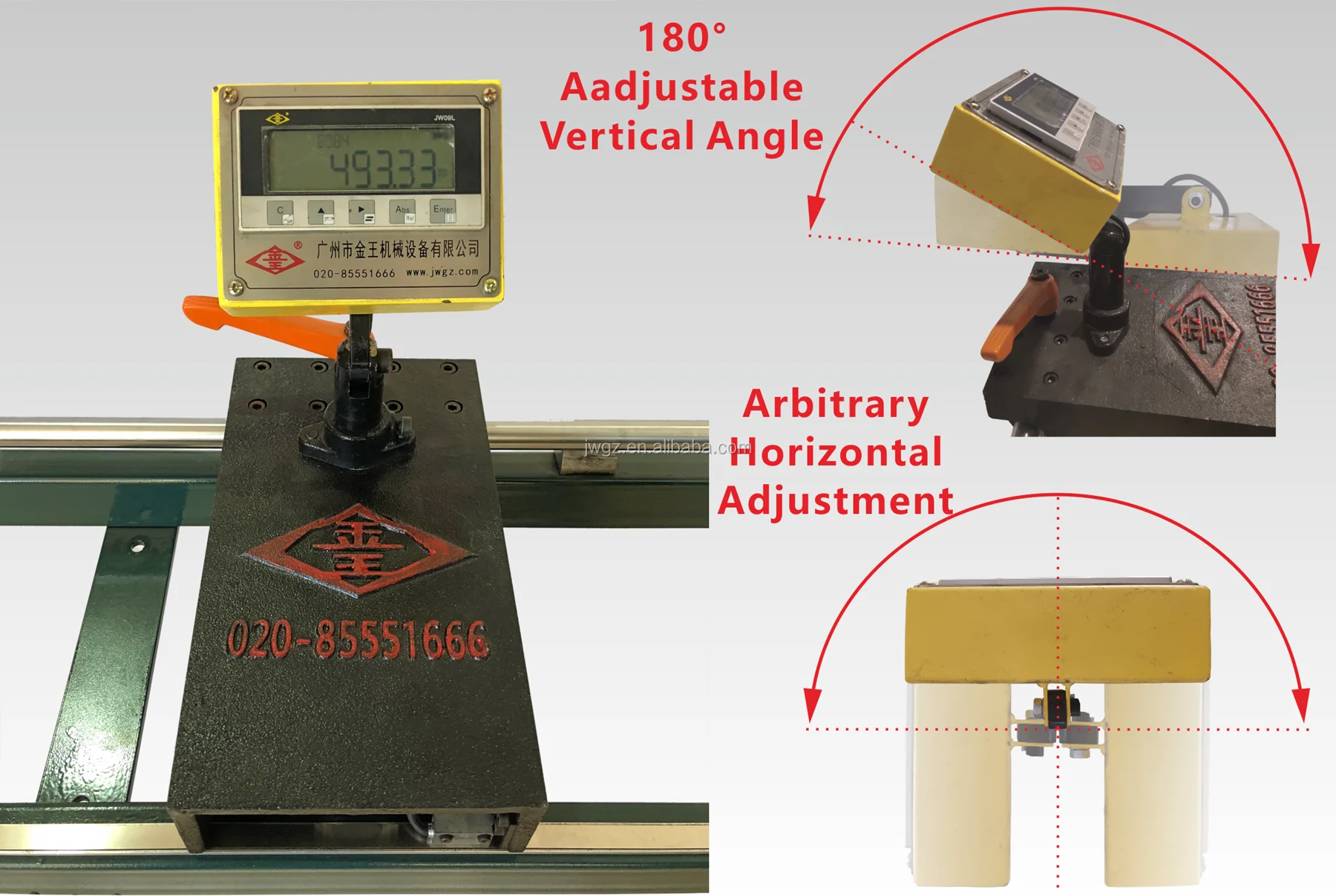

- digital display screen is positioned right on top of the panel, accurate enough to the hundredth decimal place (0.01mm). It can be adjusted in 180° vertically and arbitarily turned around in horizontal.

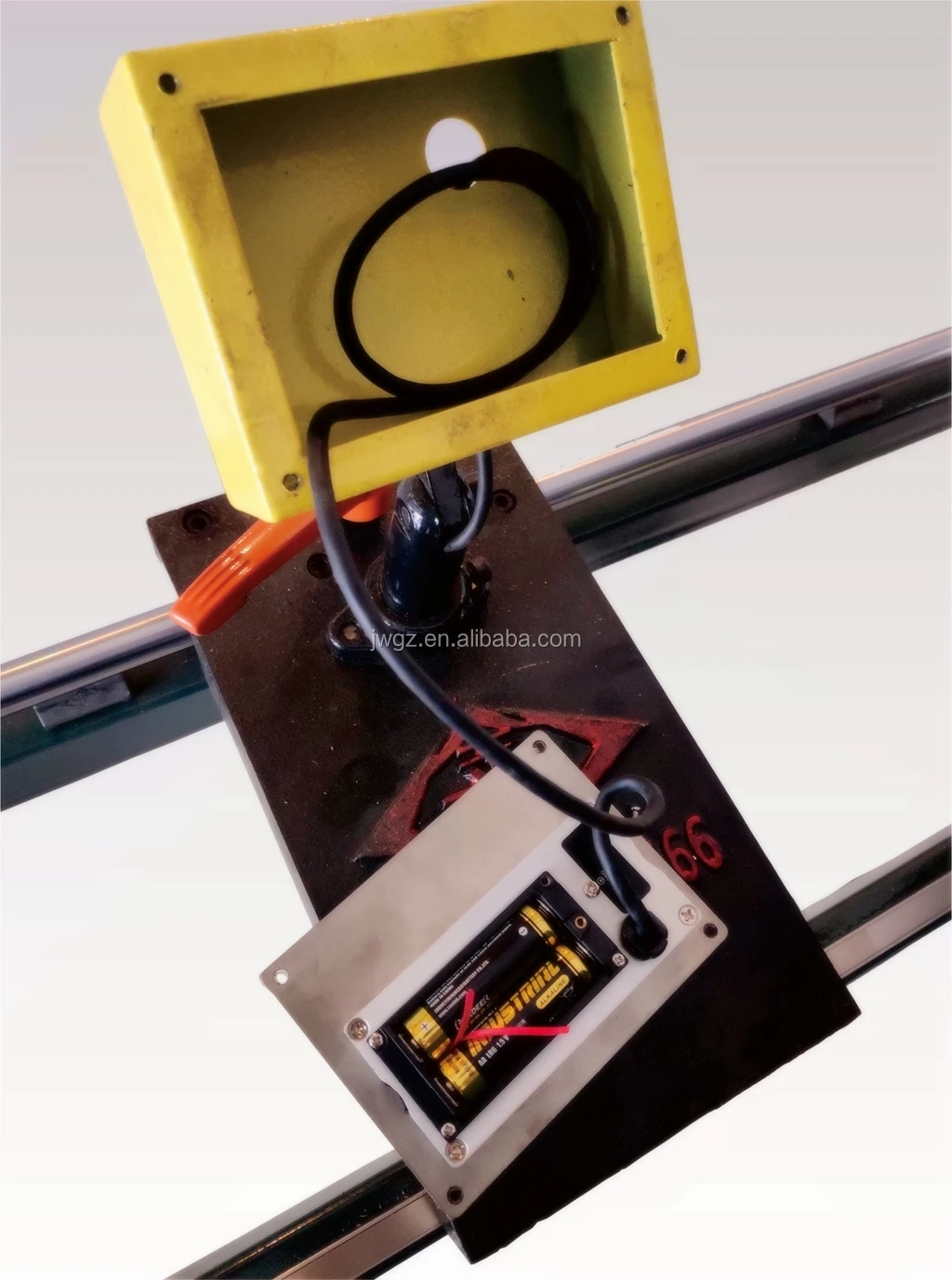

-The battery of the display screen can be easily exchanged by removing the screws on the back of the screen.



- Possessing a precise linear bearing, achieving precise positioning with guide rails and moving along the guide rail smoothly.



- Unique  90° rotatable structure design; under necessary circumstance, it can flip over 90°, and avoid blocking the processing of profile that is particularly long.



-The panel itself is flat in both side, so that the positioning side of the set can be connected to either side of the machine, and vice versa for the suporting side of the set.
