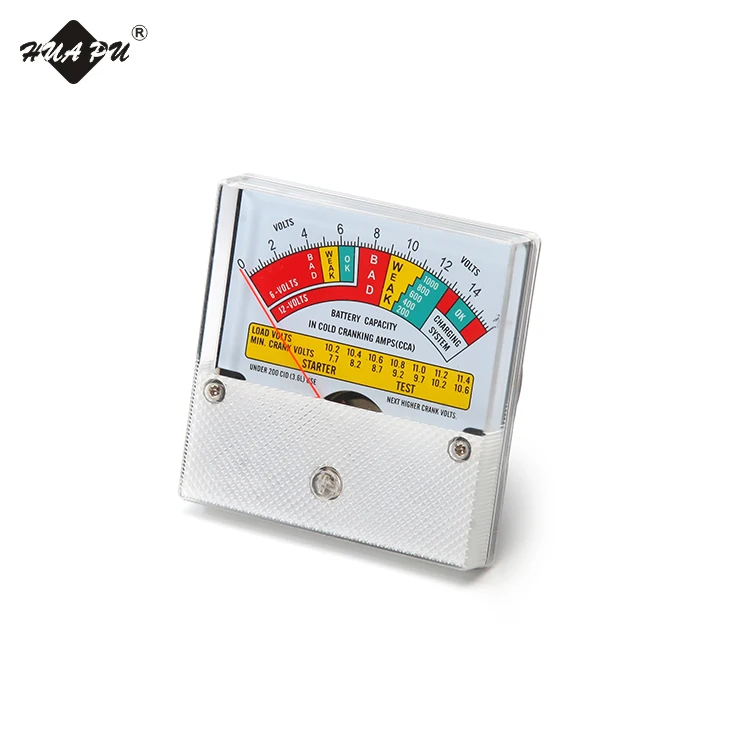

Rectangle shape pointer type panel voltage meter moving coil structure DC voltmeter HP 80 80*80mm
- Category: >>>
- Supplier: Zhejiang Huapu Instrument Co. Ltd.
Share on (50046076472):
Product Overview
Description
Product Description
Dimensions
Summarization
Product name | HP-80 DC voltmeter |
| Measuring Range | DC 0 ~ 100V |
| Size | 80*80mm |
| Accuracy | 2.5 |
| Pointer color | black |
| Zero position | left of scale line |
| Shell color | Black |
| Certification | CE PSE RoHS SGS |
| Inner structure | Moving Coil |
| Working temperature | -10~55°C |
Basic Specification
| Name | Normal Specification | Remark | ||
| AC ammeter
| A | 0.5A-20A | Can be directly connected | |
| A | 30A-100A | Can be directly connected | ||
| A | 10/5A-10k/5A | Secondary current passed by CT | ||
| AC voltmeter | V | 10V-750V | Can be directly connected | |
| kV | 1kV-35kV | 100V secondary voltage passed by voltage transformer | ||
| DC ammeter | uA mA | 50uA-500uA 1mA-500mA | Can be directly connected | |
| A | 1A-15A | Can be directly connected | ||
| A | 15A-3kA | Outer attached shunt 75mV 60mV 50mV | ||
| DC voltmeter | V | 3V-600V | Can be directly connected | |
| kV | 1kV-3kV | Outer attached resistance | ||
| Frequency meter | Hz | 45-55Hz 55-65Hz | 36V,100V, 127V, 220V, 380V | |
| Power meter | KW Var | 100V 380V 380-380kV | 100V secondary voltage passed by voltage;Secondary current passed by current transformer 5-10kA/5A | |
| Power factor meter | Cos | COSΦ=0.5-1-0.5 | 100V/5A 220V/5A 380V/5A | |
