Price:11 666,00 $ - 12 500,00 $

Quantity:


Product Overview

Description



Product Description


Technical Parameters


Payload
30 kg
Reach
2300 mm
Structure
Articulated
Number of axes
6
Repeatability
±0.15 mm
Max. motion range
Axis 1
±175°
Axis 2
+140°/-77°
Axis 3
+175°/-75°
Axis 4
±360°
Axis 5
±115°
Axis 6
±360°
Max. speed
Axis 1
180°/sec
Axis 2
180°/sec
Axis 3
150°/sec
Axis 4
222°/sec
Axis 5
222°/sec
Axis 6
360°/sec
Body Weight
≈700 kg
Mounting type
Ground, bracket, ceiling
Ambient temperature
-20 ℃~80 °C

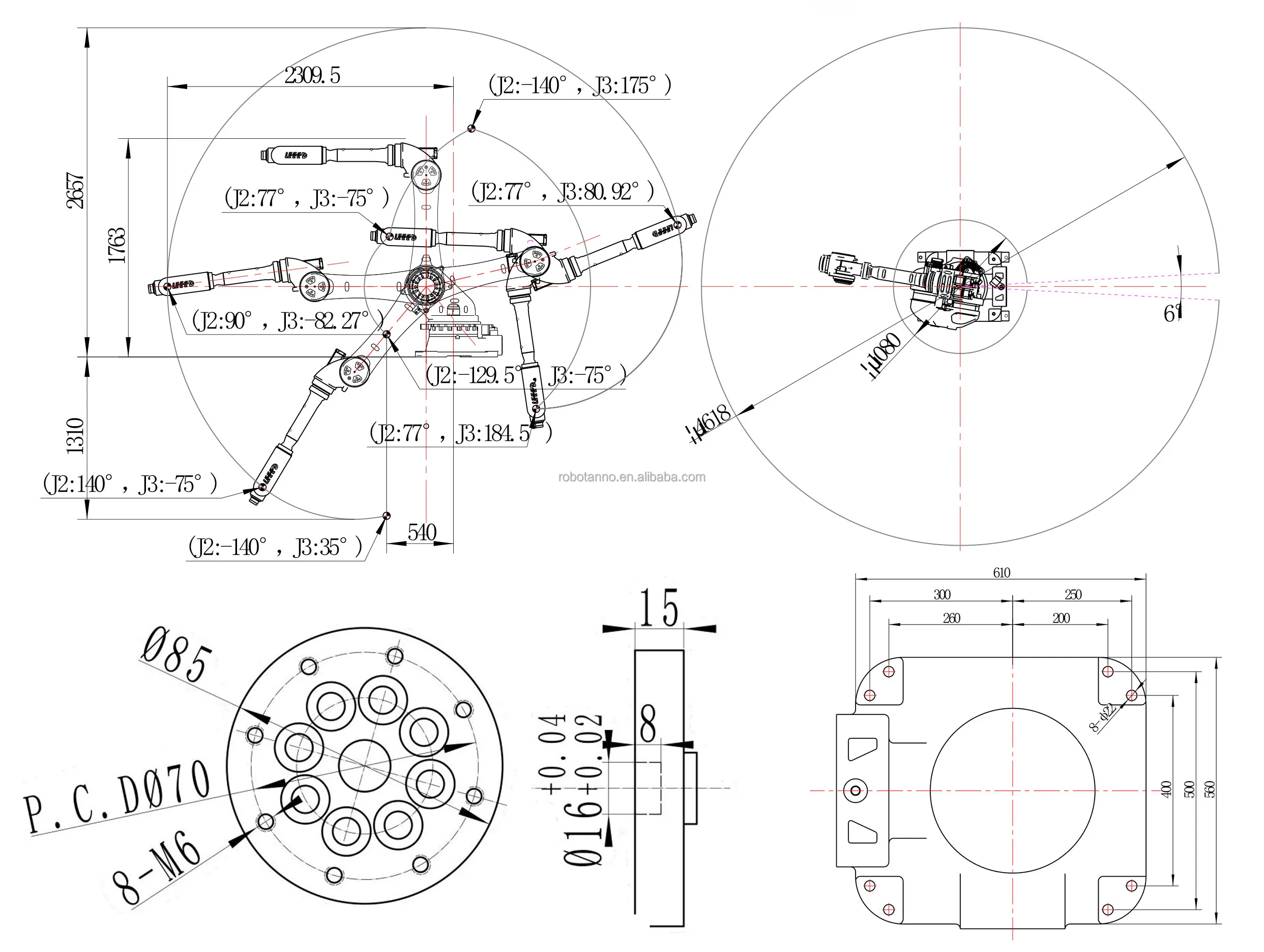

Workspace




Main Applications


Materials handling, parts transfer, machine management, testing, gluing, &assembly


Applicable Cases
Irregular workpiece punching &deburring
2300-X-6, a 30 kg robot has a rigid body and certain load tolerance.

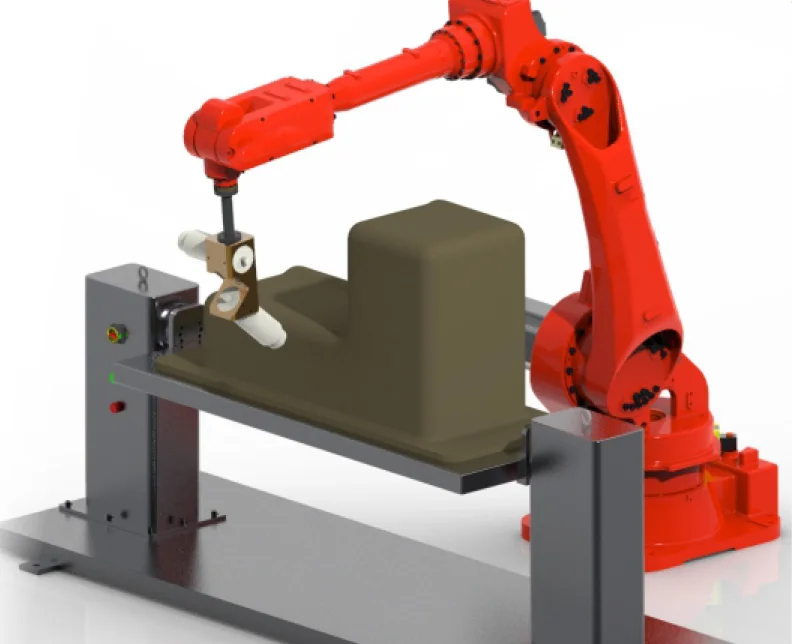

The figure on the right shows a grinding and punching integrated solution provided for our customer. It takes into consideration such issues as various types of products on the customer’s site.




Detailed Images


Harmonic reducer
Control the servo motor by three methods: position, speed and torque
Servo Motor
High-precision control, good high-speed performance and strong anti-overload capability


Servo Motor Driver
Control the servo motor by three methods: position, speed and torque
Controller board
Including various interfaces such as IO module, safety module, A / V analog module
Aluminum Alloy Shell
Independent design, exquisite appearance, CNC machining and casting


Features of Robot Control System
●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functions
suitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Support change in Chinese, English, Russian, Vietnamese and Korean.


Storage
2 GB
Teaching box
Full keyboard+touch screen, mode select switch, safety switch, emergency switch
No. of controlled axes
6+2 axes, 6 basic axes +2 external axes
Interface
Multiple encoder signal interfaces, dedicated interface for robot terminal, Ethernet interface, serial communication
Safety module
The emergency and robot anomaly signals are linked to ensure rapid stop of the robot
Mode of operation
Teaching, representation, remote control
Mode of programming
Online teaching, process programming, teaching by dragging
Motion function
Point-to-point, linear, circular
Command system
Motion, logic, process, computation
Mode of control
Position control
Anomaly detection function
Emergency stop anomaly, servo anomaly, anti-collision, safety maintenance, arcing anomaly, user coordinate anomaly, tool
coordinate anomaly

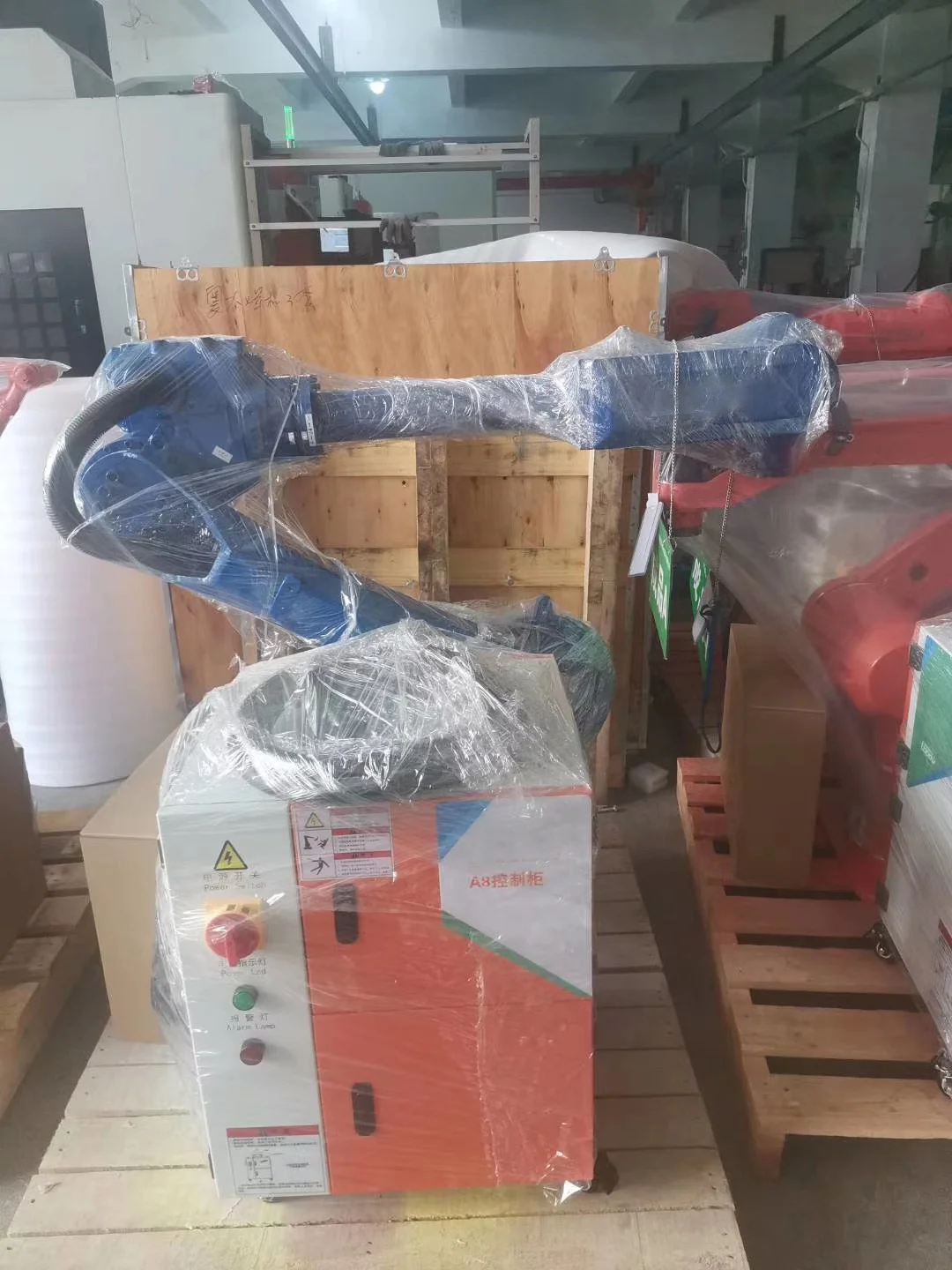

Packing&Shipping


Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .




Related Products




Company Introduction


RobotAnno (ShenZhen) Co., Ltd. is a professional R & D and manufacturer of desktop robotic arm solutions. Through continuous innovation, RobotAnno is committed to providing educational robots, light industrial robots and commercial robots with cost-effective, easy-to-operate, and experiential revolutionary desktop robotic products and solutions.








FAQ


Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Samples arrived often need 3-5 days.

Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.

Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
