Brand new fiber 16 ports olt made in China

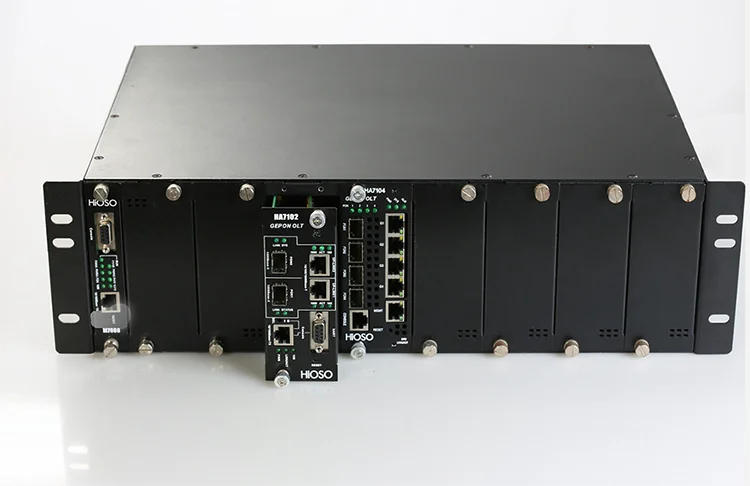

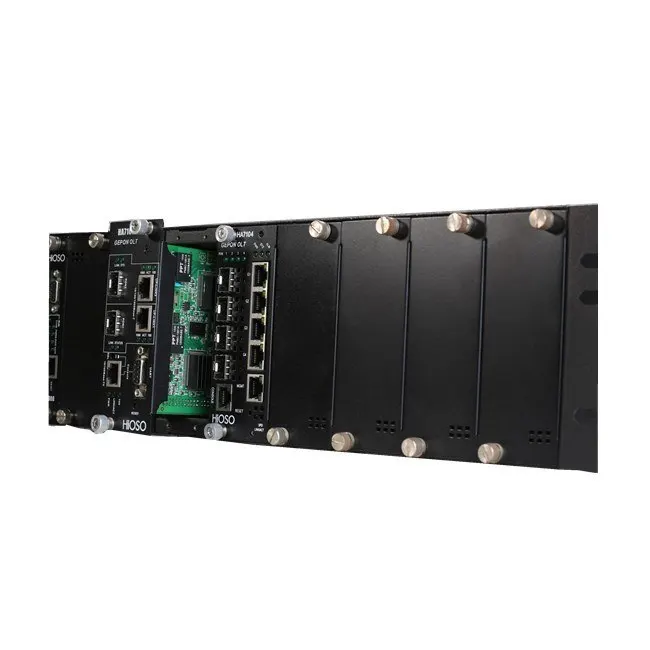

HA7000 is HIOSO EPON rack. HA7000 adopts 19 inch, 3U height rack, and supports dual-power supply. The rack supports 8pcs HA7100/HA7102/HA7102CS/HA7104 OLT cards. Each PON supports 32pcs ONU access within 20KM (64pcs ONU access within 10KM). It supports integrated management through the network management card.
Technical Specification
Parameter | Specification |
Slots | 8 slots for OLT cards, 1 slot for NMS card M7000 |
Working temperature | -10~55℃ |
Storage temperature | -40~70℃ |
Humidity | 5%~90% non-condensing |
Power supply qty | 2 |
Weight | 10.69kg |
Power supply | Dual power AC220V/DC-48V or AC220V+DC-48V |
Dimension | 132mm(H) ×481mm(W) ×309mm(D) |
Order information
Product code | Specification | Qty |
HA7000 | 3U, 19" rack, with 8 slots, 2 box type power, 2 fan | 1 |
M7000 | NMS card | 1 |
HA7102 | EPON OLT, with 2 fixed PON ports and 2 10/100/1000M RJ45 uplink ports,1 Console port, 1 RJ45 management port | 1-8 |

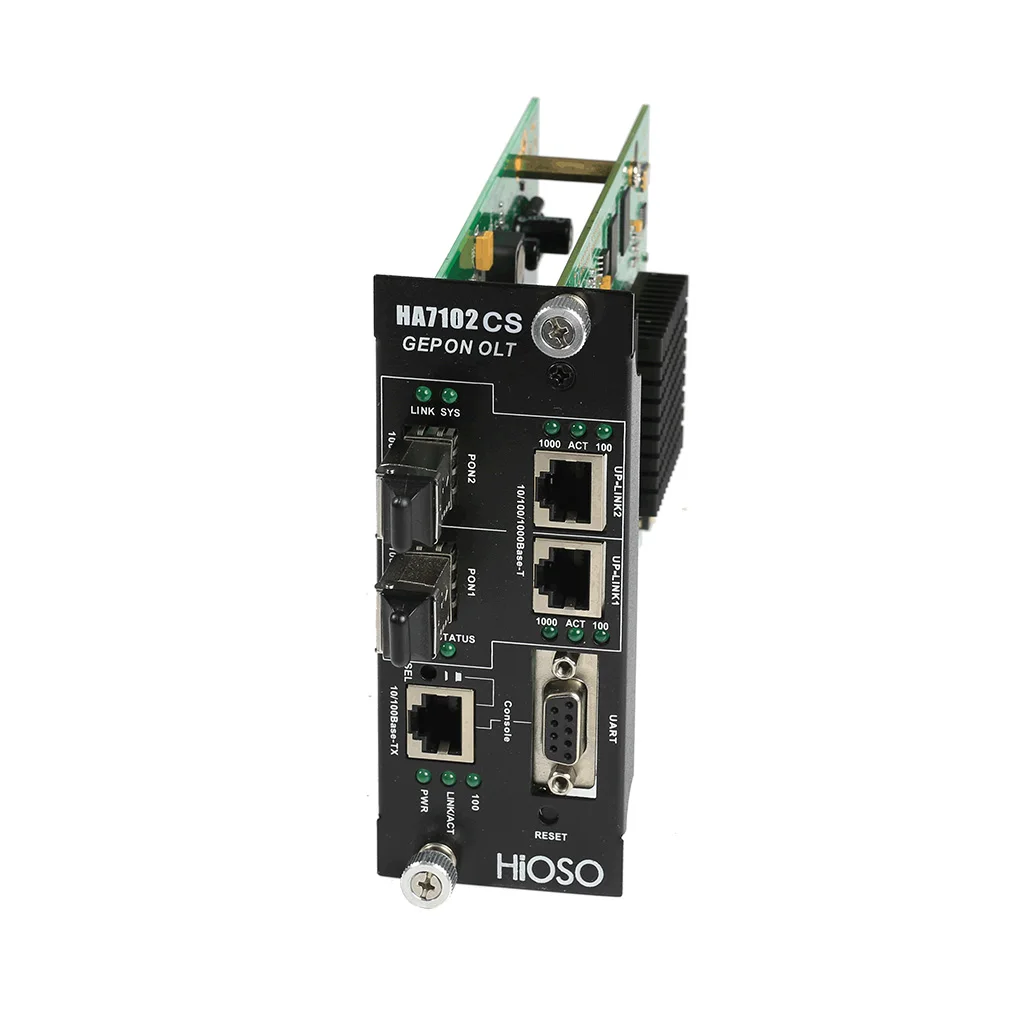

HA7102CS | EPON OLT, with 2 SFP PON ports and 2 10/100/1000M RJ45 uplink ports,1 Console port, 1 RJ45 management port | 1-8 |

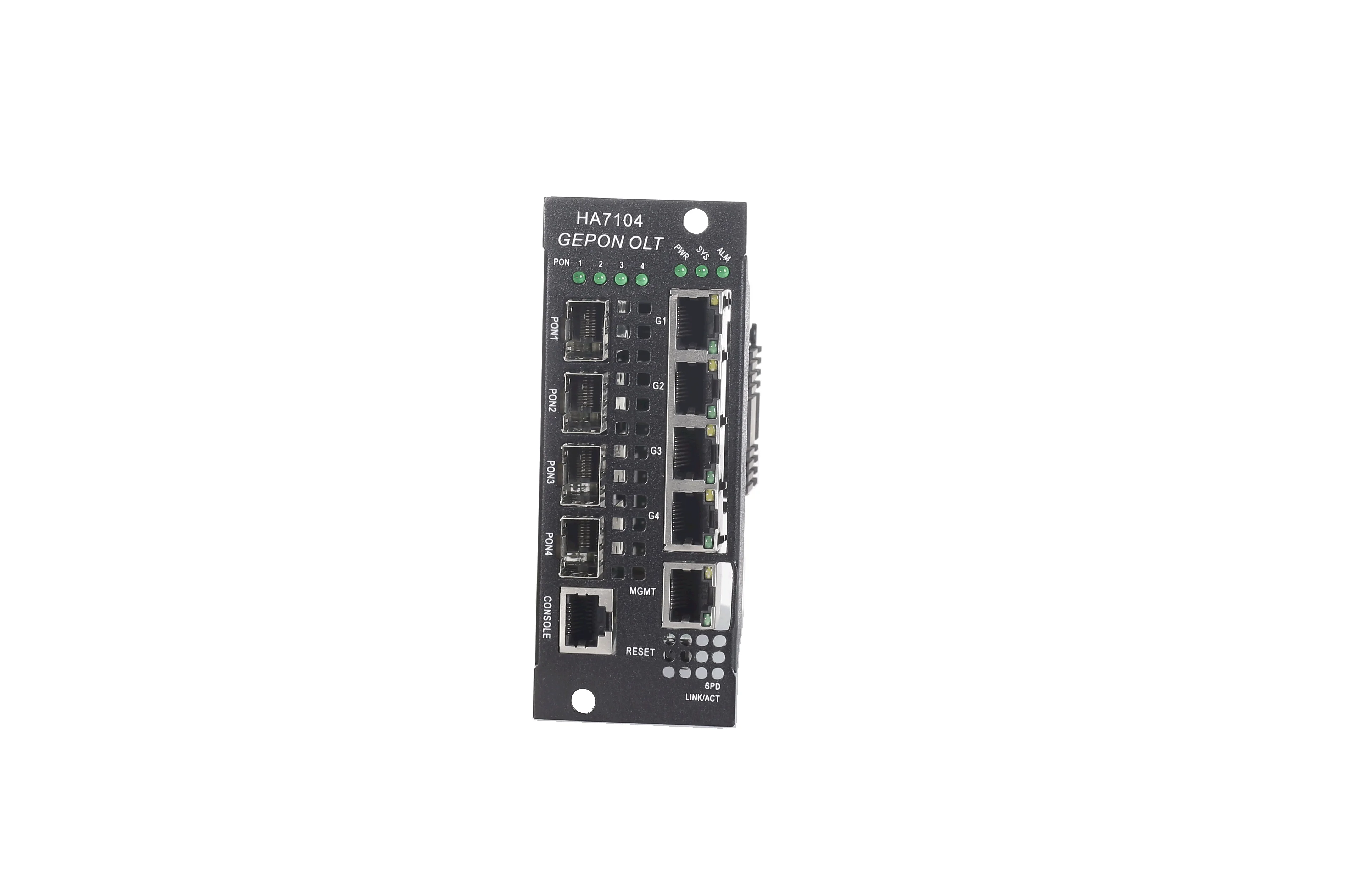

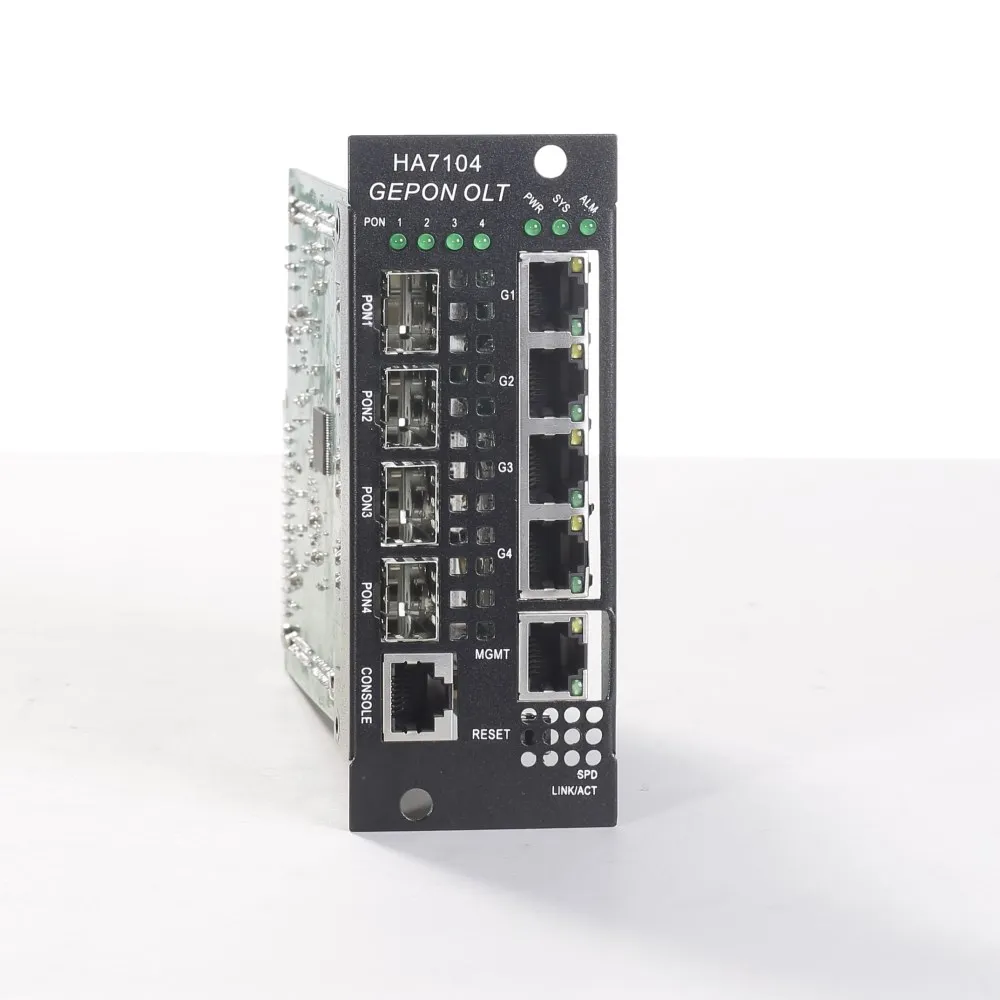

HA7104 | EPON OLT, with 4 SFP PON ports and 4 Combo uplink ports,1 Console port | 1-8 |

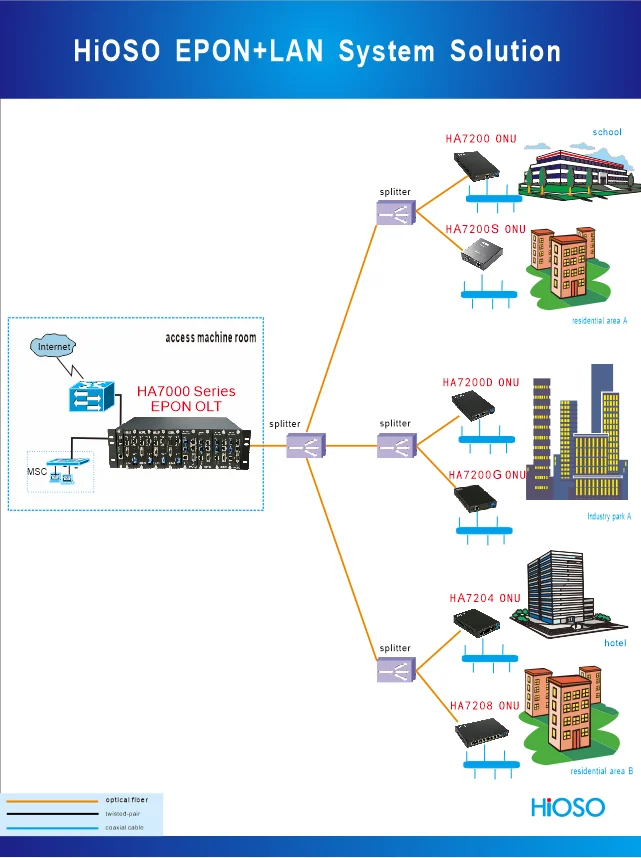

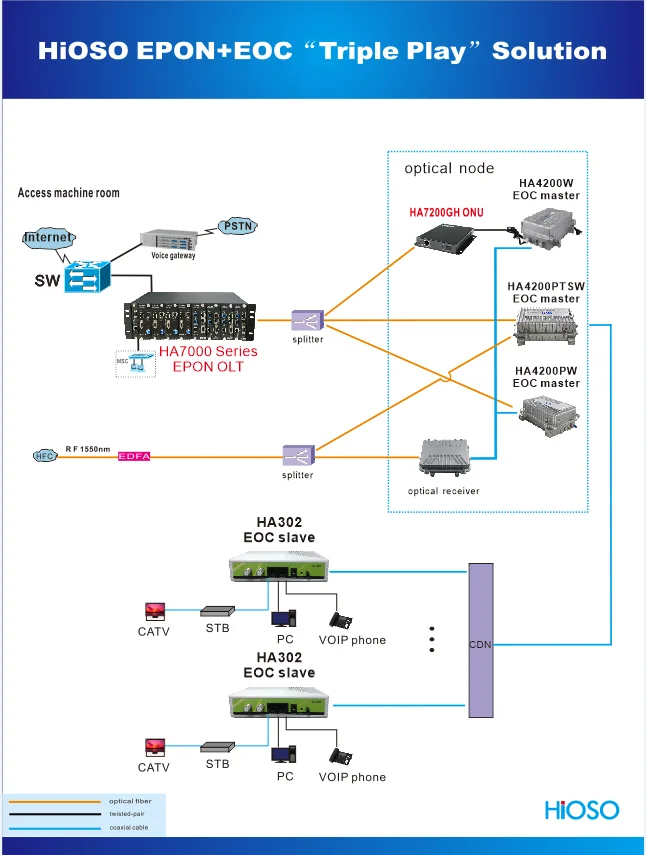

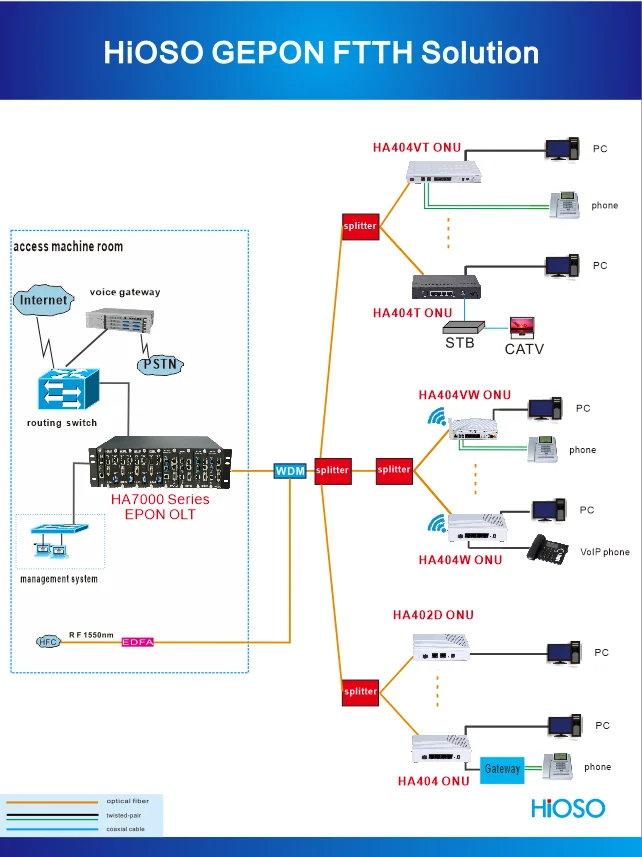

solutions
