b.the number of total mold (the body of machine is 7.5m)
Pcs
52
c.The max size of the outer wall of the mold (upper)
mm
55×30×160
3
Electrical
a.the phase number of power
Phase
3
b.supply voltage
v
380
c. the frequency of power
Hz
50
d.the motor power of Hot water pump
kw
1.5
e.Frequency conversion motor power of the chocolate coating
kw
0.37
f.the motor power of the Vacuum pump
kw
2.2
g.Total power of main engine (except for brine circulating pump)
kw
5
4
Compressed air
a.pressure
Mpa
0.6
b.Dosage (free air)
m³/min
1.5
5
Calcium chloride
a. consistence
Baume Degrees
32
b. flow
m³/h
100
c. Temperature
℃
<-30
d.PH value of brine
PH
8-9
6
Need to be equipped with cold(working condition :-25℃)
HP
75
7
the specifications of stick
mm
2×10×93~140
8
the size of the appearance
a.fuselage (7.5m)
M(L*W*H)
7.4×1.42×1.02
b.manipulator
M(L*W*H)
2.7×0.76×0.5
c. the whole machine (the fuselage is 7.4m)
M(L*W*H)
9.42×1.7×2
9
weight
a.net weight
T
4.5
b.gross weight
T
5
c.working weight
T
6
10
Pipeline interface
Compressed air
INCH
1/2
Steam
INCH
1/2
Clean water
INCH
1/2
The material diameter of the material-charging cart
mm
38
The material diameter of the puffed cart
mm
38
Product Description

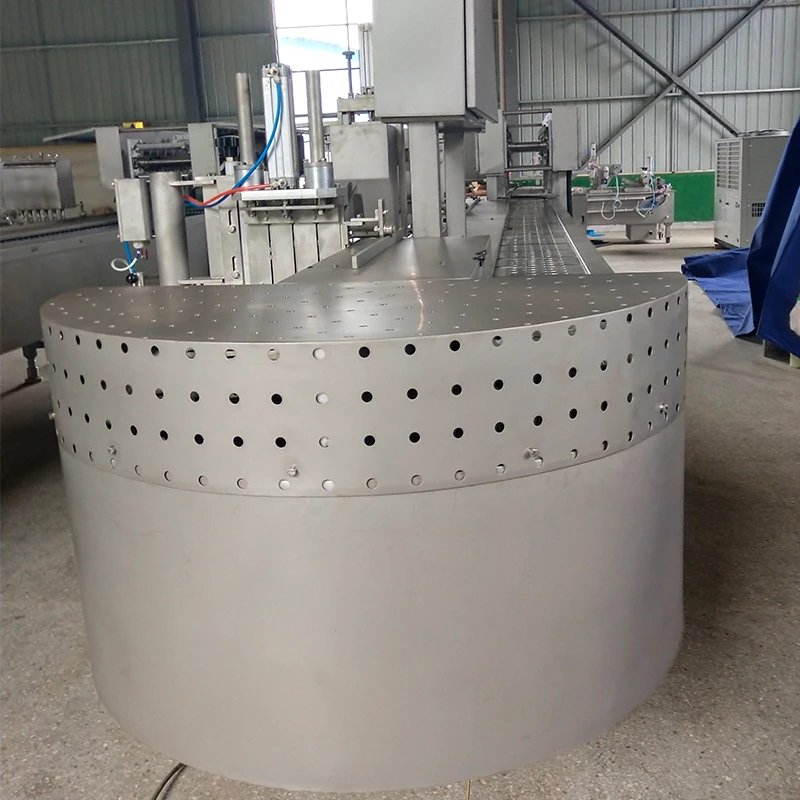

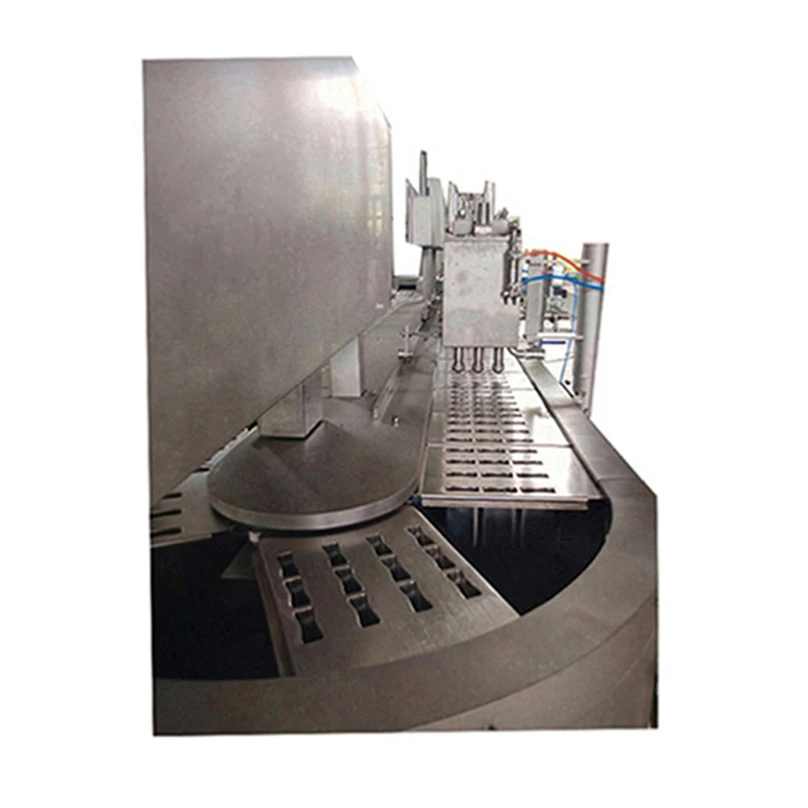

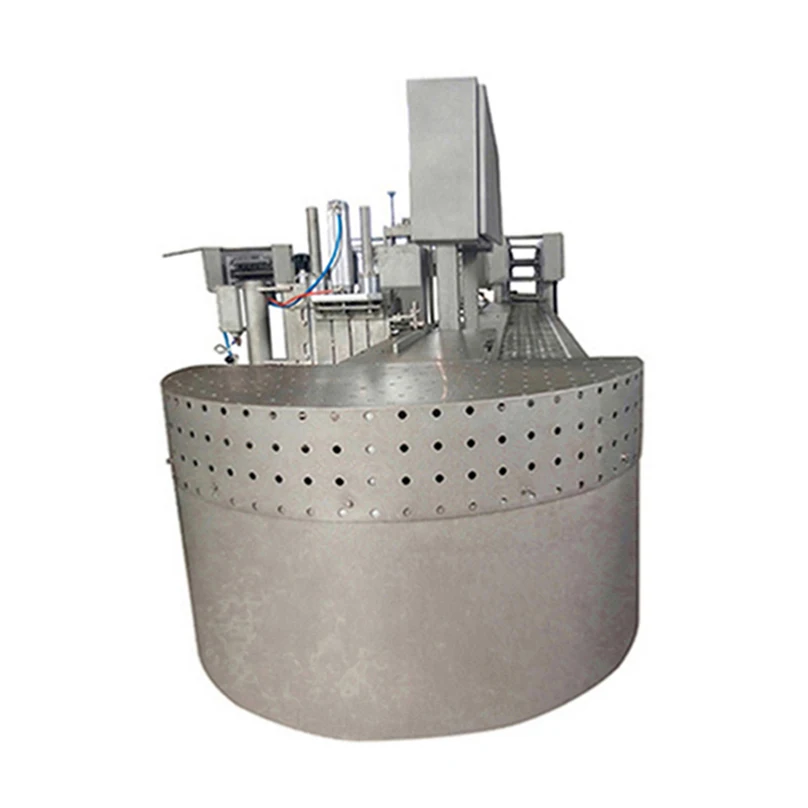

Elliptic type production line are all made of stainless steel,In order to double the oval groove welded together.The machine is modelling beautiful,cover an area of an area small,save raw materials.According to the customer needs to make 2-8 production lines.Compared with the circular line,can quickly and easily change mould,mould replacement cost.
