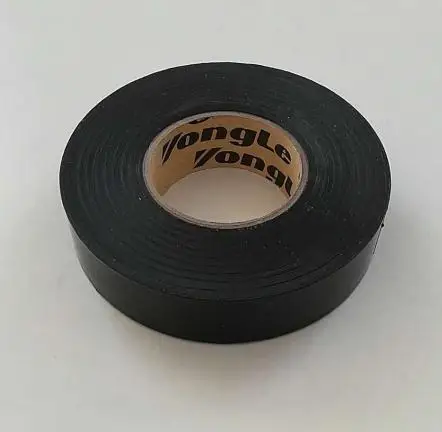

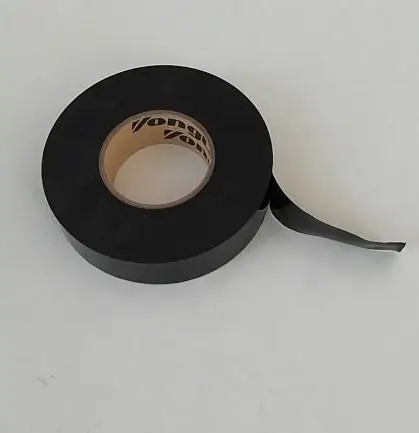

dry vinyl wire harness tape for automotive engine

Product Overview

Description

dry vinyl wire harness tape for automotive engine









pvc insulating tape



SPECIFICATIONS: UB130
PROPERTY	VALUE	UNIT	TEST METHOD
Total thickness	0.13	mm	ASTM-D-1000
Tensile Strength	21	N/cm	ASTM-D-1000
Elongation at break	230	%	ASTM-D-1000
Temperature Resistance	80	°C	VW60360(LV312)
Adhesion Strength:
to steel	1.2	N/cm	ASTM-D-1000
to backing	1.0	N/cm	ASTM-D-1000
Flame Resistance	< 2	s	ASTM-D-1000
Dielectric strength	45	kv/mm
Content of Heavy Metal:
Lead, Cadmium	30	ppm	US EPA3052
Mercury, Chromium	10	ppm	US EPA3060A
Polybrominated biphenyl	10	ppm	US EPA3540C
STANDARD SIZES:
Width	Length	Core
19mm	10m	32mm
19mm	20m	32mm
19mm	33m	32mm
Other sizes and cores are available. Consult factory.
Other model:UB120 UB150 UB180 UB280
Color: Black Red Blue Yellow White Green
DESCRIPTION:
A thin premium grade plasticized PVC film coated with an aggressive rubber based adhesive with good characteristics. It is highly conformable and unaffected by most chemicals and moisture. Meet ROHS requirement. It does not contain substances harmful to human body such as lead and cadmium. This products APPROVAL by  UL  ROSH
RECOMMENDED USES:
Wrapping automotive wire harness and cables of engine

















PRODUCT NAME:





If you're interested in our product, welcome to contact with us.



As on paper core size, usually different countries have differenct core OD size and thickness, pls let me know your ideal core size and core thickness. blank core or printed with your own brand?







Your mini order is 1 ton pvc film, after giving me your rolls size, I would let you know how many rolls are possible for 1 ton pvc adhesive tape !







 Your inquiries will be answered in 24 hours !
