Высококачественная голландская плетеная проволочная сетка из нержавеющей стали

Product Overview

Description

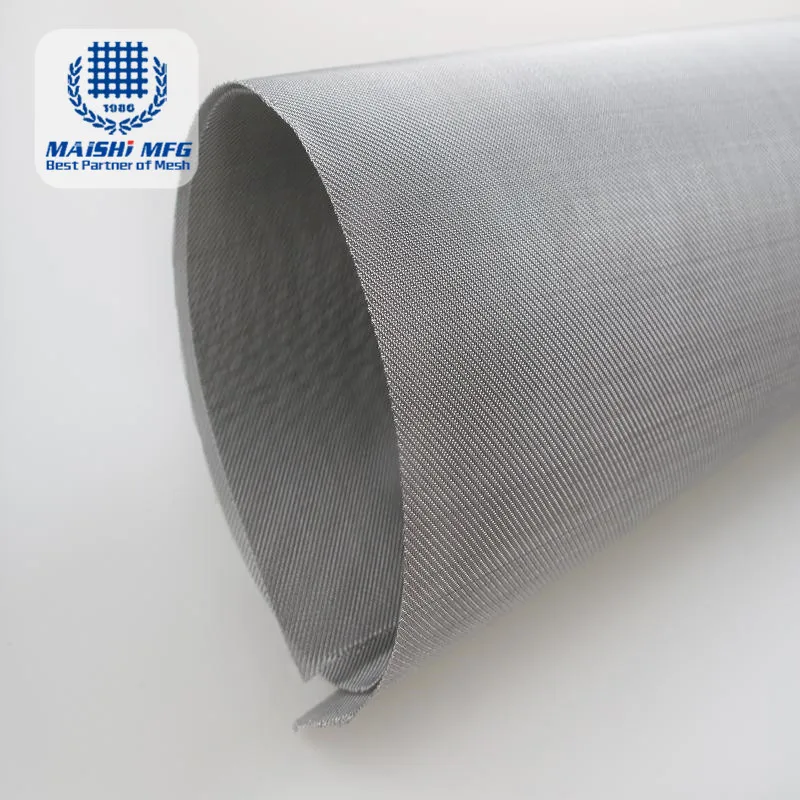

High Grade Dutch Weave Stainless Steel Micron Wire Mesh

Hebei Maishi Wire Mesh Manufacture Group has been producing wire mesh over 30 years and we always support our customers high grade Micron Wire Mesh. Favorable price and best customer service make us win more than 90% repeat orders , welcome to contact us if you have inquiry for stainless steel wire mesh.



Material	201, 304, 316, 316L , 430 etc
plain dutch weave	10X64mesh to 80X700mesh
twill dutch weave	20x250mesh to 400X2800mesh
reversed dutch weave	48x10mesh to 720x150mesh
plain weave	0.5X0.5mesh to 635X635 mesh
twill weave	20x20mesh to 400x400mesh





Wire diameter:0.025mm-1.8mm

Apeature: 0.038mm-10.9mm

Roll width:0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.

Roll length:30m or 50m,any length available at request.

Sample:Free sample sent on request.



1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave:  In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave:  difference from standard Dutch weave lies in the thicker warp wires and less weft wires.



MAISHI make five steps to ensure the quality of the Micron Wire Mesh:

Package details for Micron Wire Mesh:

Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" as well as the "woven bag" on the finished roll, Final loaded in the strong wooden case or as customers' requirement



Payment:

T/T in advance if order amount less thanUSD10000.00, 30%paid in advance and 70%paid before shipment if order amount more than USD10000.00.

L/C payment is workable.

Any other payment term can be negotiatory



Our tenet:top credit,quality goods,favourable price,excellent service

We warmly welcome all friend from all over the world to be our business partners on the basis of equality and mutual benefit and to create a good future.
