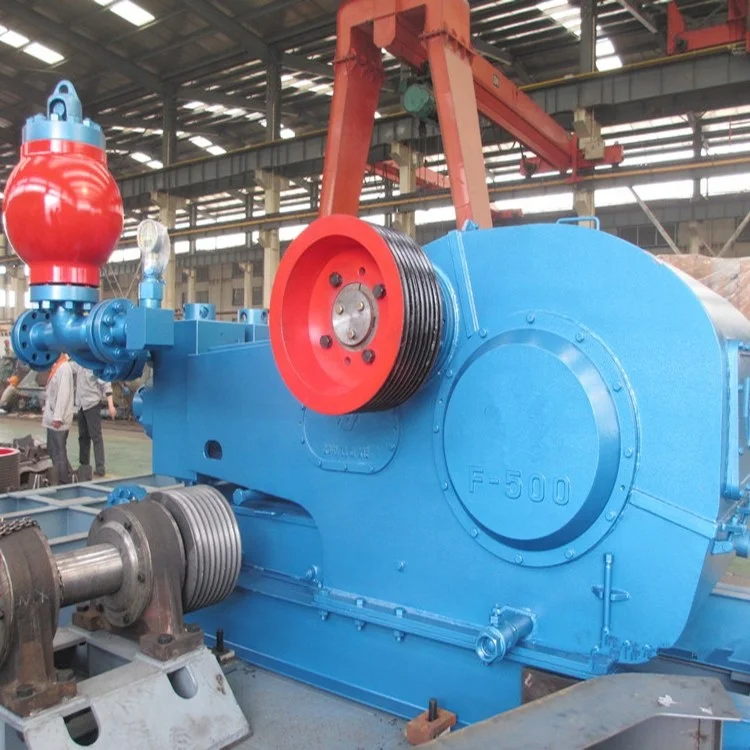

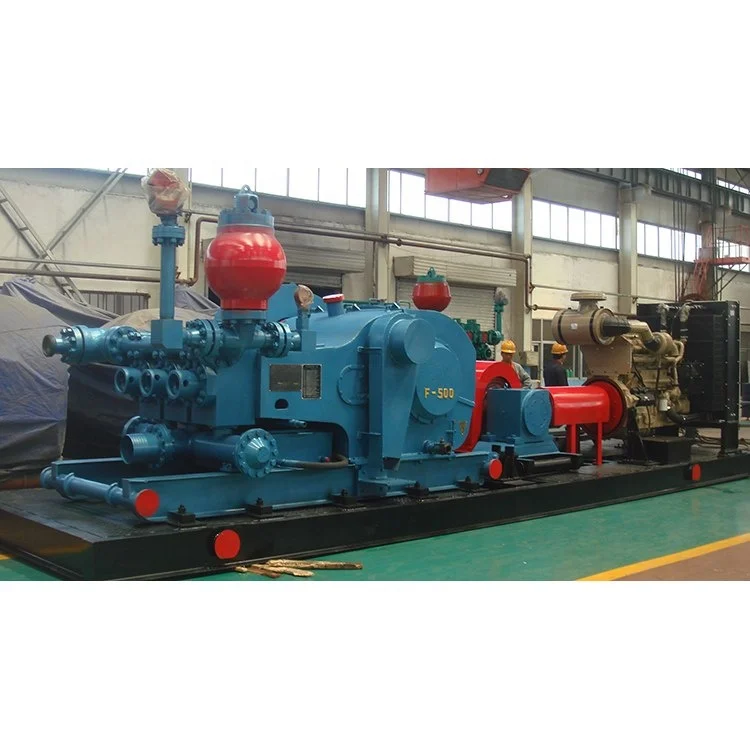

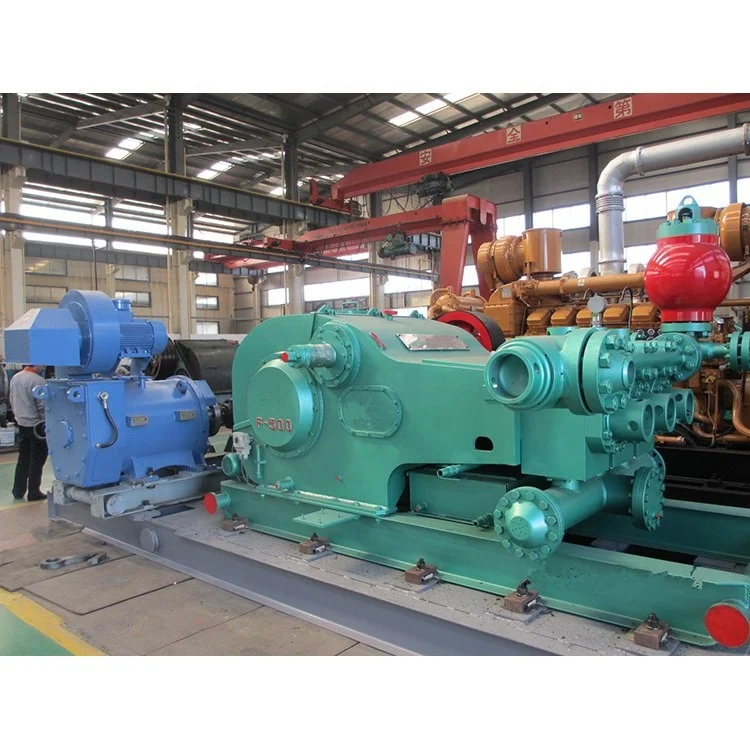

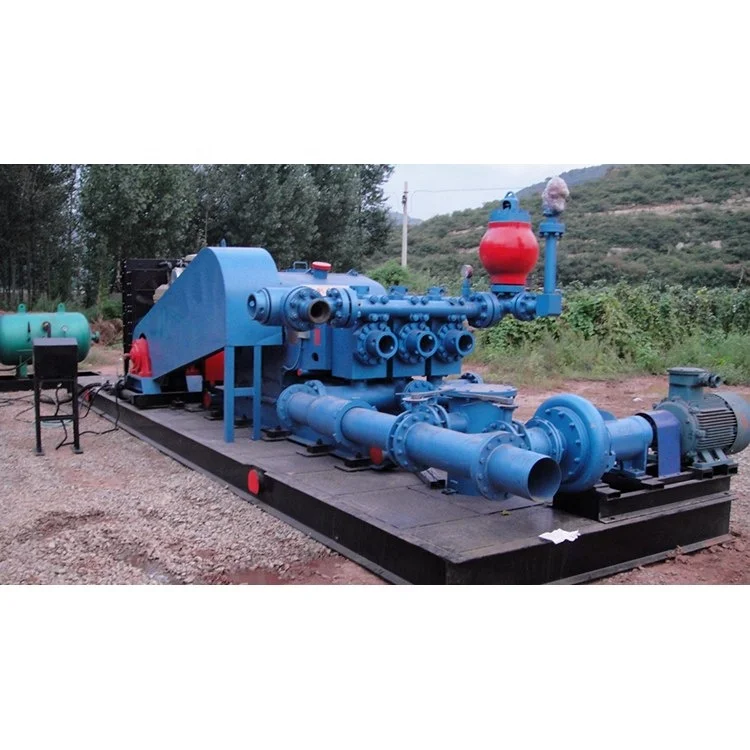

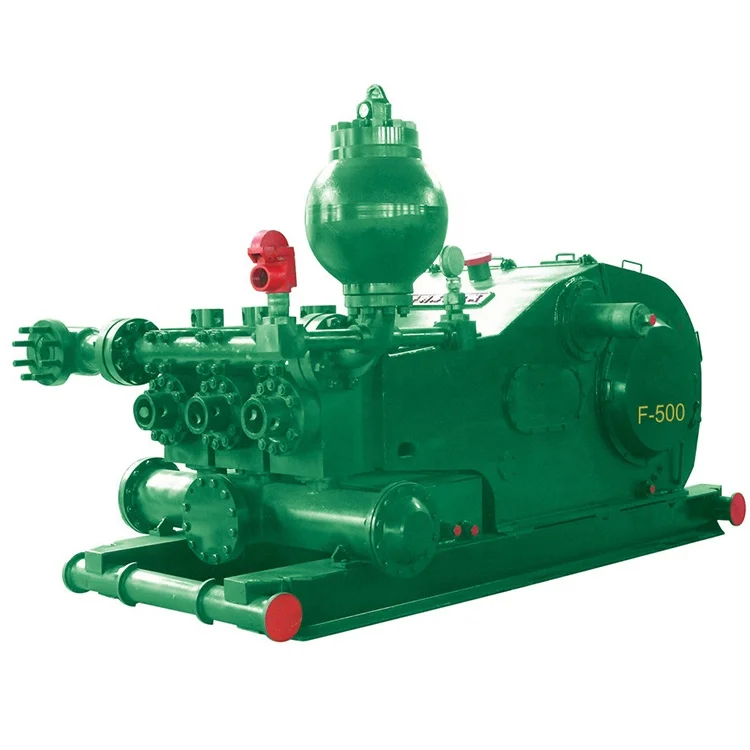

F500 500HP Water Well Drill Mud Pump Piston Pump
- Category: Oil Field Equipment >>>
- Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.
Share on (50046352215):
Product Overview
Description
Product Description
| Item | F500 | F800 | F1000 | F1300 | F1600 |
| Power Rating HP(kw) | 500 (373) | 800 (597) | 1000 (746) | 1300 (969) | 1600 (1193) |
| Stroke RatingSPM | 165 | 150 | 140 | 120 | 120 |
| Stroke Length(in /mm) | 7.5” /190.5 | 9”/228.6 | 10”/254 | 12”/305 | 12”/305 |
| Gear Ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 |
| Inlet Dia. (in/mm) | 8”/203 | 10”/254 | 12”/305 | 12”/305 | 12”/305 |
| Outlet Dia. (in) | 4” Flange | 5-1/8” Flange | 5-1/8” Flange | 5-1/8” Flange | 5-1/8” Flange |
| 5000psi | 5000psi | 5000psi | 5000psi | 5000psi | |
| Valve | API5# | API6# | API6# | API7# | API7# |
| Max. Liner (in/mm) | 6-3/4”/170 | 6-3/4”/170 | 6-3/4”/170 | 7”/180 | 7”/180 |
| Overall Dimension L*W*H(mm) | 3658*2709 | 3963*3025 | 4267*3167 | 4617*3260 | 4615*3276 |
| *2231 | *2410 | *2580 | *2600 | *2688 | |
| Approx. Weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
We supply a full line of drilling rig packages: skid-mounted drilling rigs, truck-mounted drilling rigs and trailer-mounted drilling rigs. Our skid-mounted drilling rigs include diesel electric AC/VFD or DC/SCR drive rigs, mechanical-electric combined drive rigs, and mechanical rigs (Belt or Chain transmission), from 450HP to 3,000HP (Rated Drilling depth: 1,500-9,000m). Our truck-mounted drilling rigs range from 550HP to 1,000 HP.Drilling Rigs
Company Information
Company Introduction
SHANDONG BEYOND PETROLEUM MACHINERY CO.,LTD. is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.
BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs.
BEYOND believes that it will become your best cooperative partner in China.
