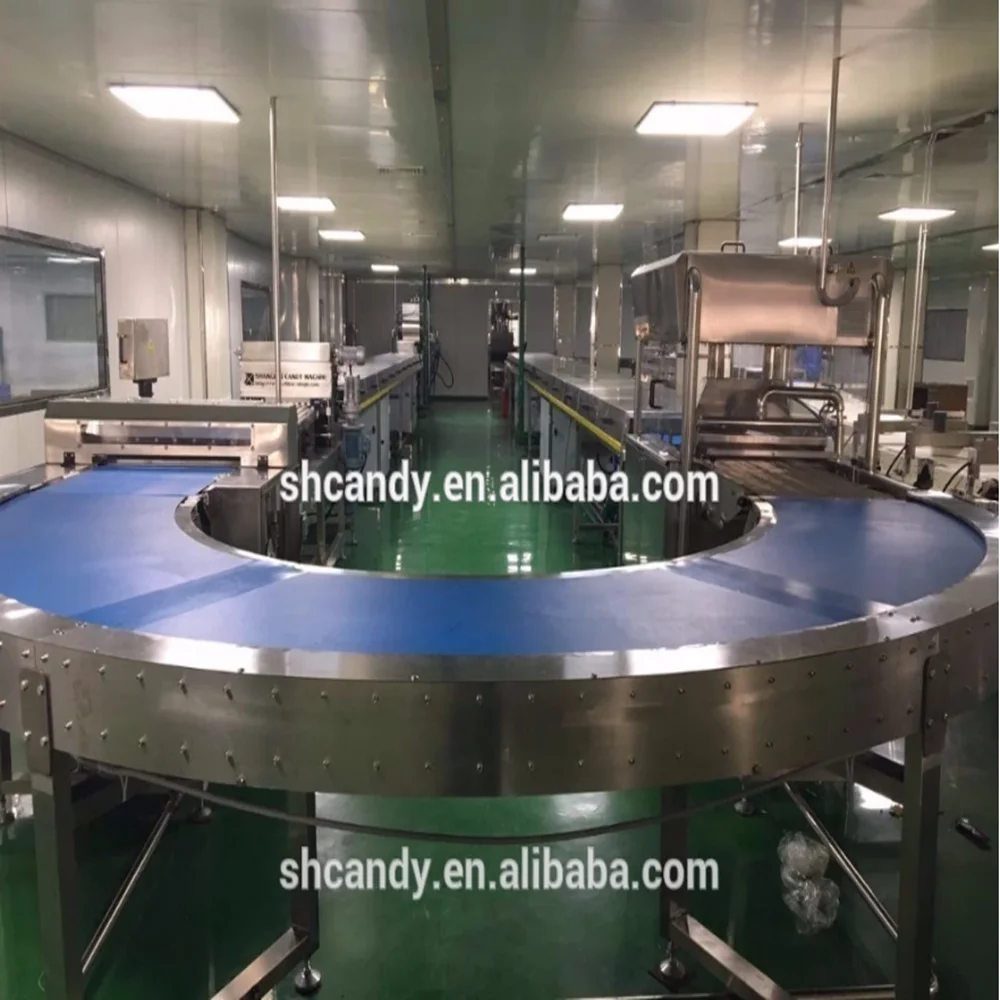

Automatic Snack Chocolate Protein Cereal Bar Production Line
- Category: >>>
- Supplier: Shanghai Candy Machine Co. Ltd.
Share on (50046372269):
Product Overview
Description
Chocolate cereal bar machine
Chocolate cereal bar making machine
Chocolate cereal bar production line
Referred Video Link:
https://youtu.be/M7At-GwpJJY (chocolate cereal bar line)
Product Description

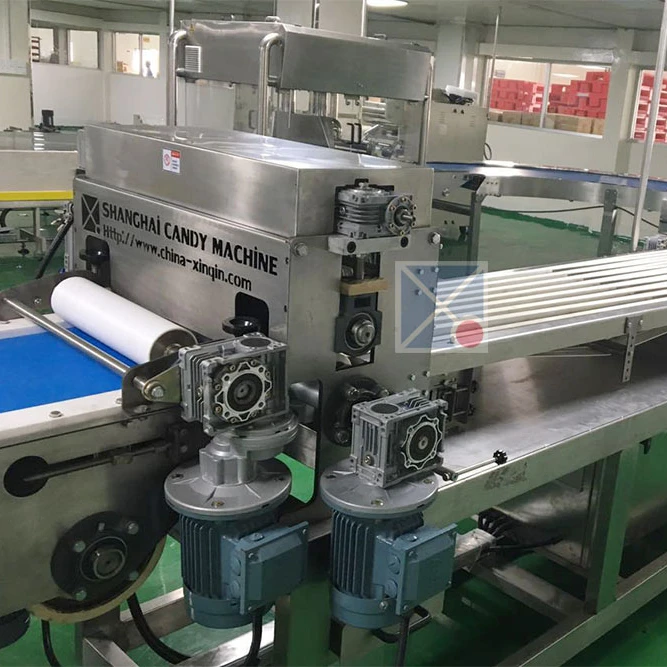

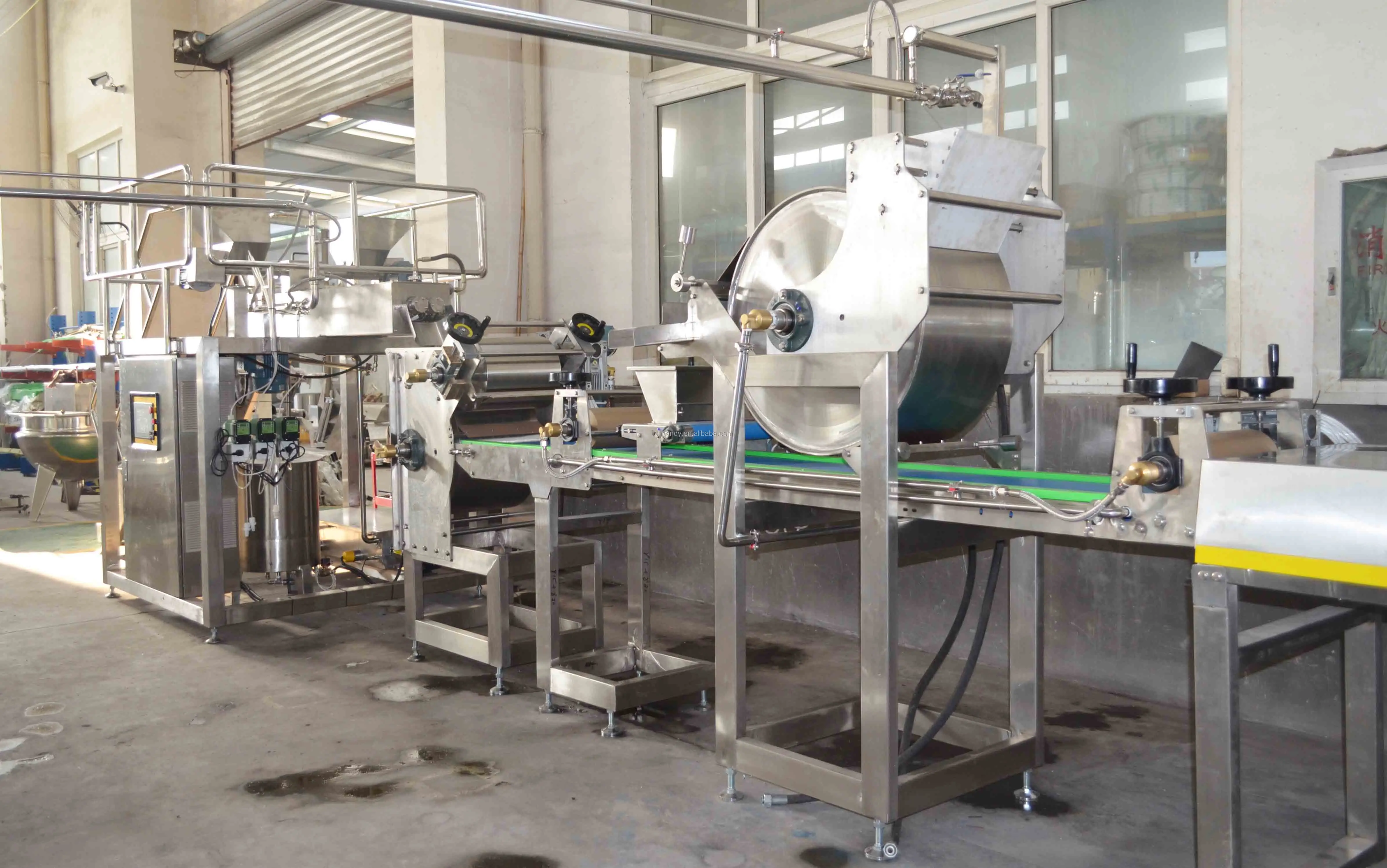

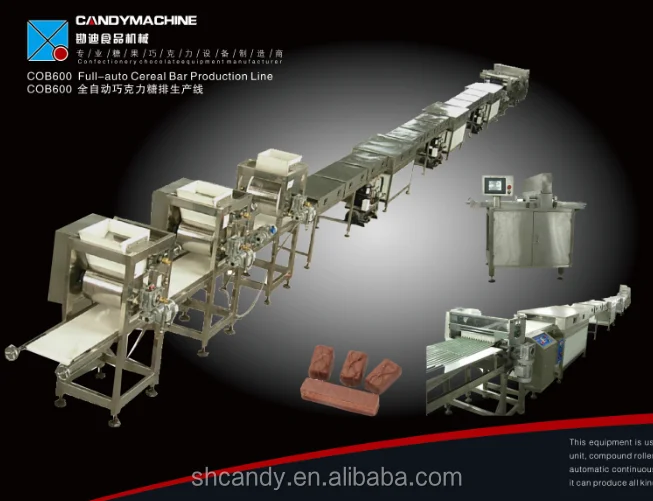

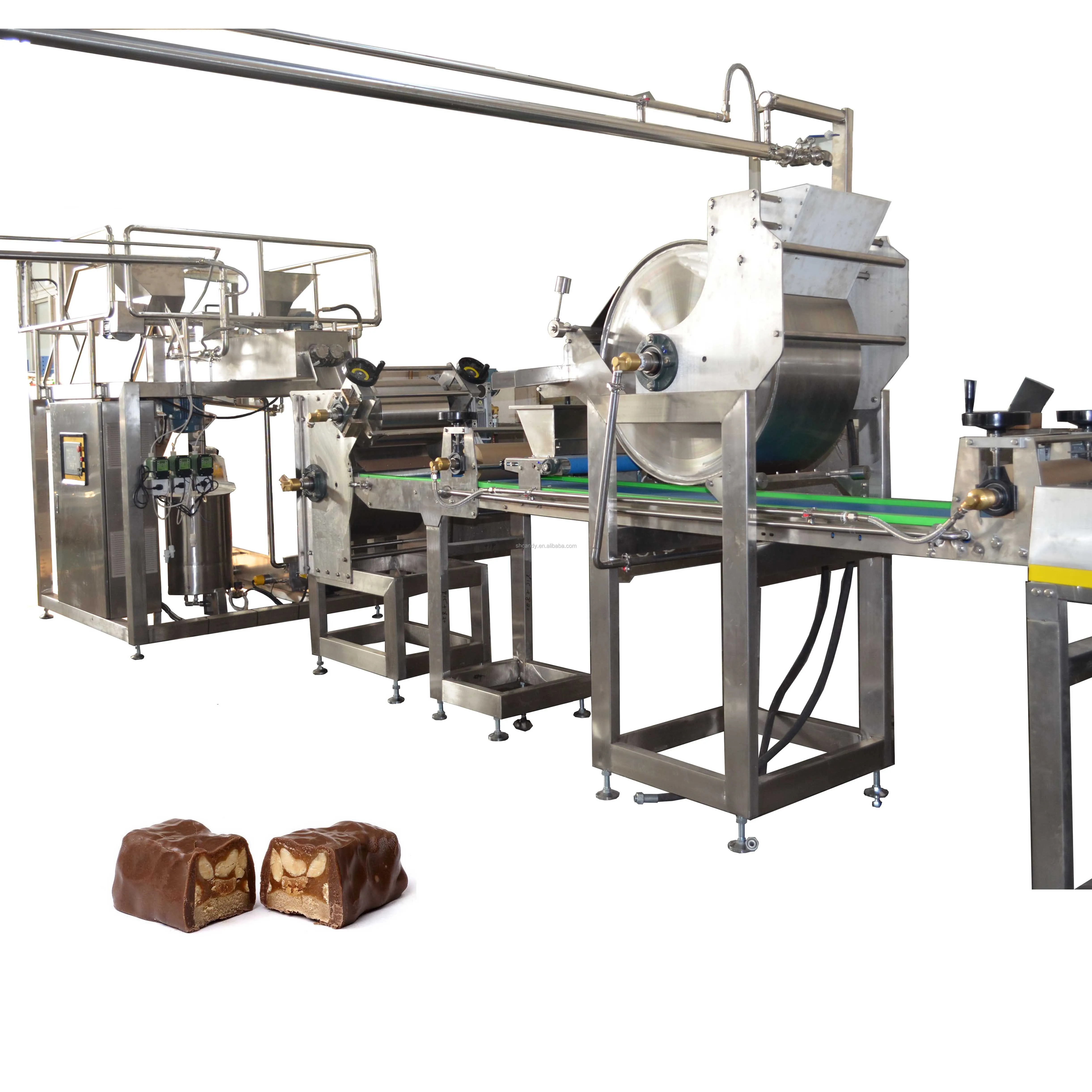

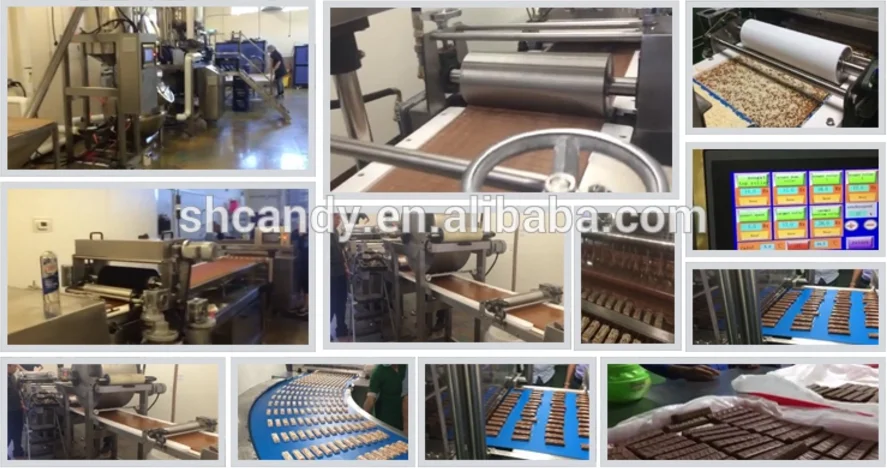

COB600 chocolate cereal bar machine
COB600 chocolate cereal bar machine

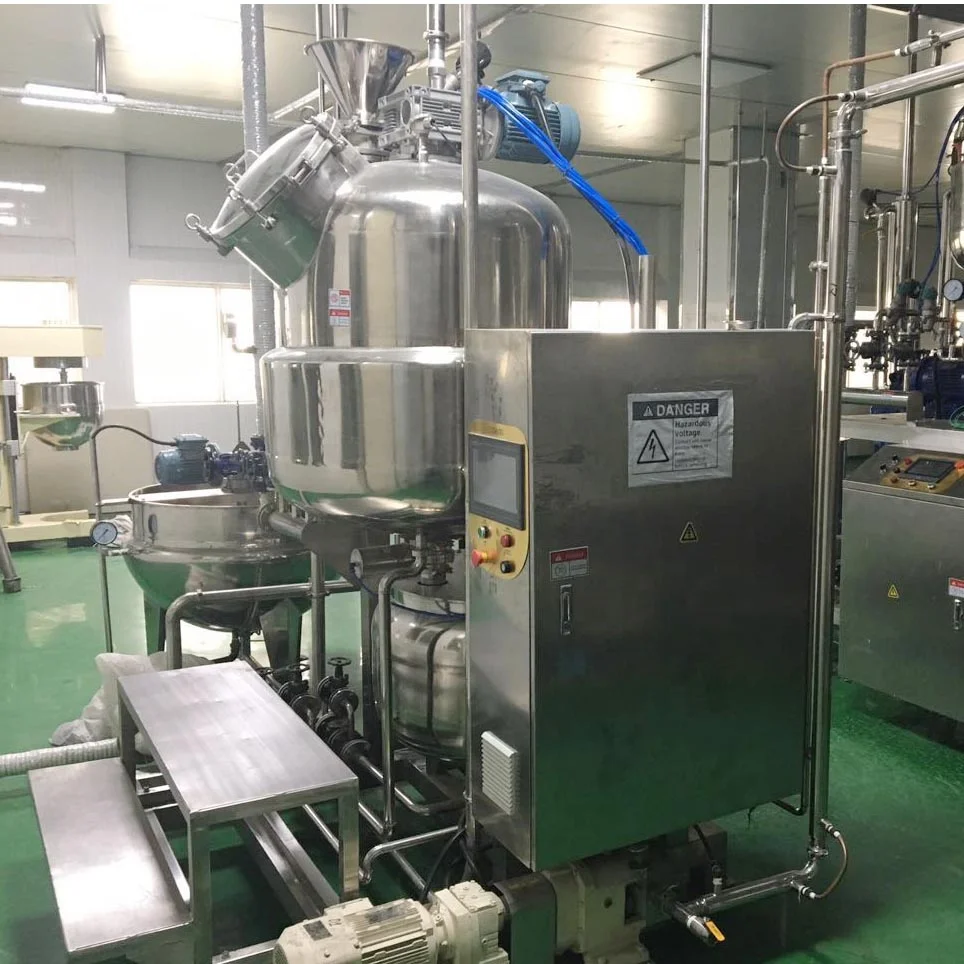

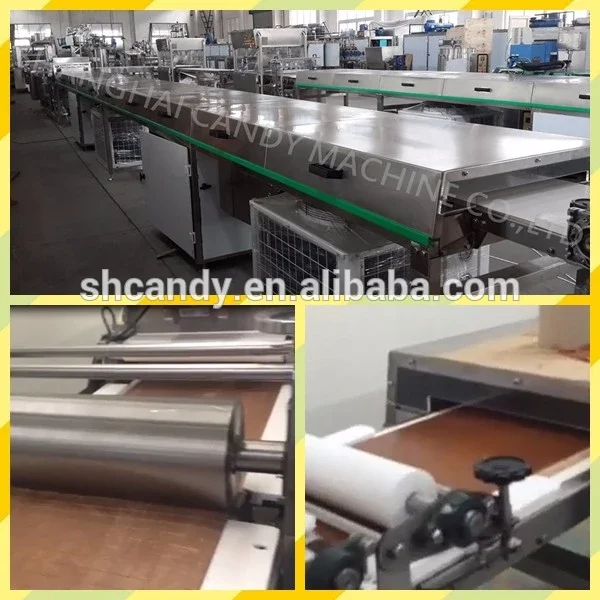

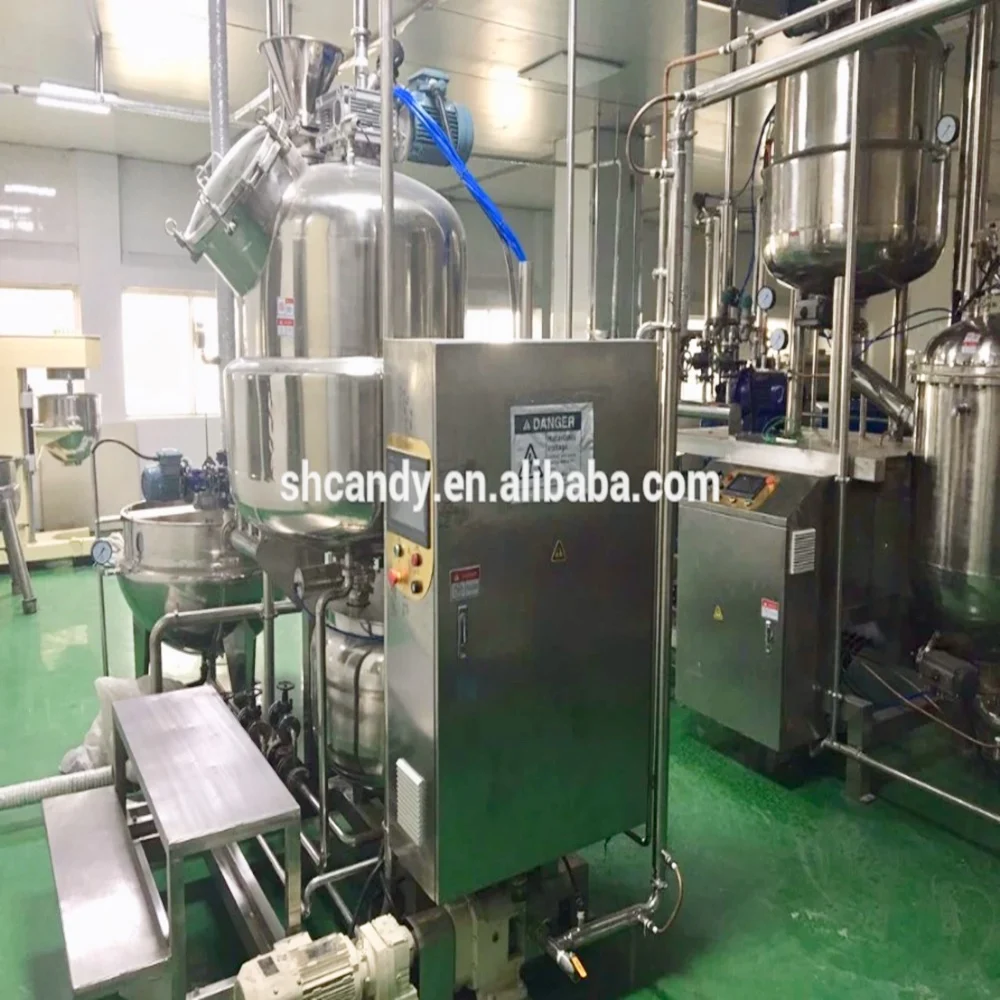

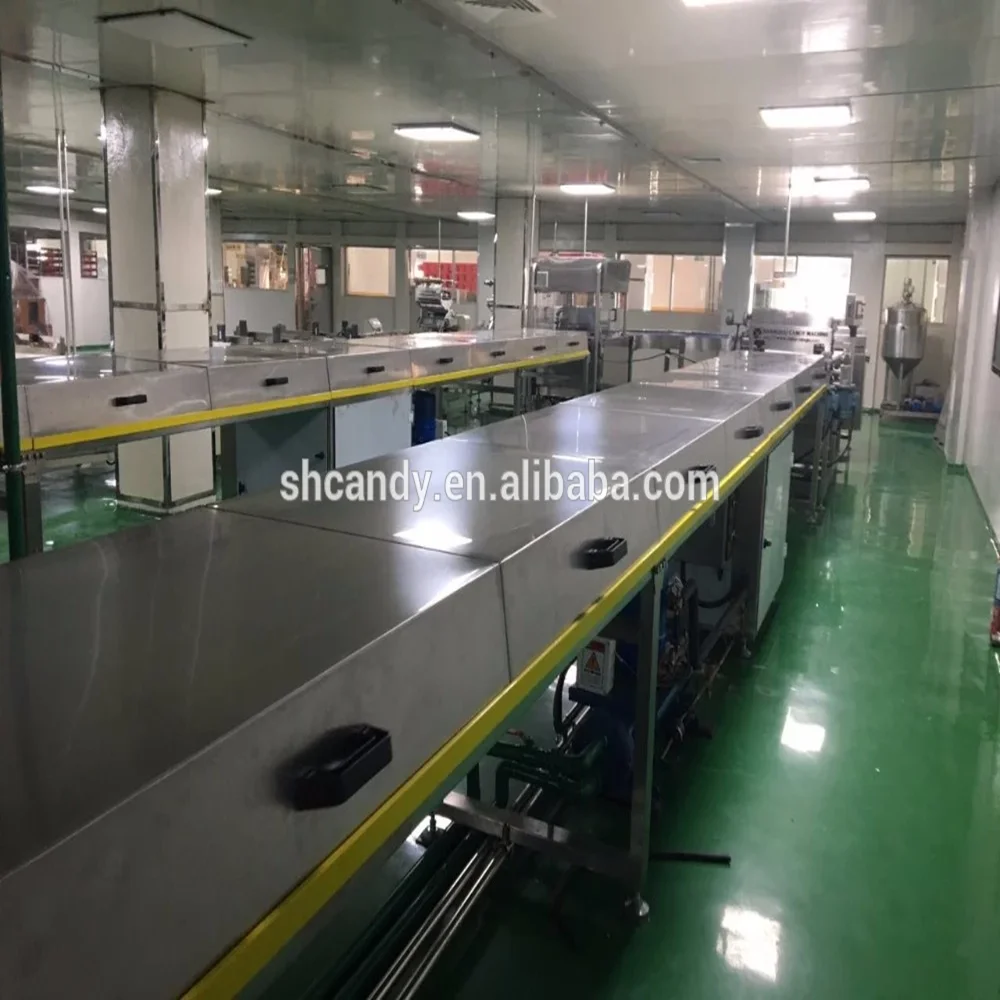

This equipment is used for production of all kinds of candy bar by automatic shaping. It mainly consists of cooking unit, compound roller, nuts sprinkler, leveling cylinder, cooling tunnel, cutting machine etc. It has the advantage of full automatic continuously working, high capacity, advanced technology. Coordinated with chocolate coating machine, it can produce all kinds of chocolate compound candies.
Machine Specifications
Model | COB600 |
Capacity | 400-800kg/h (800kg/h max) |
Speed of cutting | 30 Times/min( MAX) |
Weight of product | 10-60g |
Steam consumption | 400Kg/h |
Steam pressure | 0.6Mpa |
Power voltage | 380V |
Total power | 96KW |
Compressed air consumption | 0.9 M3／min |
Compressed air pressure | 0.4- 0.6 Ｍpa |
Water consumption | 0.5M3/ h |
Candy size | can be made according to customer’s requirement |
Chocolate Forming Machine
Chocolate Depositing Machine
Chocolate Depositing Line with Cooling Tunnel
Full-Automatic chocolate depositing, forming, cooling and demoulding.
Chocolate shapes can custom by chocolate plastic mould.
Chocolate shapes can custom by chocolate plastic mould.
Chocolate filling customized.
Depositor quantity: customized.
Machine Specification

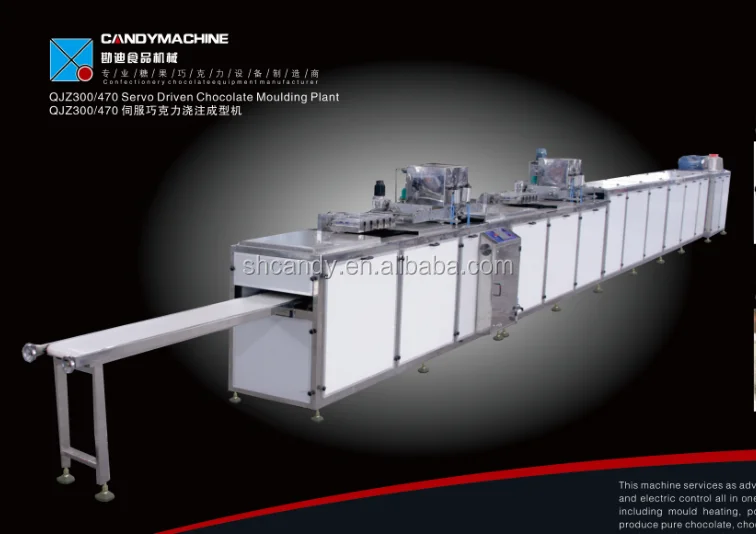

Model | QJZ-300 | QJZ-470 |
Capacity | 0.8~2.5 T/8h | 1.2~3.0 T/8h |
Power | 30 kw | 40 kw |
Refrigerating Capacity | 35000 Kcal/h | 35000 Kcal/h |
Gross Weight | 6500 kg | 7000 kg |
Overall Dimension | 16300*1100* 1850 mm | 16685*970* 1850 mm |
Size of Mould | 300*225* 30 mm | 470*200* 30 mm |
Qty of Mould | 240pcs | 270pcs |
Packing&Shipping
1. Package: exporting wooden box
2. Delivery time: 45-90 days after order
3. Shipment: by sea or air
2. Delivery time: 45-90 days after order
3. Shipment: by sea or air
After Sales Service
We will send one or two technical staffs to process the supervising of installation and debugging, training the operator for a period of about 15 days.
Purchaser has to bear the cost of return tickets by air, accommodation, besides, purchaser needs to pay a daily allowance per day per technical staff during the stay in purchaser area.
Purchaser has to bear the cost of return tickets by air, accommodation, besides, purchaser needs to pay a daily allowance per day per technical staff during the stay in purchaser area.
Warranty
We will provide 12 months quality warranty from the delivery date.
Company Introduction
* More than 20 years focus on candy machines and chocolate machines research;
* Advanced CNC production equipment;
* Main material use stainless steel 304;
* International brand for machine parts;
* Exported to more than 20 countries;
* Experienced technician for installation;
* Experienced sales person for consultation before and after sales.
* Advanced CNC production equipment;
* Main material use stainless steel 304;
* International brand for machine parts;
* Exported to more than 20 countries;
* Experienced technician for installation;
* Experienced sales person for consultation before and after sales.
