China manufacture biomass steam boiler with good service
- Category: Boilers >>>
- Supplier: Zhangjiakou Diamond Boiler Co. Ltd.
Share on (50046413859):
Product Overview
Description

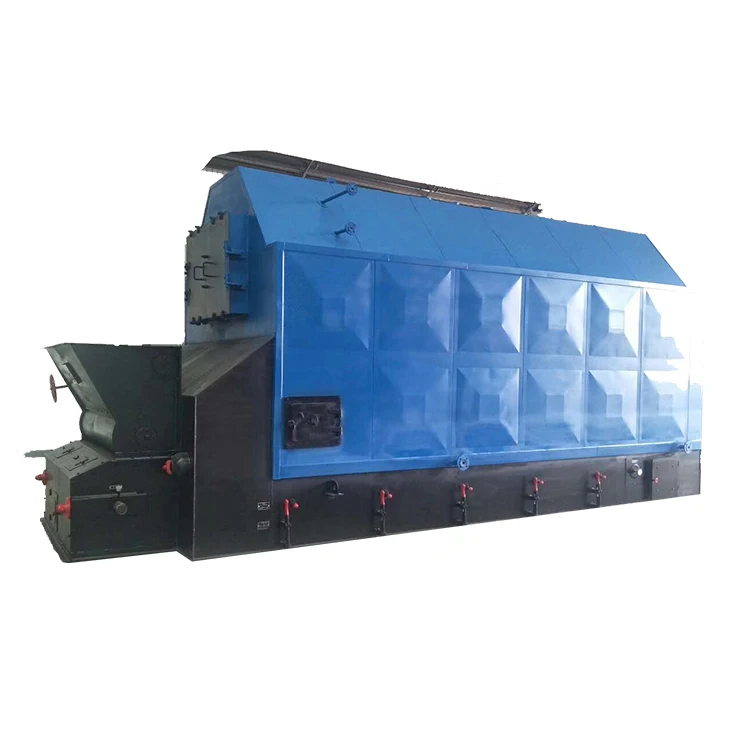

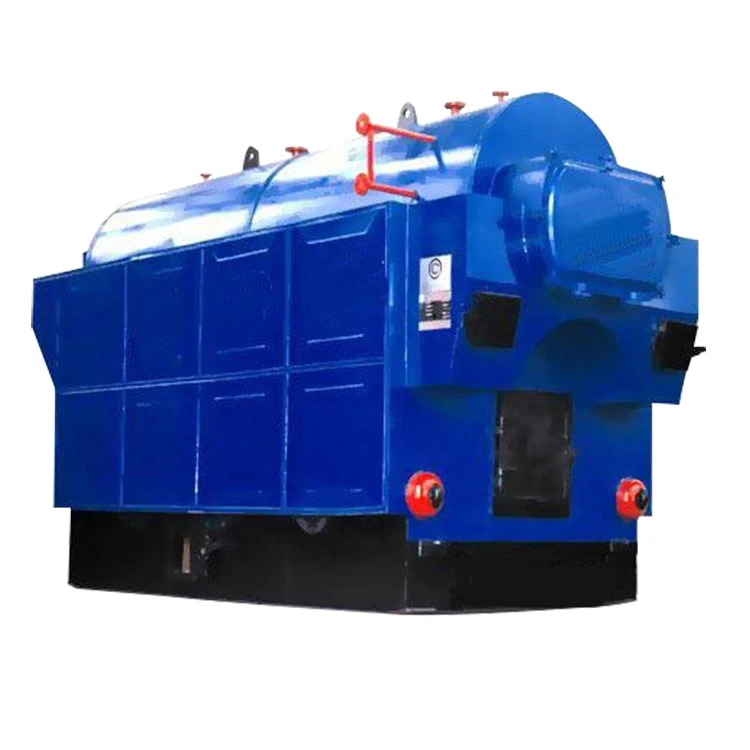

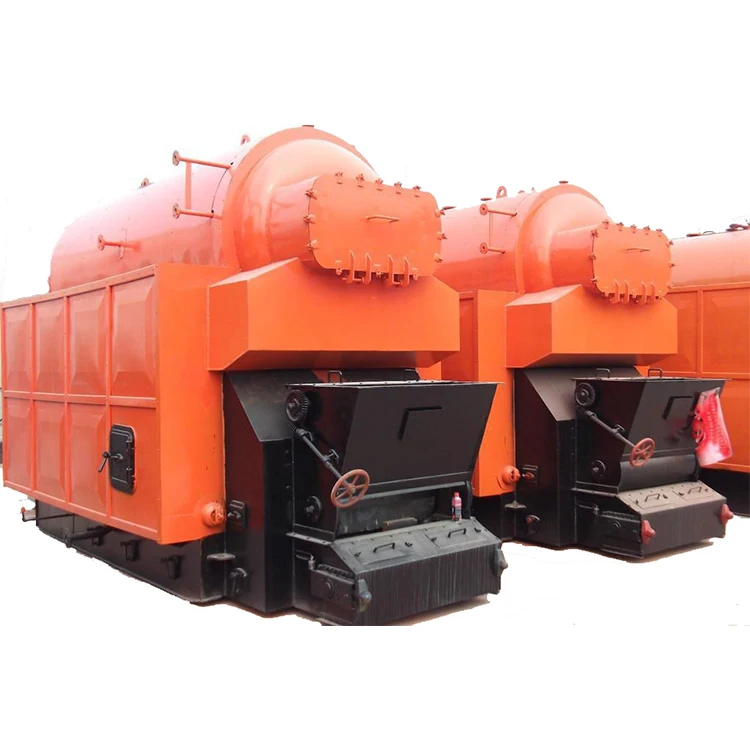

China manufacture biomass steam boiler with good service
Product Description
Item Type | Unit | DZL0.5-0.7-AII | DZL1-0.7 -AII | DZL2-1.25 -AII | DZL4-1.25 -AII | DZL6-1.25 -AII | DZL8-1.25 -AII | DZL10-1.25-AII |
Rated evaporation | t/h | 0.5 | 1.0 | 2.0 | 4.0 | 6.0 | 8.0 | 10 |
Rated Working pressure | MPa | 0.7 | 0.7 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
Rated steam temperature Degree | ℃ | 170.4 | 170.3 | 193.4 | 193.4 | 193.4 | 193.4 | 193.4 |
Return water temperature Degree | ℃ | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
Boiler Heating Area
| m2 | 22.55 | 22.6 | 41.6 | 85.6 | 143.2 | 168.82 | 216.4 |
Boiler Thermal efficiency | % | 79 | 77 | 81 | 81 | 78 | 79 | 79 |
Fuel Consumption kg/h | Kg/h | 76 | 190.1 | 410 | 824 | 1094 | 1552 | 1634 |
Max Weight | T | 9.6 | 11.6 | 16.3 | 27.5 | 28.9 | 31 | 38.9 |
Max Dimensions
| mm | 4260x1660 x2590 | 5220x2100 x2790 | 5830x2300 x3090 | 6670x2540 x3550 | 8600x2900 x3550 | 6750x3000 x3430 | 7250x3100 x3530 |

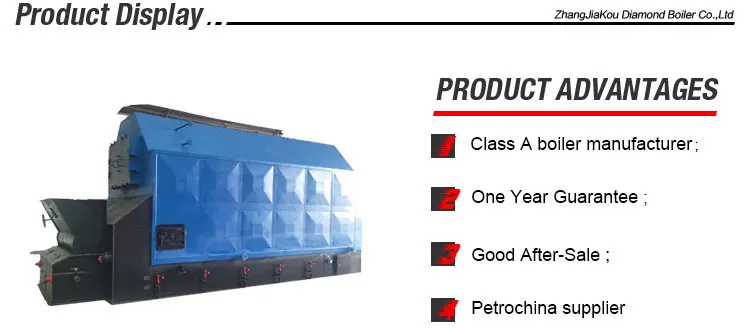

Product Display
More Product
Company Information

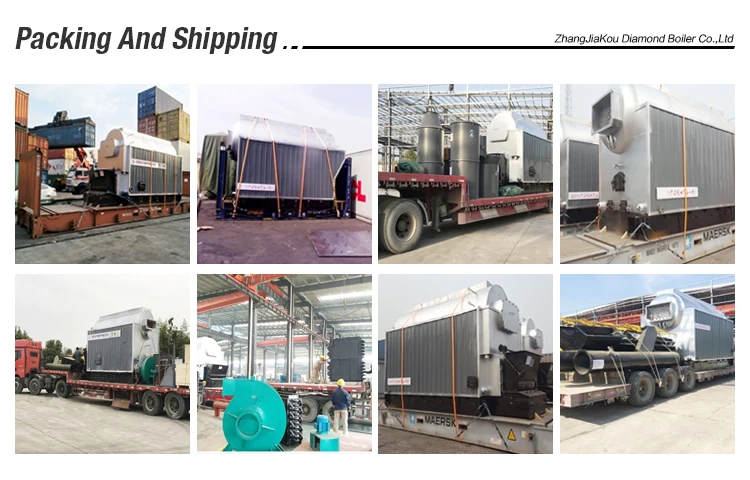

Packaging & Shipping
FAQ
Q1: How to choose a boiler model?
A1: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel (coal, biomass, gas or oil or other fuel) of the boiler, we will suggest a suitable model based on your usage.
Q2:What is the using life of your boiler?
A2: Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
Q3: What is your MOQ?
A3: 1 piece/set.
Q4: Do you have any one in stock?
A4: Yes, we have. There are some Chinese popular boilers in stock.
Q5: Can you supply OEM or ODM product?
A5: Yes, we can.
Q6: How to install a boiler?
A6: We will provide a video and document for installation. If you still have problem,we will send engineer to your site for guiding and training.
Q7: How is the warranty term?
A7: If any problems caused for quality during the warranty period, we will repair or replace the broken parts for free, if the problem caused from the client’s side, we will help supply the spare parts at lowest cost.
