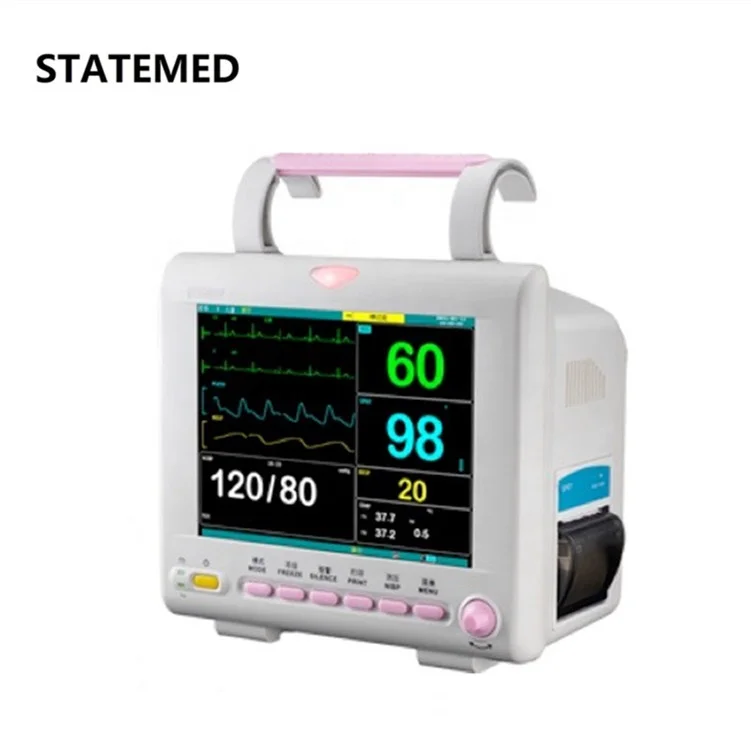

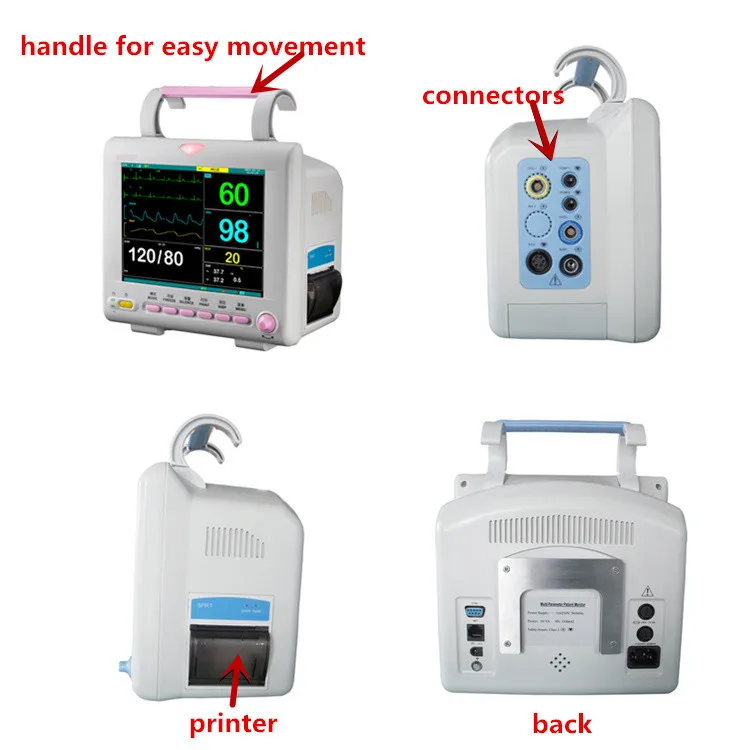

Product Description 2017 hot sell multi-parameter ambulance equipment medical
2017 hot sell multi-parameter ambulance equipment medical
This type can be used both for human and animal

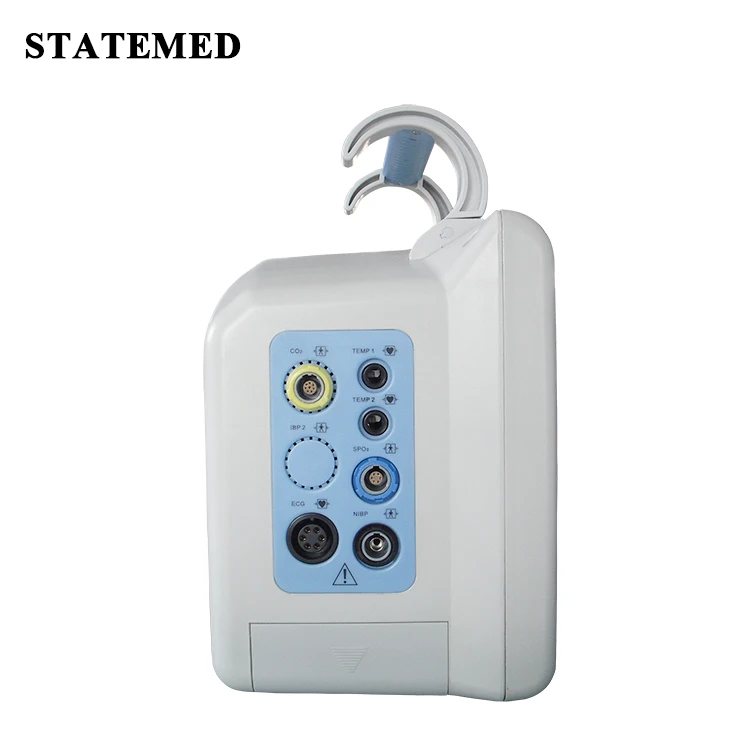

Multi-Parameters: ECG, NIBP, RESP, TEMP, SPO2, Alarm and Recorder
Features
1.8"(16:9) wide screen, TFT true color LCD, weight less than 3.0kg2. Three conversion modes: monitor, operation and diagnosis
3.Real-time display the waveform of ECG, SPO2 and RESP. At the same time, on the screen digital display the data of PR, TEMP, RESP, ECG, SPO2, BP(SYS, DIA, MAP)etc
4.Blood pressure measurement has three modes: manual, cycle and fast measurement, and has adult / child / infant modes
5. Interface color of the waveform can be set up according to the requirement
6. Have the freezing and storage function
7.Automatically analyzing 20 kinds of arrhythmia waveform
8. Can playback 256 hours data trends and ECG waveform
9. Can store 500 groups data trends of BP, PR, TEMP, SPO2, RESP when measuring

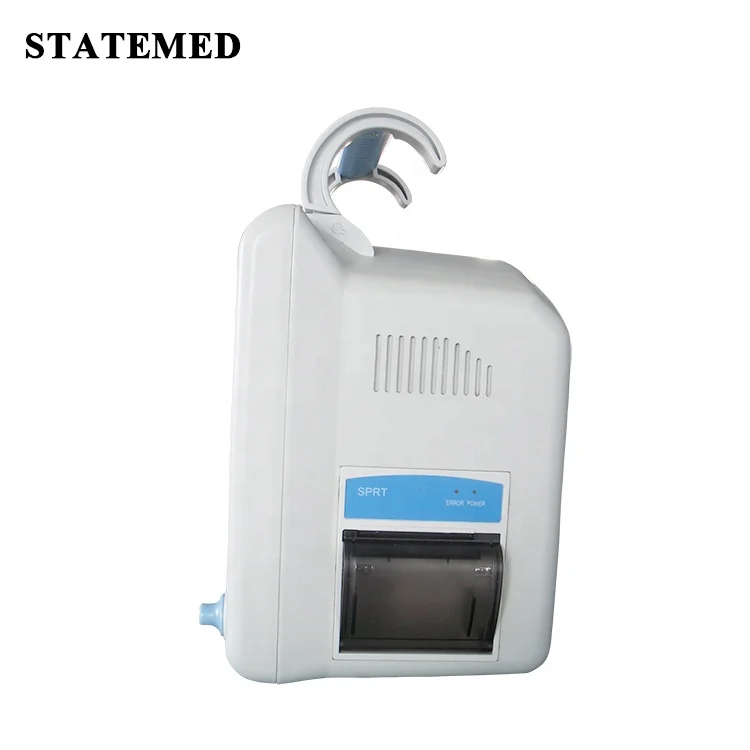

10. Inner recorder is optional, and it can record many waveforms and events
11.Three levels sound and light alarm, digital volume adjustment
12.Anti-defibrillation and anti- electrosurgical unit, and can be used simultaneously with the pacemaker

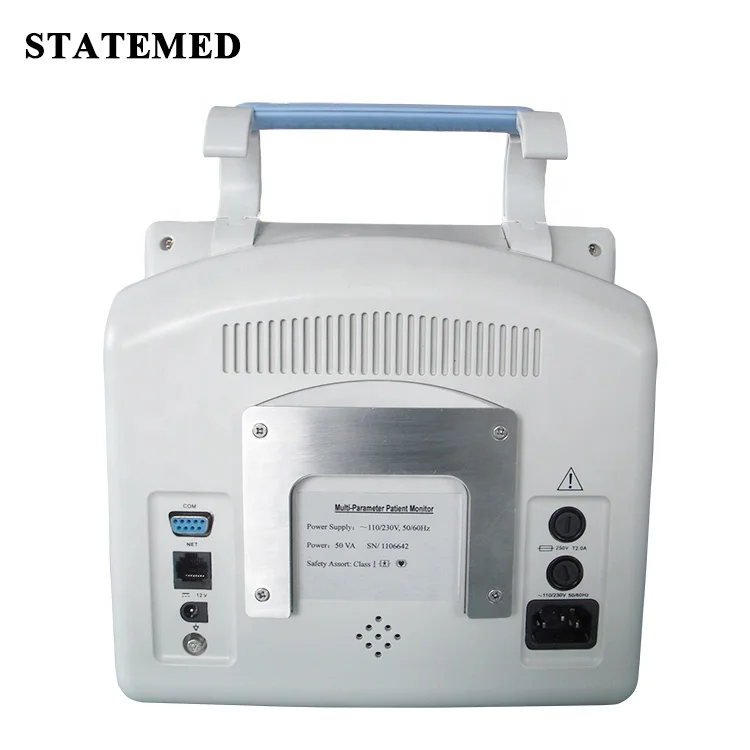

13. In-car electricity supply systems, AC-DC power. Inner lithium battery. Work time of the battery is more than 6 hours

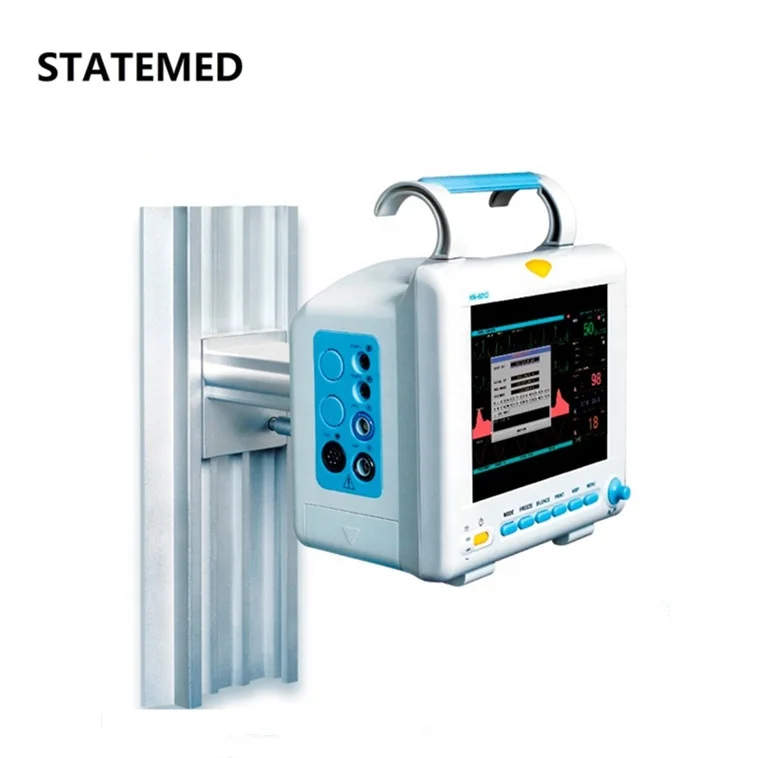

14. Many fixed modes such as bottom bracket, back bracket, hanging handle and so on
3.Real-time display the waveform of ECG, SPO2 and RESP. At the same time, on the screen digital display the data of PR, TEMP, RESP, ECG, SPO2, BP(SYS, DIA, MAP)etc
4.Blood pressure measurement has three modes: manual, cycle and fast measurement, and has adult / child / infant modes
5. Interface color of the waveform can be set up according to the requirement
6. Have the freezing and storage function
7.Automatically analyzing 20 kinds of arrhythmia waveform
8. Can playback 256 hours data trends and ECG waveform
9. Can store 500 groups data trends of BP, PR, TEMP, SPO2, RESP when measuring
10. Inner recorder is optional, and it can record many waveforms and events
11.Three levels sound and light alarm, digital volume adjustment
12.Anti-defibrillation and anti- electrosurgical unit, and can be used simultaneously with the pacemaker
13. In-car electricity supply systems, AC-DC power. Inner lithium battery. Work time of the battery is more than 6 hours
14. Many fixed modes such as bottom bracket, back bracket, hanging handle and so on
15.EtCO2 and double IBP are optional
Technical parameters
ECG
| Lead | Standard Three leads | R,L,N, lead mode :Ⅰ,Ⅱ,Ⅲ |
| Standard Five leads | R,L,F,N,C Lead mode :Ⅰ,Ⅱ,Ⅲ,aVR,aVL,aVF,V | |
| Sensitivity | 2.5mm/mV,5mm/mV,10mm/mV,20mm/mV,40mm/mV,erro≤±3% | |
| Scan speed | 12.5,25,50mm/s three level,erro ≤±10% | |
| Adjustable screen aspect ratio | 0.05~3.2 | |
SP02
| SpO2 measurement range precision | 0~100% ±2%(70~100% ) | ||
| PR measurement range precision | 20~300 bpm, ±2% | ||
| Alarm range | 0~100%,upper and lower limit can be adjusted continuously | ||
| Alarm indicator | Audial and visual alarm |
NIBP
| Measurement range | adult | systolic pressure | 25~275mmHg |
| diastolic pressure | 10~255mmHg | ||
| mean pressure | 10~255mmHg | ||
| pediatrics | systolic pressure | 40~200mmHg | |
| diastolic pressure | 10~150mmHg | ||
| mean pressure | 20~165mmHg | ||
| systolic pressure | 40~135mmHg | ||
| diastolic pressure | 10~100mmHg | ||
| mean pressure | 20~110mmHg |
TEMP
| Measurement range | 0°C~50.0°C |
| Precision | ±0.1°C |
RESP
| Measurement range | adult 7~120 bpm pediatric /neonate 7~150 bpm |
| Test precision | ±2bpm |
| Alarm range | 0~121bpm, up and down limit can be adjusted continuously |
| Test waveform | F=63kHz Vp-p=6V I=250uA |
ALARM
| Alarm level | 3 level--high,middle,low |
| Alarm content | physiological alarm, technical alarm. |
| Alarm | Sound, light, message, parameter flash |
| Alarm delay | ≤0.5s |
| Range of sound pressure | 30~80dB |
RECORDER
| Record method | Thermal dot-matrix |
| Recorder paper width | 50mm |
| Paper specification | 20m/roll |
| Recording detail | Waveform, text, BP list |
| Record tracking | 2 channel |
| Trace | Three chennel |
About Us
Certificate
Our Service
1. OEM/ODM service : STATEMED offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty : STATEMED offers 12 months free after-sale service for customers, and be responsible for life- time repair.
3. Technical support: STATEMED offers professional engineers for customers on the technical support, and response within 12 hours.
4. Shipping cost: we are VIP customer of DHL, TNT, FEDEX, UPS, EMS, can enjoy a competitive shipping cost
2. Warranty : STATEMED offers 12 months free after-sale service for customers, and be responsible for life- time repair.
3. Technical support: STATEMED offers professional engineers for customers on the technical support, and response within 12 hours.
4. Shipping cost: we are VIP customer of DHL, TNT, FEDEX, UPS, EMS, can enjoy a competitive shipping cost
5. Quick resolution for item problems by professional engineer within 8 hours.
6. Flexiable payment: Payment can be made by e-Checking, Credit Card or Bank Transfer, we accept Alibaba Trade Assurance order which will offer you 100% Product quality protection ,100% On-time shipment protection and 100% Payment protection

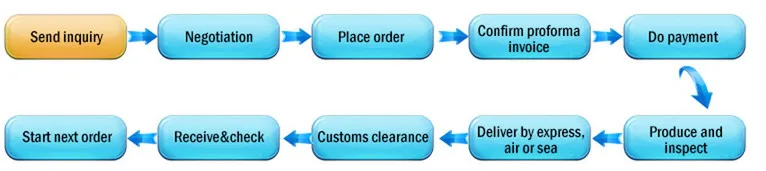

How to place order
