Compact Pressurized Flat Plate Solar Water Heater Solar Products for Swimming Pool
- Category: >>>
- Supplier: Haining Boyi New Material Co. Ltd.
Share on (50047403282):
Product Overview
Description

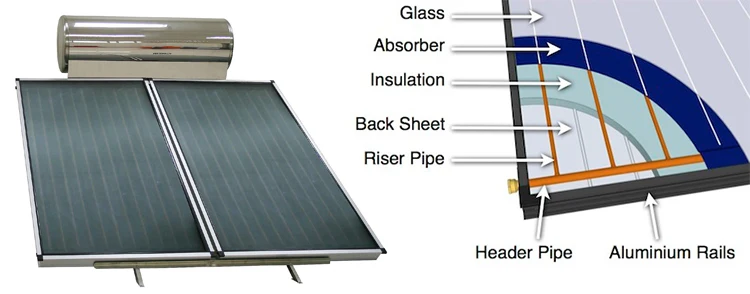

Material | Copper and aluminum complex solar collector | Copper and aluminum complex solar collector |
Outer treatment | Blue titanium sputtering | Black chrome |
ConStructure | Pipe-sheet | Pipe-sheet |
Flat plate weight | 5.7±0.1KG | 5.3±0.1KG |
Absorption rate | 0.95-0.97 | 0.93-0.95 |
Emission rate | 0.03-0.05 | 0.05-0.07 |
Frame size | 2000 x 1000 x 76MM | 2000 x 1000 x 76MM |
Frame material thickness | 0.85mm | 0.85mm |
Gross Area(m2) | 2.12m2 | 2.12m2 |
Lighting Area(m2) | 2m2 | 2m2 |
Absorber area(m2) | 1.83m2 | 1.83m2 |
Sealing | EPDM | EPDM |
Cover sheet | 1 | 1 |
Cover sheet material | toughened glass | toughened glass |
Cover sheet thickness | 3.2mm | 3.2mm |
Light Transmittance | 93% | 91% |
Bottom cover | 0.30mm | 0.30mm |
Insulation | 50mm glass wool | 50mm glass wool |
Maximum working pressure | 0.6MPa | |
Weight | 34kg | |
Warranty | 7 Years | |
|
| |
Testing Standard | GB/T 6424-1997 flat plate solar collector technical specification | |
Testing tools | Solar heating system solar thermal capacity temperature testing system, electromagnetism flow meter, total radiant meter, high quality dynamic wind speed sensor, steel tape,extraventricular thermometer | |
Testing factor | Heat Capacity
| |
Testing Conclusion | According to test , this solar collector heatcapacity is Good.According to lighting area, input temperature Instanteneous Efficiency Curve is ∩a =0.748-4.580Ti* | |
Technic Specification | FR (τ.α)not lower than 0.68 FR.UL not higher than 6.0W/(m2.C) Among them FR ,Heat Transfer Fa
ctor(<1),τ, Solar Penetration rate of transparent cover UL,total heat loss rate ,α,Absorption rate of absorber | |
Testing Result | FR (τ.α)=0.75, FR.UL =4.6, Instanteneous Efficiency Curve as below | |
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock, and can deliver within short time. Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5.All our products are produced by our professional workman and we have our high-work-effect foreign
trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater,
we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
