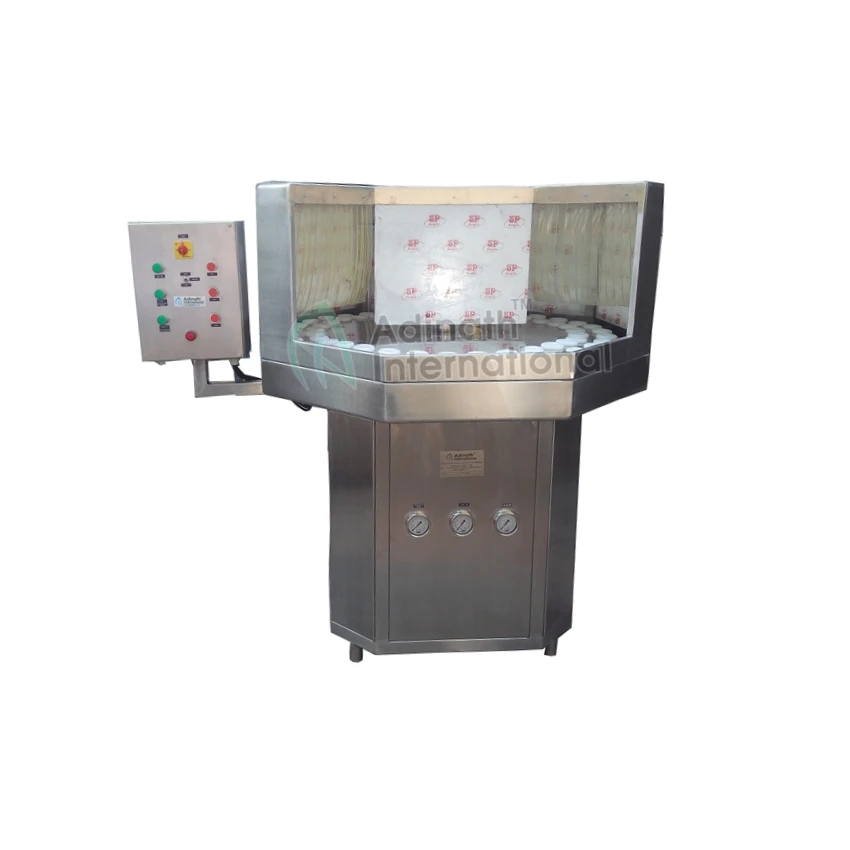

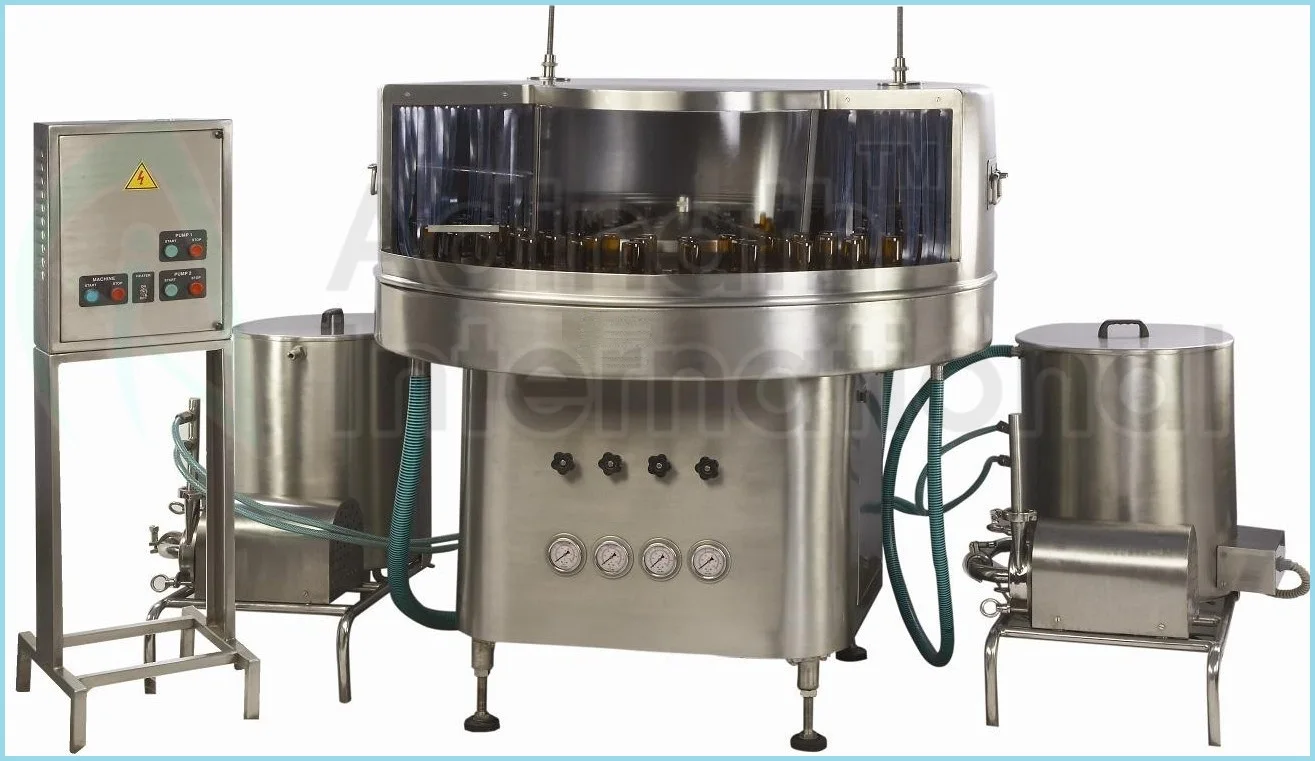

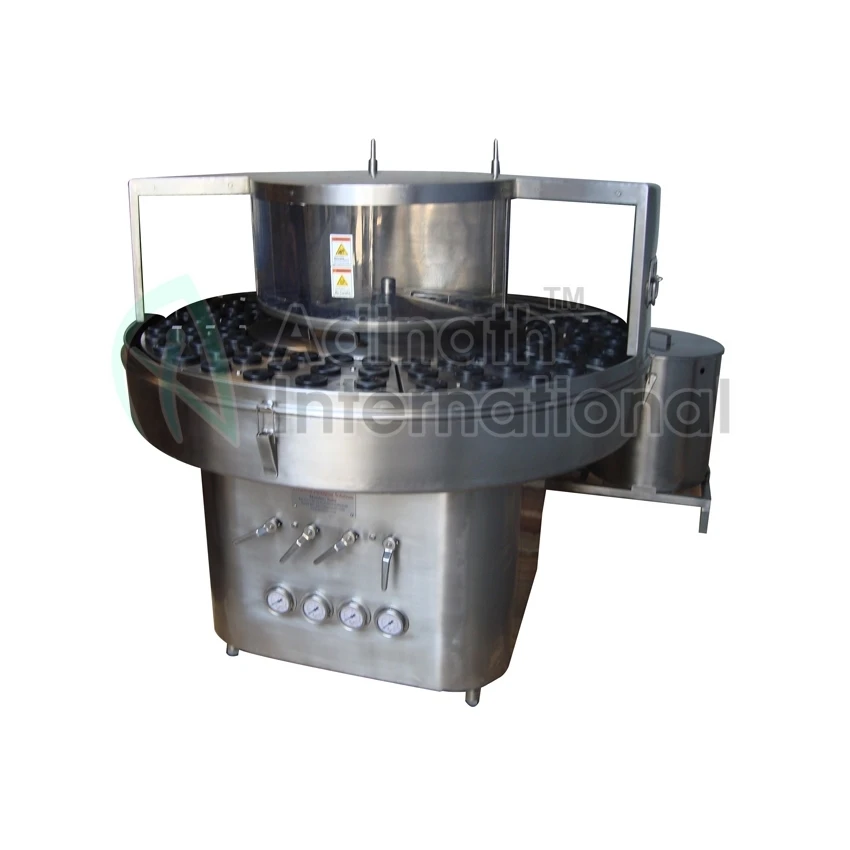

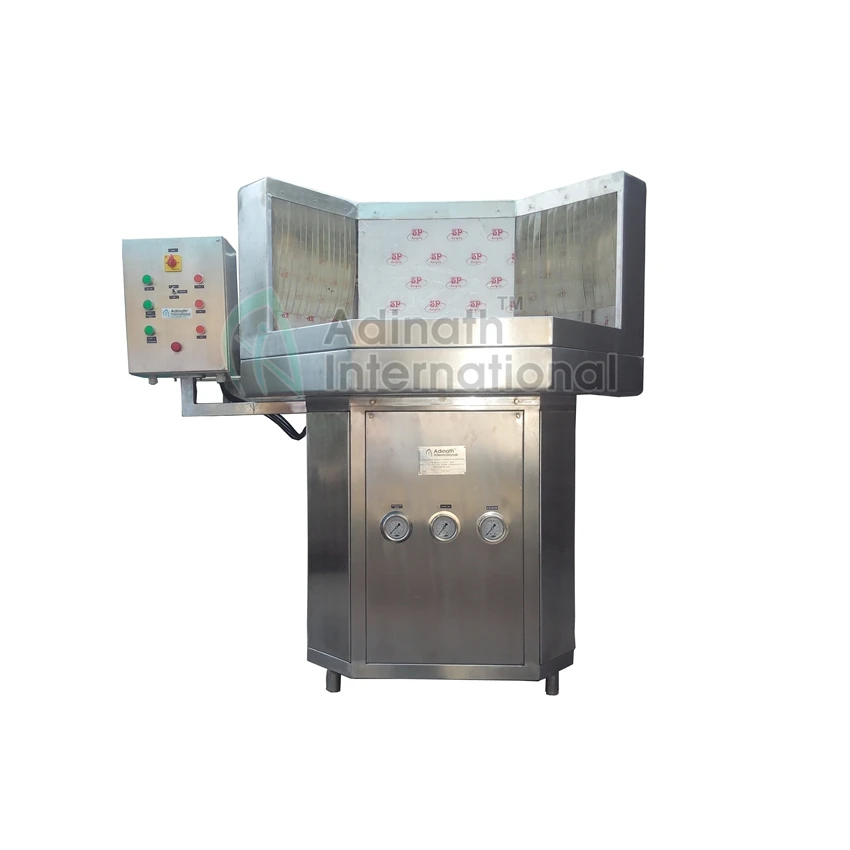

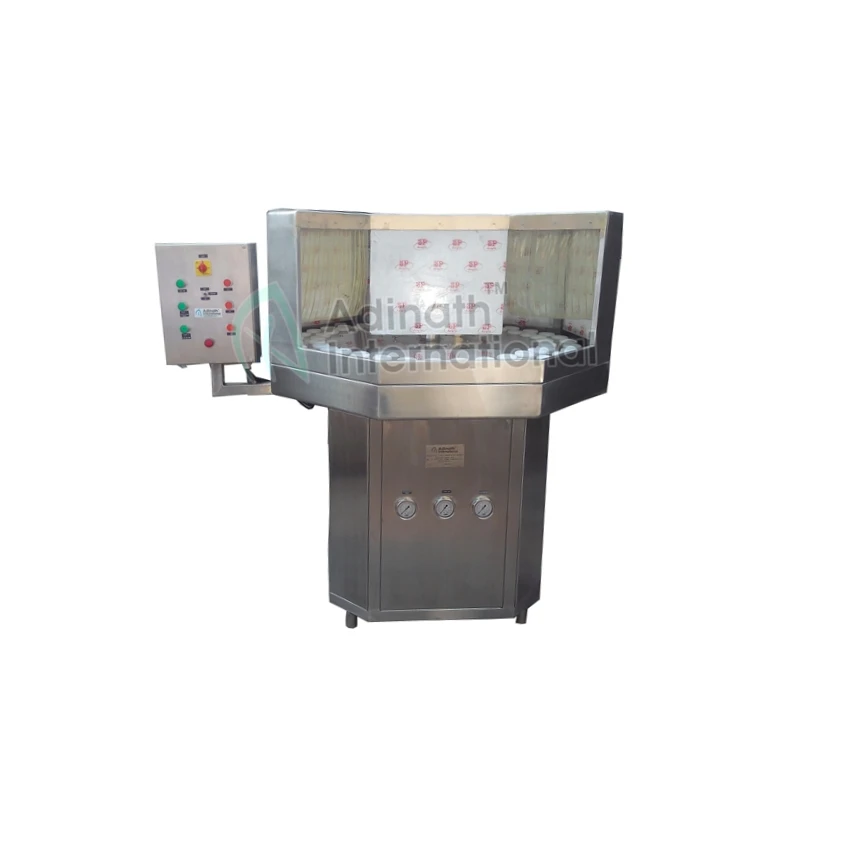

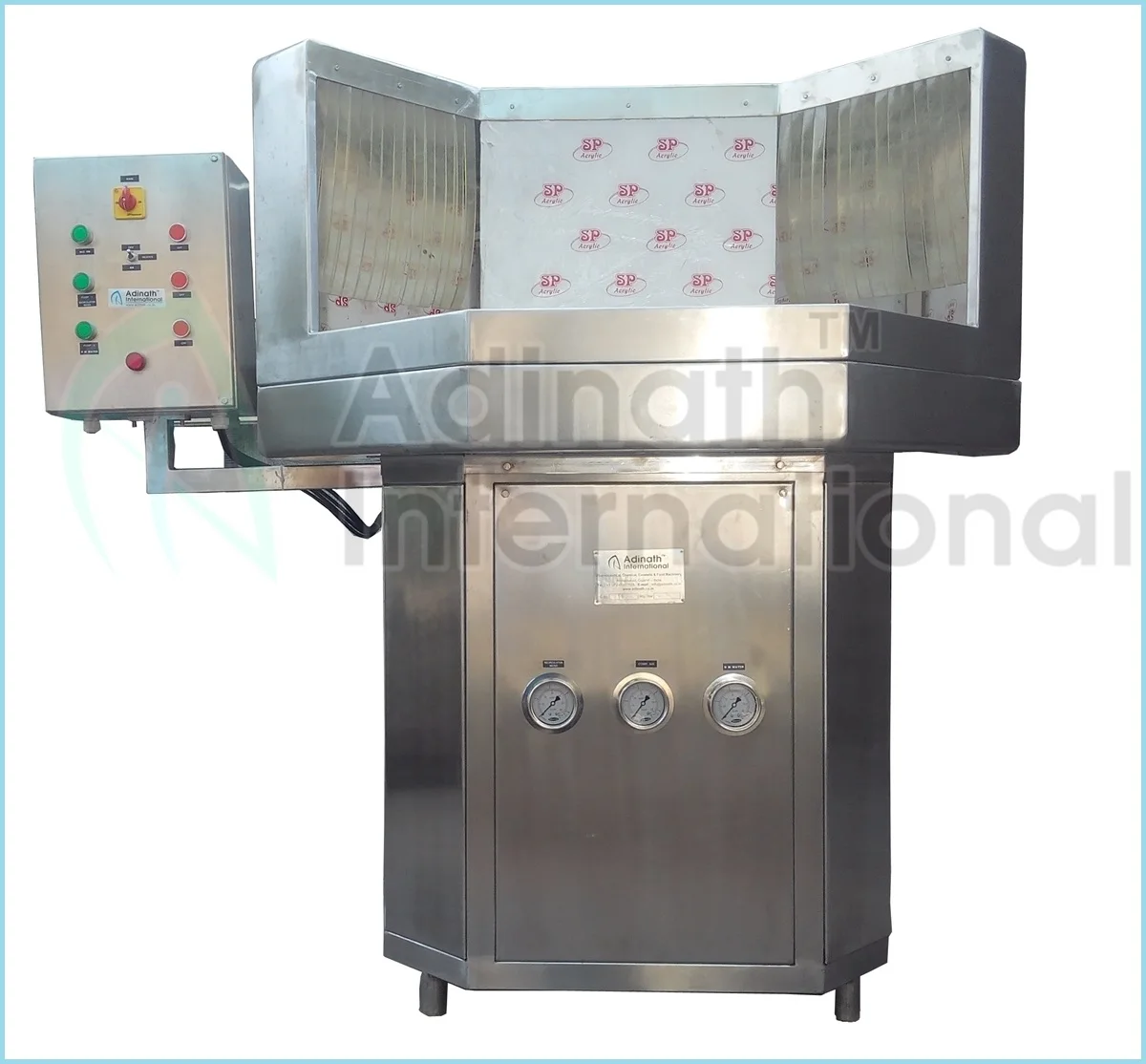

Rotary Bottle Washing Machine is compact, highly efficient and elegant in look. It has many functional features as per GMP standard to wash containers of glass, plastic or other material. The machine operates on the Rotary principle with 'GENEVA' mechanism and requires manual loading and unloading of bottles.

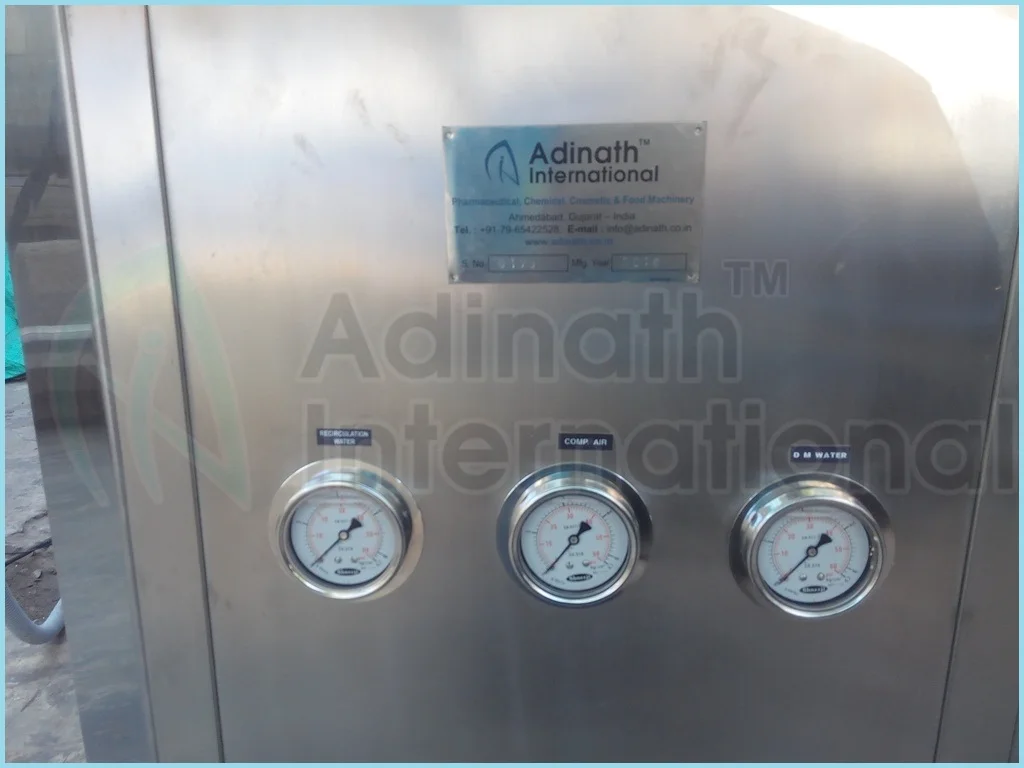

Pressure Gauges for Recirculation Water, DM & Compressed Air

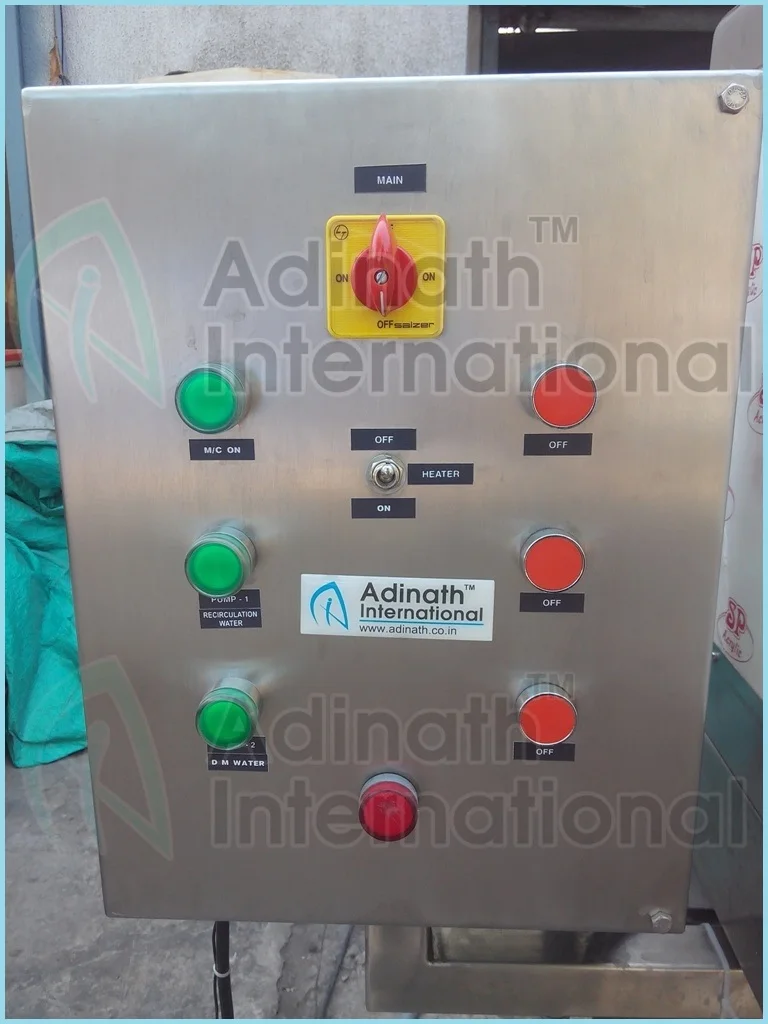

Control Panel with functions to operate Machine & Heating
Salient Features
Compact GMP model.
Geneva mechanism.
Four internal, one external and one air wash.
Washing Sequences and positioning of washing stations can be interchanged as required for liquid oral & injectable.
Stationary nozzles eliminate contamination of water cycles.
The specially designed cups are provided on the platform to accommodate any size of Bottle from 100 ml to 1000 ml.
Easy loading and unloading with two rows.
Individual solenoid valve for each washing sequence.
Pumps and tanks are mounted on parable stand for easy maintenance.
Process Operation
The bottles are loaded on rotating platform where bottles are getting cleaned in a series of operations. The bottle holder i.e. nylon cups are specially designed to accommodate bottles with varying neck diameter and bottle diameter. The bottles are placed in an inverted position in cups. The external cleaning of the bottles is done by spraying showers. Solenoid valves are provided to enable the regulation of timings and sequence of various washing media to suit specific requirement.
Specification
Technical Specification
Model
ARBW-64
ARBW-100
Production Rate
Up to 60 Bottles/Minute
Up to 100 Bottles/Minute
Bottle Size
30ml to 1000ml
30ml to 1000ml
Direction of movement
Clockwise
Clockwise
Input Specification
Round Shape
Diameter
Height
30mm to 80mm
50mm to 270mm
30mm to 80mm
50mm to 270mm
Square Shape
Length
Width
Height
30mm to 80mm
10mm to 50mm
58mm to 190mm
30mm to 80mm
10mm to 50mm
58mm to 190mm
Power Specification
Main Motor
Pumps
Electric Heater
0.5 H.P.
1 H.P. x 2 = 2 H.P.
3 K.W.
0.5 H.P.
1 H.P. x 2 = 2 H.P.
3 K.W.
Power Voltage
440 Volts, 3 Phase, 50 Hertz, 4 Wire System
440 Volts, 3 Phase, 50 Hertz, 4 Wire System
Air Pressure Required
6 bar @ 5 CFM
6 bar @ 5 CFM
Tank Capacity
75 Liters, SS 304 (2 Nos)
75 Liters, SS 304 (2 Nos)
Water Cycle
4 Inner + 1 Outer
4 Inner + 1 Outer
Working Height
850mm to 900mm
850mm to 900mm
Change Parts
(A) Neck Diameter: Bottle
holding pocket. (B) Flat Container: Special type of cup.
(A) Neck Diameter: Bottle
holding pocket. (B) Flat Container: Special type of cup.
Overall Dimension
1500mm (L) x 1750mm (W) x
1300mm (H)
1700mm (L) x 1750mm (W) x 300mm (H)
Note
Power Voltage can be adjusted as per customer’s domestic power requirements.
Rights of technical improvement & modification reserved.
Illustrations & dimensions are shown for information purpose only.
