Carton box Forming and bottom sealing open machine
Performance features
•Automatic unpacking, automatic folding under cover and automatic sealing carton bottom. •This machine adopts PLC + human-machine interface control. •Boxes suction, forming, box bottom cover sealing are all automatic operated. •easy to operate, simple maintenance, stable performance, high speed, high efficiency and durable. •Manual adjust carton size, suitable for the same specification carton sealing at the same time. •It can be used alone, and also supporting the use of automation end of line packaging. •Suitable for household appliances, textile, food, daily necessities, medicine, light industry, chemical industry and other products packaging, carton sealing.
Technical Parameter
Model
CPK-10
Power Supply
220/380v 50/60HZ
Power
500W
Packing Size
L200~450mm;W150~400mm;H100~350mm
Applicable tape
W(48,60,72)mm×L1000y
Table Height
600mm~720mm
Packing Speed
8~12pcs/min
Air pressure
5.5~6kg/cm2
Machine Size
(L)2000×(W)1900×(H)1450mm
Machine weight
450kg

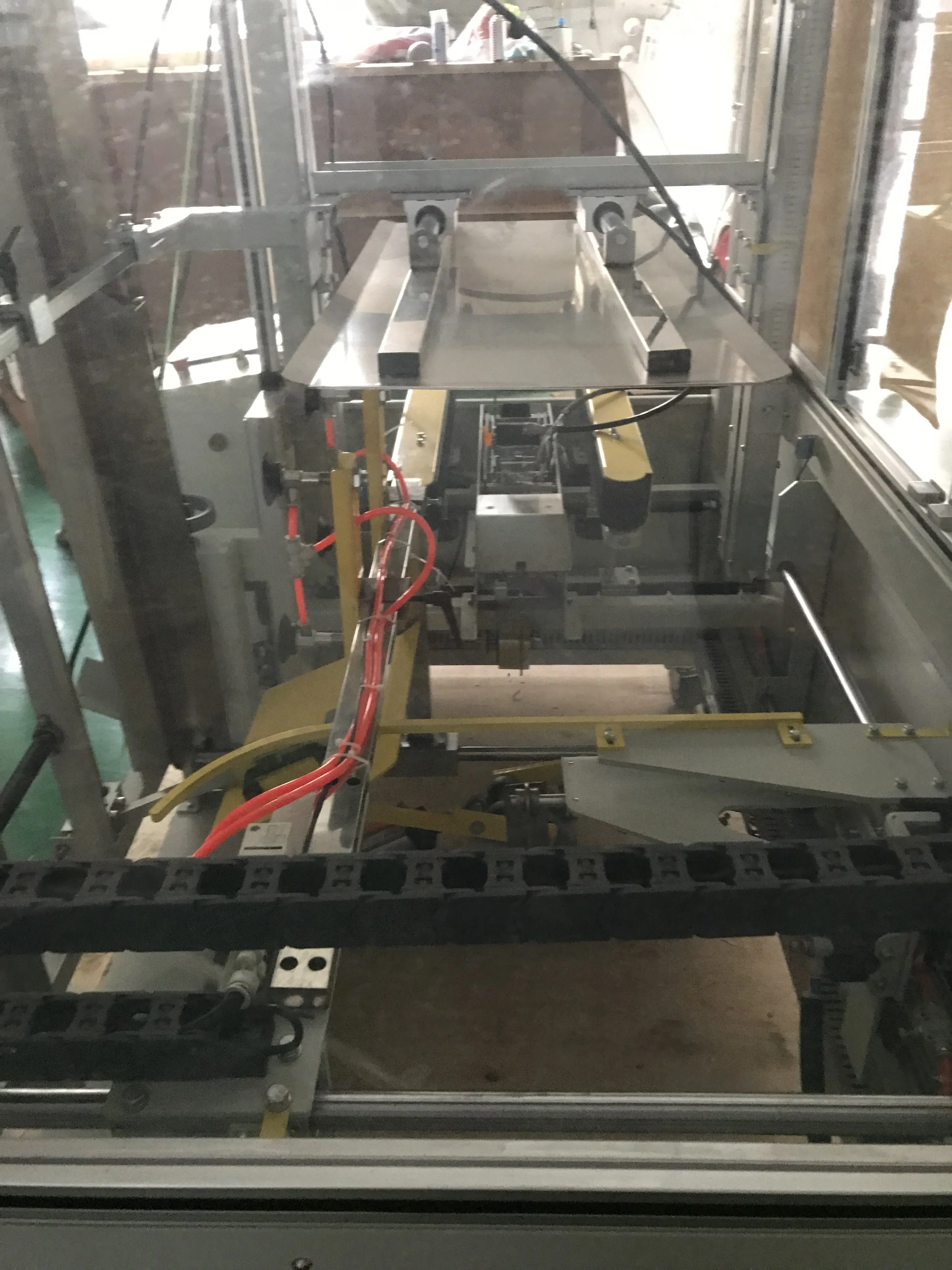

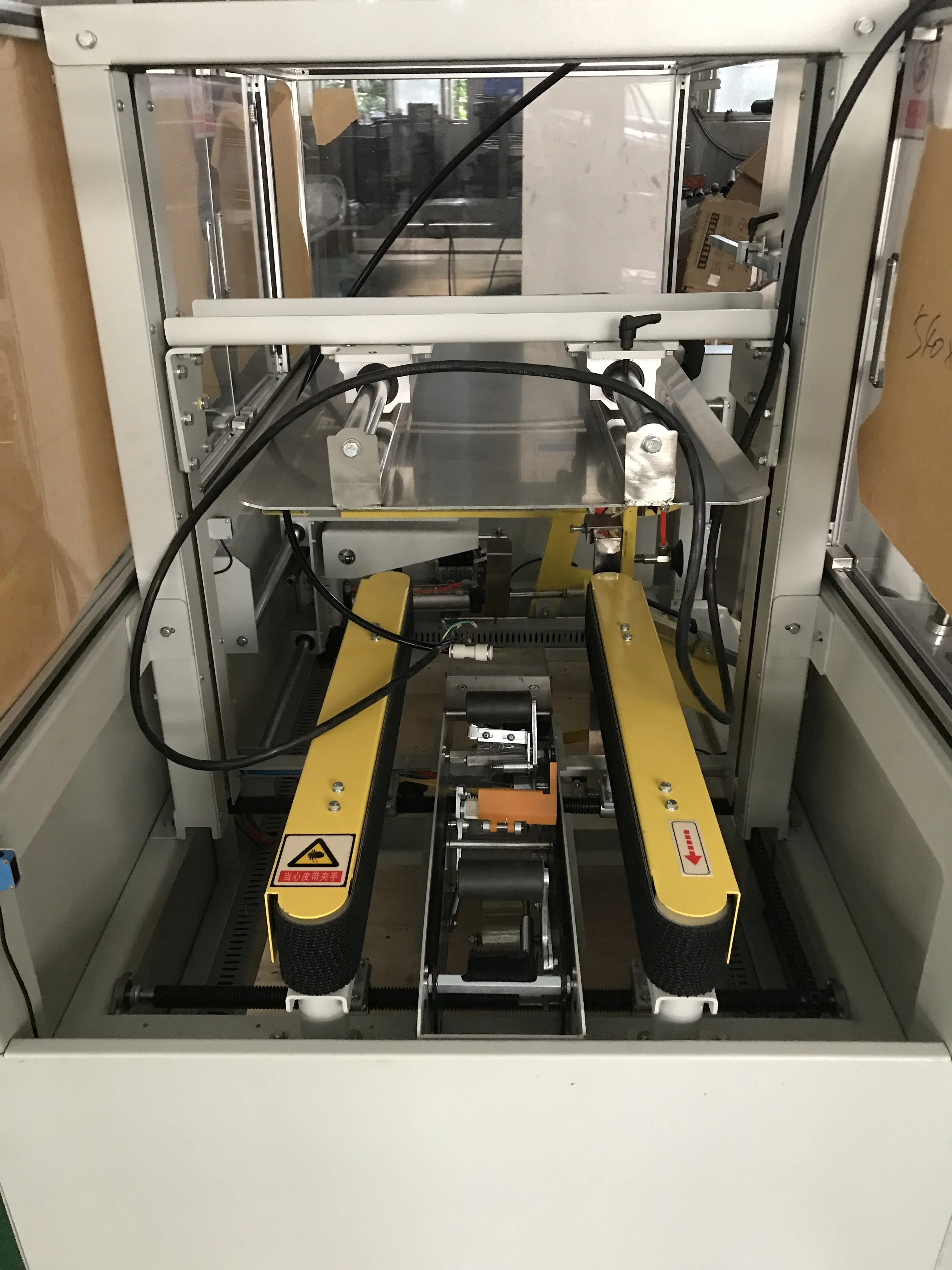

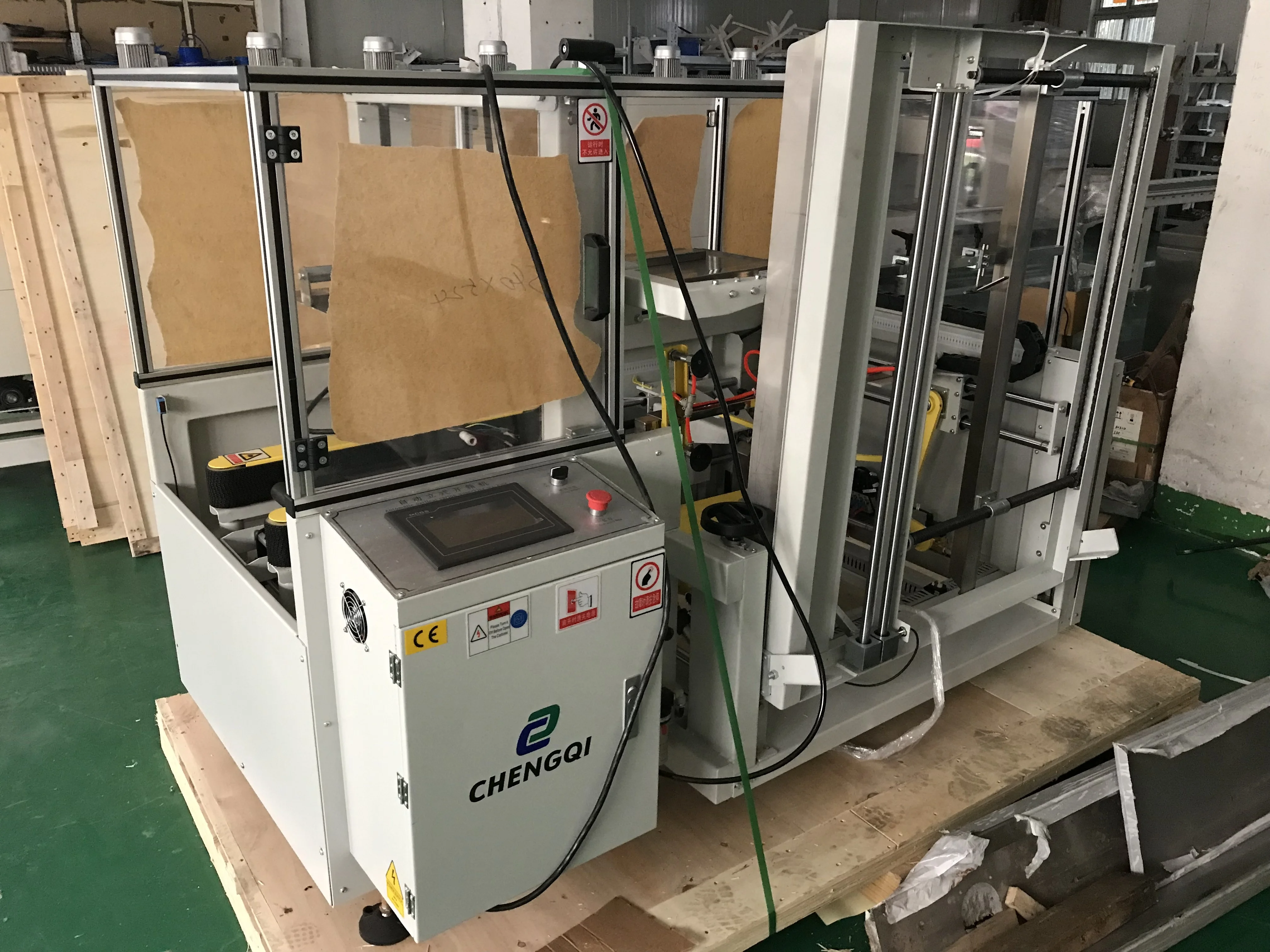

Detailed Images
Application Range
Applies to household appliances, textile, food, daily necessities, medicine, light industry, chemical industry and other products packaging, carton sealing.
Our Company
Packing & Delivery
Packaging Details: Standard Export Wooden Box Delivery Detail: Common specifications are available in stock
Our Service
1. We can customize machine according to your requirements and your products.
2. One year Warranty. We will replace the spare parts for free within one year which are non-man made damage except the wearing parts. After the guarantee, we will offer you the most favorable lifelong spare parts.
FAQ
Q1: How do we test your machine? When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.
Q2: What information shall I provide you when I need your offer? Normally, please send me the requirements of your product, like the packing speed, your products main specification, voltage, frequency, plug and other information as more as possible so that we can quote you exactly what you need.
Q3: More questions or information please feel free to contact us at any time!
