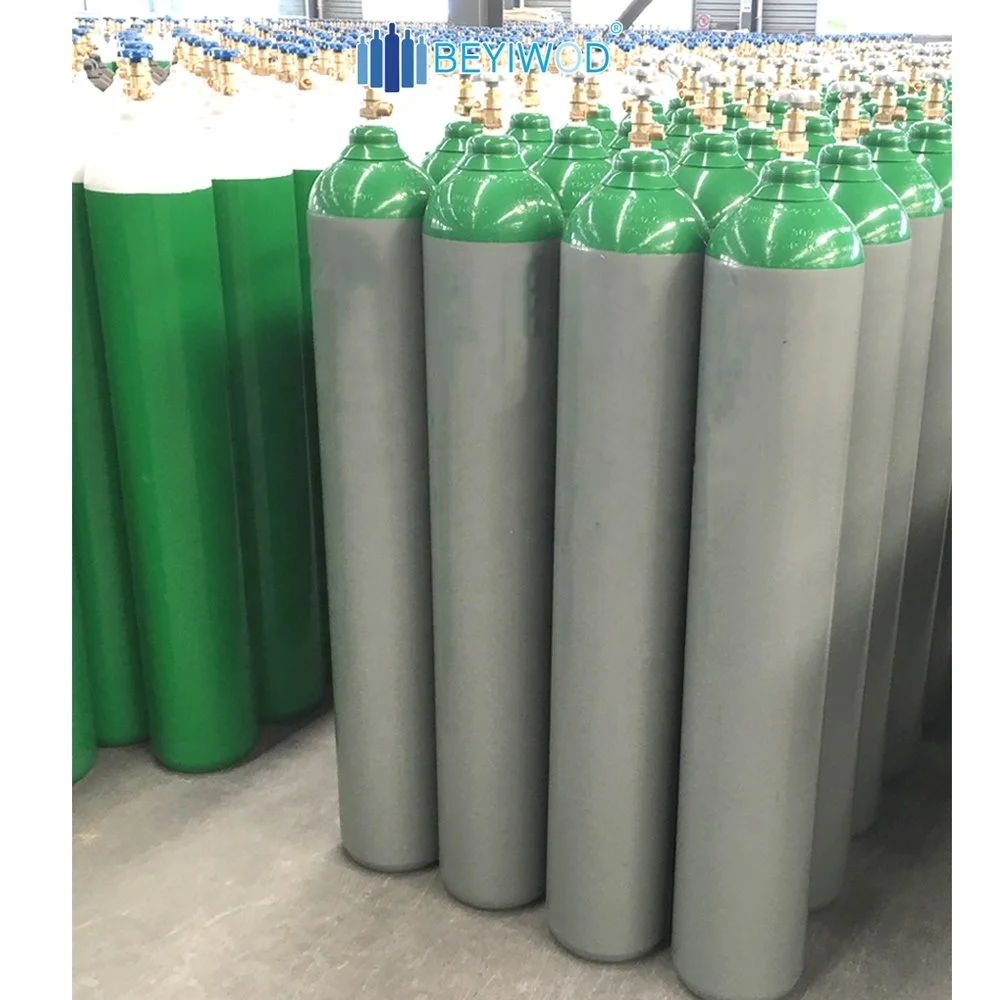

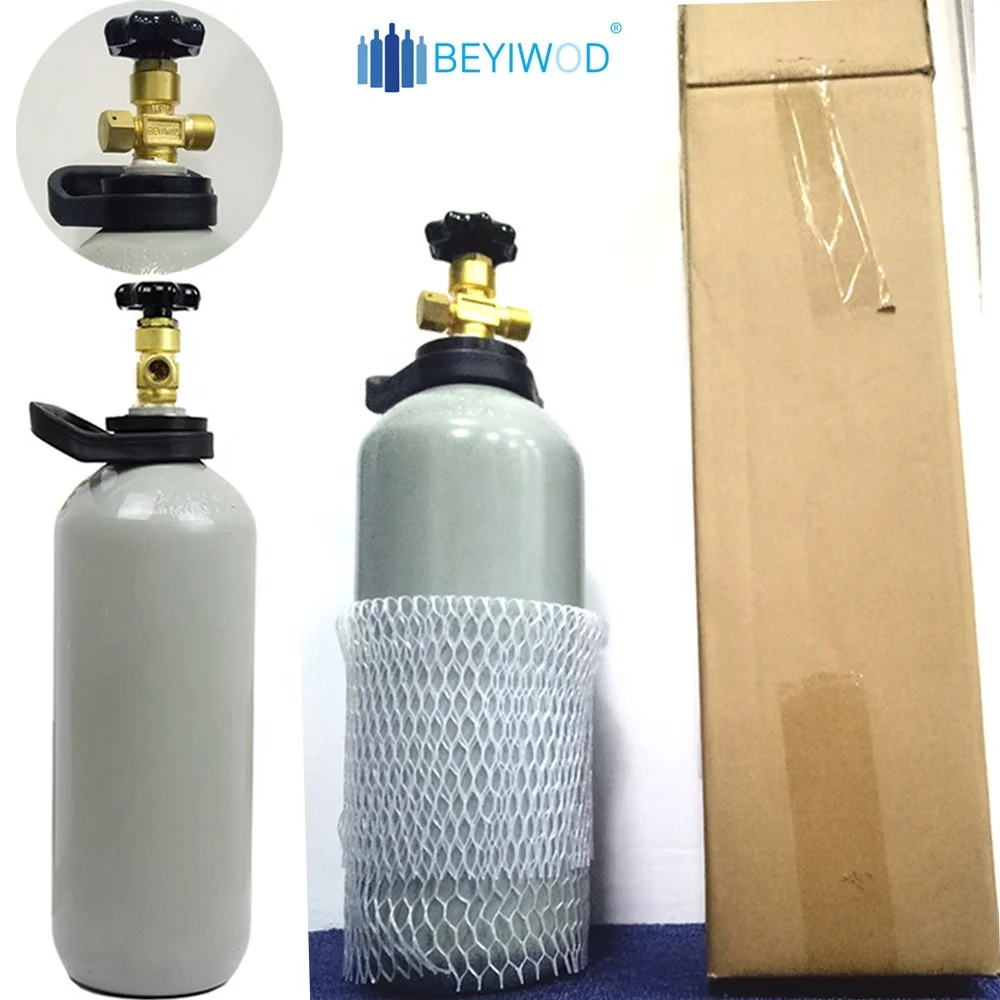

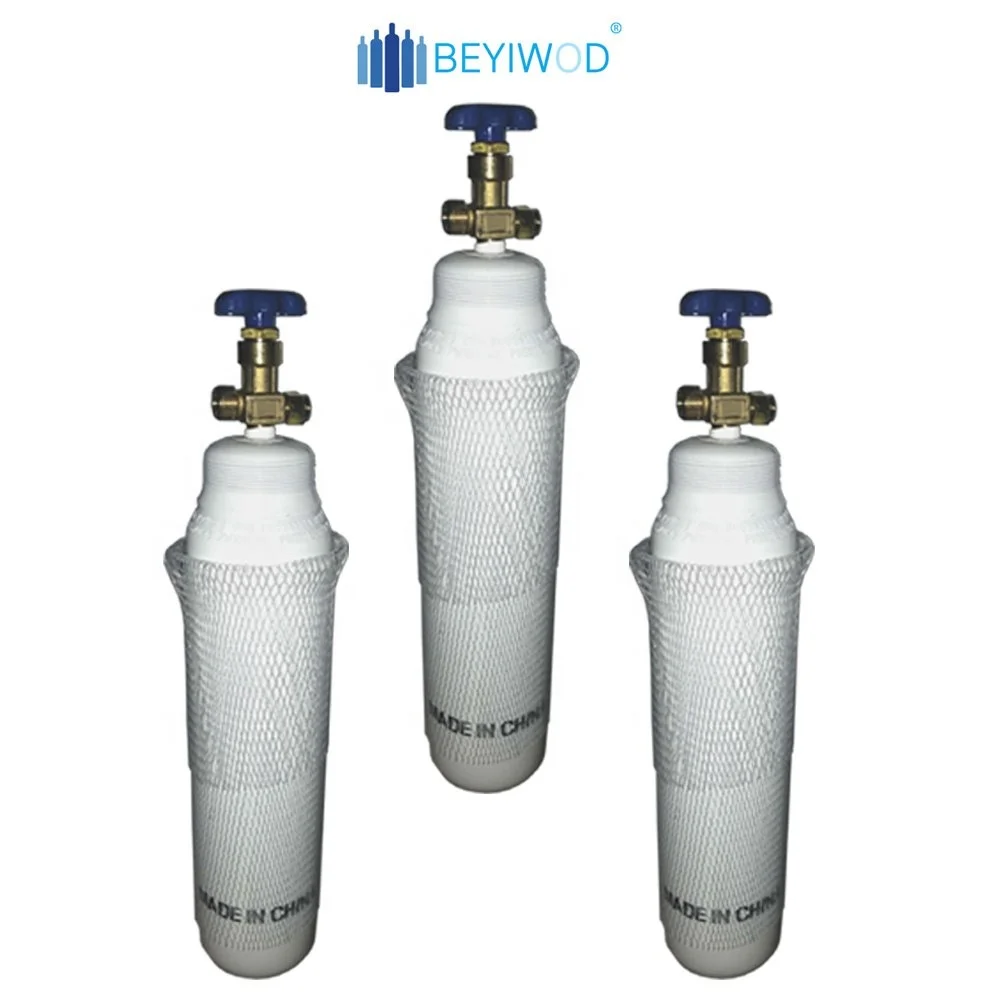

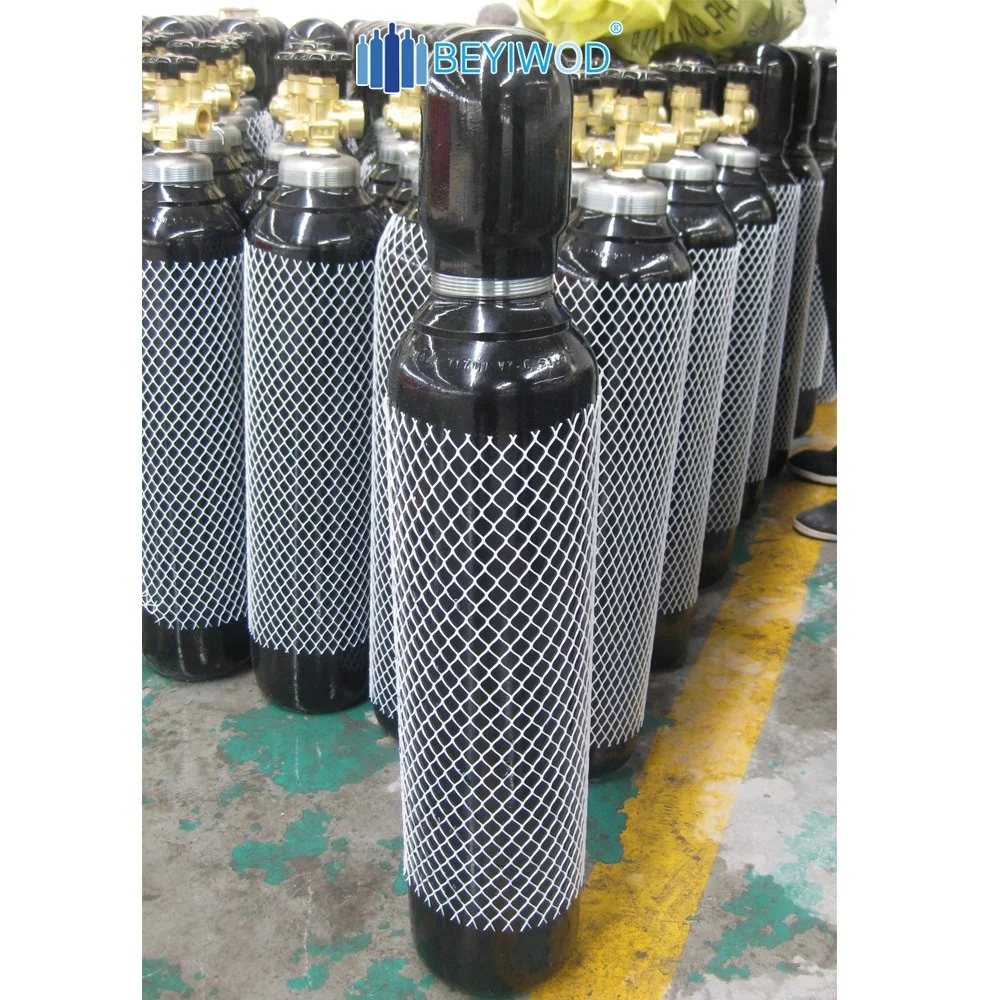

High pressure 2L/5L/8L/10L/20L carbon dioxide cylinder steel cylinder co2 gas cylinder/bottle
- Category: >>>
- Supplier: Shanghai Bene High Pressure Container Co. Ltd.
Share on (50047619283):
Product Overview
Description
Product Overviews
| SHANGHAI BENE HIGH PRESSURE CONTAINER CO., LTD. | ||
| Product Name: | Steel Gas Cylinder |
Remark: We are professional manufacturer of gas cylinders. If you have any question, pls do not hesitate to contact us. we will give you the best service. E-mail: rambo.wang@ bene.net.cn Wehcat/Whatsapp: +86-18255040933 |
| Our Brand: | BEYIWOD | |
| OEM Design: | Customized customer's own brand. | |
| Water Capacity: | 2L to 80L | |
| Working Pressure: | 150BAR; 200BAR; 213BAR; 230BAR; 300BAR. | |
| Test Pressure: | 250BAR; 300BAR; 320BAR; 345BAR; 450BAR. | |
| Material: | Steel ( 37Mn; 34CrMo4 ) | |
| Standard: | ISO9809/EN ISO 9809 /EN 1964/DOT3AA/GB5099 | |
| Filling Gas: | Oxygen, carbon dioxide, nitrogen, argon, mixed gas, etc. | |
| Certificate: | CE/TPED/TUV/DOT/ISO/GB | |
| Color: | As request. | |
| Accessaries | Valves; Caps; Handles; Regulators; etc... | |
We have implemented a strict and complete quality control system, which ensure each product can meet high quality requirements of customers. Besides, all of our products have been strictly inspected and tested before the shipment. Our cylinders and accessories have attained CE/TEPD, TUV, DOT, EN1964, EN-ISO9809, ISO9809, approval.
Stamped of BEYIWOD Seamless Steel Gas Cylinders:
co2 cylinder co2 cylinder co2 cylinder co2 cylinder co2 cylinder co2 cylinder co2 cylinder
Product Catalog
ISO9809 STANDARD CYLINDER STEEL
Serial No. | Type | Nominal working Pressure(Mpa) | Water test pressure(Mpa) | Volume(L) | Nominal Outer Dia.(mm) | Length(mm) | Weight (kg) |
1 | BENE-108-2-15 | 15 | 25 | 2 | 108 | 315 | 4 |
2 | BENE-108-3-15 | 15 | 25 | 3 | 108 | 480 | 5.7 |
3 | BENE-140-4-15 | 15 | 25 | 4 | 140 | 365 | 6.6 |
4 | BENE-140-5-15 | 15 | 25 | 5 | 140 | 440 | 7.7 |
5 | BENE-140-6.3-15 | 15 | 25 | 6.3 | 140 | 540 | 9.4 |
6 | BENE-140-7-15 | 15 | 25 | 7 | 140 | 600 | 10.8 |
7 | BENE-140-8-15 | 15 | 25 | 8 | 140 | 685 | 11.4 |
8 | BENE-140-10-15 | 15 | 25 | 10 | 140 | 825 | 13.4 |
9 | BENE-159-8-15 | 15 | 25 | 8 | 159 | 545 | 11 |
10 | BENE-159-10-15 | 15 | 25 | 10 | 159 | 675 | 13 |
11 | BENE-159-13.4-15 | 15 | 25 | 13.4 | 159 | 890 | 21 |
12 | BENE-180-20-15 | 15 | 25 | 20 | 180 | 985 | 25 |
13 | BENE-219-20-15 | 15 | 25 | 20 | 219 | 730 | 27 |
14 | BENE-219-40-15 | 15 | 25 | 40 | 219 | 1310 | 48 |
15 | BENE-232-50-15 | 15 | 25 | 50 | 232 | 1480 | 60 |
16 | BENE-267-68-15 | 15 | 25 | 68 | 267 | 1500 | 74 |
17 | BENE-279-80-15 | 15 | 25 | 80 | 279 | 1735 | 91 |
EU TPED STANDARD EN-1964 STANDARD CYLINDER STEEL
Specification | Diameter (in/mm) | Length (mm) | Volume (L) | Weight (kgs) | Working Pressure (psi/Bar) | Test Pressure (Psi/Bar) | Thread |
Alloy Steel Cylinder | 105 | 320 | 1.8 | 3.57 | 200/216 | 300/310 | W19.8 W28.8 25E |
345 | 2.0 | 3.75 | |||||
425 | 2.7 | 4.30 | |||||
470 | 3.0 | 4.60 | |||||
480 | 3.1 | 4.68 | |||||
Alloy Steel Cylinder | 138 | 470 | 5.0 | 6.7 | 200/216 | 300/310 | W28.8 25E |
500 | 5.4 | 7.8 | |||||
545 | 6.0 | 8.4 | |||||
595 | 6.7 | 8.9 | |||||
660 | 7.5 | 9.7 | |||||
695 | 8.0 | 10.1 | |||||
780 | 9.1 | 11.0 | |||||
800 | 9.4 | 11.3 | |||||
845 | 10.0 | 11.8 | |||||
892 | 10.7 | 12.5 | |||||
850 | 10.0 | 17.0 | |||||
Alloy Steel Cylinder | 159 | 420 | 6.0 | 10.3 | 200 | 300 | W28.8 25E |
475 | 7.0 | 11.5 | |||||
535 | 8.0 | 12.7 | |||||
650 | 10.0 | 15.1 | |||||
937 | 18.0 | 25.4 | |||||
1029 | 20.0 | 27.7 | |||||
Alloy Steel Cylinder | 200 | 570 | 13.4 | 21.1 | 200 | 315 | W28.8 25E |
645 | 15 | 22.4 | |||||
815 | 20 | 27.4 | |||||
Alloy Steel Cylinder | 232 | 1250mm | 40 | 55 | 200 | 300 | W28.8 |
Alloy Steel Cylinder | 232 | 1530mm | 50 | 65 | 200 | 300 | W28.8 |
The above is our part of the product catalog, if you need more catalogs and special requirements, please contact us by sending us an inquiry.
Product Show

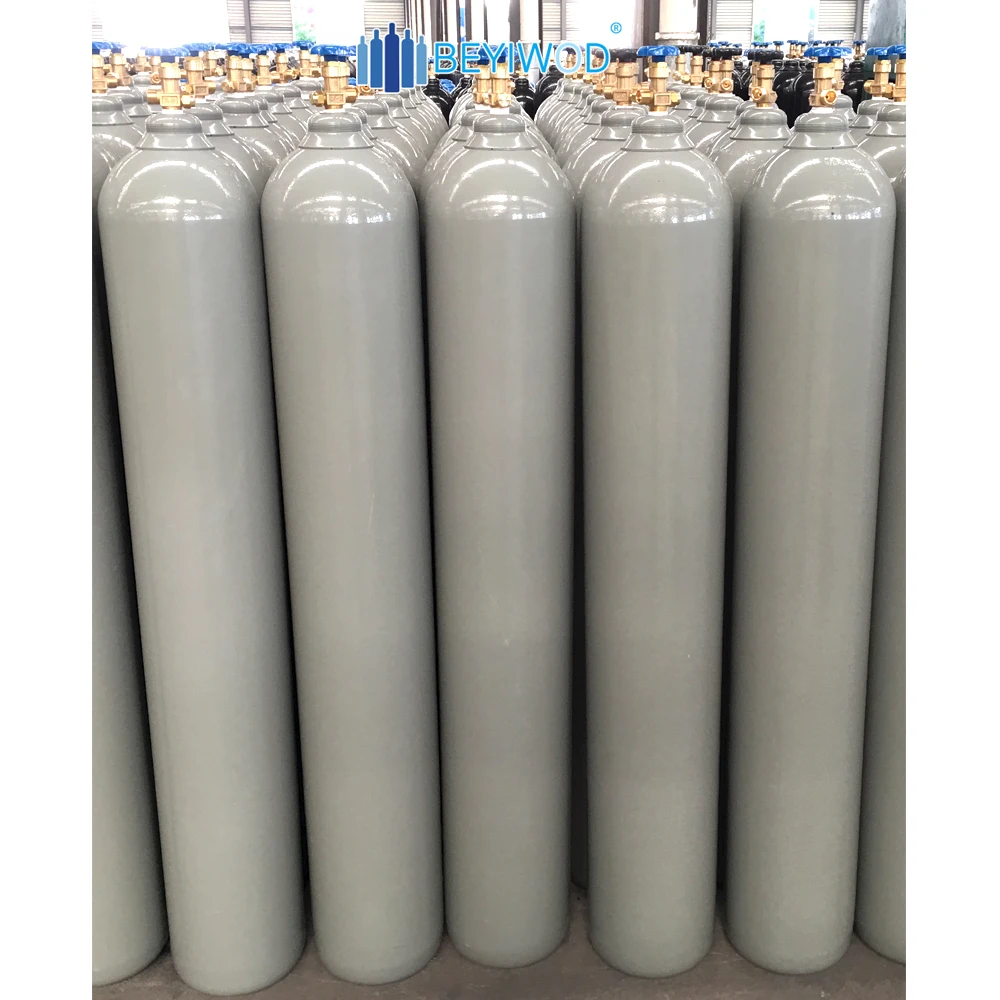

Seamless Steel Gas Cylinders made by BEYIWOD.
| Small Size Steel Gas Cylinder | From 2 liter to 20 liter gas cylinders |
 | |
| Medium Size Steel Gas Cylinder | From 21 liter to 50 liter gas cylinders |
 | |
| Big Size Steel Gas Cylinder | From 51 liter to 82 lier gas cylinders |
 | |
Company & Factory

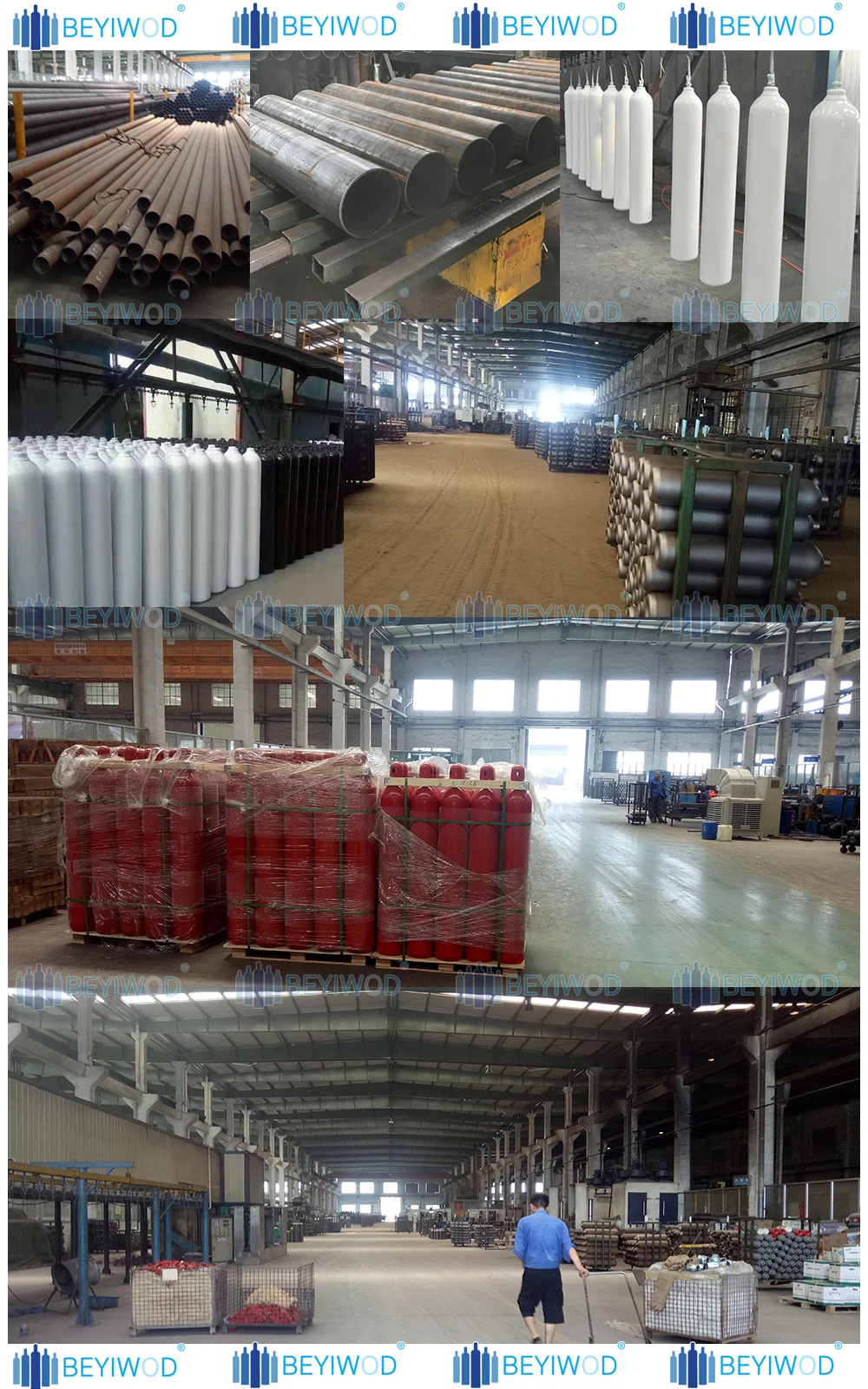

Company Profile and a corner of the factory:
Welcome new and old customers to visit our factory. We will have a professional team to receive and arrange. I believe that this is also an important milestone for our mutual trust and mutual benefit and long-term cooperation. We will take high quality products and best service. To reward our customers. At the same time, we will also help our customers to stabilize current projects and develop new projects with our rich market acumen and export experience.
We have exported our gas cylinders to all over the world, and we have been in this industry for many years.
co2 cylinder co2 cylinder co2 cylinder co2 cylinder co2 cylinder co2 cylinder co2 cylinder
Packing & Shipping

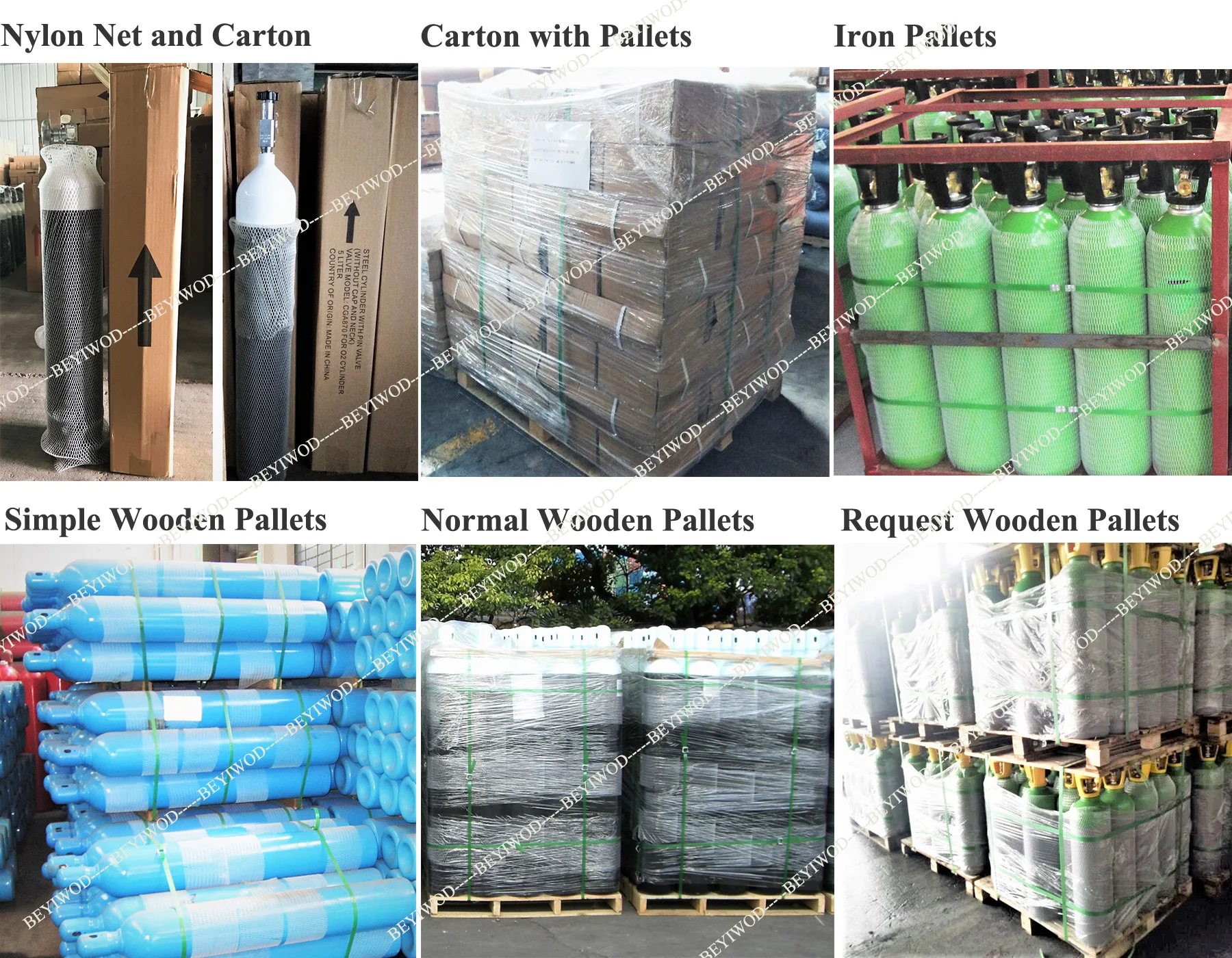

Packing&Loading:
1. Nylon net and carton,
2. Bulk loading.
3. Wooden pallets.
4. Iron pallets.
5. As customers' request.
Delivery Detail: Shipped in 30-35 days after payment.
co2 cylinder co2 cylinder co2 cylinder co2 cylinder co2 cylinder co2 cylinder co2 cylinder
FAQ
| Q1: Delivery Time? |
| Rambo: 30 days once deposit paid and workshop drawings confirmed. |
| Q2: Payment terms? |
| Rambo: Normally, 30% deposit by t/t at first, 70% balance before the shipment. |
| Q3: OEM design? |
| Rambo: We are manufacturer, we can do it. For example, brand name on cylinder shoulder, color, printing, etc... |
| Q4: Monthly production? |
| Rambo: Around 40000pcs per month. |
| Q5: Advantage? |
| Rambo: Excellent equipment and high product quality. Perfect management system, high staff efficiency, greatly reduced costs, we can provide customers with competitive prices. |
Contact
An inquiry? Why not? Rambo is waiting for you ! ! !
 |
E-mail: rambo.wang@ bene.net.cn Whatsapp/Wechat: +86-18255040933
