Product Overview
Description
17Inch LCD openframe touchmonitor
Product Description
The Specifications of KeeTouch 17" SAW open frame touch monitor:
Model No. | KOT-0170U-SA4BCW | ||||
Series | OT,Water-proof and Compact | ||||
Display Type | 5:4 Ratio 17Active matrix TFT-LCD | ||||
Active Area | 13.3"(338mm)×10.6"(270mm) | ||||
Monitor Dimensions | Width: 369mm Width with brackets:389.4 mm Height with brackets: 327.4mm | ||||
Suggested Resolution | 1280×1024 @ 60Hz | ||||
Support Colors | 16.7M | ||||
Brightness(Typ.) | Pure LCD Panel | 250cd/m2 | |||
With SAW Glass Sensor | 225cd/m2 | ||||
Response Time(Typ.) | 5ms | ||||
Viewing Angle (Typ.at CR10) | Horizontal(left/right) | 85°/85° | |||
Vertical(up/down) | 80°/80° | ||||
Contrast Ratio(Typ.) | 1000:1 | ||||
Video Input | Analog RGB | ||||
FrequencyH/V | 30~80KHz / 60~75Hz | ||||
Power Supply | Type: External brick | ||||
Environment | Operating Temp. | 0~50°C | |||
Storage Temp. | -20~60°C | ||||
Operating RH: | 20%~80% | ||||
Storage RH: | 10%~90% | ||||
MTBF | 30,000 Hours | ||||
LCD Back light Life(Typ.) | 30,000 Hours | ||||
WeightN.W/G.W | 5Kg / 12.8Kg (Approx.) (2pcs in one package) | ||||
Power Consumption | 50W Max. | ||||
Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical (Standard mount brackets are supplied) | ||||
OSD Control | Buttons | AUTO,+,POWER,-,MENU | |||
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||
Touch screen Type | Keetouch 17" SAW 4mm compact touch sensor | ||||
Touch System Interface | Having USB interface | ||||
Touch Response time | USB/Serial: 8.4ms | ||||
Agency Approval | ETL,FCC,CE,RoHS | ||||
Regular Warranty | 1 year | ||||
Product Pictures

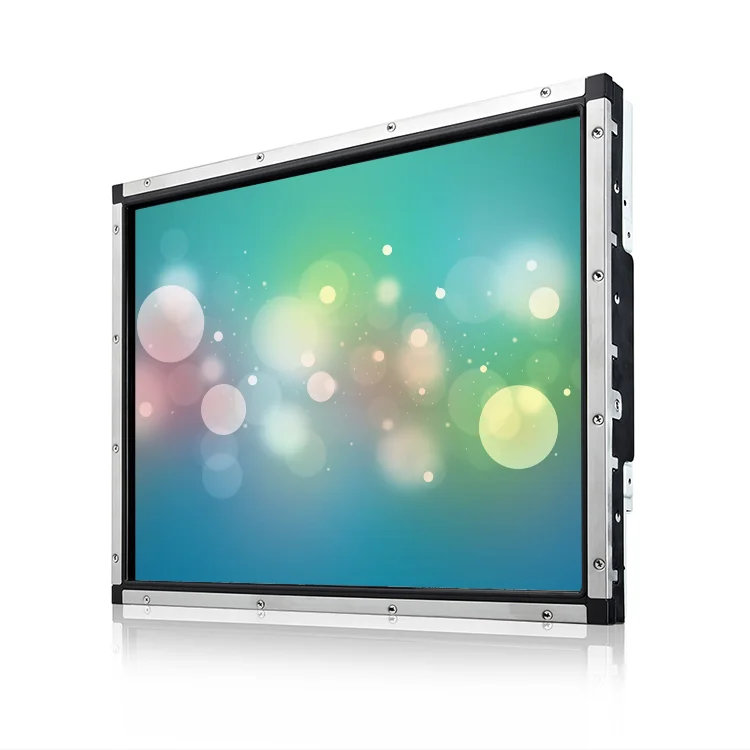

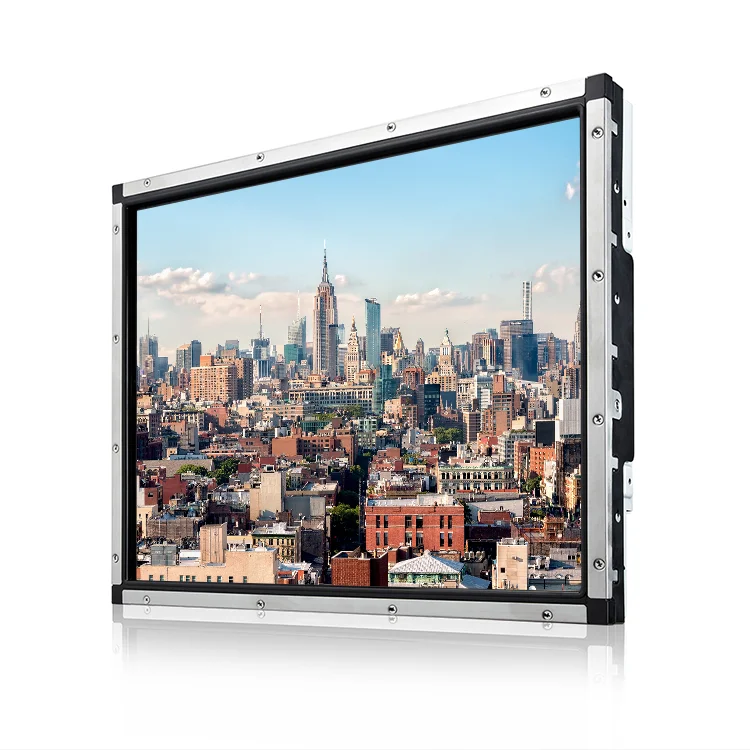

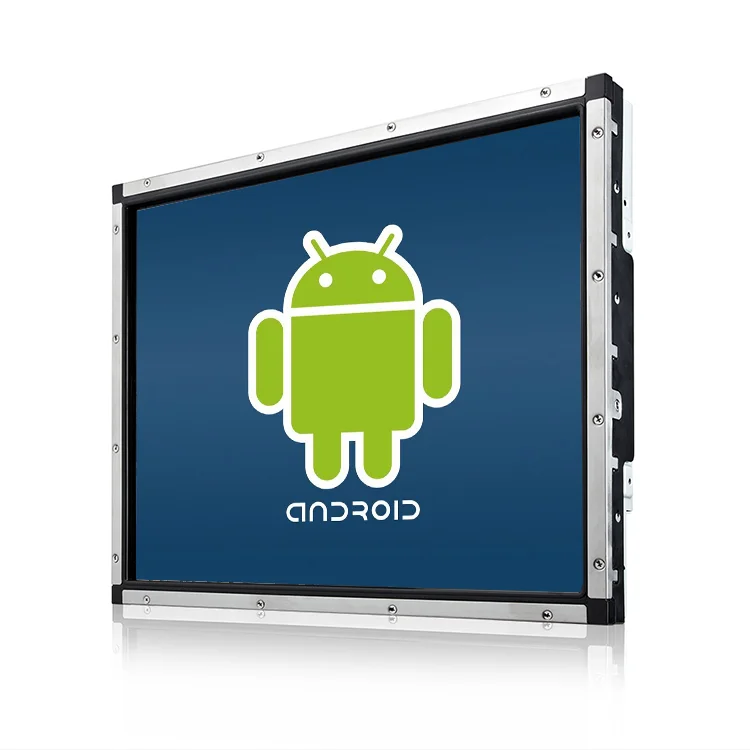

KeeTouch 17" SAW open frame touch monitor:
Packaging & Shipping
KeeTouch Packing Pictures:
Sample Shipping By DHL,UPS,Fedex,TNT
Our Services
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. OEM & ODM are welcomed, OEM brand is available.
4. Distributor ship is offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Company Information
KeeTouch Co., Ltd., as the leading provider of touch screen products and touch solutions, is specialized in R&D, manufacturing, marketing and selling touch screen, touch monitor, touch computer and also other value-added touch screen products.
KeeTouch has established perfect quality management system after integrating advanced international quality management model and the introduction of many quality control methods.
KeeTouch products were certificated by CCC, UL, ETL, FCC, CE, CB and RoHS. Furthermore, we have already built up and operated in accordance with ISO9001 quality system, ISO14001 environment management system and OC080000 limit harmful material management system.
KeeTouch Factory Pictures:
KeeTouch Certificates:
FAQ
1. All the Products are produced by KeeTouch Electronics Co., Ltd?
Answer: Yes, we are the manufactuer and professional producing and assembling for many years, all of the resistive,infrared,SAW and capacitive type we can offer you .
2. Lots of Customer say that They can buy the Touch Monitor and Touch Screen with Brand " KeeTouch" abroad , Is that True?
Answer: Yes, we have the Brand " KeeTouch" for all the products we are selling.
We are selling our products to the worldwide and have a great relationship with many agent who have cooperated with us.
Besides, we have a Branch Office in Germany ,there we have a big product warehouse .So we can send the products easily .
