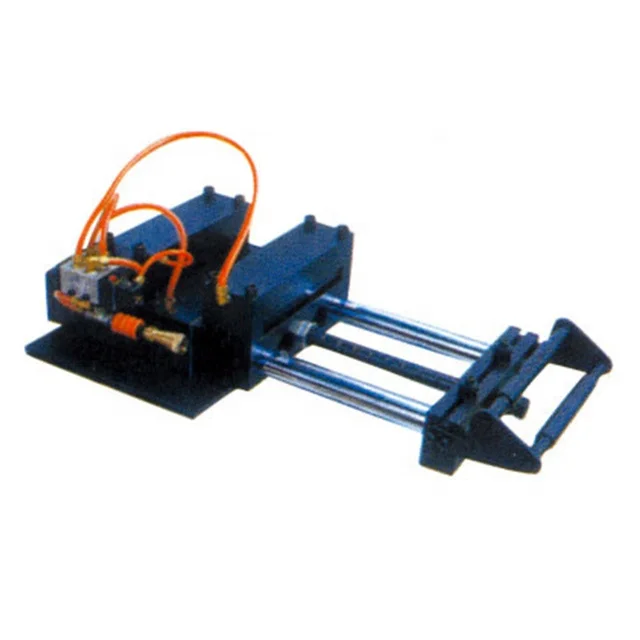

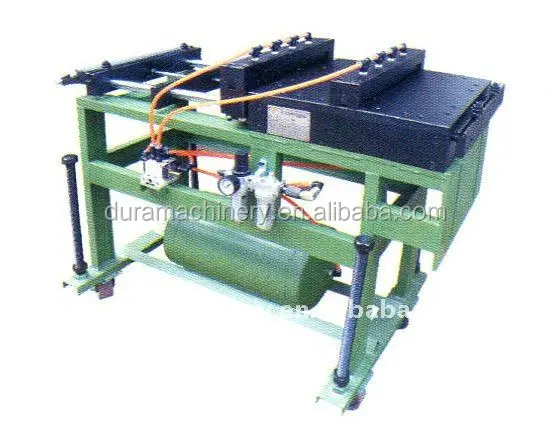

High speed air pneumatic feeder
- Category: >>>
- Supplier: Wuxi Tripod Machinery Imp. & Exp. Co. Ltd.
Share on (500562841):
Product Overview
Description
Product Description

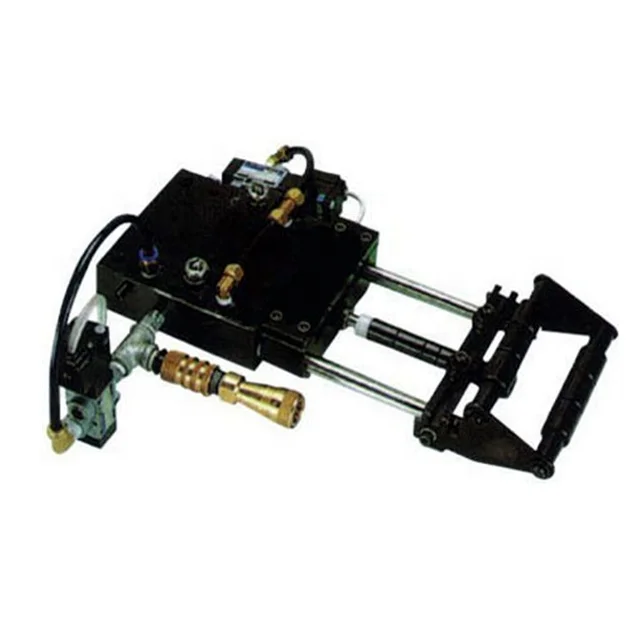

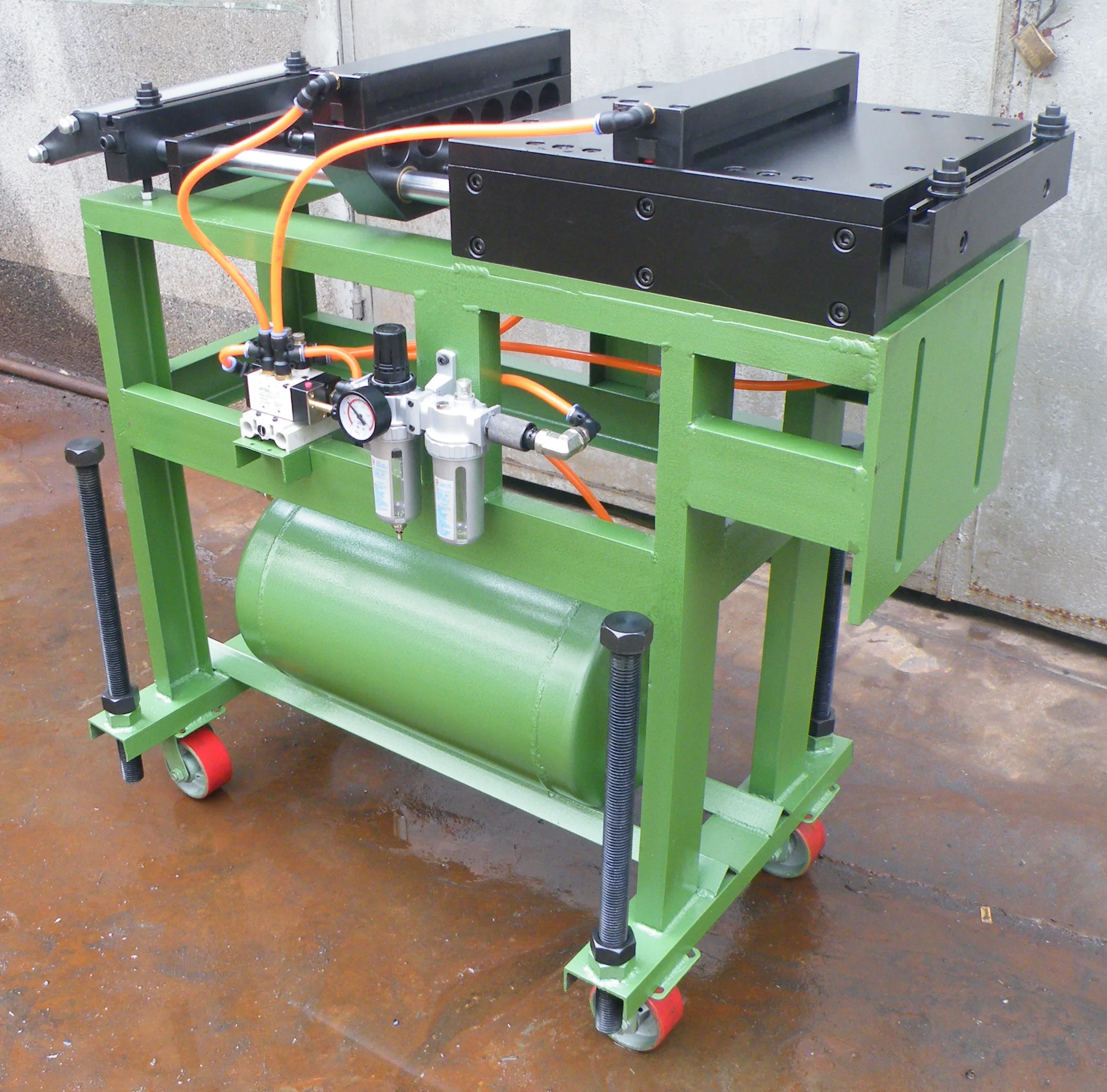

Air feeder
1. Type: Standard type
2. Feeding material: metal, tape, plastic
3. Special attachment: over AF-3C with buffer.
2. Feeding material: metal, tape, plastic
3. Special attachment: over AF-3C with buffer.
Air feeders, as a kind of automatic feeding device, are driven with compressed air. They are widely applied for press, press machine or punch, and it‘s for all industrial production.
Except the Standard type, other variations are all available upon request. E-type air feeder (instead of pilot lever, fixed with a pilot electromagnetic valve), Standard & R type air feeder (Based on standard type, added with an electromagnetic valve to make the fixed clamp carry a releasing function ) and E & R type (Both electromagnetic pilot valve and releasing valves are fixed ) can be supplied according to the real applications to different press machines.
If a high precision feeding is needed, an electromagnetic valve for the fixed clamp’s releasing function is required; if a shorter stroke or long distance feed is happened to the press process, an electromagnetic pilot valve must be fixed.
Except the Standard type, other variations are all available upon request. E-type air feeder (instead of pilot lever, fixed with a pilot electromagnetic valve), Standard & R type air feeder (Based on standard type, added with an electromagnetic valve to make the fixed clamp carry a releasing function ) and E & R type (Both electromagnetic pilot valve and releasing valves are fixed ) can be supplied according to the real applications to different press machines.
If a high precision feeding is needed, an electromagnetic valve for the fixed clamp’s releasing function is required; if a shorter stroke or long distance feed is happened to the press process, an electromagnetic pilot valve must be fixed.
Model | AF-1C | AF-2C | AF-3C | AF-4C | AF-5C | AF-6C |
Max. Width(mm) | 50 | 65 | 80 | 100 | 150 | 200 |
Max. Length(mm) | 50 | 80 | 80 | 130 | 150 | 200 |
Max. Thickness(mm) | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2 |
Air Press (kg/cm2) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Max. Speed (strokes/min) | 200 | 160 | 150 | 93 | 80 | 60 |
Weight(kg) | 8.8 | 9.6 | 12.8 | 19.6 | 38.4 | 52.4 |
Model | AF-7C | AF-8C | AF-10C | AF12C | AF-14C | AF-5CS |
Max. Width(mm) | 250 | 300 | 400 | 500 | 600 | 150 |
Max. Length(mm) | 250 | 300 | 400 | 500 | 600 | 150 |
Max. Thickness(mm) | 2.5 | 2.5 | 3 | 3 | 3.5 | 6 |
Air Press (kg/cm2) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Max. Speed (strokes/min) | 48 | 40 | 30 | 23 | 20 | 60 |
Weight(kg) | 80 | 95 | 178 | 240 | 200 | 90 |
