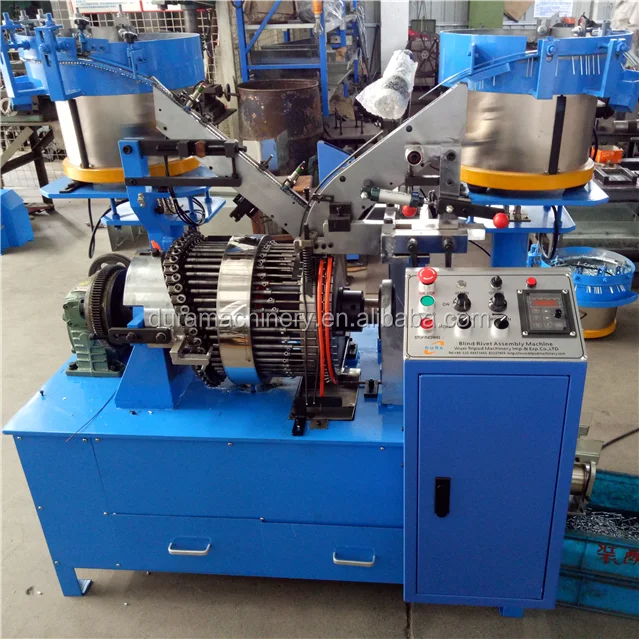

Blind rivet machine for assembling blind rivet, blind rivet machine

Product Overview

Description

Features



1. It is blind rivet machine of blind rivet production line, composed of such automatic mechanisms as feeding, assembling, stopping when defective rivets and nails/mandrel, rivet vacancy or nail/mandrel vacancy are detected, a mal-functioning or a breakdown happened to the machine.



2. To protect the motor from overload damage, the torque protection device is equipped, when the twisting force exceeds an applicable limit, the clutch automatically skid, and 5 seconds later the machine stops.



3. The operating speed is adjustable by using variable frequency inverter so as to suit the production efficiency for different length of assembled blind rivets.



Technical Specifications



Model	Unit	ACM-3	ACM-4
Applications		Al./AlMg Blind Rivets	Steel/Stainless Steel Blind Rivets
Blind rivet size range (Dia.x Length)	mm	(Ø2.7 - Ø 5) x (4 -30 )	(Ø2.7 - Ø 5) x (4 -30 )
Capacity	pcs/min.	500-600	300-500
Motor power	kw	0.75	2.2
Power Applicable		220V, 50Hz, 1-phase
Net weight(approx.)	kg	500	800
Overall dimensions	mm	1450 x 600 x 1800	1550 × 800 ×1900

Note:

1. Different diameter of blind rivet requires change of assembling mould/die/tool/matrix;

2. The specifications are subject to change without further notice.
