Fireproof Reinforced Calcium Silicate Partition Board
- Category: Fireproofing Materials >>>
- Supplier: Guangdong New Element Building Material Co. Ltd. [Guangdong China]Guangdong
Share on (50112688):
Product Overview
Description

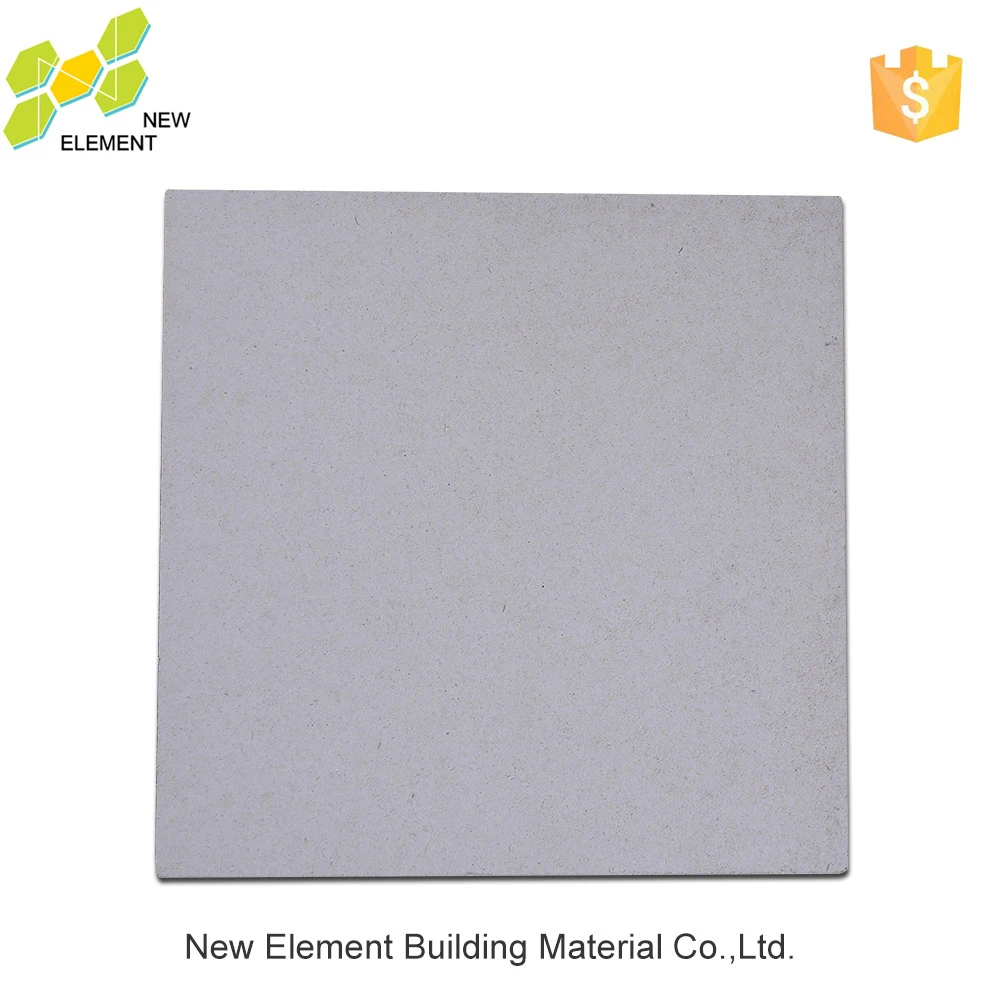

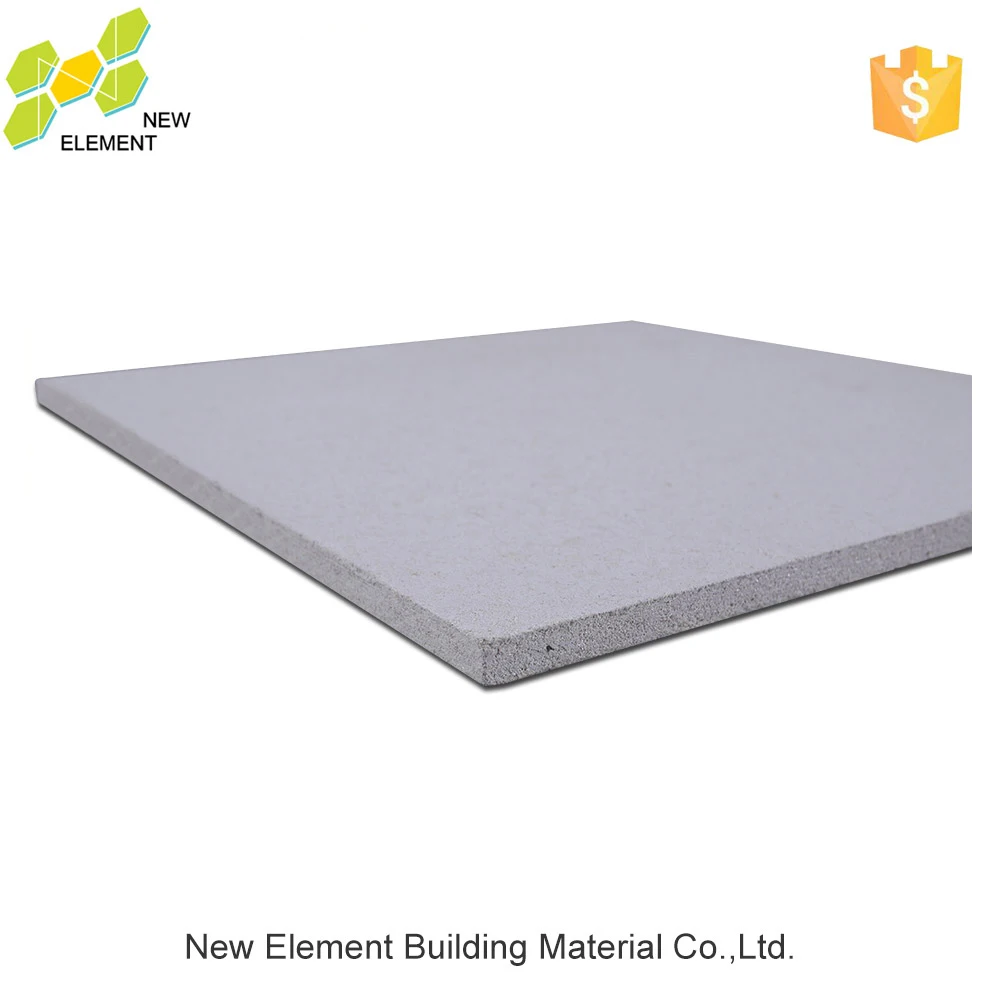

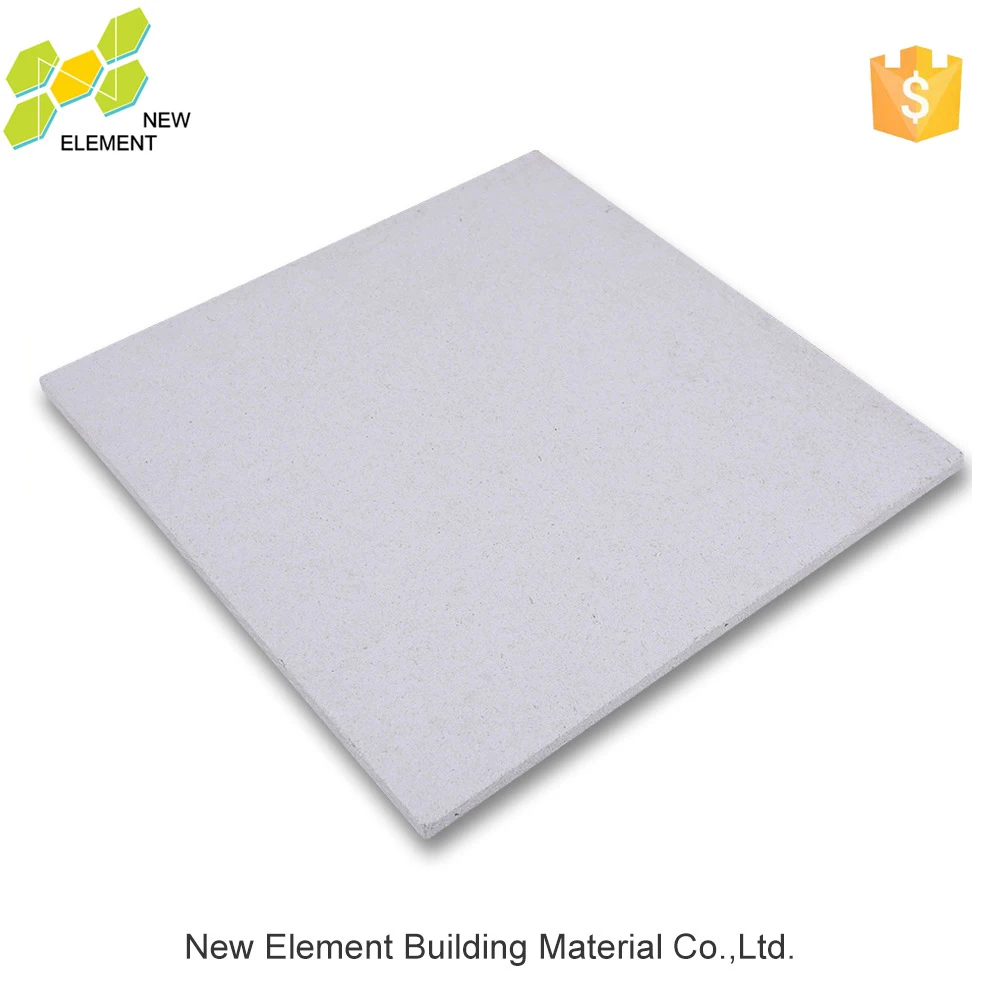

Fireproof Reinforced Calcium Silicate Partition Board
Product Feature
1.100% asbestos-free
2.A1 class High fire rating:4 hours
3.High fireproof temperature: up to 1200℃
4. Fireproof material: pure quartz, quit lime,
portland cement, cellulose, mineral additives
5.Low density:≤0.95g/cm3
6.Easy to install & fix
7.Excellent impact resistant
Specification
1.Specification
| Thickness | Width | Length |
|
9,12,15,18,20,24mm |
1220mm | 2440,3050mm |
| REMARK: We can also supply other specification as the client’s specially requirement | ||
2.Physical properties
The following data are the average tested figures during manufacturing
| Item | Index | Unit | |||
| Density |
≤0.95 |
g/cm3 | |||
| Thermal Conductivity | ≤0.20 | W/(m·k) | |||
| Water Contain | ≤10 | % | |||
| Moisture Movement | ≤0.25 | % | |||
| Non-combustibility | GB 8624 Class A, BS 476 part 4,6 and 7 | / | |||
| Bending Strength | Oven dry | Cross | ≥7.0 | Mpa | |
| Parallel |
≥5.0 |
Mpa | |||
Fire Board Use

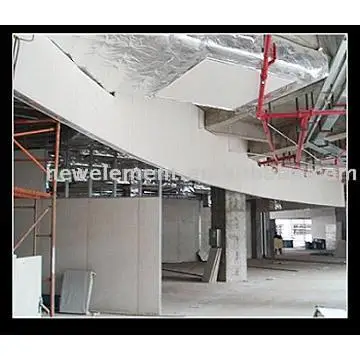

For partition wall
Other application

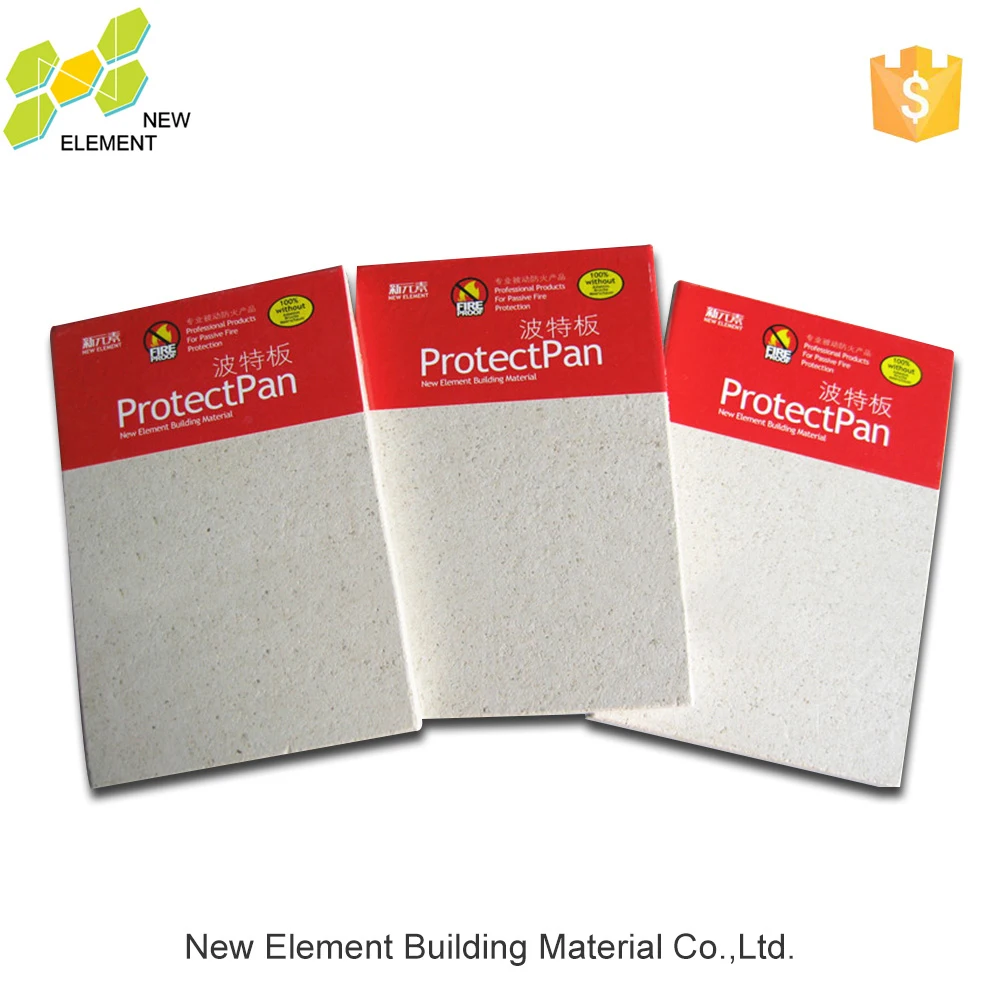

The purpose of ProtectPan is for higher performance of fire rating application for
glass curtain wall fire protection
building structure protection
indoor partition and ceiling
ventilation ducting
smoke ducting
smoke curtain
China National Convention Center (Material: fireproof ProtectPan, coverage: 12000 square meters)
1.Electronic Machine Room /Cable Fire Protection Wrapping
2.Steel Strip Ventilation Ducting Fire Protection Wrapping
3.Self-support Fire Rating Ventilation Ducting
4.Fire Rating Ceiling
5.Steel Column Fire Protection Wrapping
6.Steel Beam Fire Protection Wrapping
7.Glass Cladding Fire Protection Wall
8.Fire Rating Vertical Wall
9.Fire Rating Wall
Installation system
More products
Company Information
1. Guangdong New Element Building Material Co., Ltd was established in 2003.
It has 3 highly mechanized pulp flowing production line.
2. Annual output for Non-Asbestos fiber reinforced calcium silicate board/fiber cement board is more than 10 million square meters.
3.The unique manufacturer which produce low, medium, and high-density products in China.
4.CE,BS,AS,ISO9001,14001, China Environmental Labeling Product Certificate.
5.Have our own R&D team.
6.ProtectPan in Tianjin tunnel project, Cladboard in National stadium Olympic project, and StarPan in
Guangzhou TV tower project that was awarded “New Century, New Architecture, New Material -
China Building Application & Innovation”
R & D detection
Quality control
We dedicate to the production mangament and the quality control .
So the products reach the quality level in Europe .
All products are awarded the China Environmental Labeling Product Certification .
And they reach non-combustibility A1 grade (The highest grade) when being tested by National
fire protection building materials quality supervision and inspection center .
Packaging & Shipping
