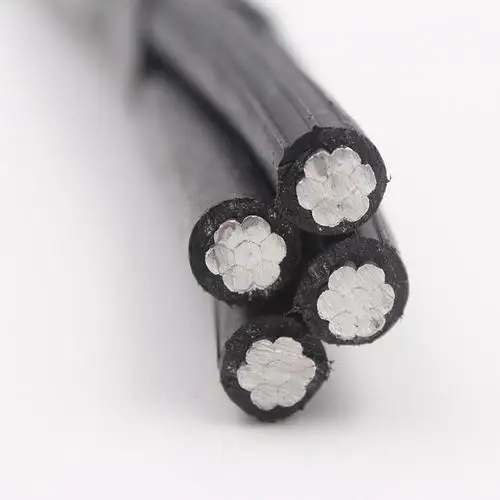

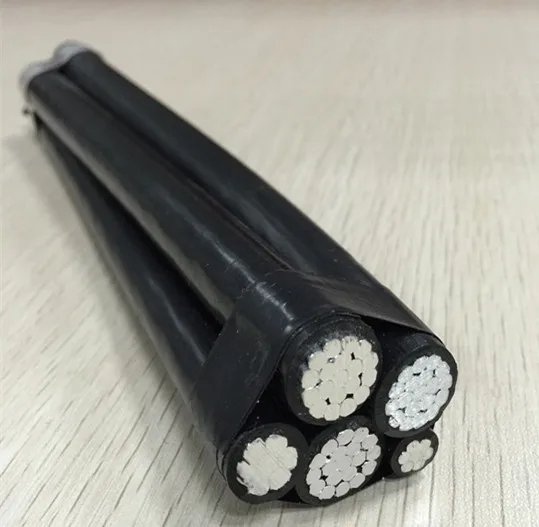

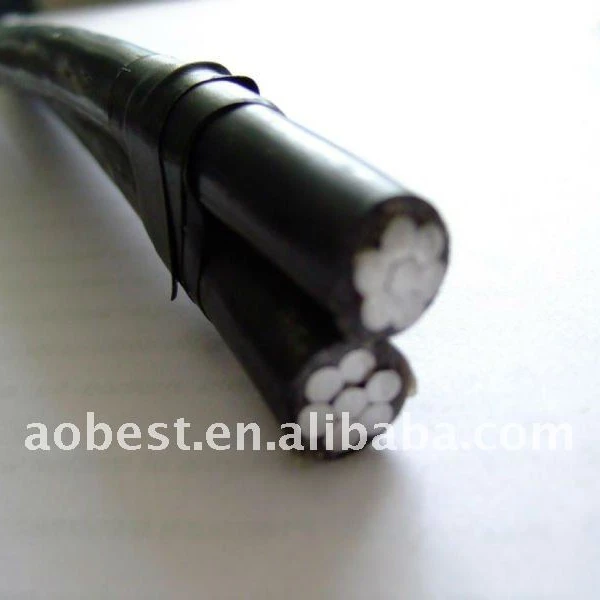

NFA 2*16mm2 ABC aerail boundled cable

Product Overview

Description

NFA -2*16mm2 ABC aerail boundled cable



1).ABC cable is a new type of aerial cable for power transmitting.it is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting.

2). Standard: IEC 228, IEC 209, IEC60502

3). Specification: Phase conductor:Aluminum stranded conductor(compacted)

                           Neutral line: AAAC messager core

                           Insulation: XLPE insulated, Twisted power cabl

4). Nominal cross section: 10-120sqmm

5). Product feature

     (a).Max Long-time operating temperature of XLPE insulated cable is 90°C.

     (b).temperature of cable should not be less than -20°C.

     (c).Max short-circuit temperature is not exceed 250°C,not more than 5 sec.

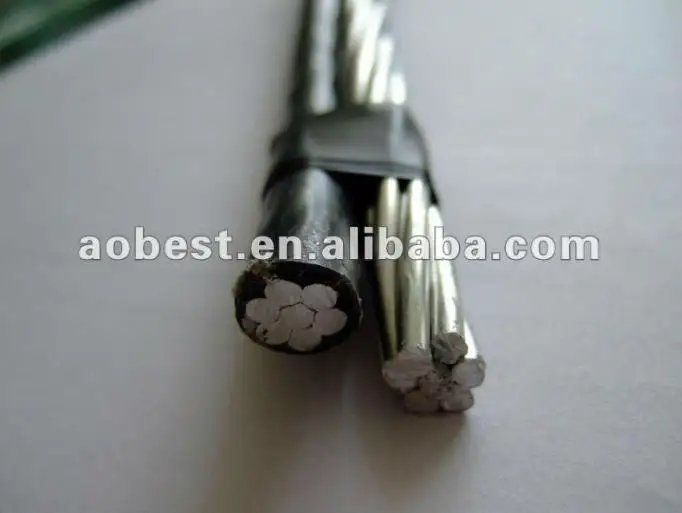

ABC Cable with AAAC message core

SPEC mm2	Conductor structure		Insulation Material	Insulation Thickness (mm)	Approx overall diameter (mm)	Approx weight (kg/km)
	Phase (compacted Al)	Neutral (alloy)
	No./mm	No./mm
1*16+1*16	7/1.72	7/1.72	XLPE     (HDPE)	1.2	12.5	110.1
1*25+1*25	7/2.15	7/2.15		1.2	14.9	163.9
1*35+1*35	7/2.54	7/2.54		1.4	17.5	229.0
1*50+1*50	7/2.92	7/2.92		1.4	20.1	300.0
1*70+1*70	19/2.15	19/2.15		1.4	23.6	423.2
1*95+1*95	19/2.54	19/2.54		1.6	27.6	585.4
2*16+1*16	7/1.72	7/1.72		1.2	14.2	175.8
2*25+1*25	7/2.15	7/2.15		1.2	16.7	258.4
2*35+1*35	7/2.54	7/2.54		1.4	19.7	361.2
2*50+1*50	7/2.92	7/2.92		1.4	22.5	472.1
2*70+1*70	19/2.15	19/2.15		1.4	26.1	658.3
2*95+1*95	19/2.54	19/2.54		1.6	30.5	908.2
3*16+1*16	7/1.72	7/1.72		1.2	16.3	241.5
3*25+1*25	7/2.15	7/2.15		1.2	19.1	353.6
3*35+1*35	7/2.54	7/2.54		1.4	22.5	493.5
3*50+1*50	7/2.92	7/2.92		1.4	25.7	644.1
3*70+1*70	19/2.15	19/2.15		1.4	29.7	895.2
3*95+1*95	19/2.54	19/2.54		1.6	34.6	1233.5



If you have some need of our electric cable and wire ,contact me ,we will give you a reasonable price. sales009(at)aobest.cn
