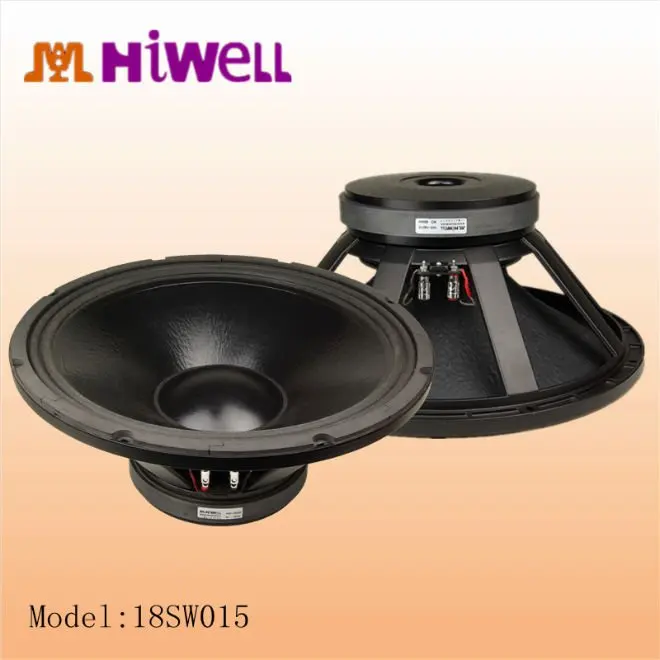

powerful deep bass sound speaker 18SW015

Product Overview

Description

professional woofer speaker\\sub-woofer speaker\\ loudspeaker\\bass speaker



More powerfull and sound is so deep



Features

Power handling capacity 600 W RMS

Reference efficiency(1W @ 1m) 97.5 dB SPL

Voice coil size 99.3mm/4 inch

Usable frequency range 37.68--2000 Hz

Environmental withstanding Outdoor









Specifications
Nominal Diameter	460/18	mm/inch
Nominal Impedance	8	Ohm
Minimum Impedance	7	Ohm
Power handling
(50-500Hz)
Nominall	600	Watts
Continuous Program	1200	Watts
Sensitivity (1W/1m)3	97.5	dB
Frequency Range	37.68-2000	Hz
Voice Coil Diameter	99.3/4	mm/inch
Winding Material	Copper
Former Marerial	KSV
Winding Depth	22/0.9	mm/inch
Magnetic Gap Depth	12/0.5	mm/inch
Flux density	1.1	T
Thiele-Small parameters4
Fs	37.68	Hz
Re	5.7	Ohm
Qes	0.376
Qms	18.39
Qts	0.369
Vas	256	liters
η0	3.47	%
X max	5	mm
X mech	20	mm
Mms	170.6	gr
BL	25	N/A
Le	2.76	mH
Mounting and Shipping Information
Blot Circle Diameter	435/17	mm/inch
Overall Diameter	460/18	mm/inch
Baffie Cutout Diameter	417/16.4	mm/inch
Depth	200/7.9	mm/inch
Flang and Gasket Tickness	20/0.8	mm/inch
Net Weight	12.9	Kg
Shipping Weight	13.9	Kg
Shipping BOX	470×470×210	mm
Magnet Size	220*110*25	mm
