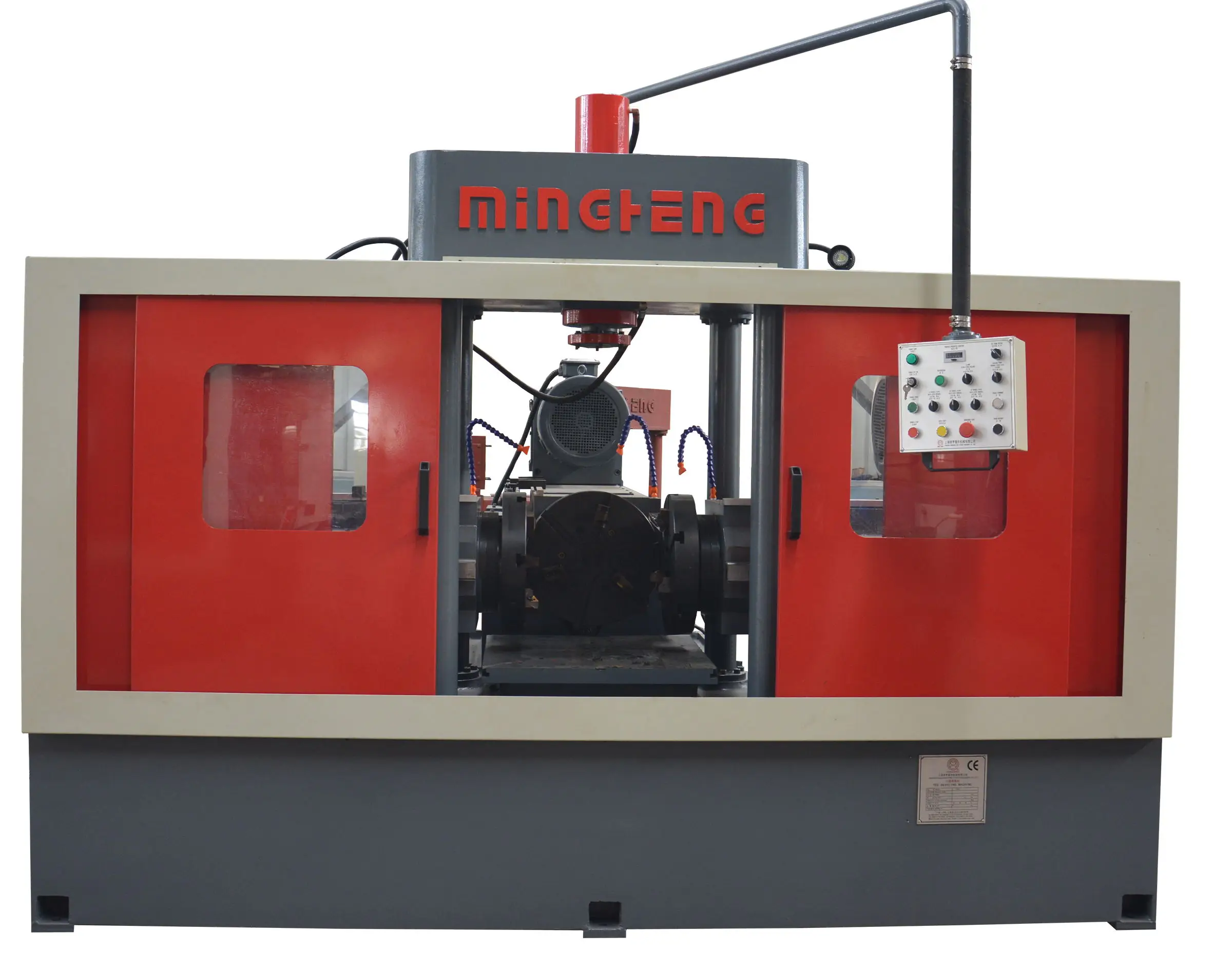

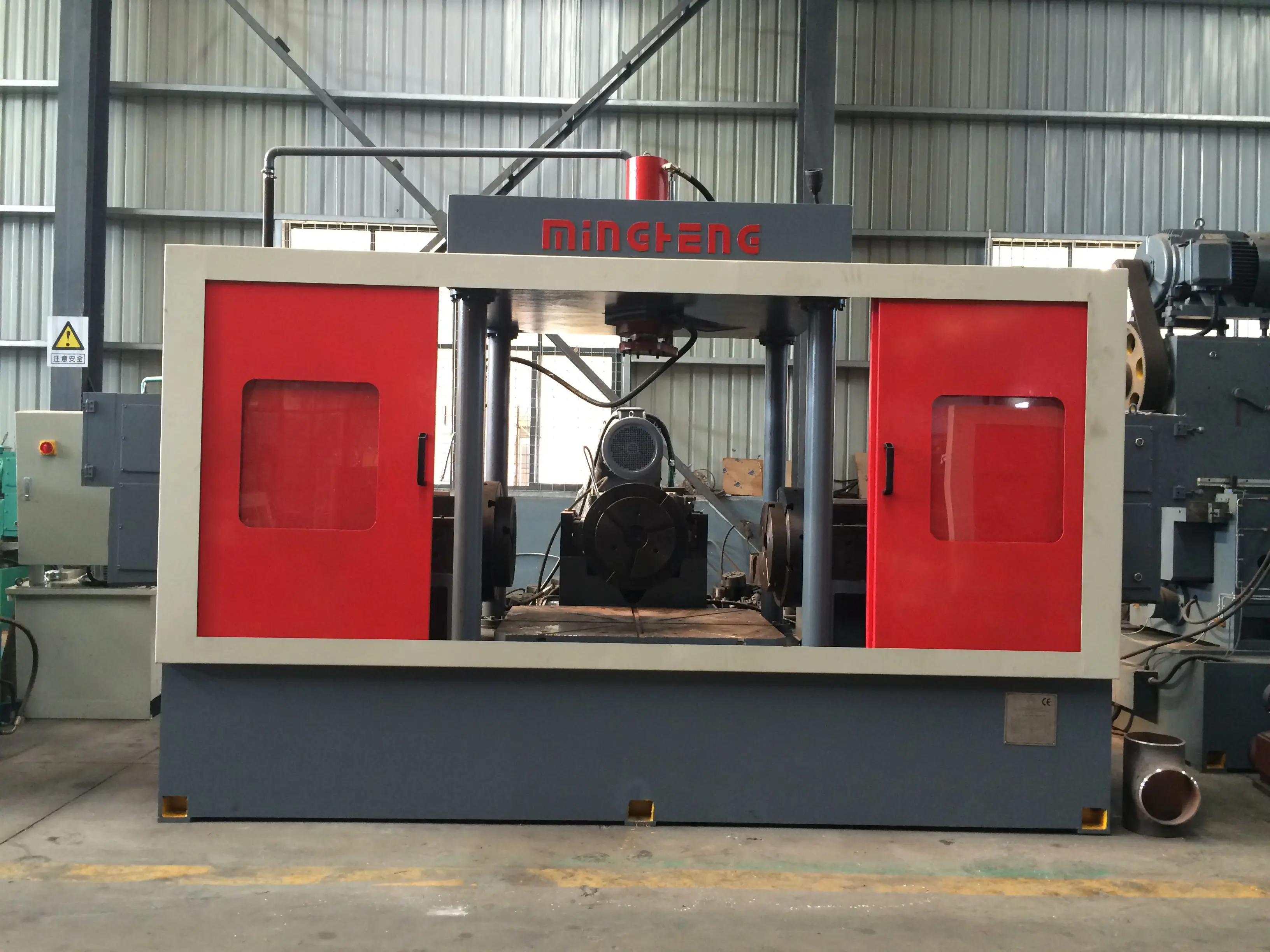

stainless steel hydraulic tee beveling machine for tee ends chamfering

Product Overview

Description

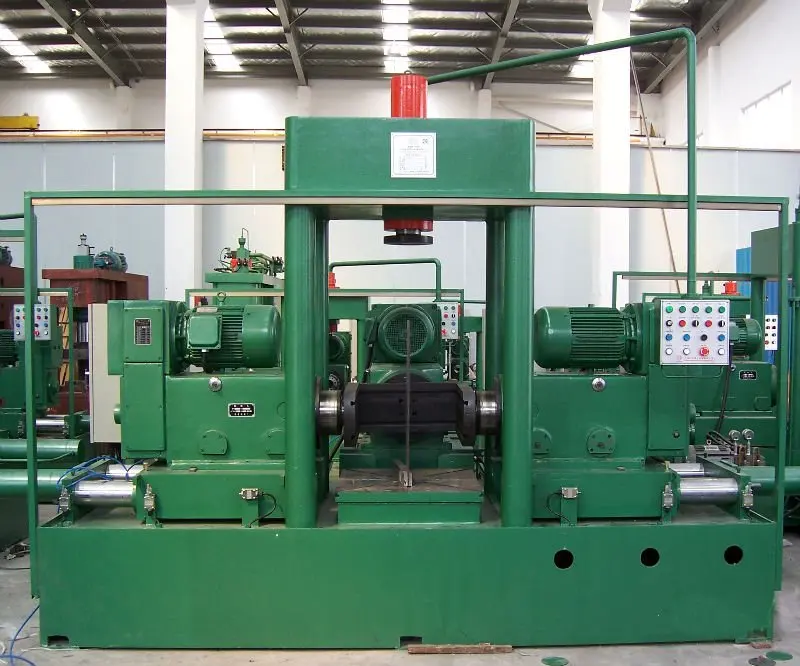

The YSDJ series hydraulic tee beveling machine has the features of unique design, compact structure beautiful look and convenient to operate.



It is an ideal equipent for beveling both equal and unequal tees of size from 1/2'' to 48''



There are three cutters for each clamp disk, they serve for different range of work and can work at the same time to ensure the effective cutting and fully satisfied the stable requirements of the guide track under the status of strong cutting



Its cutting speed are adjustable in according to the size and the thickness of elbows



The products processed by the machine are comply with relevant elbow beveling standard



	YSDJ2503A	YSDJ3204B	YSDJ4008A	YSDJ4010B	YSDJ5012B	YSDJ5016A	YSDJ6324A	YSDJ6332B	YSDJ8036A
Processing Size Range (inch)	1/2-3''	1-4''	3-8''	4-10''	5-12''	8-16''	12-24''	22-32''	28-36''
Max Processing Thickness (SCH)	SCH80	SCH80	SCH80	SCH80	SCH80	SCH80	SCH80	SCH80	SCH80
Spindle Moving Type	Hydraulic Stepless Speed Control	Hydraulic Stepless Speed Control	Hydraulic Stepless Speed Control	Hydraulic Stepless Speed Control	Hydraulic Stepless Speed Control	Hydraulic Stepless Speed Control	Hydraulic Stepless Speed Control	Hydraulic Stepless Speed Control	Hydraulic Stepless Speed Control
Workpiece Clamping Type	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
System Pressure (Mpa)	7	7	7	7	7	7	7	7	7
Overall Dimension (M)	1.9*1.75*1.9	1.9*1.75*1.9	2.4*2.1*2.2	3.0*2.3*2.4	3.5*2.5*2.8	3.6*2.9*3.0	5.1*3.5*3.8	5.6*3.9*4.0	6.2*4.3*4.5
General Power (KW)	16	16	25	26	36	40	48	78	95
Weight (T)	3.1	3.9	7.3	9.5	11.8	14	24	31	38
