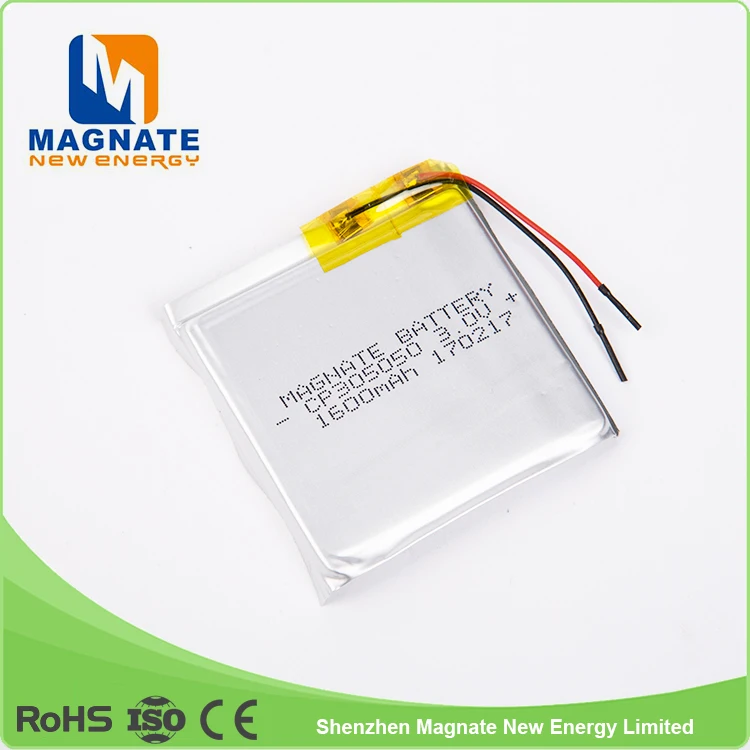

MAGNATE Battery CP305050 3V 1600mah with AWG wires

Product Overview

Description

Model: CP305050

Description: Lithium Manganese Dioxide Battery cell, Thin cell, Prismatic thin cells.
Nominal voltage: 3.0V
Nominal capacity: 1600mAh(Continuously discharged under 1mA current till 2.0V endvoltage
at the temperature of 23°C±3°C )
Max. constant current: 1000mA
Max. pulse current: 2000mA
Operating temperature range: -40°C~+60°C

Weight : 13g
Self-discharging rate: ≤2% per year.



 Lithium Manganese Dioxide Battery, 3.0V battery cell, thin cells, Lithium Prismatic thin cell, battery packs. Battery with solde pins ( Battery / battery cells with S pin, T pin, P pin, 2PT pin, 3PT pin, 3TP pin, 3PF pin, 3FP pin, 4PF pins and so on)

Batteries with Molex 51021-2p connector, PF13-2630 , Molex 5264-02 connectors and JST connectors and so on.



Application:

Nonstop charging system, Intelligence parking lot, Container identification, Vehicle charge check, Mine personnel identification, Automated railcar identification management, Automated road charge management, Automated voyage passenger luggage identification, Transport management, Vehicle entry and exit control, Campus all-purpose card, Repasting card, Public transportation card, Associator card, Drive license card, Health ( Medical treatment) card, etc.

Both Commonly used in autocontrol of production line and machining process, animal identification ( raising cattle, sheep, etc), automated management of logistic and storage, automobile remote control lock, intellectualized door and so on.

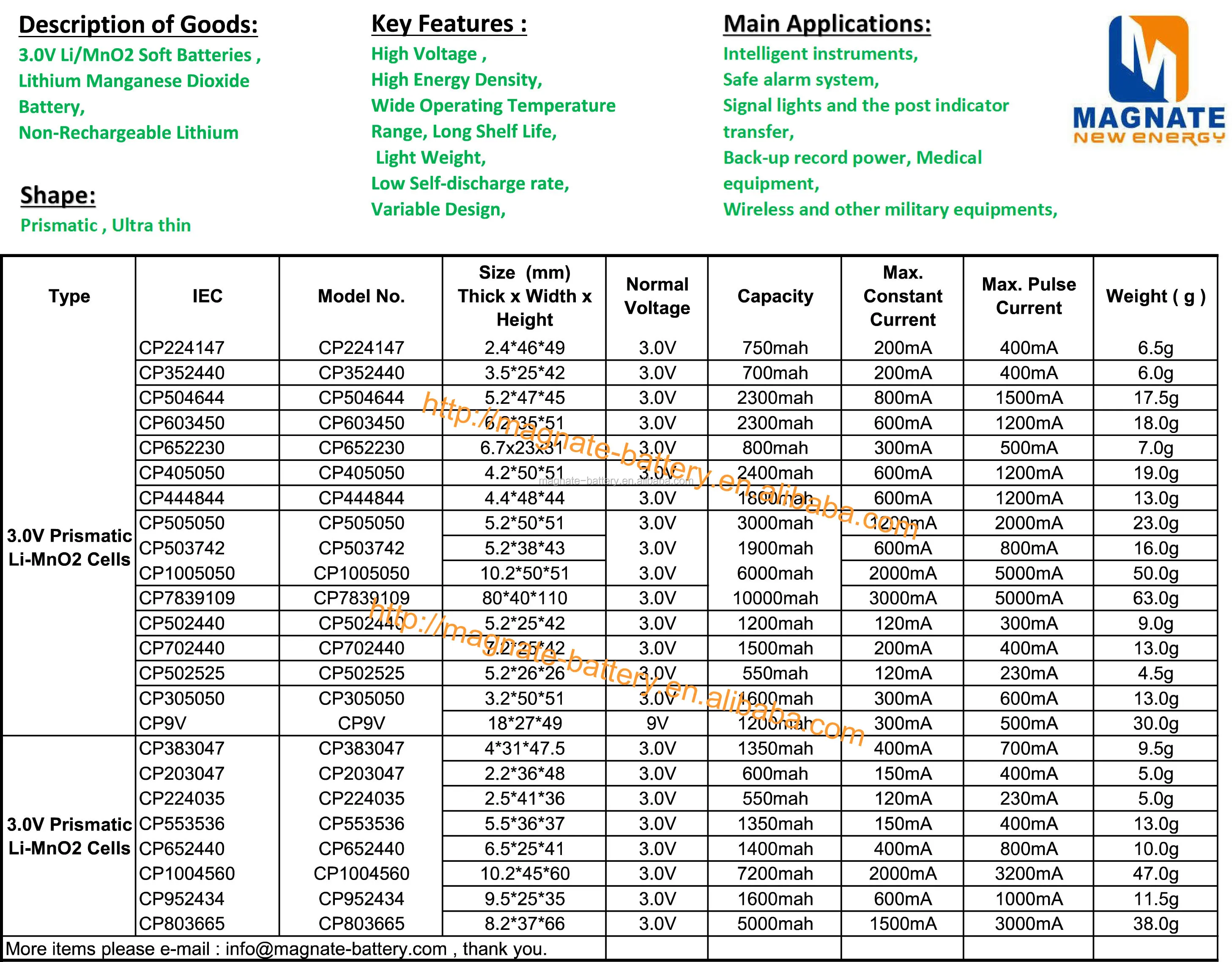

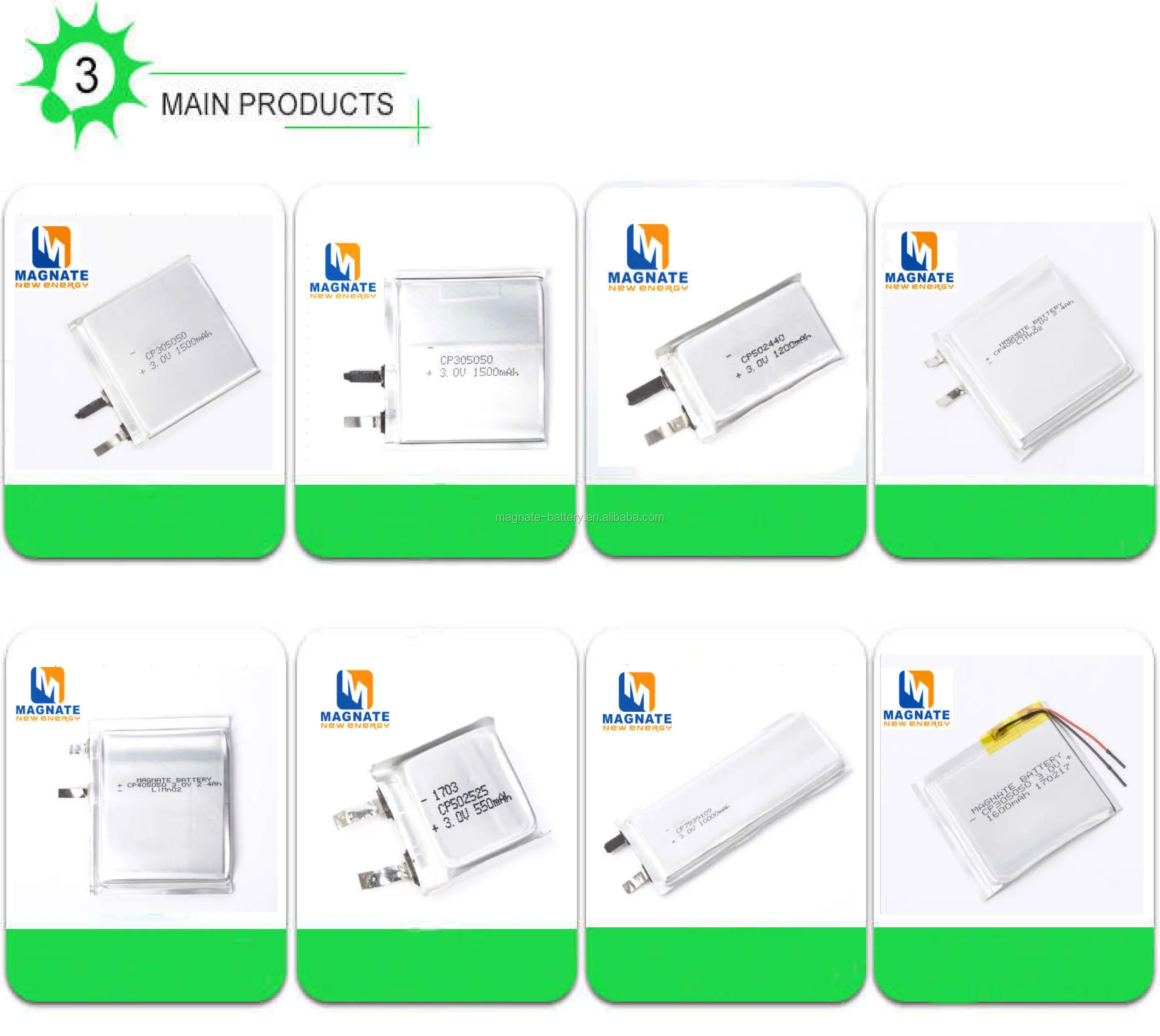

Ultra thin cells:C80400RP,C80600RP, CP702440,CP073040, CP203047, CP204440, CP224035,CP224147, CP225040, C254442, CP352440, CP383047,CP305050, CP502025, CP502525, CP502440, CP504644, CP505050, CP502440, CF502440, CP603450, CP651615, CP651625, CP9V,
