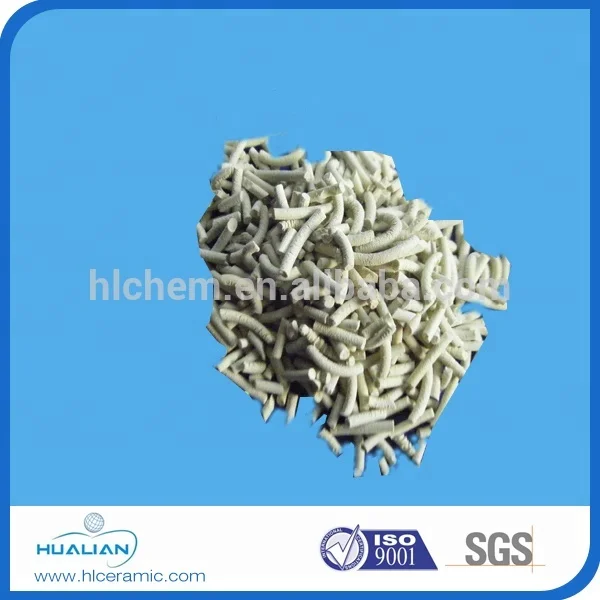

Hydrogenation Catalyst(Co Mo/Al2O3) used in Petro plant

Product Overview

Description

Hydrogenation Catalyst(Co-Mo/Al2O3) Used in Petro Plant:



With alumina as carrier, nickel as main active component, the catalyst is Widely used in aviation kerosene to

hydrogenation dearomatization, benzene hydrogenation to cyclohexane, phenol hydrogenation to cyclohexanol

hydrotreating, hydrofining of industrial crude hexane, and organic hydrogenation of unsaturated aliphatic hydro-

carbons and aromatic hydrocarbons, such as white oil, lube oil hydrogenation. It can also be used for liquid phase

efficient desulfurization, and sulfur protective agent in catalytic reforming process. The catalyst has high strength,

excellent activity, in the hydrogenation refining process, which can make aromatic or unsaturated hydrocarbon down

to ppm level. The catalyst is reduced state which is stabilizing treatment.

By comparison, the catalyst which has been used successfully in dozens of plants in a world, is better than similar

domestic products.

Physical and chemical properties:

Item	Index	Item	Index

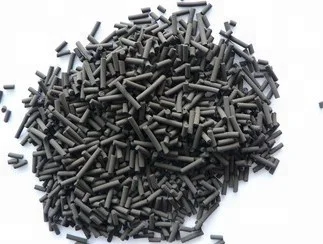

appearance	black cylinder	Bulk density ,kg/L	0.80-0.90
Particle size,mm	Φ1.8×-3-15	Surface area,m2/g	80-180
Chemical components	NiO-Al2O3	Crushing strength ,N/cm ≥	50



Activity evaluation conditions:

Process conditions	system pressure Mpa	Hydrogen Nitrogen space velocity hr-1	Temperature °C	Phenol space velocity hr-1	Hydrogen phenol ratio mol/mol
	Normal pressure	1500	140	0.2	20
Activity level	Feedstock: phenol, the conversion of phenol min 96%
