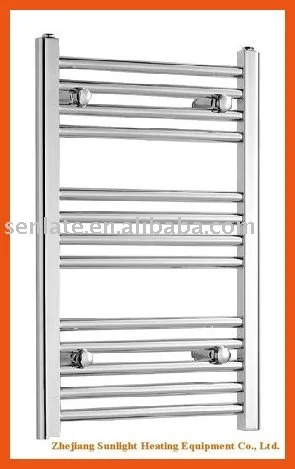

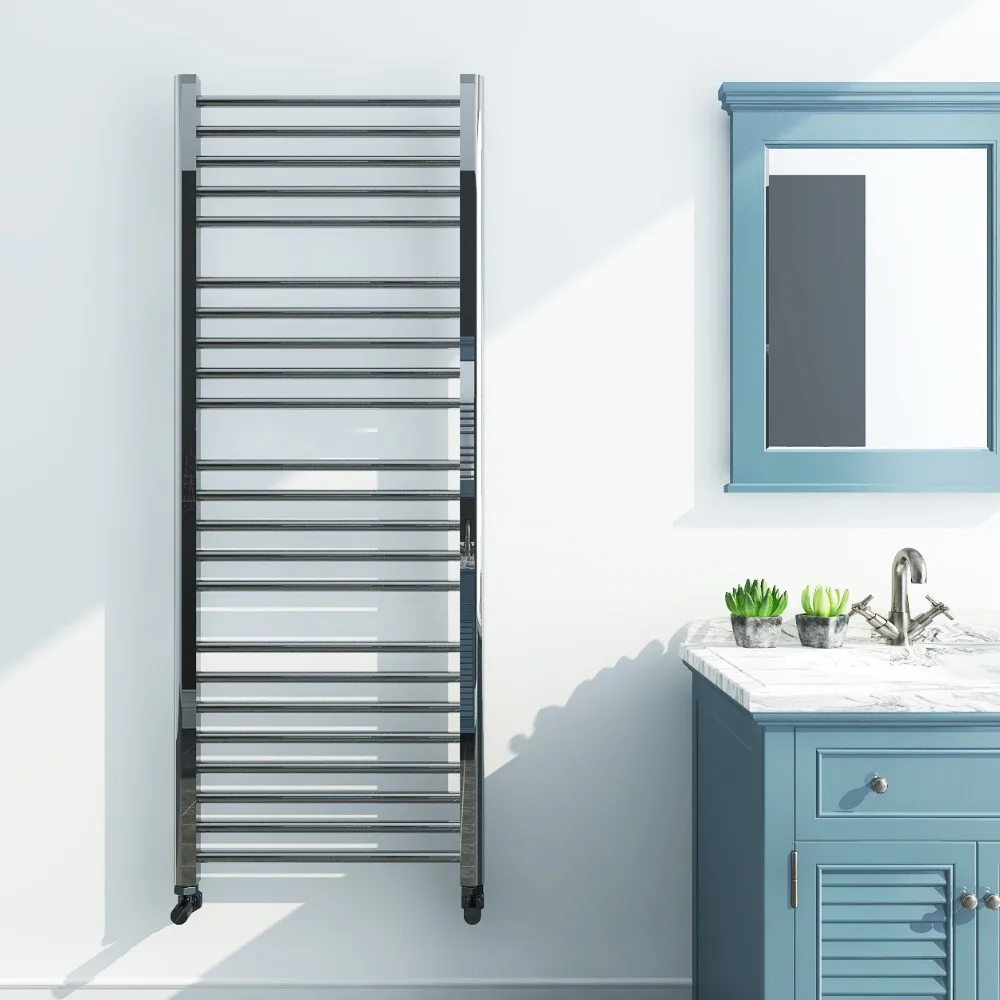

best selling ladder style chrome water Heated Towel Rail steel rail electric towel rail

Product Overview

Description

This Heated Towel Rail steel rail have many uses including but not limited to drying bath towels and heating bathroom. It also helping to dry gloves, scarves and hats wet from snow or rain. They can be installed anywhere in your home to allow for the most convenient use. Suitable for hot water central heating systems



Specifications of electric towel rail:
1) Sizes:
a) 700 x 450mm
b) 700 x 500mm
c) 700 x 550mm
d) 700 x 600mm

2) Material:
a) Steel tube (low-carbon steel): welded tube
b) 20/22/25mm diameter "O" shaped horizontal crossbars thickness: 1.2mm
c) 40mm x 30mm "D" shaped vertical tubes thickness: 1.5mm

3) Plating: copper + nickel + chrome (European standard)
4) Pressure: 15 bars
5) Welding: brass
6) Accessory:Supplied wall brackets, blanking plug and air vent plug
7)packing details:
a)Inner packing: Standard package
b)Outer packing: 1pc/ctn

Model Size	Crossbar Qty	Crossbar Dia	Center Distance	Carton Size(CM)
mm	pcs	mm	mm	Flat Product	Curved Product
700*450	13(4-4-5)	20/22/25	400/414	72.5*4.5*47	72.5*6*47
700*500	13(4-4-5)	20/22/25	450/464	72.5*4.5*52	72.5*6*52
700*550	13(4-4-5)	20/22/25	500/514	72.5*4.5*57	72.5*6*57
700*600	13(4-4-5)	20/22/25	550/564	72.5*4.5*62	72.5*6*62
800*450	18(5-13)	20/22/25	400/414	82.5*4.5*47	82.5*6*47
800*500	18(5-13)	20/22/25	450/464	82.5*4.5*52	82.5*6*52
800*550	18(5-13)	20/22/25	500/514	82.5*4.5*57	82.5*6*57
800*600	18(5-13)	20/22/25	550/564	82.5*4.5*62	82.5*6*62
970*450	20(4-8-8)	20/22/25	400/414	99.5*4.5*47	99.5*6*47
970*500	20(4-8-8)	20/22/25	450/464	99.5*4.5*52	99.5*6*52
970*550	20(4-8-8)	20/22/25	500/514	99.5*4.5*57	99.5*6*47
970*600	20(4-8-8)	20/22/25	550/564	99.5*4.5*62	99.5*6*62
1000*450	21(5-8-8)	20/22/25	400/414	102.5*4.5*47	102.5*6*47
1000*500	21(5-8-8)	20/22/25	450/464	102.5*4.5*52	102.5*6*52
1000*550	21(5-8-8)	20/22/25	500/514	102.5*4.5*57	102.5*6*57
1000*600	21(5-8-8)	20/22/25	550/564	102.5*4.5*62	102.5*6*62
1150*450	21(3-5-5-8)	20/22/25	400/414	117.5*4.5*47	117.5*6*47
1150*500	21(3-5-5-8)	20/22/25	450/464	117.5*4.5*52	117.5*6*52
1150*550	21(3-5-5-8)	20/22/25	500/514	117.5*4.5*57	117.5*6*57
1150*600	21(3-5-5-8)	20/22/25	550/564	117.5*4.5*62	117.5*6*62
1200*450	26(4-10-12)	20/22/25	400/414	122.5*4.5*47	122.5*6*47
1200*500	26(4-10-12)	20/22/25	450/464	122.5*4.5*52	122.5*6*52
1200*550	26(4-10-12)	20/22/25	500/514	122.5*4.5*57	122.5*6*57
1200*600	26(4-10-12)	20/22/25	550/564	122.5*4.5*62	122.5*6*62
1450*450	27(4-6-6-11)	20/22/25	400/414	147.5*4.5*47	147.5*6*47
1450*500	27(4-6-6-11)	20/22/25	450/464	147.5*4.5*52	147.5*6*52
1450*550	27(4-6-6-11)	20/22/25	500/514	147.5*4.5*57	147.5*6*57
1450*600	27(4-6-6-11)	20/22/25	550/564	147.5*4.5*62	147.5*6*62
